第五次作业
作业一
-
要求
熟练掌握 Selenium 查找HTML元素、爬取Ajax网页数据、等待HTML元素等内容。
使用Selenium框架爬取京东商城某类商品信息及图片。
-
代码
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
import urllib.request
import threading
import sqlite3
import os
import datetime
from selenium.webdriver.common.keys import Keys
import time
import pymysql
class MySpider:
headers = {
"User-Agent": "Mozilla/5.0 (Windows; U; Windows NT 6.0 x64; en-US; rv:1.9pre) Gecko/2008072421 Minefield/3.0.2pre"}
imagePath = "download"
#No=0
def startUp(self, url, key):
# # Initializing Chrome browser
#chrome_options = Options()
#chrome_options.add_argument('--headless')
#chrome_options.add_argument('--disable-gpu')
self.driver = webdriver.Chrome()#chrome_options=chrome_options)
# Initializing variables1
self.threads = []
self.No = 0
self.imgNo = 0
# Initializing database
try:
self.con = pymysql.connect(host="127.0.0.1", port=3306, user="root", passwd="123456", db="mydb",
charset="utf8")
self.cursor = self.con.cursor(pymysql.cursors.DictCursor)
self.cursor.execute("delete from computer")
except Exception as err:
print(err)
# Initializing images folder
try:
if not os.path.exists(MySpider.imagePath):
os.mkdir(MySpider.imagePath)
images = os.listdir(MySpider.imagePath)
for img in images:
s = os.path.join(MySpider.imagePath, img)
os.remove(s)
except Exception as err:
print(err)
self.driver.get(url)
keyInput = self.driver.find_element_by_id("key")
keyInput.send_keys(key)
#在键盘输入enter
keyInput.send_keys(Keys.ENTER)
def closeUp(self):
try:
self.con.commit()
self.con.close()
self.driver.close()
except Exception as err:
print(err);
def insertDB(self, mNo, mMark, mPrice, mNote, mFile):
try:
self.cursor.execute(
"insert into computer (mNo,mMark,mPrice,mNote,mFile) values (%s,%s,%s,%s,%s)",
(mNo, mMark, mPrice, mNote, mFile))
except Exception as err:
print(err)
def showDB(self):
try:
con = sqlite3.connect("phones.db")
cursor =con.cursor()
print("%-8s%-16s%-8s%-16s%s"%("No", "Mark", "Price", "Image", "Note"))
cursor.execute("select mNo,mMark,mPrice,mFile,mNote from phones order by mNo")
rows = cursor.fetchall()
for row in rows:
print("%-8s %-16s %-8s %-16s %s" % (row[0], row[1], row[2], row[3],row[4]))
con.close()
except Exception as err:
print(err)
def download(self, src1, src2, mFile):
data = None
if src1:
try:
req = urllib.request.Request(src1, headers=MySpider.headers)
resp = urllib.request.urlopen(req, timeout=10)
data = resp.read()
except:
pass
if not data and src2:
try:
req = urllib.request.Request(src2, headers=MySpider.headers)
resp = urllib.request.urlopen(req, timeout=10)
data = resp.read()
except:
pass
if data:
print("download begin", mFile)
fobj = open(MySpider.imagePath + "\\" + mFile, "wb")
fobj.write(data)
fobj.close()
print("download finish", mFile)
def processSpider(self):
try:
time.sleep(1)
print(self.driver.current_url)
lis =self.driver.find_elements_by_xpath("//div[@id='J_goodsList']//li[@class='gl-item']")
for li in lis:
# We find that the image is either in src or in data-lazy-img attribute
try:
src1 = li.find_element_by_xpath(".//div[@class='p-img']//a//img").get_attribute("src")
except:
src1 = ""
try:
src2 = li.find_element_by_xpath(".//div[@class='p-img']//a//img").get_attribute("data-lazy-img")
except:
src2 = ""
try:
price = li.find_element_by_xpath(".//div[@class='p-price']//i").text
except:
price = "0"
try:
note = li.find_element_by_xpath(".//div[@class='p-name p-name-type-2']//em").text
mark = note.split(" ")[0]
mark = mark.replace("爱心东东\n", "")
mark = mark.replace(",", "")
note = note.replace("爱心东东\n", "")
note = note.replace(",", "")
except:
note = ""
mark = ""
self.No = self.No + 1
no = str(self.No)
while len(no) < 6:
no = "0" + no
print(no, mark, price)
if src1:
src1 = urllib.request.urljoin(self.driver.current_url, src1)
p = src1.rfind(".")
mFile = no + src1[p:]
elif src2:
src2 = urllib.request.urljoin(self.driver.current_url, src2)
p = src2.rfind(".")
mFile = no + src2[p:]
if src1 or src2:
T = threading.Thread(target=self.download, args=(src1, src2, mFile))
T.setDaemon(False)
T.start()
self.threads.append(T)
else:
mFile = ""
self.insertDB(no, mark, price, note, mFile)
# 取下一页的数据，直到最后一页
try:
self.driver.find_element_by_xpath("//span[@class='p-num']//a[@class='pn-next disabled']")
except:
nextPage = self.driver.find_element_by_xpath("//span[@class='p-num']//a[@class='pn-next']")
time.sleep(10)
#if(self.No<50):
nextPage.click()
self.processSpider()
except Exception as err:
print(err)
def executeSpider(self, url, key):
starttime = datetime.datetime.now()
print("Spider starting......")
self.startUp(url, key)
print("Spider processing......")
self.processSpider()
print("Spider closing......")
self.closeUp()
for t in self.threads:
t.join()
print("Spider completed......")
endtime = datetime.datetime.now()
elapsed = (endtime - starttime).seconds
print("Total ", elapsed, " seconds elapsed")
url = "http://www.jd.com"
spider = MySpider()
while True:
print("1.爬取")
print("2.显示")
print("3.退出")
s = input("请选择(1,2,3):")
if s == "1":
spider.executeSpider(url, "电脑")
continue
elif s == "2":
spider.showDB()
continue
elif s == "3":
break
-

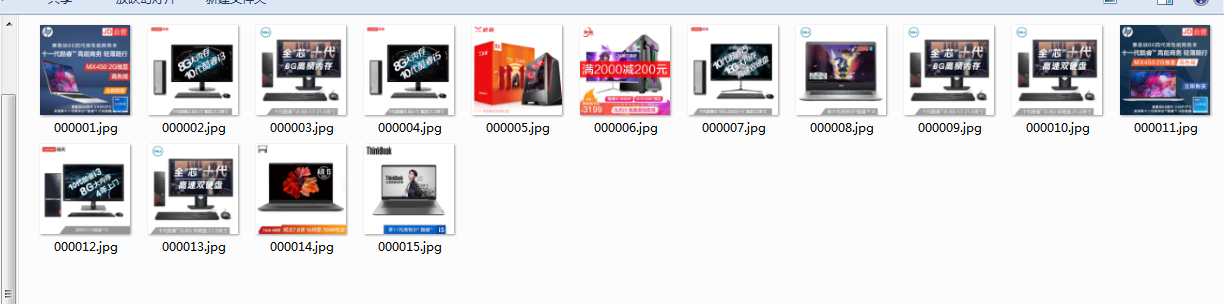

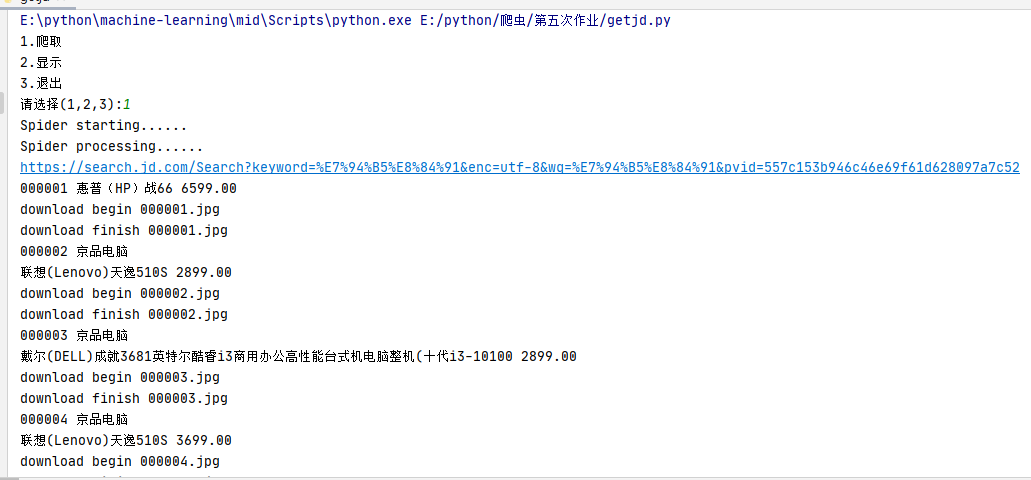

运行结果截图
-
心得体会
1.熟悉了selenium的流程与使用，大致分为：创建一个浏览器对象，通过指定url访问页面，操作页面并获取页面信息，关闭浏览器对象。
2.更加熟悉了python中连接mysql数据库的流程
3.加强了对F12的理解和对xpath提取信息的使用
作业二
-
要求
熟练掌握 Selenium 查找HTML元素、爬取Ajax网页数据、等待HTML元素等内容。
使用Selenium框架+ MySQL数据库存储技术路线爬取“沪深A股”、“上证A股”、“深证A股”3个板块的股票数据信息。
-
候选网络
东方财富网：https://www.eastmoney.com/
-
思路
1.建立一个谷歌浏览器对象，建立与mysql数据库的连接
2.指定要爬取网页的url
3.访问网页，通过xpath爬取股票，并通过翻页处理爬取三页的股票信息
4.通过访问相应的url分别爬取三种类型的股票
5.将爬取的股票信息存储进mysql数据库中
6.关闭浏览器对象，结束与mysql的连接
-
代码
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
import time
import pymysql
class getStocks:
headers = {
"User-Agent":"Mozilla/5.0 (Windows; U; Windows NT 6.0 x64; en-US;rv:1.9pre)"
"Gecko/2008072421 Minefield/3.0.2pre"
}
num = 1
def startUp(self,url):
#建立浏览器对象
chrome_options = Options()
chrome_options.add_argument('--headless')
chrome_options.add_argument('--disable-gpu')
self.driver = webdriver.Chrome(options=chrome_options)
try:
#与mysql建立连接
self.con = pymysql.connect(host="localhost", port=3306, user="root", passwd="123456", db="mydb",
charset="utf8")
self.cursor = self.con.cursor(pymysql.cursors.DictCursor)
self.cursor.execute("delete from stocks")
except Exception as err:
print(err)
self.driver.get(url)
def closeUp(self):
try:
self.con.commit()
self.con.close()
self.driver.close()
except Exception as err:
print(err)
def insertDB(self,id,bCode,bName,bLatestPrice,bUpDownRange,bUpDownPrice,bTurnover,bTurnoverNum,bAmplitude,bHighest,bLowest,bToday,bYesterday):
try:
print(id,bCode,bName,bLatestPrice,bUpDownRange,bUpDownPrice,bTurnover,bTurnoverNum,bAmplitude,bHighest,bLowest,bToday,bYesterday)
self.cursor.execute("insert into stocks (id,bCode,bName,bLatestPrice,bUpDownRange,bUpDownPrice,bTurnover,"
"bTurnoverNum,bAmplitude,bHighest,bLowest,bToday,bYesterday) values "
"(%s,%s,%s,%s,%s,%s,%s,%s,%s,%s,%s,%s,%s)",
(id,bCode,bName,bLatestPrice,bUpDownRange,bUpDownPrice,bTurnover,bTurnoverNum,bAmplitude,bHighest,bLowest,bToday,bYesterday))
except Exception as err:
print(err)
def processSpider(self):
try:
time.sleep(1)
#输出当前url
print(self.driver.current_url)
trs =self.driver.find_elements_by_xpath("//div[@class='listview full']/table[@id='table_wrapper-table']/tbody/tr")
#print(trs)
for tr in trs:
#通过xpath获取需要的信息
id = tr.find_element_by_xpath("./td[position()=1]").text
bCode = tr.find_element_by_xpath("./td[position()=2]/a").text
bName = tr.find_element_by_xpath("./td[position()=3]/a").text
bLatestPrice = tr.find_element_by_xpath("./td[position()=5]/span").text
bUpDownRange = tr.find_element_by_xpath("./td[position()=6]/span").text
bUpDownPrice = tr.find_element_by_xpath("./td[position()=7]/span").text
bTurnover = tr.find_element_by_xpath("./td[position()=8]").text
bTurnoverNum = tr.find_element_by_xpath("./td[position()=9]").text
bAmplitude = tr.find_element_by_xpath("./td[position()=10]").text
bHighest = tr.find_element_by_xpath("./td[position()=11]/span").text
bLowest = tr.find_element_by_xpath("./td[position()=12]/span").text
bToday = tr.find_element_by_xpath("./td[position()=13]/span").text
bYesterday = tr.find_element_by_xpath("./td[position()=14]").text
self.insertDB(id,bCode,bName,bLatestPrice,bUpDownRange,bUpDownPrice,bTurnover,bTurnoverNum,bAmplitude,bHighest,bLowest,bToday,bYesterday)
# 翻页操作，翻至最后一页，但是这里只爬取了三页
try:
self.driver.find_element_by_xpath("//div[@class='dataTables_wrapper']//div[@class='dataTables_paginate paging_input']//a[@class='next paginate_button disabled']")
except:
nextPage = self.driver.find_element_by_xpath("//div[@class='dataTables_wrapper']//div[@class='dataTables_paginate paging_input']//a[@class='next paginate_button']")
time.sleep(10)
self.num += 1
if(self.num<4):
nextPage.click()
self.processSpider()
except Exception as err:
print(err)
def executeSpider(self, url):
print("Spider starting......")
self.startUp(url)
print("Spider processing......")
#分别爬取三种股票
print("沪深A股")
self.processSpider()
self.num =1
url = "http://quote.eastmoney.com/center/gridlist.html#sh_a_board"
self.driver.get(url)
print("上证A股")
self.processSpider()
self.num = 1
url = "http://quote.eastmoney.com/center/gridlist.html#sz_a_board"
self.driver.get(url)
print("深证A股")
self.processSpider()
print("Spider closing......")
self.closeUp()
url = "http://quote.eastmoney.com/center/gridlist.html#hs_a_board"
spider = getStocks()
spider.executeSpider(url)
'''use mydb;
create table stocks
(id varchar(128),
bCode varchar(128),
bName varchar(128),
bLatestPrice varchar(128),
bUpDownRange varchar(128),
bUpDownPrice varchar(128),
bTurnover varchar(128),
bTurnoverNum varchar(128),
bAmplitude varchar(128),
bHighest varchar(128),
bLowest varchar(128),
bToday varchar(128),
bYesterday varchar(128));'''-

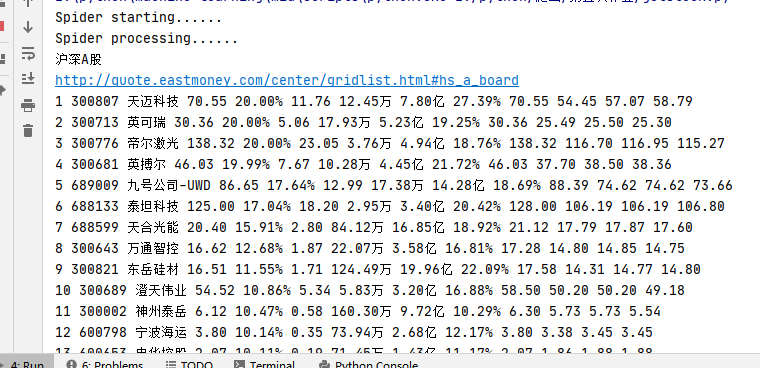

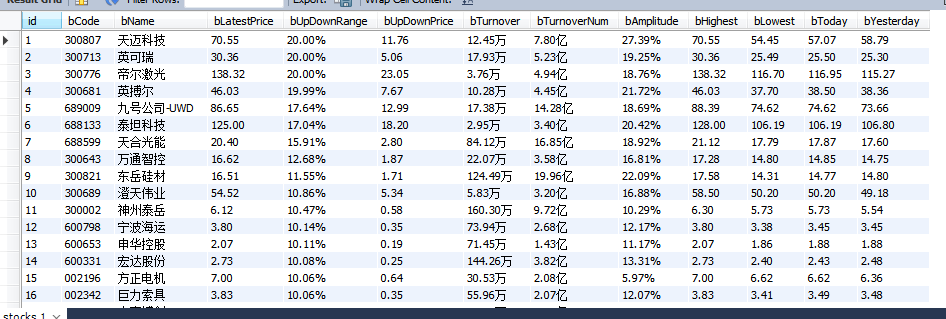

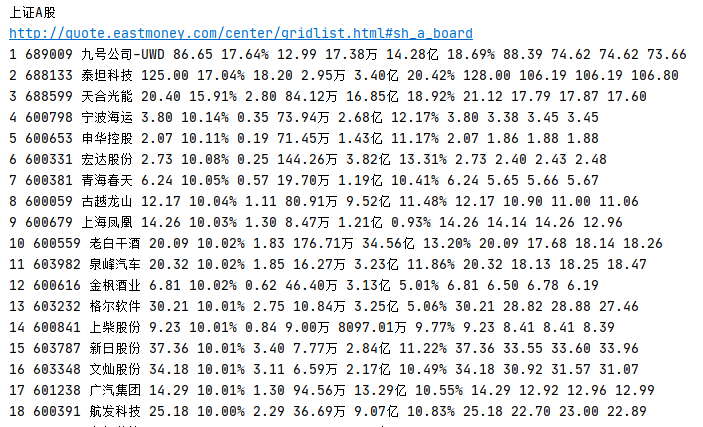

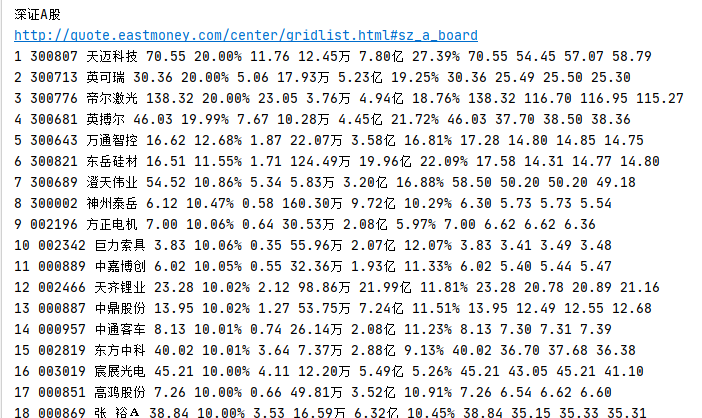

运行结果截图
-
心得体会
1.更加熟悉了selenium框架，对元素的定位也更加熟练
2.在打这题的代码过程中由于不小心将element打成了elements，一直报错，最后还是同学提醒了才发现。在之后的编码过程中要更加的细心，注意在一些细节的地方多留心。
作业三
-
要求
熟练掌握 Selenium 查找HTML元素、实现用户模拟登录、爬取Ajax网页数据、等待HTML元素等内容。
使用Selenium框架+MySQL爬取中国mooc网课程资源信息（课程号、课程名称、学校名称、主讲教师、团队成员、参加人数、课程进度、课程简介）
-
候选网站
中国mooc网：https://www.icourse163.org
-
思路
1.建立浏览器对象，连接mysql数据库
2.通过url访问页面，进行登入操作
3.通过搜索，查找想要爬取的课程信息
4.逐个点击课程，通过跳转页面来获取课程中的信息
5.关闭课程页面，返回总课程页面，继续之后课程的爬取
6.进行翻页操作，爬取更多的课程信息
7.结束爬取，关闭浏览器，将爬取到的数据存储到数据库中
-
代码
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
import time
import pymysql
import re
class getMoocs:
headers = {
"User-Agent":"Mozilla/5.0 (Windows; U; Windows NT 6.0 x64; en-US;rv:1.9pre)"
"Gecko/2008072421 Minefield/3.0.2pre"
}
no = 1
page = 1
def startUp(self,url):
'''chrome_options = Options()
chrome_options.add_argument('--headless')
chrome_options.add_argument('--disable-gpu')'''
self.driver = webdriver.Chrome()#options=chrome_options)
try:
self.con = pymysql.connect(host="localhost", port=3306, user="root", passwd="123456", db="mydb",
charset="utf8")
self.cursor = self.con.cursor(pymysql.cursors.DictCursor)
#self.cursor.execute("delete from moocs")
except Exception as err:
print(err)
self.driver.get(url)
def closeUp(self):
try:
self.con.commit()
self.con.close()
self.driver.close()
except Exception as err:
print(err)
def signUp(self):
time.sleep(5)
#登入
self.driver.find_element_by_xpath("//div[@class='m-navTop-func']//div[@class='u-navLogin-loginBox']//div[@class='m-navlinks']").click()
time.sleep(1)
self.driver.find_element_by_xpath("//div[@class='ux-login-set-scan-code_ft']/span[@class='ux-login-set-scan-code_ft_back']").click()
time.sleep(5)
#self.driver.find_elements_by_xpath("//div[@class='ux-tabs-underline']//li")[1].click()
# 切换次页面
time.sleep(5)
self.driver.switch_to.frame(self.driver.find_element_by_xpath("//div[@class='ux-login-set-container']/iframe"))
self.driver.find_element_by_id("account-box").click()
self.driver.find_element_by_xpath("//div[@class='inputbox active']//input").send_keys("1193483128@qq.com")
self.driver.find_element_by_xpath("//div[@class='inputbox']").click()
self.driver.find_elements_by_xpath("//div[@class='inputbox active']//div[@class='u-input box']/input")[1].send_keys("000SUJINGZE")
#time.sleep(10)
self.driver.find_element_by_xpath("//div[@class='f-cb loginbox']").click()
time.sleep(10)
def getcourse(self):
#搜索想要爬取的课程
self.driver.find_element_by_xpath("//div[@class='u-baseinputui']/input").send_keys('java')
self.driver.find_element_by_xpath("//div[@class='u-search-icon']").click()
#获取当前页中的所有课程对象
divs = self.driver.find_elements_by_xpath("//div[@data-action='课程点击']")
for div in divs:
time.sleep(3)
div.click()
#切换页面
latest = self.driver.window_handles[-1]
self.driver.switch_to.window(latest)
#打印当前url
print(self.driver.current_url)
id = self.no
self.no += 1
time.sleep(3)
#爬取需要的数据
cCourse = self.driver.find_element_by_xpath("//div[@id='g-body']//span[@class='course-title f-ib f-vam']").text
cCollege = self.driver.find_element_by_xpath("//a[@data-action='点击学校logo']/img[@class='u-img']").get_attribute('alt')
cTeacher = self.driver.find_element_by_xpath("//div[@data-action='点击课程团队头像']/div/h3").text
teachers = self.driver.find_elements_by_xpath("//div[@class='um-list-slider_con']/div")
cTeam = ''
for i in range(len(teachers)):
name = teachers[i].find_element_by_xpath("./div//img").get_attribute("alt")
if i != len(teachers)-1:
cTeam += name + ','
else:
cTeam += name
#通过正则表达式提取字符串中的数字信息
cCount = self.driver.find_element_by_xpath("//div[@class='course-enroll-info_course-enroll']/div/span").text
cCount = re.findall(r'\d+', cCount)[0]
cProcess = self.driver.find_element_by_xpath("//div[@id='course-enroll-info']/div/div[1]/div[2]/div[1]/span[2]").text
cBrief = self.driver.find_element_by_xpath("//div[@id='j-rectxt2']").text
self.driver.close()
#跳转回之前的页面
latest = self.driver.window_handles[0]
self.driver.switch_to.window(latest)
self.insertDB(id,cCourse,cCollege,cTeacher,cTeam,cCount,cProcess,cBrief)
if self.page<3:
self.driver.find_element_by_xpath("//div[@id='j-courseCardListBox']/div[2]/ul/li[10]").click()
self.page += 1
self.getcourse()
def insertDB(self,id,cCourse,cCollege,cTeacher,cTeam,cCount,cProcess,cBrief):
try:
print(id,cCourse,cCollege,cTeacher,cTeam,cCount,cProcess,cBrief)
self.cursor.execute("insert into moocs (id,cCourse,cCollege,cTeacher,cTeam,cCount,cProcess,cBrief) values (%s,%s,%s,%s,%s,%s,%s,%s)",
(id,cCourse,cCollege,cTeacher,cTeam,cCount,cProcess,cBrief))
except Exception as err:
print(err)
def executeSpider(self, url):
print("Spider starting......")
#建立浏览器对象，连接数据库
self.startUp(url)
print("Spider processing......")
#登入mooc
self.signUp()
#爬取课程数据
self.getcourse()
#关闭
self.closeUp()
url = "https://www.icourse163.org/#"
spider = getMoocs()
spider.executeSpider(url)-

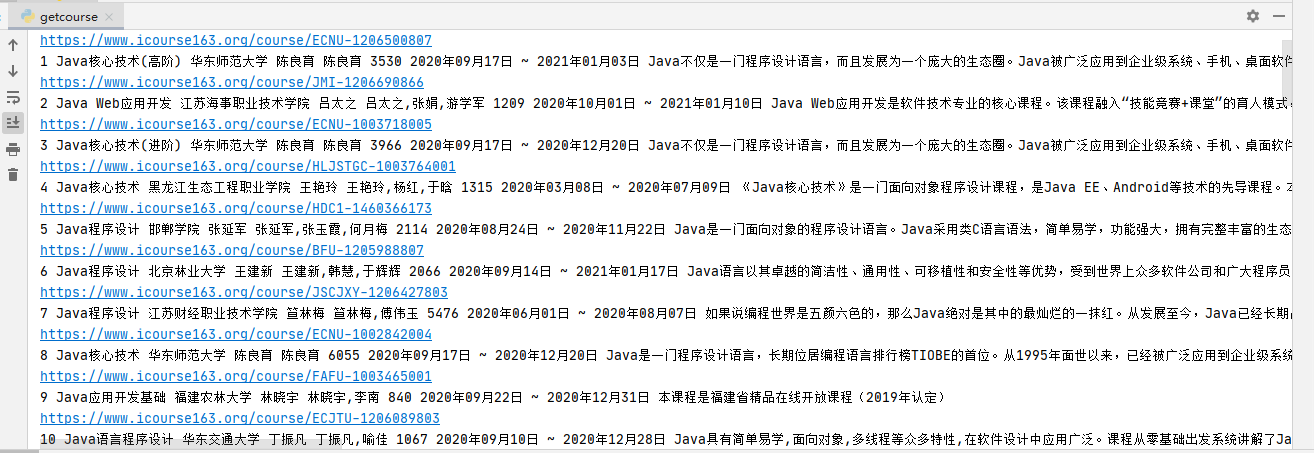

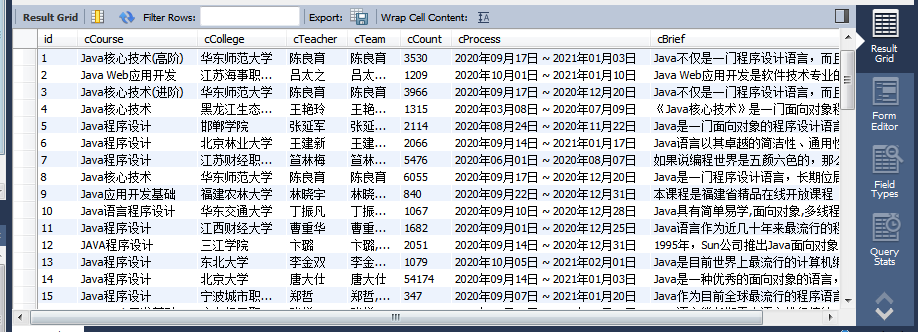

运行结果截图
-
心得体会
1.对登入操作有了初步的了解，能够操作浏览器对象进行登入操作，同时知道了登录是要切换iframe
2.学习了如何切换页面
3.通过xpath获取各种信息更加熟练，同时也复习了正则表达式的使用
浙公网安备 33010602011771号
