网络编程BIO、NIO

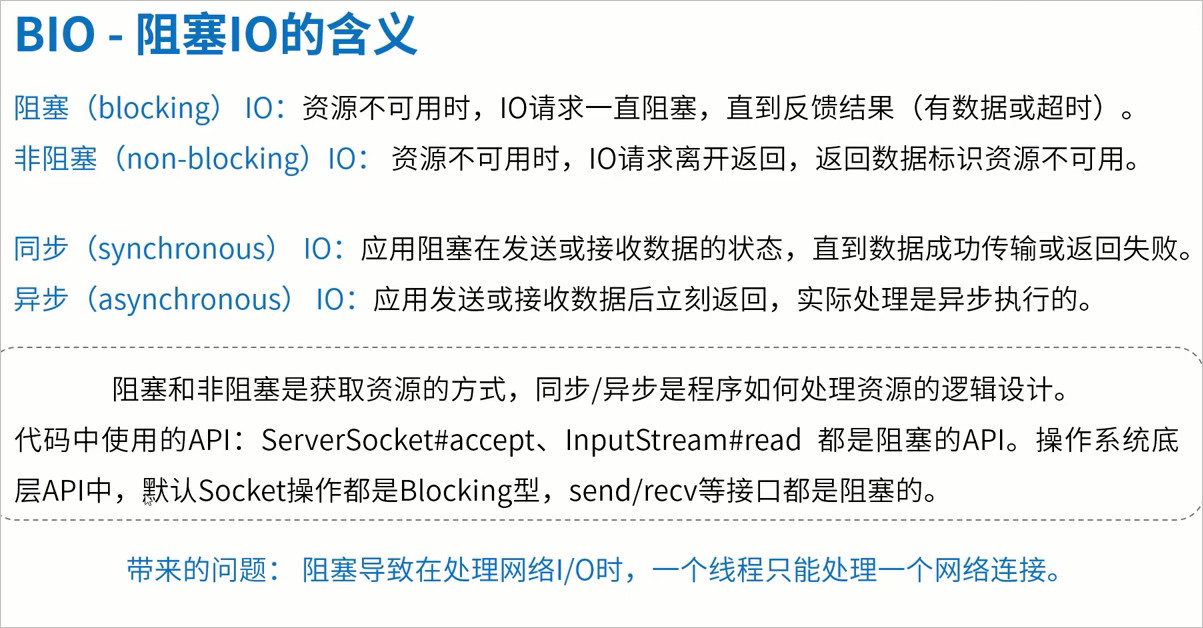

BIO（阻塞IO）
完成当前连接后才能处理下一个连接
public class BIOClient { private static Charset charset = Charset.forName("UTF-8"); public static void main(String[] args) throws Exception { Socket s = new Socket("localhost", 8080); OutputStream out = s.getOutputStream(); Scanner scanner = new Scanner(System.in); System.out.println("请输入："); String msg = scanner.nextLine(); out.write(msg.getBytes(charset)); // 阻塞，写完成 scanner.close(); s.close(); } }
public class BIOServer { public static void main(String[] args) throws Exception { ServerSocket serverSocket = new ServerSocket(8080); System.out.println("服务器启动成功"); while (!serverSocket.isClosed()) { Socket request = serverSocket.accept();// 阻塞 System.out.println("收到新连接 : " + request.toString()); try { // 接收数据、打印 InputStream inputStream = request.getInputStream(); // net + i/o BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "utf-8")); String msg; while ((msg = reader.readLine()) != null) { // 没有数据，阻塞 if (msg.length() == 0) { break; } System.out.println(msg); } System.out.println("收到数据,来自："+ request.toString()); } catch (IOException e) { e.printStackTrace(); } finally { try { request.close(); } catch (IOException e) { e.printStackTrace(); } } } serverSocket.close(); } }
// 多线程支持 public class BIOServer1 { private static ExecutorService threadPool = Executors.newCachedThreadPool(); public static void main(String[] args) throws Exception { ServerSocket serverSocket = new ServerSocket(8080); System.out.println("tomcat 服务器启动成功"); while (!serverSocket.isClosed()) { Socket request = serverSocket.accept(); System.out.println("收到新连接 : " + request.toString()); threadPool.execute(() -> { try { // 接收数据、打印 InputStream inputStream = request.getInputStream(); BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "utf-8")); String msg; while ((msg = reader.readLine()) != null) { // 阻塞 if (msg.length() == 0) { break; } System.out.println(msg); } System.out.println("收到数据,来自："+ request.toString()); } catch (IOException e) { e.printStackTrace(); } finally { try { request.close(); } catch (IOException e) { e.printStackTrace(); } } }); } serverSocket.close(); } }
public class BIOServer2 { private static ExecutorService threadPool = Executors.newCachedThreadPool(); public static void main(String[] args) throws Exception { ServerSocket serverSocket = new ServerSocket(8080); System.out.println("服务器启动成功"); while (!serverSocket.isClosed()) { Socket request = serverSocket.accept(); System.out.println("收到新连接 : " + request.toString()); threadPool.execute(() -> { try { // 接收数据、打印 InputStream inputStream = request.getInputStream(); BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "utf-8")); String msg; while ((msg = reader.readLine()) != null) { if (msg.length() == 0) { break; } System.out.println(msg); } System.out.println("收到数据,来自："+ request.toString()); // 响应结果 200 OutputStream outputStream = request.getOutputStream(); outputStream.write("HTTP/1.1 200 OK\r\n".getBytes()); outputStream.write("Content-Length: 11\r\n\r\n".getBytes()); outputStream.write("Hello World".getBytes()); outputStream.flush(); } catch (IOException e) { e.printStackTrace(); } finally { try { request.close(); } catch (IOException e) { e.printStackTrace(); } } }); } serverSocket.close(); } }
NIO（非阻塞IO）
NIO有三个核心组件：
- Buffer缓冲区
- Channel通道
- Selector选择器

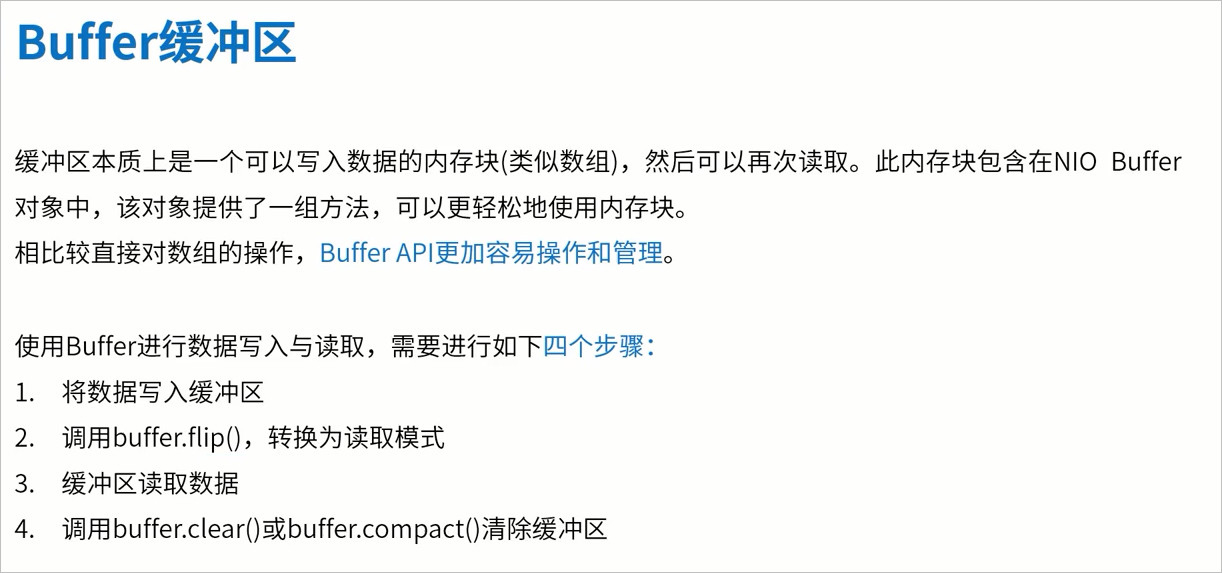

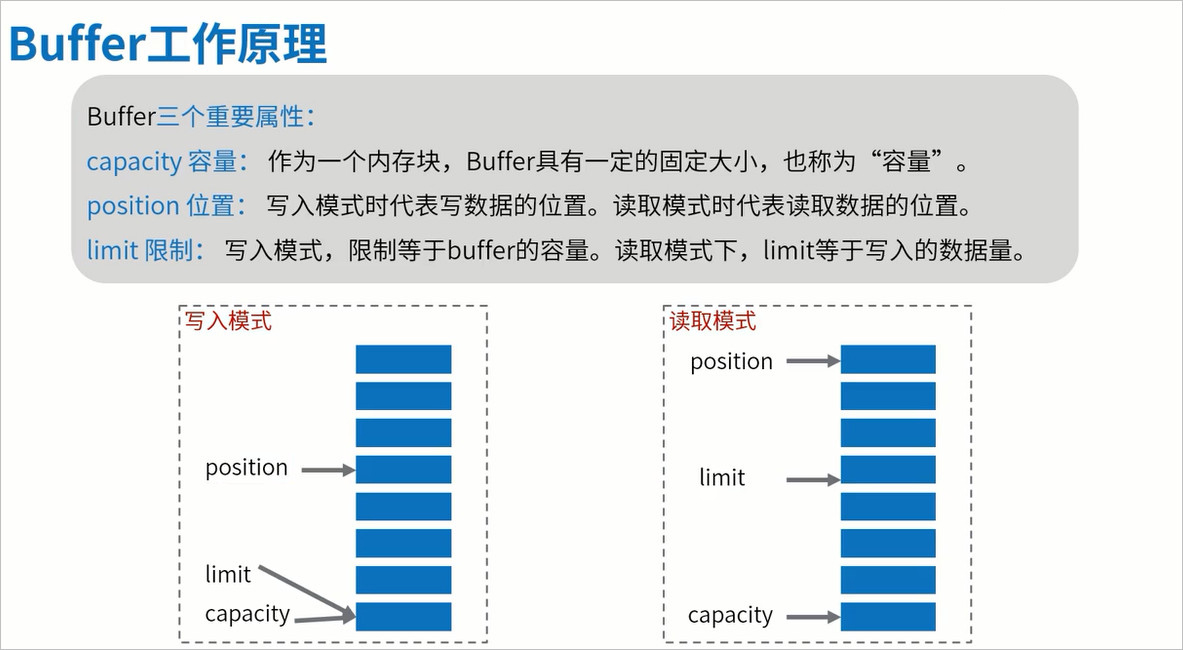

buffer缓冲区

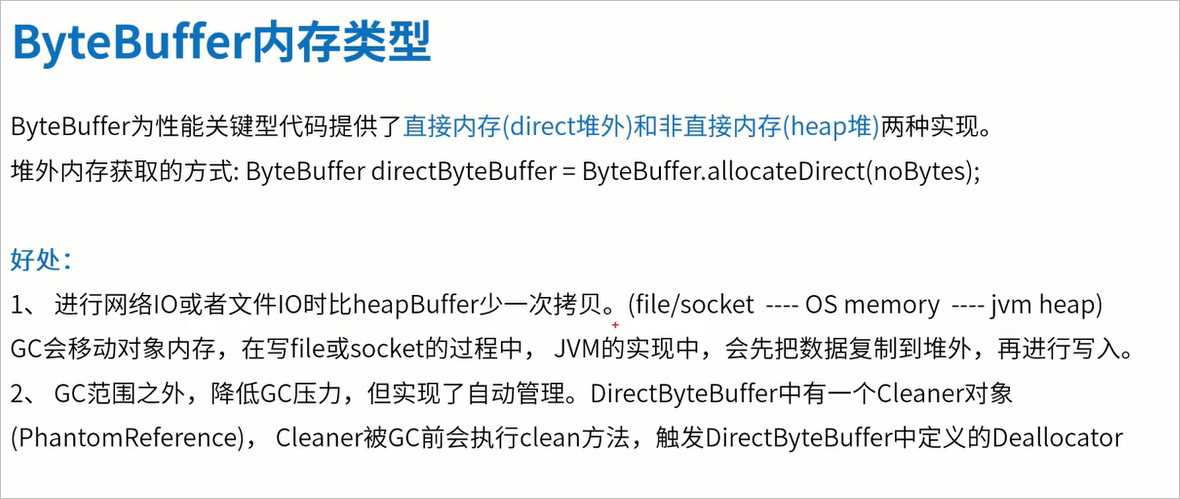

public class BufferDemo { public static void main(String[] args) { // 构建一个byte字节缓冲区，容量是4 ByteBuffer byteBuffer = ByteBuffer.allocateDirect(4); // 默认写入模式，查看三个重要的指标 System.out.println(String.format("初始化：capacity容量：%s, position位置：%s, limit限制：%s", byteBuffer.capacity(), byteBuffer.position(), byteBuffer.limit())); // 写入2字节的数据 byteBuffer.put((byte) 1); byteBuffer.put((byte) 2); byteBuffer.put((byte) 3); // 再看数据 System.out.println(String.format("写入3字节后，capacity容量：%s, position位置：%s, limit限制：%s", byteBuffer.capacity(), byteBuffer.position(), byteBuffer.limit())); // 转换为读取模式(不调用flip方法，也是可以读取数据的，但是position记录读取的位置不对) System.out.println("#######开始读取"); byteBuffer.flip(); byte a = byteBuffer.get(); System.out.println(a); byte b = byteBuffer.get(); System.out.println(b); System.out.println(String.format("读取2字节数据后，capacity容量：%s, position位置：%s, limit限制：%s", byteBuffer.capacity(), byteBuffer.position(), byteBuffer.limit())); // 继续写入3字节，此时读模式下，limit=3，position=2.继续写入只能覆盖写入一条数据 // clear()方法清除整个缓冲区。compact()方法仅清除已阅读的数据。转为写入模式 byteBuffer.compact(); // buffer : 1 , 3 byteBuffer.put((byte) 3); byteBuffer.put((byte) 4); byteBuffer.put((byte) 5); System.out.println(String.format("最终的情况，capacity容量：%s, position位置：%s, limit限制：%s", byteBuffer.capacity(), byteBuffer.position(), byteBuffer.limit())); // rewind() 重置position为0 // mark() 标记position的位置 // reset() 重置position为上次mark()标记的位置 } } /* 初始化：capacity容量：4, position位置：0, limit限制：4 写入3字节后，capacity容量：4, position位置：3, limit限制：4 #######开始读取 1 2 读取2字节数据后，capacity容量：4, position位置：2, limit限制：3 最终的情况，capacity容量：4, position位置：4, limit限制：4 */

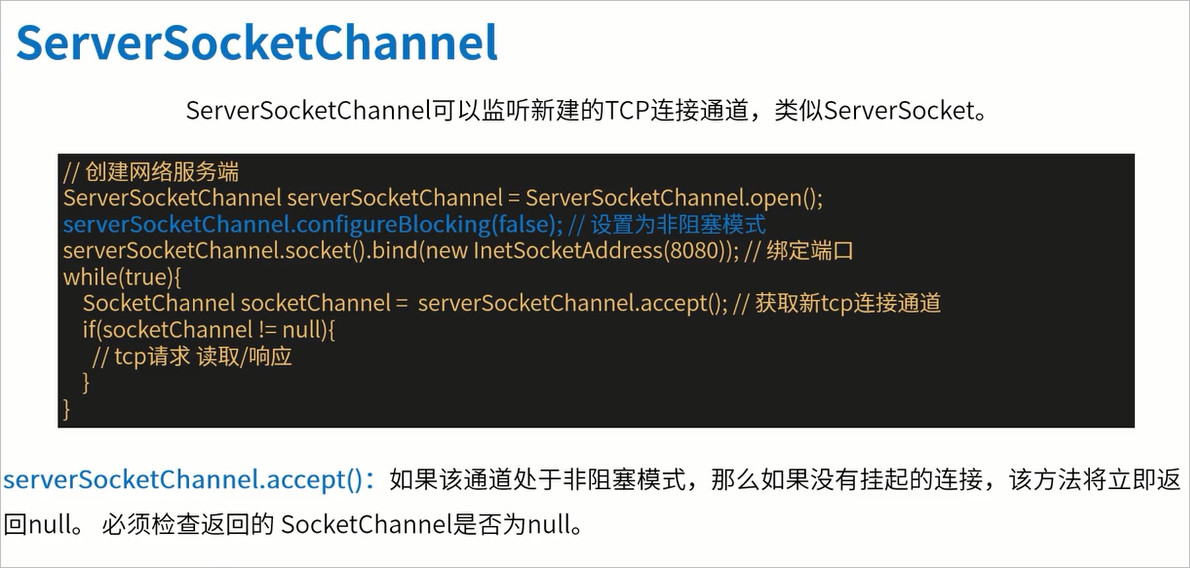

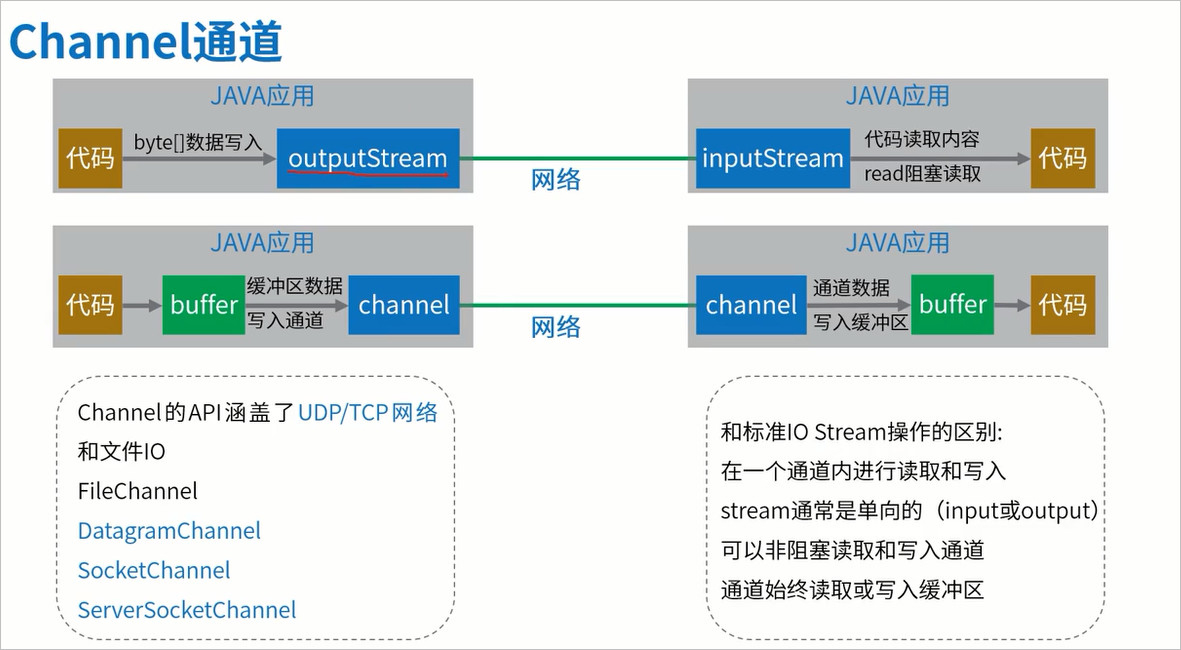

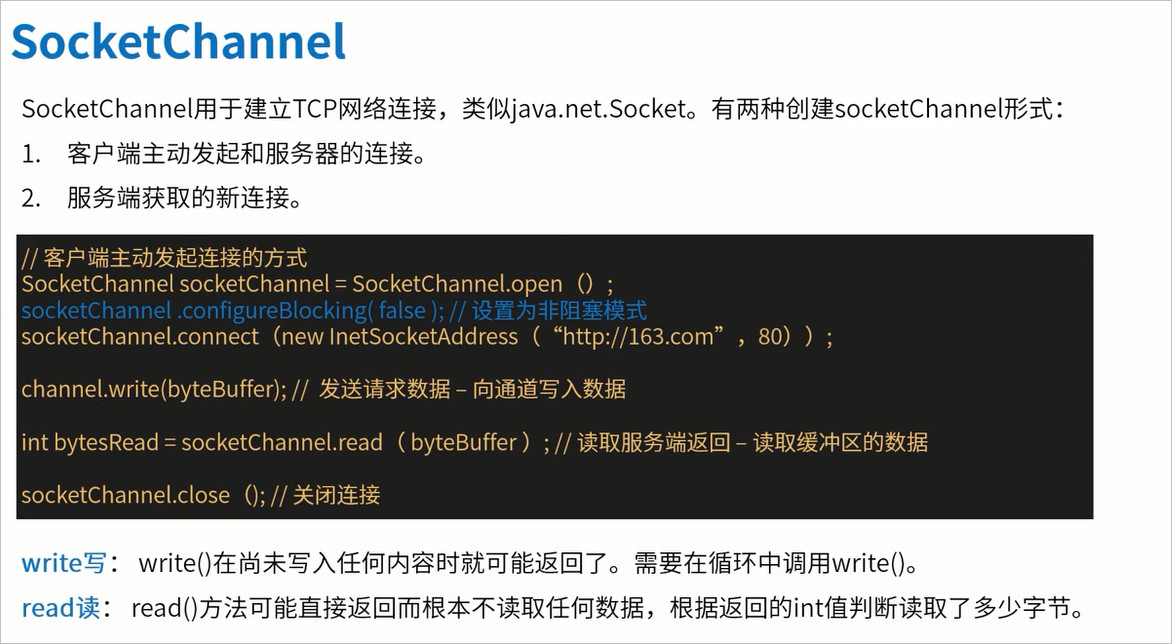

channel通道
public class NIOClient { public static void main(String[] args) throws Exception { SocketChannel socketChannel = SocketChannel.open(); socketChannel.configureBlocking(false); socketChannel.connect(new InetSocketAddress("127.0.0.1", 8080)); while (!socketChannel.finishConnect()) { // 没连接上,则一直等待 Thread.yield(); } Scanner scanner = new Scanner(System.in); System.out.println("请输入："); // 发送内容 String msg = scanner.nextLine(); ByteBuffer buffer = ByteBuffer.wrap(msg.getBytes()); while (buffer.hasRemaining()) { socketChannel.write(buffer); } // 读取响应 System.out.println("收到服务端响应:"); ByteBuffer requestBuffer = ByteBuffer.allocate(1024); while (socketChannel.isOpen() && socketChannel.read(requestBuffer) != -1) { // 长连接情况下,需要手动判断数据有没有读取结束 (此处做一个简单的判断: 超过0字节就认为请求结束了) if (requestBuffer.position() > 0) break; } requestBuffer.flip(); byte[] content = new byte[requestBuffer.limit()]; requestBuffer.get(content); System.out.println(new String(content)); scanner.close(); socketChannel.close(); } }
/** * 直接基于非阻塞的写法 */ public class NIOServer { public static void main(String[] args) throws Exception { // 创建网络服务端 ServerSocketChannel serverSocketChannel = ServerSocketChannel.open(); serverSocketChannel.configureBlocking(false); // 设置为非阻塞模式 serverSocketChannel.socket().bind(new InetSocketAddress(8080)); // 绑定端口 System.out.println("启动成功"); while (true) { SocketChannel socketChannel = serverSocketChannel.accept(); // 获取新tcp连接通道 // tcp请求 读取/响应 if (socketChannel != null) { System.out.println("收到新连接 : " + socketChannel.getRemoteAddress()); socketChannel.configureBlocking(false); // 默认是阻塞的,一定要设置为非阻塞 try { ByteBuffer requestBuffer = ByteBuffer.allocate(1024); while (socketChannel.isOpen() && socketChannel.read(requestBuffer) != -1) { // 长连接情况下,需要手动判断数据有没有读取结束 (此处做一个简单的判断: 超过0字节就认为请求结束了) if (requestBuffer.position() > 0) break; } if(requestBuffer.position() == 0) continue; // 如果没数据了, 则不继续后面的处理 requestBuffer.flip(); byte[] content = new byte[requestBuffer.limit()]; requestBuffer.get(content); System.out.println(new String(content)); System.out.println("收到数据,来自："+ socketChannel.getRemoteAddress()); // 响应结果 200 String response = "HTTP/1.1 200 OK\r\n" + "Content-Length: 11\r\n\r\n" + "Hello World"; ByteBuffer buffer = ByteBuffer.wrap(response.getBytes()); while (buffer.hasRemaining()) { socketChannel.write(buffer);// 非阻塞 } } catch (IOException e) { e.printStackTrace(); } } } // 用到了非阻塞的API, 在设计上,和BIO可以有很大的不同.继续改进 } }
public class NIOClient { public static void main(String[] args) throws Exception { SocketChannel socketChannel = SocketChannel.open(); socketChannel.configureBlocking(false); socketChannel.connect(new InetSocketAddress("127.0.0.1", 8080)); while (!socketChannel.finishConnect()) { // 没连接上,则一直等待 Thread.yield(); } Scanner scanner = new Scanner(System.in); System.out.println("请输入："); // 发送内容 String msg = scanner.nextLine(); ByteBuffer buffer = ByteBuffer.wrap(msg.getBytes()); while (buffer.hasRemaining()) { socketChannel.write(buffer); } // 读取响应 System.out.println("收到服务端响应:"); ByteBuffer requestBuffer = ByteBuffer.allocate(1024); while (socketChannel.isOpen() && socketChannel.read(requestBuffer) != -1) { // 长连接情况下,需要手动判断数据有没有读取结束 (此处做一个简单的判断: 超过0字节就认为请求结束了) if (requestBuffer.position() > 0) break; } requestBuffer.flip(); byte[] content = new byte[requestBuffer.limit()]; requestBuffer.get(content); System.out.println(new String(content)); scanner.close(); socketChannel.close(); } }
在非多线程实现同时处理多个连接需要轮循判断通道是否有数据要判断，比较低效。

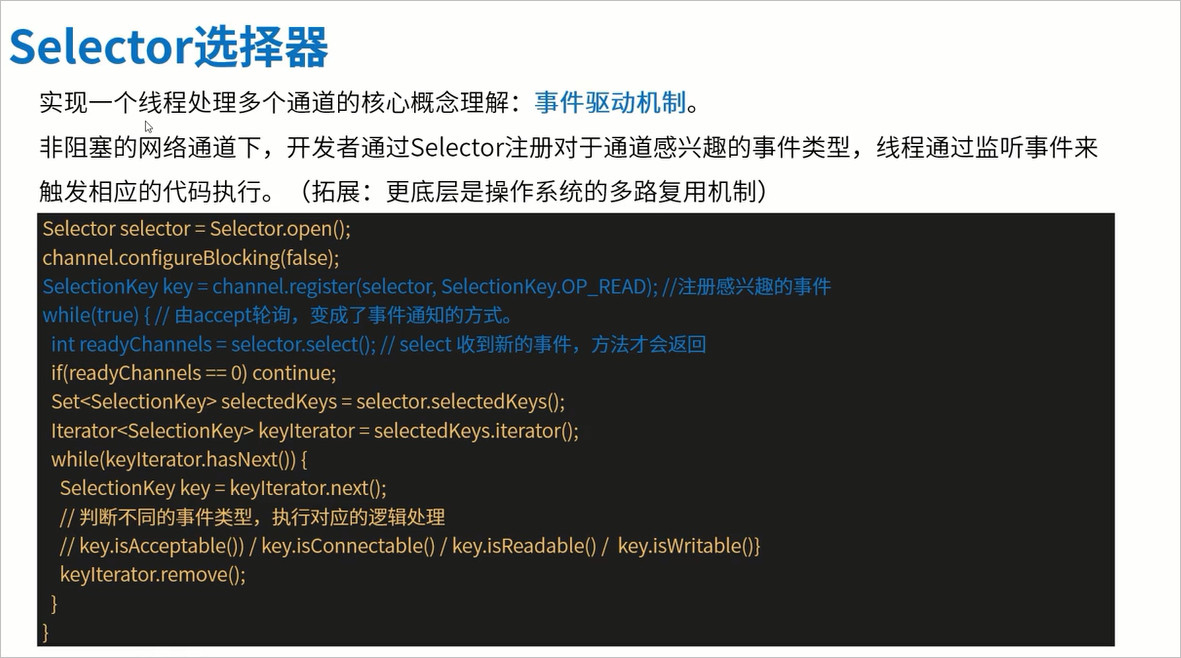

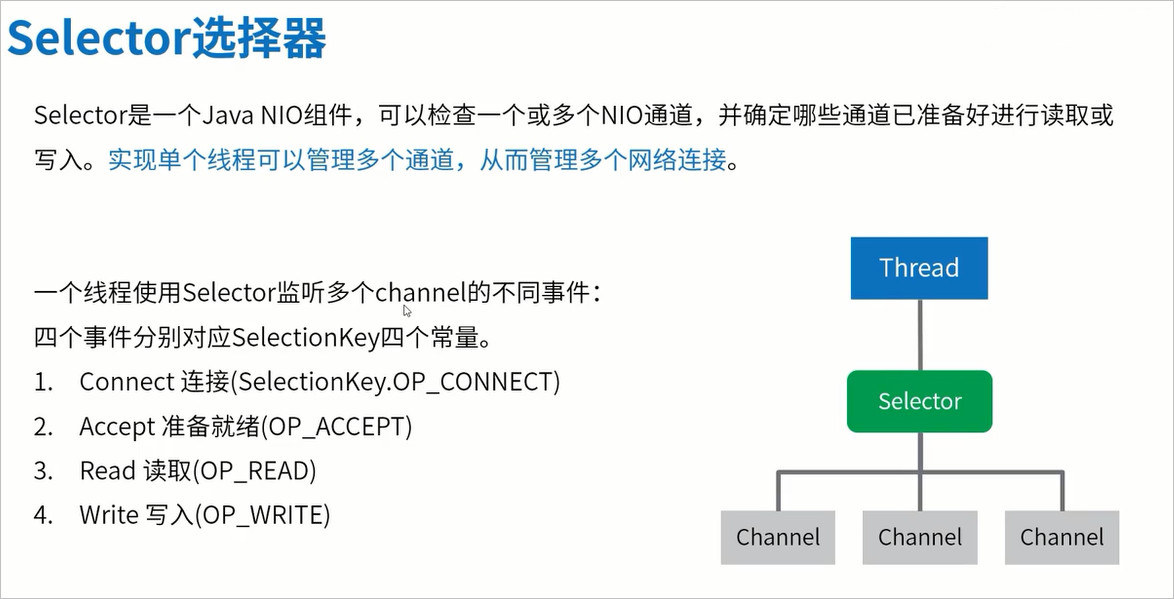

Selector选择器
/** * 结合Selector实现的非阻塞服务端(放弃对channel的轮询,借助消息通知机制) */ public class NIOServerV2 { public static void main(String[] args) throws Exception { // 1. 创建网络服务端ServerSocketChannel ServerSocketChannel serverSocketChannel = ServerSocketChannel.open(); serverSocketChannel.configureBlocking(false); // 设置为非阻塞模式 // 2. 构建一个Selector选择器,并且将channel注册上去 Selector selector = Selector.open(); SelectionKey selectionKey = serverSocketChannel.register(selector, 0, serverSocketChannel);// 将serverSocketChannel注册到selector selectionKey.interestOps(SelectionKey.OP_ACCEPT); // 对serverSocketChannel上面的accept事件感兴趣(serverSocketChannel只能支持accept操作) // 3. 绑定端口 serverSocketChannel.socket().bind(new InetSocketAddress(8080)); System.out.println("启动成功"); while (true) { // 不再轮询通道,改用下面轮询事件的方式.select方法有阻塞效果,直到有事件通知才会有返回 selector.select(); // 获取事件 Set<SelectionKey> selectionKeys = selector.selectedKeys(); // 遍历查询结果e Iterator<SelectionKey> iter = selectionKeys.iterator(); while (iter.hasNext()) { // 被封装的查询结果 SelectionKey key = iter.next(); iter.remove(); // 关注 Read 和 Accept两个事件 if (key.isAcceptable()) { ServerSocketChannel server = (ServerSocketChannel) key.attachment(); // 将拿到的客户端连接通道,注册到selector上面 SocketChannel clientSocketChannel = server.accept(); // mainReactor 轮询accept clientSocketChannel.configureBlocking(false); clientSocketChannel.register(selector, SelectionKey.OP_READ, clientSocketChannel); System.out.println("收到新连接 : " + clientSocketChannel.getRemoteAddress()); } if (key.isReadable()) { SocketChannel socketChannel = (SocketChannel) key.attachment(); try { ByteBuffer requestBuffer = ByteBuffer.allocate(1024); while (socketChannel.isOpen() && socketChannel.read(requestBuffer) != -1) { // 长连接情况下,需要手动判断数据有没有读取结束 (此处做一个简单的判断: 超过0字节就认为请求结束了) if (requestBuffer.position() > 0) break; } if(requestBuffer.position() == 0) continue; // 如果没数据了, 则不继续后面的处理 requestBuffer.flip(); byte[] content = new byte[requestBuffer.limit()]; requestBuffer.get(content); System.out.println(new String(content)); System.out.println("收到数据,来自：" + socketChannel.getRemoteAddress()); // TODO 业务操作 数据库 接口调用等等 // 响应结果 200 String response = "HTTP/1.1 200 OK\r\n" + "Content-Length: 11\r\n\r\n" + "Hello World"; ByteBuffer buffer = ByteBuffer.wrap(response.getBytes()); while (buffer.hasRemaining()) { socketChannel.write(buffer); } } catch (IOException e) { // e.printStackTrace(); key.cancel(); // 取消事件订阅 } } } selector.selectNow(); } // 问题: 此处一个selector监听所有事件,一个线程处理所有请求事件. 会成为瓶颈! 要有多线程的运用 } }
多线程+NIO实现
/**
* NIO selector 多路复用reactor线程模型
*/
public class NIOServerV3 {
/** 处理业务操作的线程 */
private static ExecutorService workPool = Executors.newCachedThreadPool();
/**
* 封装了selector.select()等事件轮询的代码
*/
abstract class ReactorThread extends Thread {
Selector selector;
LinkedBlockingQueue<Runnable> taskQueue = new LinkedBlockingQueue<>();
/**
* Selector监听到有事件后,调用这个方法
*/
public abstract void handler(SelectableChannel channel) throws Exception;
private ReactorThread() throws IOException {
selector = Selector.open();
}
volatile boolean running = false;
@Override
public void run() {
// 轮询Selector事件
while (running) {
try {
// 执行队列中的任务
Runnable task;
while ((task = taskQueue.poll()) != null) {
task.run();
}
selector.select(1000);
// 获取查询结果
Set<SelectionKey> selected = selector.selectedKeys();
// 遍历查询结果
Iterator<SelectionKey> iter = selected.iterator();
while (iter.hasNext()) {
// 被封装的查询结果
SelectionKey key = iter.next();
iter.remove();
int readyOps = key.readyOps();
// 关注 Read 和 Accept两个事件
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
try {
SelectableChannel channel = (SelectableChannel) key.attachment();
channel.configureBlocking(false);
handler(channel);
if (!channel.isOpen()) {
key.cancel(); // 如果关闭了,就取消这个KEY的订阅
}
} catch (Exception ex) {
key.cancel(); // 如果有异常,就取消这个KEY的订阅
}
}
}
selector.selectNow();
} catch (IOException e) {
e.printStackTrace();
}
}
}
private SelectionKey register(SelectableChannel channel) throws Exception {
// 为什么register要以任务提交的形式，让reactor线程去处理？
// 因为线程在执行channel注册到selector的过程中，会和调用selector.select()方法的线程争用同一把锁
// 而select()方法实在eventLoop中通过while循环调用的，争抢的可能性很高，为了让register能更快的执行，就放到同一个线程来处理
FutureTask<SelectionKey> futureTask = new FutureTask<>(() -> channel.register(selector, 0, channel));
taskQueue.add(futureTask);
return futureTask.get();
}
private void doStart() {
if (!running) {
running = true;
start();
}
}
}
private ServerSocketChannel serverSocketChannel;
// 1、创建多个线程 - accept处理reactor线程 (accept线程)
private ReactorThread[] mainReactorThreads = new ReactorThread[1];
// 2、创建多个线程 - io处理reactor线程 (I/O线程)
private ReactorThread[] subReactorThreads = new ReactorThread[8];
/**
* 初始化线程组
*/
private void newGroup() throws IOException {
// 创建IO线程,负责处理客户端连接以后socketChannel的IO读写
for (int i = 0; i < subReactorThreads.length; i++) {
subReactorThreads[i] = new ReactorThread() {
@Override
public void handler(SelectableChannel channel) throws IOException {
// work线程只负责处理IO处理，不处理accept事件
SocketChannel ch = (SocketChannel) channel;
ByteBuffer requestBuffer = ByteBuffer.allocate(1024);
while (ch.isOpen() && ch.read(requestBuffer) != -1) {
// 长连接情况下,需要手动判断数据有没有读取结束 (此处做一个简单的判断: 超过0字节就认为请求结束了)
if (requestBuffer.position() > 0) break;
}
if (requestBuffer.position() == 0) return; // 如果没数据了, 则不继续后面的处理
requestBuffer.flip();
byte[] content = new byte[requestBuffer.limit()];
requestBuffer.get(content);
System.out.println(new String(content));
System.out.println(Thread.currentThread().getName() + "收到数据,来自：" + ch.getRemoteAddress());
// TODO 业务操作 数据库、接口...
workPool.submit(() -> {
});
// 响应结果 200
String response = "HTTP/1.1 200 OK\r\n" +
"Content-Length: 11\r\n\r\n" +
"Hello World";
ByteBuffer buffer = ByteBuffer.wrap(response.getBytes());
while (buffer.hasRemaining()) {
ch.write(buffer);
}
}
};
}
// 创建mainReactor线程, 只负责处理serverSocketChannel
for (int i = 0; i < mainReactorThreads.length; i++) {
mainReactorThreads[i] = new ReactorThread() {
AtomicInteger incr = new AtomicInteger(0);
@Override
public void handler(SelectableChannel channel) throws Exception {
// 只做请求分发，不做具体的数据读取
ServerSocketChannel ch = (ServerSocketChannel) channel;
SocketChannel socketChannel = ch.accept();
socketChannel.configureBlocking(false);
// 收到连接建立的通知之后，分发给I/O线程继续去读取数据
int index = incr.getAndIncrement() % subReactorThreads.length;
ReactorThread workEventLoop = subReactorThreads[index];
workEventLoop.doStart();
SelectionKey selectionKey = workEventLoop.register(socketChannel);
selectionKey.interestOps(SelectionKey.OP_READ);
System.out.println(Thread.currentThread().getName() + "收到新连接 : " + socketChannel.getRemoteAddress());
}
};
}
}
/**
* 初始化channel,并且绑定一个eventLoop线程
*
* @throws IOException IO异常
*/
private void initAndRegister() throws Exception {
// 1、 创建ServerSocketChannel
serverSocketChannel = ServerSocketChannel.open();
serverSocketChannel.configureBlocking(false);
// 2、 将serverSocketChannel注册到selector
int index = new Random().nextInt(mainReactorThreads.length);
mainReactorThreads[index].doStart();
SelectionKey selectionKey = mainReactorThreads[index].register(serverSocketChannel);
selectionKey.interestOps(SelectionKey.OP_ACCEPT);
}
/**
* 绑定端口
*
* @throws IOException IO异常
*/
private void bind() throws IOException {
// 1、 正式绑定端口，对外服务
serverSocketChannel.bind(new InetSocketAddress(8080));
System.out.println("启动完成，端口8080");
}
public static void main(String[] args) throws Exception {
NIOServerV3 nioServerV3 = new NIOServerV3();
nioServerV3.newGroup(); // 1、 创建main和sub两组线程
nioServerV3.initAndRegister(); // 2、 创建serverSocketChannel，注册到mainReactor线程上的selector上
nioServerV3.bind(); // 3、 为serverSocketChannel绑定端口
}
}
以上代码和图片来自网易云课堂
