zookeeper安装教程

# zookeeper安装教程：

1.准备zookeeper安装包

1.2 上传zookeeper安装包

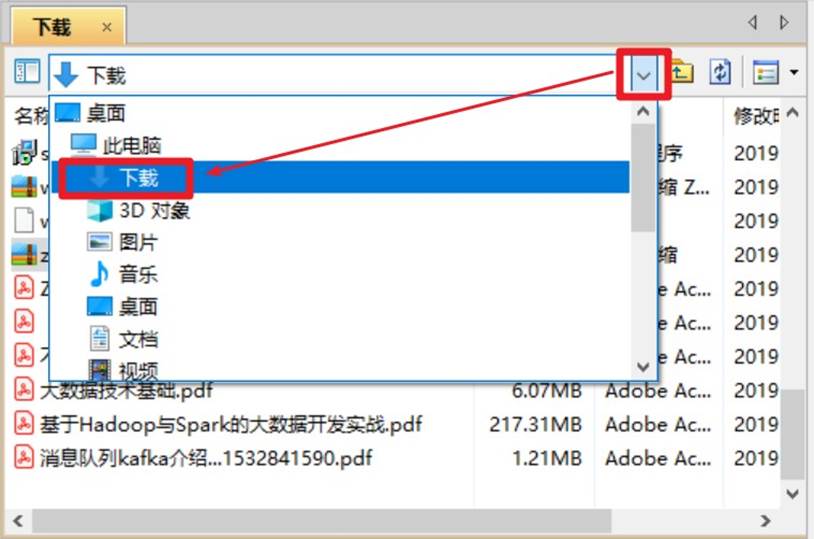

默认我们使用浏览器下载的安装包会在此电脑(我的电脑)-->下载目录下

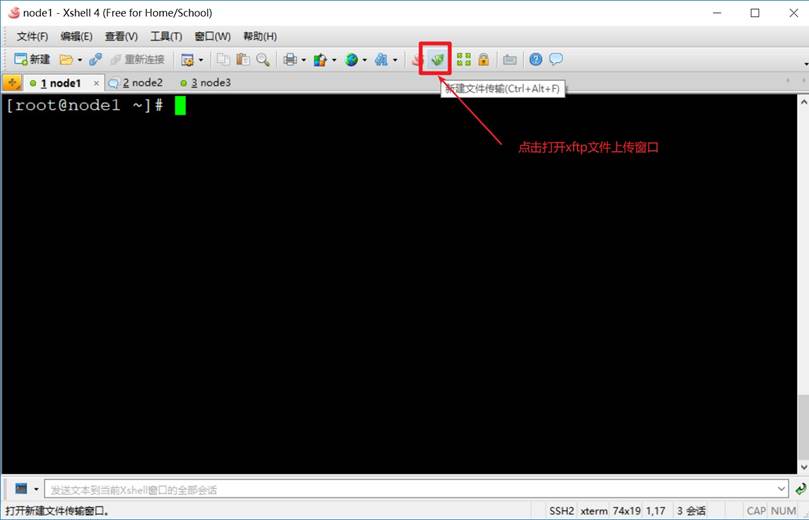

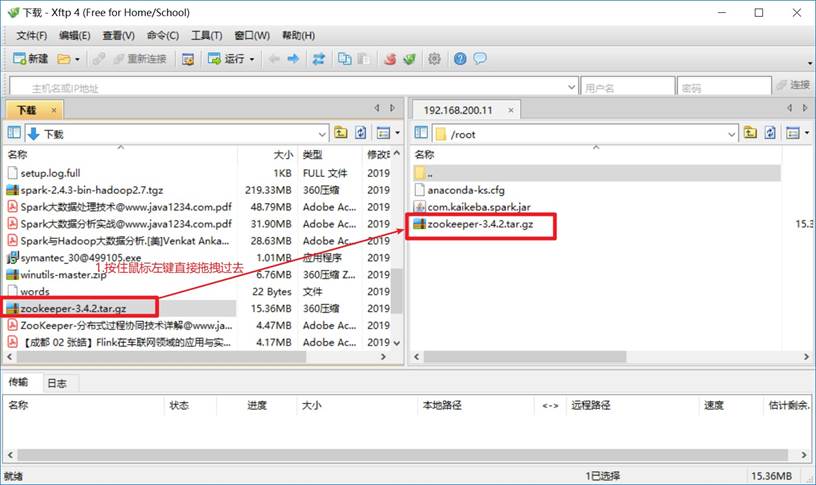

在xftp文件上传窗口的左侧窗口中，如下图，我们选择下载的安装包

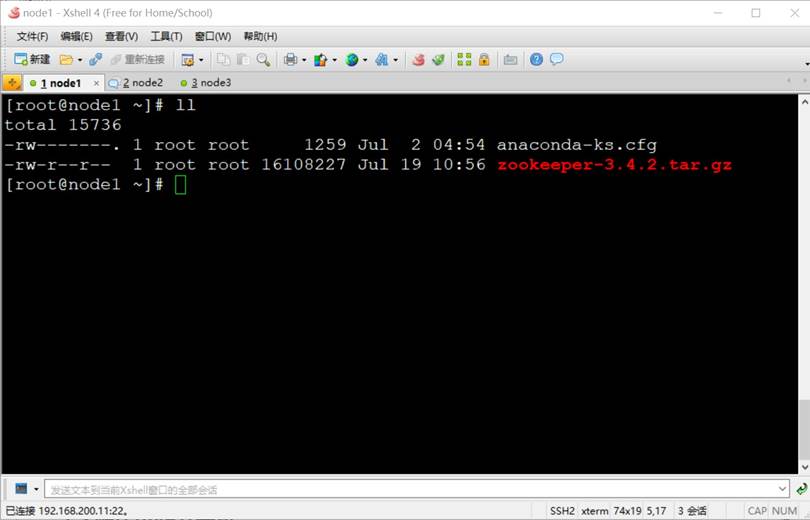

安装包上传成功,如下图

1.3 解压zookeeper安装包

#1.把zookeeper的压缩安装包解压到/opt/bigdata/目录下
[root@node1 ~]# tar -xzvf zookeeper-3.4.2.tar.gz -C /opt/bigdata/	#输入完命令后回车
#2.切换到bigdata目录下
[root@node1 ~]# cd /opt/bigdata/
#3.按照安装hadoop的方式，将zookeeper的安装目录的所属组修改为hadoop:hadoop
#修改zookeeper安装目录的所属用户和组为hadoop:hadoop
[root@node1 bigdata]# chown -R hadoop:hadoop zookeeper-3.4.2/
#4.修改zookeeper安装目录的读写权限
[root@node1 bigdata]# chmod -R 755 zookeeper-3.4.2/

1.4 配置zookeeper环境变量

#1.切换到hadoop用户目录下[root@node1 bigdata]# su - hadoop
Last login: Thu Jul 18 16:07:39 CST 2019 on pts/0 [hadoop@node1 ~]$ cd /opt/bigdata/zookeeper-3.4.2/ [hadoop@node1 zookeeper-3.4.2]$ cd .. [hadoop@node1 bigdata]$ cd ~
#2.修改hadoop用户下的环境变量配置文件
[hadoop@node1 ~]$ vi .bash_profile # Get the aliases and functions
# Get the aliases and functions if [ -f ~/.bashrc ]; then
. ~/.bashrc
fi

# User specific environment and startup programs JAVA_HOME=/usr/java/jdk1.8.0_211-amd64 HADOOP_HOME=/opt/bigdata/hadoop-2.7.3 SPARK_HOME=/opt/spark-2.4.3-bin-hadoop2.7 M2_HOME=/opt/apache-maven-3.0.5
#3.新增zookeeper的环境变量ZOOKEEPER_HOME
ZOOKEEPER_HOME=/opt/bigdata/zookeeper-3.4.2/ PATH=$PATH:$HOME/bin:$JAVA_HOME/bin:$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$M2_HOME/bin
#4.将zookeeper的环境变量ZOOKEEPER_HOME加入到path中
PATH=$PATH:$SPARK_HOME/bin:$SPARK_HOME/sbin:$ZOOKEEPER_HOME/bin export JAVA_HOME
export HADOOP_HOME export M2_HOME export SPARK_HOME
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop export HDFS_CONF_DIR=$HADOOP_HOME/etc/hadoop
#5.导出zookeeper环境变量
export ZOOKEEPER_HOME
#6.保存修改内容
:wq! #记得回车
#7.使得环境变量生效
[hadoop@node1 ~]$ source .bash_profile

#8.输入zk然后按键盘左侧的Tab键
[hadoop@node1 ~]$ zk
zkCleanup.sh  zkCli.sh      zkEnv.sh      zkServer.sh
zkCli.cmd     zkEnv.cmd     zkServer.cmd
[hadoop@node1 ~]$

1.5 修改zookeeper集群配置文件

将目录切换到zookeeper的安装目录下的conf目录下复制zoo_sample.cfg文件为zoo.cfg.

[hadoop@node1 ~]$ cd /opt/bigdata/zookeeper-3.4.2/conf/ [hadoop@node1 conf]$ ll
total 12
-rwxr-xr-x 1 hadoop hadoop 535 Dec 22 2011 configuration.xsl
-rwxr-xr-x 1 hadoop hadoop 2161 Dec 22 2011 log4j.properties
-rwxr-xr-x 1 hadoop hadoop 808 Dec 22 2011 zoo_sample.cfg
#1.复制zoo_sample.cfg模板配置文件为正式的配置文件zoo.cfg
[hadoop@node1 conf]$ cp zoo_sample.cfg zoo.cfg
[hadoop@node1 conf]$ ll
total 16
-rwxr-xr-x 1 hadoop hadoop 535 Dec 22 2011 configuration.xsl
-rwxr-xr-x 1 hadoop hadoop 2161 Dec 22 2011 log4j.properties
-rwxr-xr-x 1 hadoop hadoop 808 Jul 19 11:20 zoo.cfg
-rwxr-xr-x 1 hadoop hadoop 808 Dec 22 2011 zoo_sample.cfg
[hadoop@node1 conf]$

修改dataDir的值为 dataDir=/var/lib/zookeeper,在文件的末尾添加如下配置:

server.1=node1:2888:3888

server.2=node2:2888:3888

server.3=node3:2888:3888
# 注意这边 node1,2,3为 主机hostname

修改完成保存即可

# The number of milliseconds of each tick tickTime=2000
# The number of ticks that the initial # synchronization phase can take initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just # example sakes.
dataDir=/var/lib/zookeeper
# the port at which the clients will connect clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients #maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
#  http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance #
# The number of snapshots to retain in dataDir #autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature #autopurge.purgeInterval=1 server.1=node1:2888:3888
server.2=node2:2888:3888
server.3=node3:2888:3888
#修改完配置文件记得保存
:wq!

1.6 创建myid文件

在节点node1,node2,node3对应的/var/lib/zookeeper目录下(dataDir配置的目录/var/lib/zookeeper)创建myid文件,几个文件内容依次为1,2,3

如下图我们切换到root用户，在/var/lib目录下创建zookeeper目录，因为hadoop用户对/var/lib目录没有写权限，所以我们在创建zookeeper目录时需要切换到root用户(拥有最大权限)

[hadoop@node1 conf]$ vi zoo.cfg
#1.切换到root用户
[hadoop@node1 conf]$ su - root Password:
Last login: Fri Jul 19 10:53:59 CST 2019 from 192.168.200.1 on pts/0
#2.创建zookeeper目录
[root@node1 ~]# mkdir -p /var/lib/zookeeper
#3.进入到/var/lib/zookeeper/目录
[root@node1 ~]# cd /var/lib/zookeeper/
You have new mail in /var/spool/mail/root
#4.创建myid配置文件
[root@node1 zookeeper]# touch myid
#5.编辑myid文件，输入1，我们目前编辑的是node1的节点的myid文件，node2的myid内容为2，node3的myid内容为3 [root@node1 zookeeper]# vi myid
You have new mail in /var/spool/mail/root
#6. 查 看 一 下 myid 文 件 内 容 为 1
[root@node1 zookeeper]# cat myid 1
You have new mail in /var/spool/mail/root

1.7 修改myid目录权限

#1.配置完成后记得修改zookeeper目录的所属组和读写权限
[root@node1 zookeeper]# cd ..
You have new mail in /var/spool/mail/root
#2.修改zookeeper目录所属组
[root@node1 lib]# chown -R hadoop:hadoop zookeeper/
#3.修改zookeeper目录的读写权限为755
[root@node1 lib]# chmod -R 755 zookeeper/
[root@node1 lib]#

2.复制zookeeper

#1.复制/var/lib目录下的zookeeper目录到node2和node3的/var/lib目录下
[root@node1 lib]# scp -r zookeeper node2:$PWD
[root@node1 lib]# scp -r zookeeper node3:$PWD
#2.复制zookeeper安装目录到node2和node3的安装目录下/opt/bigdata目录下
[root@node1 lib]# scp -r /opt/bigdata/zookeeper-3.4.2/ node2:/opt/bigdata/
[root@node1 lib]# scp -r /opt/bigdata/zookeeper-3.4.2/ node3:/opt/bigdata/

3.修改node2和node3节点zookeeper的相关目录权限

修改node2节点zookeeper 相关目录权限

#1.修改zookeeper的myid配置目录所属组和读写权限
[root@node2 lib]# cd ~
[root@node2 ~]# chown -R hadoop:hadoop /var/lib/zookeeper
[root@node2 ~]# chmod -R 755 /var/lib/zookeeper
#2.修改zookeeper安装目录所属组和读写权限
[root@node2 ~]# chown -R hadoop:hadoop /opt/bigdata/zookeeper-3.4.2/
You have new mail in /var/spool/mail/root
[root@node2 ~]# chmod -R 755 /opt/bigdata/zookeeper-3.4.2/
[root@node2 ~]#

修改node3节点zookeeper 相关目录权限

#1.修改zookeeper的myid配置目录所属组和读写权限
[root@node3 bigdata]# cd ~
You have new mail in /var/spool/mail/root
[root@node3 ~]# chown -R hadoop:hadoop /var/lib/zookeeper
[root@node3 ~]# chmod -R 755 /var/lib/zookeeper
#2.修改zookeeper安装目录所属组和读写权限
[root@node3 ~]# chown -R hadoop:hadoop /opt/bigdata/zookeeper-3.4.2/
You have new mail in /var/spool/mail/root
[root@node3 ~]# chmod -R 755 /opt/bigdata/zookeeper-3.4.2/
[root@node3 ~]#

1.8.修改node2和node3的myid文件内容

修改node2节点zookeeper 的myid内容为2

[root@node2 ~]# vi /var/lib/zookeeper/myid
You have new mail in /var/spool/mail/root
[root@node2 ~]# cat /var/lib/zookeeper/myid
2
[root@node2 ~]#

修改node3节点zookeeper 的myid内容为2

[root@node3 ~]# vi /var/lib/zookeeper/myid
You have new mail in /var/spool/mail/root
[root@node3 ~]# cat /var/lib/zookeeper/myid
3
[root@node3 ~]#

1.9.配置node2和node3的zookeeper环境变量

我们在node1节点上直接将hadoop用户的环境变量配置文件远程复制到node2和node3的hadoop用户家目录下

#1.如果当前登录用户是root用户，需要切换到hadoop用户下，如果当前用户是hadoop用户，请将目录切换到hadoop用
户的家目录下,在进行环境变量文件的远程复制.
[root@node1 lib]# su - hadoop
Last login: Fri Jul 19 11:08:44 CST 2019 on pts/0
[hadoop@node1 ~]$ scp .bash_profile node2:$PWD
.bash_profile 100% 681
64.8KB/s 00:00
[hadoop@node1 ~]$ scp .bash_profile node3:$PWD
.bash_profile 100% 681
156.8KB/s 00:00
[hadoop@node1 ~]$

1.10 使得node2和node3的环境变量生效

使得node2的hadoop的环境变量生效

#注意：切换到hadoop用户下
#1.使得环境变量生效
[hadoop@node2 ~]$ source .bash_profile
#2.输入zk然后按键盘左侧的Tab键
[hadoop@node2 ~]$ zk
#3.有如下命令和shell脚本的提示，说明zookeeper的环境变量配置成功.
zkCleanup.sh zkCli.sh zkEnv.sh zkServer.sh
zkCli.cmd zkEnv.cmd zkServer.cmd
[hadoop@node2 ~]$ zk

使得node3的hadoop的环境变量生效

#注意：切换到hadoop用户下
[root@node3 bigdata]# su - hadoop
Last login: Thu Jul 18 15:37:50 CST 2019 on :0
#1.使得环境变量生效
[hadoop@node3 ~]$ source .bash_profile
#2.输入zk然后按键盘左侧的Tab键
[hadoop@node3 ~]$ zk
#3.有如下命令和shell脚本的提示，说明zookeeper的环境变量配置成功.
zkCleanup.sh zkCli.sh zkEnv.sh zkServer.sh
zkCli.cmd zkEnv.cmd zkServer.cmd
[hadoop@node3 ~]$ zk

2 启动zookeeper集群

2.1 启动zookeeper集群

启动zookeeper集群需要手动分别依次在三台机器上启动,启动前需要在三台机器上都将用户切换为hadoop用户. node1上启动zookeeper

[hadoop@node1 ~]$ zkServer.sh start
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[hadoop@node1 ~]$

node2上启动zookeeper

[hadoop@node2 ~]$ zkServer.sh start
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[hadoop@node2 ~]$

node3上启动zookeeper

[hadoop@node3 ~]$ zkServer.sh start
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[hadoop@node3 ~]$

2.2 查看zookeeper集群状态

使用zkServer.sh status命令在三个节点分别执行查看状态在node1上查看

[hadoop@node1 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Mode: follower
[hadoop@node1 bin]$

在node2上查看

[hadoop@node2 ~]$ zkServer.sh start
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[hadoop@node2 ~]$

node3上启动zookeeper

[hadoop@node3 ~]$ zkServer.sh start
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[hadoop@node3 ~]$

2.3 查看zookeeper集群状态

使用zkServer.sh status命令在三个节点分别执行查看状态在node1上查看

[hadoop@node1 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Mode: follower
[hadoop@node1 bin]$

在node2上查看

[hadoop@node2 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Mode: follower
[hadoop@node2 bin]$

在node3上查看

[hadoop@node3 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Mode: leader
[hadoop@node3 bin]$

至此我们zookeeper集群安装完成

2.4 大坑必须知道

由于按照hadoop2.7.3版本官方文档中使用zookeeper-3.4.2版本，但是zookeeper-3.4.2版本比较低，我们在启动 zookeeper后，可以使用jps命令或者ps -ef|grep zookeeper命令查看zookeeper主进程的状态，但是我们发现是正常的，如果我们使用zkServer.sh status命令查看zookeeper的状态却显示是异常的,不管启动多少次都会得到同样的结果,当然这样的结果不是每位同学都能遇到的，我想大部分同学都遇到。

[hadoop@node1 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Error contacting service. It is probably not running.
[hadoop@node2 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Error contacting service. It is probably not running.
[hadoop@node3 bin]$ zkServer.sh status
JMX enabled by default
Using config: /opt/bigdata/zookeeper-3.4.2/bin/../conf/zoo.cfg
Error contacting service. It is probably not running.

分析主要有以下两个原因造成:

centos7上没有安装nc工具.
zookeeper启动脚本中的nc命令在不同的linux版本中使用了无效的参数导致获取状态异常或者获取的状态为空状态导致的。

解决方法:

1.使用yum 在三个节点上分别安装nc工具

yum install nc -y

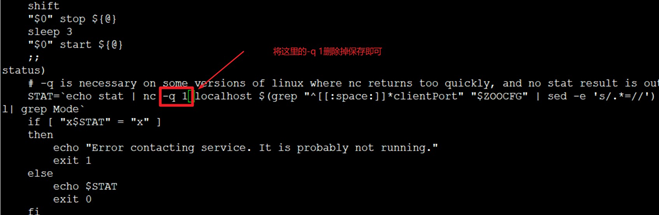

2.修改zookeeper安装目录下的bin目录下的zkServer.sh脚本文件内容

修改完成后我们在使用zkServer.sh status就能看到zookeeper的状态了.
