zabbix7proxy安装部署（基于almalinux9.4）

一.安装zabbix-proxy

1.下载软件仓库

rpm -Uvh https://repo.zabbix.com/zabbix/7.0/alma/9/x86_64/zabbix-release-7.0-2.el9.noarch.rpm

dnf clean all

dnf makecache

2.安装

dnf install -y zabbix-proxy-mysql zabbix-sql-scripts zabbix-selinux-policy



二.安装mysql

1.下载mysql

wget https://dev.mysql.com/get/Downloads/MySQL-8.0/mysql-8.0.37-1.el9.x86_64.rpm-bundle.tar

2.解压

mkdir mysql

tar xf mysql-8.0.37-1.el9.x86_64.rpm-bundle.tar -C /root/mysql/

3.安装

rpm -ivh mysql-community-* --force --nodeps

4.启动

systemctl start mysqld

systemctl enable mysqld

5.数据库初始密码

cat /var/log/mysqld.log |grep passwd

alter user 'root'@'localhost' identified by 'xxx';



三、配置zabbix-proxy数据库

1.导入初始数据

mysql -uroot -p

create database zabbix_proxy character set utf8mb4 collate utf8mb4_bin;

create user zabbix_proxy@localhost identified by 'xxx';

grant all privileges on zabbix_proxy.* to zabbix_proxy@localhost;

set global log_bin_trust_function_creators = 1;

quit;

cat /usr/share/zabbix-sql-scripts/mysql/proxy.sql | mysql --default-character-set=utf8mb4 -uzabbix_proxy -p zabbix_proxy 导入初始架构和数据

set global log_bin_trust_function_creators = 0;



2.修改zabbix_proxy配置

/etc/zabbix/zabbix_proxy.conf

Server=192.168.137.110  #此处为zabbix-server的IP地址
Hostname=zabbixccr      #服务器主机名
LogFile=/var/log/zabbix/zabbix_proxy.log
LogFileSize=0
PidFile=/run/zabbix/zabbix_proxy.pid
SocketDir=/run/zabbix
DBName=zabbix_proxy
DBUser=zabbix_proxy
ProxyBufferMode=hybrid
ProxyMemoryBufferSize=16M
SNMPTrapperFile=/var/log/snmptrap/snmptrap.log
Timeout=4
LogSlowQueries=3000
StatsAllowedIP=127.0.0.1
DBPassword=xxx



四、关闭selinux、防火墙和启动服务

setenforce 0

systemctl stop firewalld

systemctl disable firewalld



systemctl restart zabbix-proxy

systemctl enable zabbix-proxy



五、在zabbix server上创建proxy

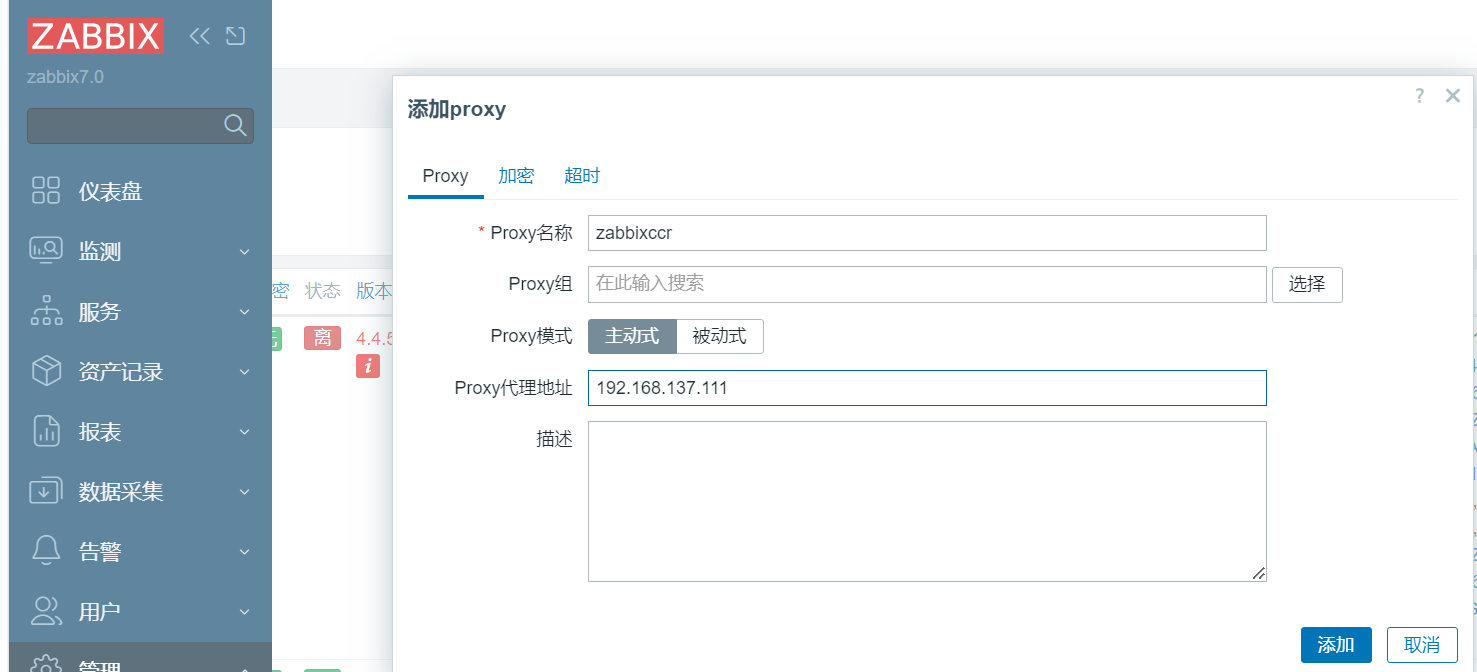

管理--proxy--创建proxy

输入proxy名称(和配置文件中hostname保持一致)和代理地址

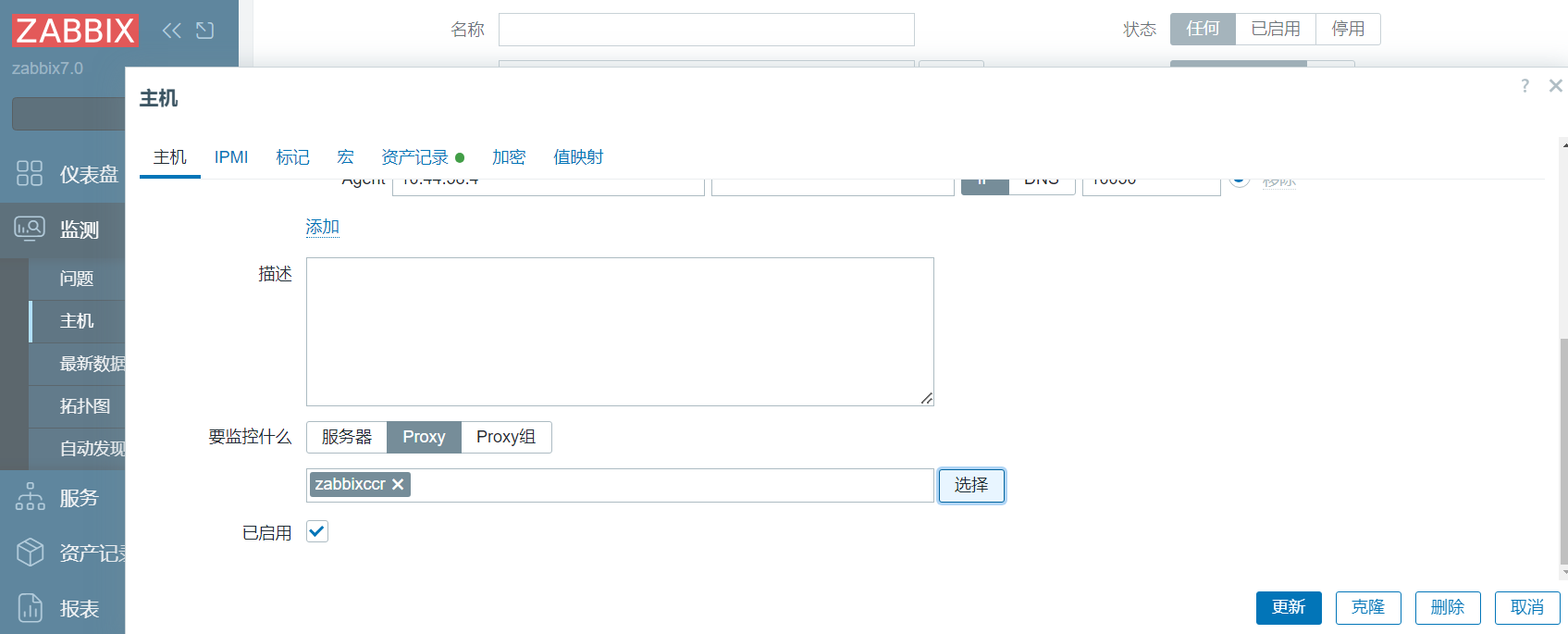

设置主机从proxy获取数据



六、客户端重新指向ip到proxy

cat /etc/zabbix/zabbix_agentd.conf |grep -Ev "^#|^$"
Server=192.168.137.111
ServerActive=192.168.137.111
