Blog总结03（7~9次作业总结）

1.前言

（1）题目集07共有两道题目，第一题和第二题难度都适中，第二题难度较第一题来说，第一题主要考察类的继承、多态性使用方法以及接口的应用，难度适中，第二题也考察类的继承、多态性使用方法以及接口的应用，第二题要求对卡片排序时使用 Comparable 接口或 Comparator 接口。所以难度比第一题稍微大一些。可以说第二题就是第一题的升级版本，我们需要创建一个卡牌类，然后让圆形卡片类，矩形卡片类，三角形卡片类，梯形卡片类继承于卡牌类，每个类中都加入求面积的方法，这样就能实现继承多态的使用，直接调用card的求面积方法就可以实现很多类的求面积方法。然后在利用接口实现对面积的排序等问题的解决。

（2）题目集08只有一道题目，难度相对来说就比较难了，确实自己写了很久，思考了很多，查了很多资料，这道题的难度确实不低，这道题目要求我们编写一个银行 ATM 机的模拟程序，能够完成用户的存款、取款以及查询余额功能，重点考核类的封装性及类间关系设计（关联、组合及依赖），这道题的综合性很强，他考察了类与类的关系，这道题要求我们去思考怎样去设计，设计类与类之间的关系，好的设计可以让整个程序思路清晰，功能完善，所设计的到的知识点很全面，是综合性很强的题目。

（3）题目集09有一道题目，题目集09的题目其实是题目集08ATM机题目的扩展，该题目加了一些内容，比如该试题加了信用卡的功能，可以贷款，余额可以为负，然后允许跨行取款，只不过要收一些手续费，难度其实跟上一道差不多，比上一道题略难一些，本道题设计需要进一步思考，我们应该把账户设置成一个抽象类，然后有两个账户一个为借记账户，一个为贷记账户，都继承于账户类，方法都一样，这样就可以实现继承多态的一些方法，总体来说，这道题还是综合性的考察，作为题目集08作业的迭代作业，综合性较强，难度也是较大的。

2.设计与分析、

题目集07（7-1）图形卡片排序游戏

输入格式:

首先，在一行上输入一串数字（1~4，整数），其中，1代表圆形卡片，2代表矩形卡片，3代表三角形卡片，4代表梯形卡片。各数字之间以一个或多个空格分隔，以“0”结束。例如： 1 3 4 2 1 3 4 2 1 3 0
然后根据第一行数字所代表的卡片图形类型，依次输入各图形的相关参数，例如：圆形卡片需要输入圆的半径，矩形卡片需要输入矩形的宽和长，三角形卡片需要输入三角形的三条边长，梯形需要输入梯形的上底、下底以及高。各数据之间用一个或多个空格分隔。

输出格式:

如果图形数量非法（小于0）或图形属性值非法（数值小于0以及三角形三边不能组成三角形），则输出Wrong Format。
如果输入合法，则正常输出，所有数值计算后均保留小数点后两位即可。输出内容如下：

排序前的各图形类型及面积，格式为图形名称1:面积值1图形名称2:面积值2 …图形名称n:面积值n ，注意，各图形输出之间用空格分开，且输出最后存在一个用于分隔的空格；
排序后的各图形类型及面积，格式同排序前的输出；
所有图形的面积总和，格式为Sum of area:总面积值。

本题源码如下：

  1 import java.util.ArrayList;
  2 import java.util.Collections;
  3 import java.util.Scanner;
  4 public class Main{
  5     public static void main(String[] args) {
  6         Scanner input = new Scanner(System.in);
  7         ArrayList<Integer> list = new ArrayList<Integer>();
  8         int n = input.nextInt();
  9         /*if(n == 0) {
 10             System.out.println("Wrong Format");
 11
 12         }*/
 13                 while(n != 0) {
 14                 if(n < 0 || n > 4) {
 15                         System.out.println("Wrong Format");
 16                         System.exit(0);
 17                 }
 18                 list.add(n);
 19                 n = input.nextInt();
 20
 21                 }
 22
 23
 24                 ArrayList <Card> list2 = new ArrayList<Card>();
 25                 for(int i = 0; i < list.size(); i ++) {
 26
 27                     switch(list.get(i)) {
 28                     case 1:
 29                         Card cir = new Circle(input.nextDouble());
 30                         list2.add(cir);
 31
 32                         break;
 33                     case 2:
 34                         Rectangle rec = new Rectangle(input.nextDouble(),input.nextDouble());
 35                         list2.add(rec);
 36                         break;
 37                     case 3:
 38                         Triangle tri = new Triangle(input.nextDouble(),input.nextDouble(),input.nextDouble());
 39                         list2.add(tri);
 40                         break;
 41                     case 4:
 42                         Trapezium tra = new Trapezium(input.nextDouble(),input.nextDouble(),input.nextDouble());
 43                         list2.add(tra);
 44                         break;
 45                     }
 46                     if(!list2.get(i).validate()) {
 47                         System.out.println("Wrong Format");
 48                          System.exit(0);
 49                     }
 50                 }
 51                 System.out.println("The original list:");
 52
 53                 for(int i = 0; i < list.size(); i ++) {
 54                     list2.get(i).getName();
 55                     System.out.print(String.format("%.2f", list2.get(i).getArea()).toString()+" ");
 56
 57                 }
 58                 System.out.println();
 59                 System.out.println("The sorted list:");
 60                  for(int i = 0; i < list2.size() - 1; i++)
 61                      for(int j = 0; j < list2.size() - 1 - i;j ++) {
 62                          if(list2.get(j).getArea() < list2.get(j+1).getArea())
 63                              Collections.swap(list2, j, j+1);
 64                      }
 65                  double sum = 0;
 66                  for(int i = 0; i < list.size(); i ++) {
 67                      list2.get(i).getName();
 68                      System.out.print(String.format("%.2f", list2.get(i).getArea()).toString()+" ");
 69                       sum = sum + list2.get(i).getArea();
 70                  }
 71                  System.out.println();
 72
 73                  System.out.println("Sum of area:"+String.format("%.2f", sum).toString());
 74
 75 //System.out.println(String.format("%.2f", r.getArea()).toString());
 76     }
 77 }
 78
 79 abstract class Card {
 80     public abstract double getArea();
 81     public abstract boolean validate();
 82     public abstract void getName();
 83 }
 84
 85
 86 class Circle extends Card{
 87     private double radius;
 88
 89     public Circle() {
 90         super();
 91     }
 92
 93     public Circle(double radius) {
 94         super();
 95         this.radius = radius;
 96     }
 97     public double getArea() {
 98         return Math.PI*this.radius * this.radius ;
 99     }
100     public boolean validate() {
101         if(this.radius <= 0)
102             return false;
103         else
104             return true;
105     }
106     public  void getName() {
107         System.out.print("Circle:");
108     }
109 }
110
111
112 class Rectangle extends Card{
113     private double width;
114     private double length;
115     public Rectangle() {
116         super();
117         // TODO 自动生成的构造函数存根
118     }
119     public Rectangle(double width, double length) {
120         super();
121         this.width = width;
122         this.length = length;
123     }
124     public double getArea() {
125         return this.length *this.width;
126     }
127     public boolean validate() {
128         if(this.length > 0 && this.width > 0)
129             return true;
130         else
131             return false;
132     }
133     public  void getName() {
134         System.out.print("Rectangle:");
135     }
136 }
137
138
139 class Triangle extends Card{
140     private double side1;
141     private double side2;
142     private double side3;
143     public Triangle() {
144         super();
145         // TODO 自动生成的构造函数存根
146     }
147     public Triangle(double side1, double side2, double side3) {
148         super();
149         this.side1 = side1;
150         this.side2 = side2;
151         this.side3 = side3;
152     }
153
154     public double getArea() {
155         double s = (this.side1 + this.side2 + this.side3)/2.0;
156         return Math.sqrt(s * (s - this.side1) * (s - this.side2) * (s - this.side3));
157     }
158     public boolean validate() {
159         if(this.side1 > 0 && this.side2 > 0 && this.side3 > 0) {
160             if(this.side1 + this.side2 > this.side3 && this.side1 + this.side3 > this.side2 && this.side2 + this.side3 > this.side1)
161                 return true;
162             else
163                 return false;
164
165         }
166         else
167             return false;
168     }
169     public  void getName() {
170         System.out.print("Triangle:");
171     }
172 }
173 class Trapezium extends Card{
174     double length;
175     double width;
176     double high;
177     public Trapezium() {
178         super();
179         // TODO 自动生成的构造函数存根
180     }
181     public Trapezium(double length, double width, double high) {
182         super();
183         this.length = length;
184         this.width = width;
185         this.high = high;
186     }
187     public double getLength() {
188         return length;
189     }
190     public void setLength(double length) {
191         this.length = length;
192     }
193     public double getWidth() {
194         return width;
195     }
196     public void setWidth(double width) {
197         this.width = width;
198     }
199     public double getHigh() {
200         return high;
201     }
202     public void setHigh(double high) {
203         this.high = high;
204     }
205     public double getArea() {
206         return (this.length + this.width)*this.high/2.0;
207     }
208     public boolean validate() {
209         if(this.high > 0 && this.length > 0 && this.width > 0)
210             return true;
211         else
212             return false;
213     }
214     public  void getName() {
215         System.out.print("Trapezoid:");
216     }
217 }

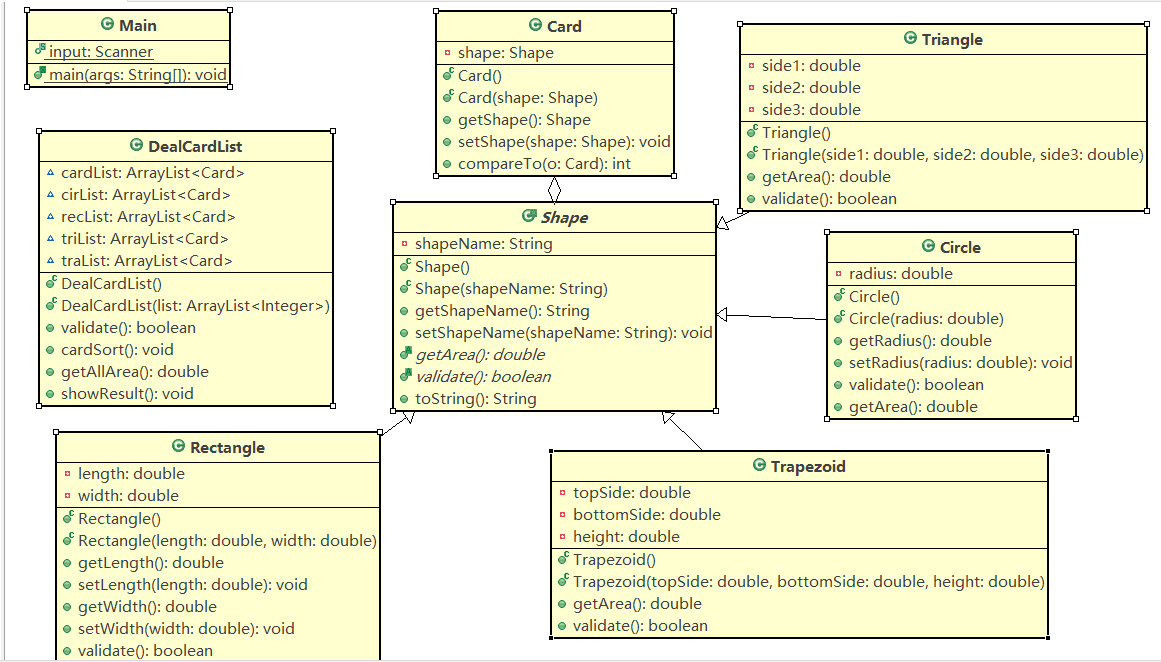

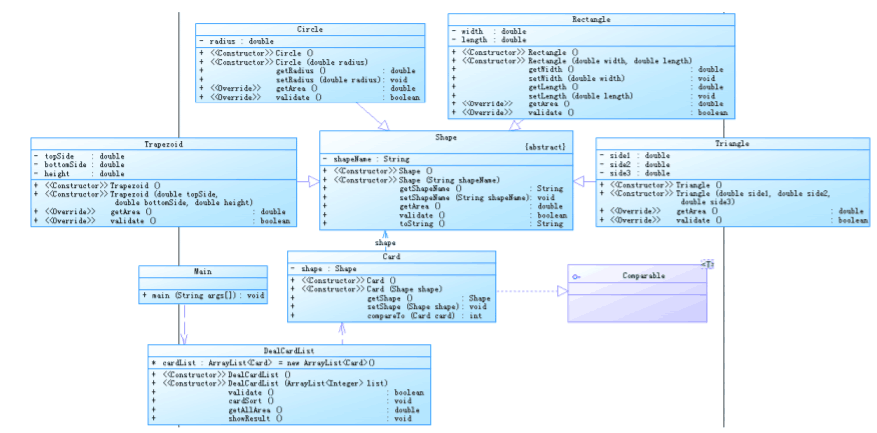

类图如下：

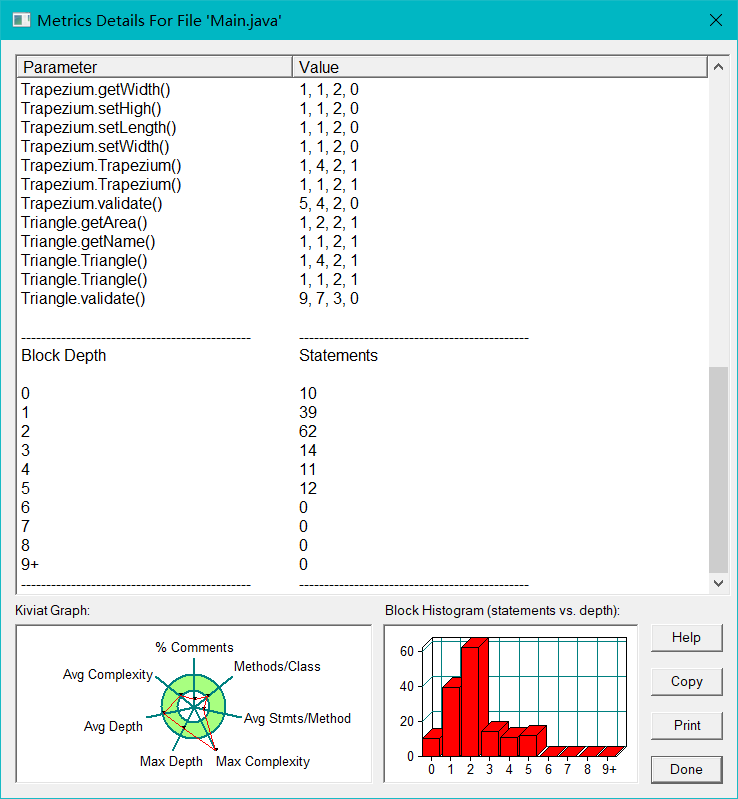

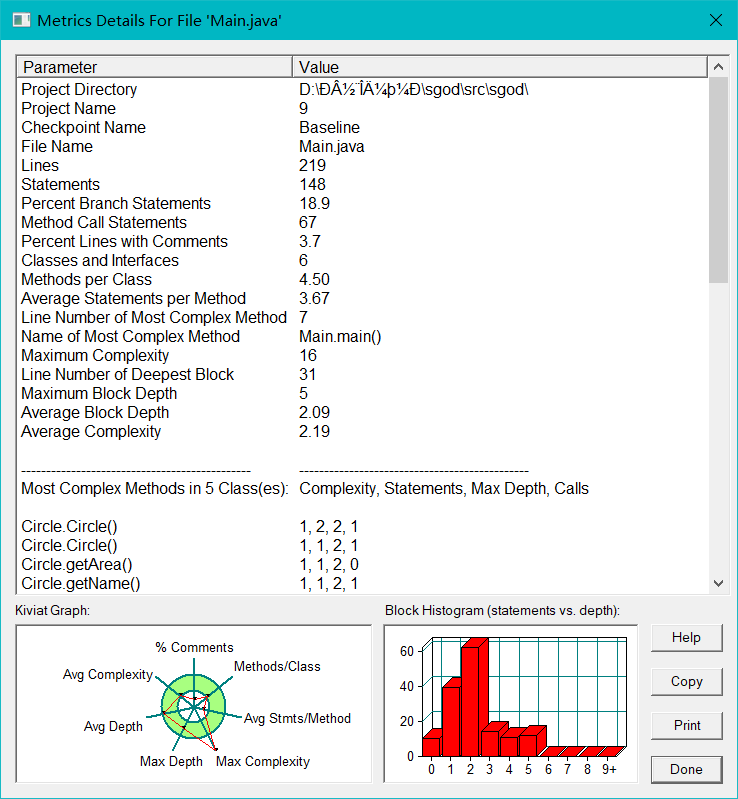

SourceMonitor的生成报表内容：

题目集07（7-2）图形卡片分组游戏

输入格式:

在一行上输入一串数字（1~4，整数），其中，1代表圆形卡片，2代表矩形卡片，3代表三角形卡片，4代表梯形卡片。各数字之间以一个或多个空格分隔，以“0”结束。例如：1 3 4 2 1 3 4 2 1 3 0
根据第一行数字所代表的卡片图形类型，依次输入各图形的相关参数，例如：圆形卡片需要输入圆的半径，矩形卡片需要输入矩形的宽和长，三角形卡片需要输入三角形的三条边长，梯形需要输入梯形的上底、下底以及高。各数据之间用一个或多个空格分隔。

输出格式:

如果图形数量非法（<=0）或图形属性值非法（数值<0以及三角形三边不能组成三角形），则输出Wrong Format。
如果输入合法，则正常输出，所有数值计算后均保留小数点后两位即可。输出内容如下：

排序前的各图形类型及面积，格式为[图形名称1:面积值1图形名称2:面积值2 …图形名称n:面积值n ]，注意，各图形输出之间用空格分开，且输出最后存在一个用于分隔的空格，在结束符“]”之前；
输出分组后的图形类型及面积，格式为[圆形分组各图形类型及面积][矩形分组各图形类型及面积][三角形分组各图形类型及面积][梯形分组各图形类型及面积]，各组内格式为图形名称:面积值。按照“Circle、Rectangle、Triangle、Trapezoid”的顺序依次输出；
各组内图形排序后的各图形类型及面积，格式同排序前各组图形的输出；
各组中面积之和的最大值输出，格式为The max area:面积值。

此题源码如下：

  1 import java.util.ArrayList;
  2 import java.util.Collections;
  3 import java.util.Scanner;
  4
  5 public class Main {
  6     public static void main(String[] args) {
  7         Scanner input = new Scanner(System.in);
  8         ArrayList<Integer> list = new ArrayList<Integer>();
  9         int n = input.nextInt();
 10         if (n == 0) {
 11             System.out.println("Wrong Format");
 12             System.exit(0);
 13
 14         }
 15         while (n != 0) {
 16             if (n < 0 || n > 4) {
 17                 System.out.println("Wrong Format");
 18                 System.exit(0);
 19             }
 20             list.add(n);
 21             n = input.nextInt();
 22
 23         }
 24
 25         ArrayList<Card> list2 = new ArrayList<Card>();
 26         ArrayList<Card> c1 = new ArrayList<Card>();
 27         ArrayList<Card> c2 = new ArrayList<Card>();
 28         ArrayList<Card> c3 = new ArrayList<Card>();
 29         ArrayList<Card> c4 = new ArrayList<Card>();
 30         for (int i = 0; i < list.size(); i++) {
 31
 32             switch (list.get(i)) {
 33             case 1:
 34                 Card cir = new Circle(input.nextDouble());
 35                 list2.add(cir);
 36                 c1.add(cir);
 37
 38                 break;
 39             case 2:
 40                 Rectangle rec = new Rectangle(input.nextDouble(), input.nextDouble());
 41                 list2.add(rec);
 42                 c2.add(rec);
 43                 break;
 44             case 3:
 45                 Triangle tri = new Triangle(input.nextDouble(), input.nextDouble(), input.nextDouble());
 46                 list2.add(tri);
 47                 c3.add(tri);
 48                 break;
 49             case 4:
 50                 Trapezium tra = new Trapezium(input.nextDouble(), input.nextDouble(), input.nextDouble());
 51                 list2.add(tra);
 52                 c4.add(tra);
 53                 break;
 54             }
 55             if (!list2.get(i).validate()) {
 56                 System.out.println("Wrong Format");
 57                 System.exit(0);
 58             }
 59         }
 60         System.out.println("The original list:");
 61         System.out.print("[");
 62
 63         for (int i = 0; i < list.size(); i++) {
 64             list2.get(i).getName();
 65             System.out.print(String.format("%.2f", list2.get(i).getArea()).toString() + " ");
 66
 67         }
 68         System.out.print("]");
 69         System.out.println();
 70         System.out.println("The Separated List:");
 71         System.out.print("[");
 72         for (int i = 0; i < c1.size(); i++) {
 73             c1.get(i).getName();
 74             System.out.print(String.format("%.2f", c1.get(i).getArea()).toString() + " ");
 75
 76         }
 77         System.out.print("]");
 78         System.out.print("[");
 79         for (int i = 0; i < c2.size(); i++) {
 80             c2.get(i).getName();
 81             System.out.print(String.format("%.2f", c2.get(i).getArea()).toString() + " ");
 82
 83         }
 84         System.out.print("]");
 85         System.out.print("[");
 86         for (int i = 0; i < c3.size(); i++) {
 87             c3.get(i).getName();
 88             System.out.print(String.format("%.2f", c3.get(i).getArea()).toString() + " ");
 89         }
 90         System.out.print("]");
 91         System.out.print("[");
 92         for (int i = 0; i < c4.size(); i++) {
 93             c4.get(i).getName();
 94             System.out.print(String.format("%.2f", c4.get(i).getArea()).toString() + " ");
 95         }
 96         System.out.print("]");
 97         System.out.println();
 98         System.out.println("The Separated sorted List:");
 99
100         for (int i = 0; i < c1.size() - 1; i++)
101             for (int j = 0; j < c1.size() - 1 - i; j++) {
102                 if (c1.get(j).getArea() < c1.get(j + 1).getArea())
103                     Collections.swap(c1, j, j + 1);
104             }
105
106         for (int i = 0; i < c2.size() - 1; i++)
107             for (int j = 0; j < c2.size() - 1 - i; j++) {
108                 if (c2.get(j).getArea() < c2.get(j + 1).getArea())
109                     Collections.swap(c2, j, j + 1);
110             }
111         for (int i = 0; i < c3.size() - 1; i++)
112             for (int j = 0; j < c3.size() - 1 - i; j++) {
113                 if (c3.get(j).getArea() < c3.get(j + 1).getArea())
114                     Collections.swap(c3, j, j + 1);
115             }
116         for (int i = 0; i < c4.size() - 1; i++)
117             for (int j = 0; j < c4.size() - 1 - i; j++) {
118                 if (c4.get(j).getArea() < c4.get(j + 1).getArea())
119                     Collections.swap(c4, j, j + 1);
120             }
121
122         System.out.print("[");
123         double m1 = 0, m2 = 0, m3 = 0, m4 = 0;
124         for (int i = 0; i < c1.size(); i++) {
125             c1.get(i).getName();
126             System.out.print(String.format("%.2f", c1.get(i).getArea()).toString() + " ");
127             m1 += c1.get(i).getArea();
128         }
129         System.out.print("]");
130         System.out.print("[");
131         for (int i = 0; i < c2.size(); i++) {
132             c2.get(i).getName();
133             System.out.print(String.format("%.2f", c2.get(i).getArea()).toString() + " ");
134             m2 += c2.get(i).getArea();
135         }
136         System.out.print("]");
137         System.out.print("[");
138         for (int i = 0; i < c3.size(); i++) {
139             c3.get(i).getName();
140             System.out.print(String.format("%.2f", c3.get(i).getArea()).toString() + " ");
141             m3 += c3.get(i).getArea();
142         }
143         System.out.print("]");
144         System.out.print("[");
145         for (int i = 0; i < c4.size(); i++) {
146             c4.get(i).getName();
147             System.out.print(String.format("%.2f", c4.get(i).getArea()).toString() + " ");
148             m4 += c4.get(i).getArea();
149         }
150         System.out.print("]");
151
152         double max = 0;
153         if (max < m1)
154             max = m1;
155         if (max < m2)
156             max = m2;
157         if (max < m3)
158             max = m3;
159         if (max < m4)
160             max = m4;
161
162         System.out.println();
163
164         System.out.print("The max area:" + String.format("%.2f", max).toString());
165
166     }
167 }
168 //System.out.print(String.format("%.2f", r.getArea()).toString());
169 abstract class Card {
170     public abstract double getArea();
171
172     public abstract boolean validate();
173
174     public abstract void getName();
175
176 }
177
178 class Circle extends Card {
179     private double radius;
180
181     public Circle() {
182         super();
183     }
184
185     public Circle(double radius) {
186         super();
187         this.radius = radius;
188     }
189
190     public double getArea() {
191         return Math.PI * this.radius * this.radius;
192     }
193
194     public boolean validate() {
195         if (this.radius <= 0)
196             return false;
197         else
198             return true;
199     }
200
201     public void getName() {
202         System.out.print("Circle:");
203     }
204 }
205
206 class Rectangle extends Card {
207     private double width;
208     private double length;
209
210     public Rectangle() {
211         super();
212         // TODO 自动生成的构造函数存根
213     }
214
215     public Rectangle(double width, double length) {
216         super();
217         this.width = width;
218         this.length = length;
219     }
220
221     public double getArea() {
222         return this.length * this.width;
223     }
224
225     public boolean validate() {
226         if (this.length > 0 && this.width > 0)
227             return true;
228         else
229             return false;
230     }
231
232     public void getName() {
233         System.out.print("Rectangle:");
234     }
235 }
236
237 class Triangle extends Card {
238     private double side1;
239     private double side2;
240     private double side3;
241
242     public Triangle() {
243         super();
244         // TODO 自动生成的构造函数存根
245     }
246
247     public Triangle(double side1, double side2, double side3) {
248         super();
249         this.side1 = side1;
250         this.side2 = side2;
251         this.side3 = side3;
252     }
253
254     public double getArea() {
255         double s = (this.side1 + this.side2 + this.side3) / 2.0;
256         return Math.sqrt(s * (s - this.side1) * (s - this.side2) * (s - this.side3));
257     }
258
259     public boolean validate() {
260         if (this.side1 > 0 && this.side2 > 0 && this.side3 > 0) {
261             if (this.side1 + this.side2 > this.side3 && this.side1 + this.side3 > this.side2
262                     && this.side2 + this.side3 > this.side1)
263                 return true;
264             else
265                 return false;
266
267         } else
268             return false;
269     }
270
271     public void getName() {
272         System.out.print("Triangle:");
273     }
274 }
275
276 class Trapezium extends Card {
277     double length;
278     double width;
279     double high;
280
281     public Trapezium() {
282         super();
283         // TODO 自动生成的构造函数存根
284     }
285
286     public Trapezium(double length, double width, double high) {
287         super();
288         this.length = length;
289         this.width = width;
290         this.high = high;
291     }
292
293     public double getLength() {
294         return length;
295     }
296
297     public void setLength(double length) {
298         this.length = length;
299     }
300
301     public double getWidth() {
302         return width;
303     }
304
305     public void setWidth(double width) {
306         this.width = width;
307     }
308
309     public double getHigh() {
310         return high;
311     }
312
313     public void setHigh(double high) {
314         this.high = high;
315     }
316
317     public double getArea() {
318         return (this.length + this.width) * this.high / 2.0;
319     }
320
321     public boolean validate() {
322         if (this.high > 0 && this.length > 0 && this.width > 0)
323             return true;
324         else
325             return false;
326     }
327
328     public void getName() {
329         System.out.print("Trapezoid:");
330     }
331 }

类图：

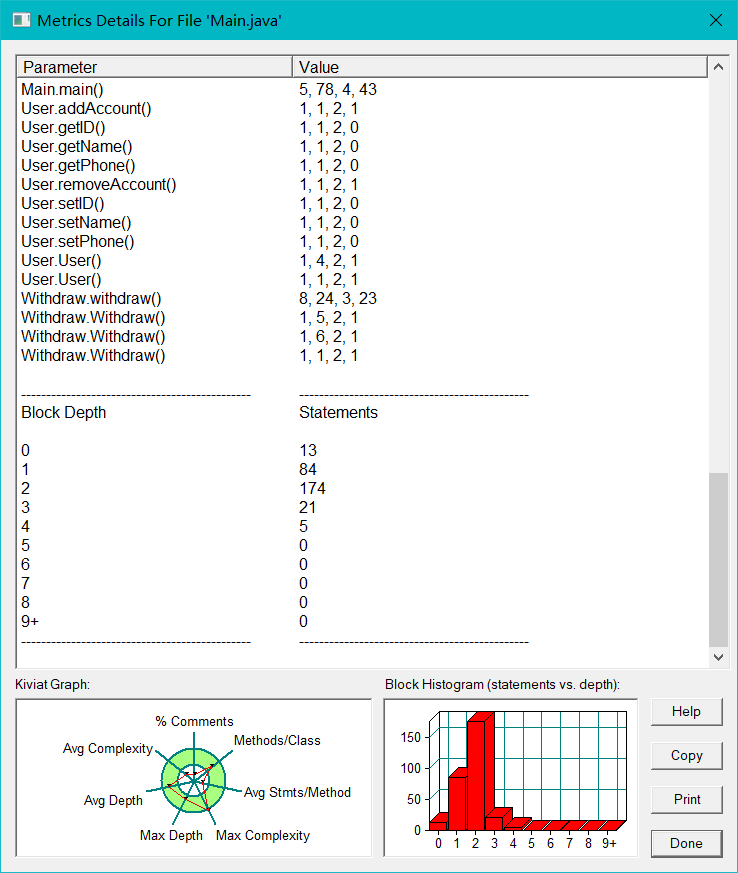

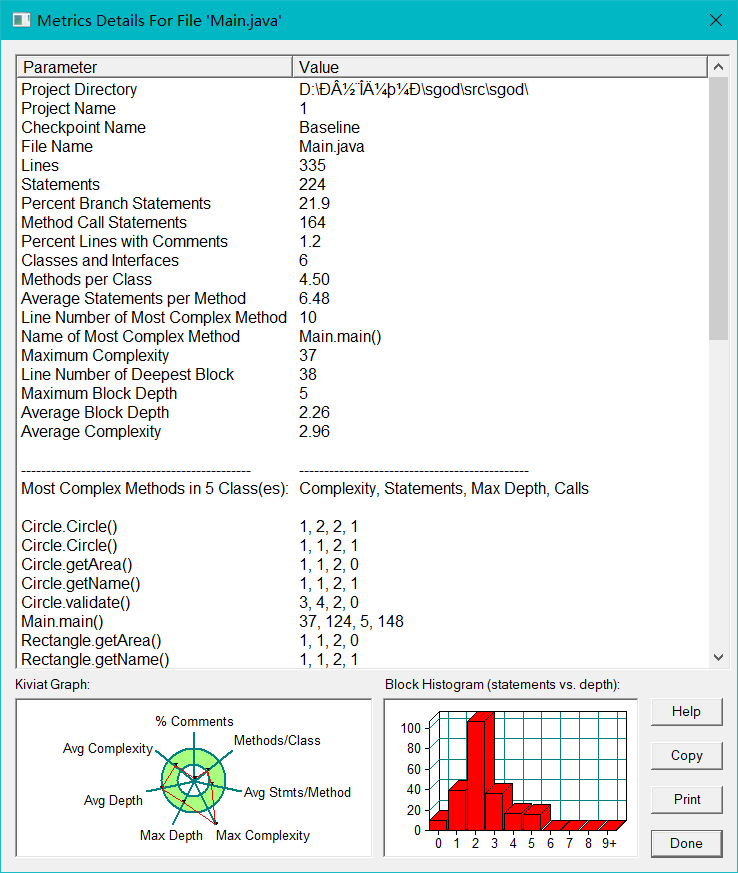

SourceMonitor的生成报表内容：

分析：

题目集07这两道题是一种递进的关系，第一道题让我们制作一个图形卡片排序游戏，用到了大量的继承多态的方法，主要考察目的也是继承多态方法的使用，需要我们设计一个图形类，然后让其他圆类，矩形类，三角类等类继承于图形类，然后都有同样的求面积方法，这样就能实现继承和多态，第二道题在此基础上加了一些其他的东西，比如要求我们用到了接口，通过接口去对面积进行排序求和等操作，总之呢第二题是第一题的一个进阶版，需要操作的东西更多一些，用到接口，对面积进行操作。

题目集08 ATM机类结构设计（一）

输入格式:

每一行输入一次业务操作，可以输入多行，最终以字符#终止。具体每种业务操作输入格式如下：

存款、取款功能输入数据格式： 卡号密码 ATM机编号金额（由一个或多个空格分隔），其中，当金额大于0时，代表取款，否则代表存款。
查询余额功能输入数据格式： 卡号

输出格式:

①输入错误处理

如果输入卡号不存在，则输出Sorry,this card does not exist.。
如果输入ATM机编号不存在，则输出Sorry,the ATM's id is wrong.。
如果输入银行卡密码错误，则输出Sorry,your password is wrong.。
如果输入取款金额大于账户余额，则输出Sorry,your account balance is insufficient.。
如果检测为跨行存取款，则输出Sorry,cross-bank withdrawal is not supported.。

②取款业务输出

输出共两行，格式分别为：

[用户姓名]在[银行名称]的[ATM编号]上取款¥[金额]

当前余额为¥[金额]

其中，[]说明括起来的部分为输出属性或变量，金额均保留两位小数。

③存款业务输出

输出共两行，格式分别为：

[用户姓名]在[银行名称]的[ATM编号]上存款¥[金额]

当前余额为¥[金额]

其中，[]说明括起来的部分为输出属性或变量，金额均保留两位小数。

④查询余额业务输出

¥[金额]

金额保留两位小数。

此题源码如下：

  1 import java.util.Scanner;
  2 import java.util.regex.Pattern;
  3 import java.util.ArrayList;
  4 import java.util.Iterator;
  5
  6 public class Main {
  7     public static void main(String[] args) {
  8         Agent agent = new Agent();
  9         agent.main(args);
 10         /*ChinaUnionPay chi = new ChinaUnionPay();
 11         Scanner input = new Scanner(System.in);
 12         String shuru = input.nextLine();
 13         String[] str = shuru.split("\\s+");
 14         if(!agent.isExistCard(chi,str[0] )) {
 15
 16         }
 17         else
 18             System.out.println("Sorry,this card does not exist.");*/
 19     }
 20 }
 21
 22 class ChinaUnionPay {
 23     private ArrayList<Bank> list = new ArrayList<Bank>();
 24
 25     public void addBank(Bank bank) {
 26         list.add(bank);
 27     }
 28
 29     public void removeBank(Bank bank) {
 30         list.remove(bank);
 31     }
 32
 33     public ChinaUnionPay() {
 34         super();
 35         // TODO 自动生成的构造函数存根
 36     }
 37
 38     public ArrayList<Bank> getList() {
 39         return list;
 40     }
 41
 42     public void setList(ArrayList<Bank> list) {
 43         this.list = list;
 44     }
 45
 46     public ChinaUnionPay(ArrayList<Bank> list) {
 47         super();
 48         this.list = list;
 49     }
 50
 51 }
 52
 53 class Bank {
 54     private String Name;
 55     private ArrayList<User> list = new ArrayList<User>();
 56     private ArrayList<ATM> list2 = new ArrayList<ATM>();
 57
 58     public Bank() {
 59         super();
 60         // TODO 自动生成的构造函数存根
 61     }
 62
 63     public String getName() {
 64         return Name;
 65     }
 66
 67     public void setName(String name) {
 68         Name = name;
 69     }
 70
 71     public ArrayList<User> getList() {
 72         return list;
 73     }
 74
 75     public void setList(ArrayList<User> list) {
 76         this.list = list;
 77     }
 78
 79     public ArrayList<ATM> getList2() {
 80         return list2;
 81     }
 82
 83     public void setList2(ArrayList<ATM> list2) {
 84         this.list2 = list2;
 85     }
 86
 87     public Bank(String name, ArrayList<User> list, ArrayList<ATM> list2) {
 88         super();
 89         Name = name;
 90         this.list = list;
 91         this.list2 = list2;
 92     }
 93
 94     public void addUser(User user) {
 95         list.add(user);
 96     }
 97
 98     public void removeUser(User user) {
 99         list.remove(user);
100     }
101
102     public void addATM(ATM atm) {
103         list2.add(atm);
104     }
105
106     public void removeATM(ATM atm) {
107         list2.remove(atm);
108     }
109 }
110
111 class User {
112     public String getName() {
113         return name;
114     }
115
116     public void setName(String name) {
117         this.name = name;
118     }
119
120     public ArrayList<Account> getList() {
121         return list;
122     }
123
124     public void setList(ArrayList<Account> list) {
125         this.list = list;
126     }
127
128     private String name;
129     private ArrayList<Account> list = new ArrayList<Account>();
130
131     public void addAccount(Account account) {
132         list.add(account);
133     }
134
135     public void removeAccount(Account account) {
136         list.remove(account);
137     }
138
139     public User() {
140         super();
141         // TODO 自动生成的构造函数存根
142     }
143
144     public User(String name, ArrayList<Account> list) {
145         super();
146         this.name = name;
147         this.list = list;
148     }
149 }
150
151 class Account {
152     private String ID;
153
154     public ArrayList<Card> getList() {
155         return list;
156     }
157
158     public void setList(ArrayList<Card> list) {
159         this.list = list;
160     }
161
162     private ArrayList<Card> list = new ArrayList<Card>();
163
164     public void addCard(Card card) {
165         list.add(card);
166     }
167
168     public void removeCard(Card card) {
169         list.add(card);
170     }
171
172     public Account() {
173         super();
174         // TODO 自动生成的构造函数存根
175     }
176
177     public Account(String iD, ArrayList<Card> list) {
178         super();
179         ID = iD;
180         this.list = list;
181     }
182
183     public String getID() {
184         return ID;
185     }
186
187     public void setID(String iD) {
188         ID = iD;
189     }
190
191 }
192
193 class Card {
194     private String number;
195     private String cipher;
196     private String BankID;
197     public String getBankID() {
198         return BankID;
199     }
200
201     public void setBankID(String bankID) {
202         BankID = bankID;
203     }
204
205     private double value;
206
207     public Card() {
208         super();
209         // TODO 自动生成的构造函数存根
210     }
211
212
213
214     public String getNumber() {
215         return number;
216     }
217
218     public void setNumber(String number) {
219         this.number = number;
220     }
221
222     public String getCipher() {
223         return cipher;
224     }
225
226     public void setCipher(String cipher) {
227         this.cipher = cipher;
228     }
229
230     public double getValue() {
231         return value;
232     }
233
234     public void setValue(double value) {
235         this.value = value;
236     }
237
238     public Card(String number, String bankID, String cipher, double value) {
239         super();
240         this.number = number;
241         this.cipher = cipher;
242         BankID = bankID;
243         this.value = value;
244     }
245
246 }
247
248 class ATM {
249     private String ID;
250     private String BankID;
251     private Card card = new Card();
252
253
254     public String getID() {
255         return ID;
256     }
257
258     public void setID(String iD) {
259         ID = iD;
260     }
261
262     public Card getCard() {
263         return card;
264     }
265
266     public void setCard(Card card) {
267         this.card = card;
268     }
269
270     public void dealmoney(Card card, double money) {
271         card.setValue(card.getValue() - money);
272     }
273
274     public ATM() {
275         super();
276         // TODO 自动生成的构造函数存根
277     }
278
279     public String getBankID() {
280         return BankID;
281     }
282
283     public void setBankID(String bankID) {
284         BankID = bankID;
285     }
286     public boolean isATMRight() {
287     if(this.BankID == this.card.getBankID())
288         return true;
289     else
290         return false;
291 }
292 }
293 class Agent {
294
295     public void main(String[] args) {
296         // 银联
297         ChinaUnionPay chi = new ChinaUnionPay();
298         // 银行
299         Bank bank1 = new Bank();
300         Bank bank2 = new Bank();
301         bank1.setName("中国建设银行");
302         bank2.setName("中国工商银行");
303         chi.addBank(bank1);
304         chi.addBank(bank2);
305         // ATM
306         ATM atm1 = new ATM();
307         atm1.setID("01");
308         atm1.setBankID(bank1.getName());
309         ATM atm2 = new ATM();
310         atm2.setID("02");
311         atm2.setBankID(bank1.getName());
312         ATM atm3 = new ATM();
313         atm3.setID("03");
314         atm3.setBankID(bank1.getName());
315         ATM atm4 = new ATM();
316         atm4.setID("04");
317         atm4.setBankID(bank1.getName());
318         bank1.addATM(atm1);
319         bank1.addATM(atm2);
320         bank1.addATM(atm3);
321         bank1.addATM(atm4);
322         ATM atm5 = new ATM();
323         atm5.setID("05");
324         atm5.setBankID(bank2.getName());
325         ATM atm6 = new ATM();
326         atm6.setID("06");
327         atm6.setBankID(bank2.getName());
328         bank2.addATM(atm5);
329         bank2.addATM(atm6);
330         // 用户
331         User user1 = new User();
332         user1.setName("杨过");
333         User user2 = new User();
334         user2.setName("郭靖");
335         User user3 = new User();
336         user3.setName("张无忌");
337         User user4 = new User();
338         user4.setName("韦小宝");
339         bank1.addUser(user1);
340         bank1.addUser(user2);
341         bank2.addUser(user3);
342         bank2.addUser(user4);
343         // 账户
344         Account account1 = new Account();
345         account1.setID("3217000010041315709");
346         Account account2 = new Account();
347         account2.setID("3217000010041315715");
348         user1.addAccount(account1);
349         user1.addAccount(account2);
350         Account account3 = new Account();
351         account3.setID("3217000010051320007");
352         user2.addAccount(account3);
353         Account account4 = new Account();
354         account4.setID("3222081502001312389");
355         Account account5 = new Account();
356         account5.setID("3222081502001312390");
357         Account account6 = new Account();
358         account6.setID("3222081502001312399");
359         user3.addAccount(account4);
360         user3.addAccount(account5);
361         user3.addAccount(account6);
362         Account account7 = new Account();
363         account7.setID("3222081502051320785");
364         Account account8 = new Account();
365         account8.setID("3222081502051320786");
366         user4.addAccount(account7);
367         user4.addAccount(account8);
368         // 银行卡
369         Card card1 = new Card("6217000010041315709",bank1.getName(), "88888888", 10000);
370         Card card2 = new Card("6217000010041315715",bank1.getName(), "88888888", 10000);
371         account1.addCard(card1);
372         account1.addCard(card2);
373         Card card3 = new Card("6217000010041315718",bank1.getName(), "88888888", 10000);
374         account2.addCard(card3);
375         Card card4 = new Card("6217000010051320007",bank1.getName(), "88888888", 10000);
376         account3.addCard(card4);
377         Card card5 = new Card("6222081502001312389",bank2.getName(), "88888888", 10000);
378         account4.addCard(card5);
379         Card card6 = new Card("6222081502001312390",bank2.getName(), "88888888", 10000);
380         account5.addCard(card6);
381         Card card7 = new Card("6222081502001312399", bank2.getName(),"88888888", 10000);
382         Card card8 = new Card("6222081502001312400", bank2.getName(),"88888888", 10000);
383         account6.addCard(card7);
384         account6.addCard(card8);
385         Card card9 = new Card("6222081502051320785",bank2.getName(), "88888888", 10000);
386         account7.addCard(card9);
387         Card card10 = new Card("6222081502051320786",bank2.getName(), "88888888", 10000);
388         account8.addCard(card10);
389
390         //处理数据
391         Scanner input = new Scanner(System.in);
392         String shuru = input.nextLine();
393         String[] str = shuru.split("\\s+");
394         if(!isExistCard(chi,str[0])) {
395             System.out.println("Sorry,this card does not exist.");
396             System.exit(0);
397         }
398         if(!isExistPassword(chi,str[1])) {
399             System.out.println("Sorry,your password is wrong.");
400             System.exit(0);
401         }
402         if(!Pattern.matches("[0][1-6]", str[2])){
403             System.out.println("Sorry,the ATM's id is wrong.");
404             System.exit(0);
405         }
406         //阻断
407         for (int i = 0; i < chi.getList().size(); i++) {
408             for (int j = 0; j < chi.getList().get(i).getList().size(); j++) {
409                 for (int k = 0; k < chi.getList().get(i).getList().get(j).getList().size(); k++) {
410                     for (int l = 0; l < chi.getList().get(i).getList().get(j).getList().get(k).getList().size(); l++) {
411                         if (chi.getList().get(i).getList().get(j).getList().get(k).getList().get(l).getNumber()
412                                 .equals(str[0])) {
413                             //判断取钱大小
414                             if(chi.getList().get(i).getList().get(j).getList().get(k)
415                                     .getList().get(l).getValue() < Double.parseDouble(str[3])) {
416                                 System.out.println("Sorry,your account balance is insufficient.");
417                                 System.exit(0);
418                             }
419
420
421
422
423                             for (int a = 0; a < chi.getList().size(); a++) {
424                                 for (int b = 0; b < chi.getList().get(a).getList2().size(); b++) {
425
426                                     if (str[2].equals(chi.getList().get(a).getList2().get(b).getID())) {
427                                         if(chi.getList().get(i).getList().get(j).getList().get(k).getList().get(l).getBankID() != chi.getList().get(a).getList2().get(b).getBankID()) {
428                                             System.out.println("Sorry,cross-bank withdrawal is not supported.");
429                                             System.exit(0);
430                                         }
431                                     }
432
433
434                                     chi.getList().get(a).getList2().get(b).dealmoney(
435                                             chi.getList().get(i).getList().get(j).getList().get(k).getList().get(l),
436                                             Double.parseDouble(str[3]));
437                                     if(Double.parseDouble(str[3]) < 0) {
438                                         System.out.println(chi.getList().get(i).getList().get(j).getName()+"在"+chi.getList().get(i).getName()+"的"+str[2]+"号ATM机上存款"+"¥"+String.format("%.2f", Math.abs(Double.parseDouble(str[3]))).toString());
439                                         System.out.println("当前余额为¥"+String.format("%.2f", Math.abs(chi.getList().get(i).getList().get(j).getList().get(k)
440                                                 .getList().get(l).getValue())).toString());
441                                         System.exit(0);
442                                     }
443                                     if(Double.parseDouble(str[3]) > 0) {
444                                         System.out.println(chi.getList().get(i).getList().get(j).getName()+"在"+chi.getList().get(i).getName()+"的"+str[2]+"号ATM机上取款"+"¥"+String.format("%.2f", Math.abs(Double.parseDouble(str[3]))).toString());
445                                         System.out.println("当前余额为¥"+String.format("%.2f", Math.abs(chi.getList().get(i).getList().get(j).getList().get(k)
446                                                 .getList().get(l).getValue())).toString());
447                                         System.exit(0);
448                                     }
449
450
451                                 }
452                             }
453
454
455                             }
456                         }
457                     }
458                 }
459             }
460
461
462
463
464
465 }
466     public boolean isExistCard(ChinaUnionPay chi,String ID) {
467         Iterator<Bank> banki = chi.getList().iterator();
468         while(banki.hasNext()){
469             Iterator<User> useri = banki.next().getList().iterator();
470             while(useri.hasNext()){
471                 Iterator<Account> acci = useri.next().getList().iterator();
472                 while(acci.hasNext()){
473                     Iterator<Card> cardi = acci.next().getList().iterator();
474                     while(cardi.hasNext()){
475                 if(ID.equals(cardi.next().getNumber())){
476                     return true;
477                 }
478                 }
479                 }
480                 }
481                 }
482         return false;
483     }
484     public boolean isExistPassword(ChinaUnionPay chi,String mima) {
485         Iterator<Bank> banki = chi.getList().iterator();
486         while(banki.hasNext()){
487             Iterator<User> useri = banki.next().getList().iterator();
488             while(useri.hasNext()){
489                 Iterator<Account> acci = useri.next().getList().iterator();
490                 while(acci.hasNext()){
491                     Iterator<Card> cardi = acci.next().getList().iterator();
492                     while(cardi.hasNext()){
493                 if(mima.equals(cardi.next().getCipher())){
494                     return true;
495                 }
496                 }
497                 }
498                 }
499                 }
500         return false;
501     }
502
503
504     public Agent() {
505         super();
506         // TODO 自动生成的构造函数存根
507     }
508
509
510
511     }
512
513
514     /*public boolean isExistCard(ChinaUnionPay chi,String ID){
515         Iterator<Bank> banki = chi.getList().iterator();
516         while(banki.hasNext()){
517             Iterator<User> useri = banki.next().getList().iterator();
518             while(useri.hasNext()){
519                 Iterator<Account> acci = useri.next().getList().iterator();
520                 while(acci.hasNext()){
521                     Iterator<Card> cardi = acci.next().getList().iterator();
522                     while(cardi.hasNext()){
523                 if(ID.equals(cardi.next().getNumber())){
524                 return true;
525             }
526         }
527     }
528 }
529 }
530                 return false;
531 }*/
532
533
534
535         /*while(input.next().equals("#")) {
536         for (int i = 0; i < chi.getList().size(); i++) {
537             for (int j = 0; j < chi.getList().get(i).getList().size(); j++) {
538                 for (int k = 0; k < chi.getList().get(i).getList().get(j).getList().size(); k++) {
539                     for (int l = 0; l < chi.getList().get(i).getList().get(j).getList().get(k).getList().size(); l++) {
540
541                         if (chi.getList().get(i).getList().get(j).getList().get(k).getList().get(l).getNumber()
542                                 .equals(str[0])) {
543
544                             int[] position = { i, j, k, l };
545                             if (!str[1].equals(chi.getList().get(position[0]).getList().get(position[1]).getList()
546                                     .get(position[2]).getList().get(position[3]).getCipher())) {
547                                 System.out.println("Sorry,your password is wrong.");
548                                 System.exit(0);
549                             }
550
551                         }
552                         if(!Pattern.matches("[0][1-6]", str[2])){
553                             System.out.println("Sorry,the ATM's id is wrong.");
554                             System.exit(0);
555                         }
556                     /*    int f = 0;
557                         Iterator<Bank>banki = chi.getList().iterator();
558                         while(banki.hasNext()) {
559                             f++;
560                             if(banki.next().getList2().get(f).equals(str[2])) {
561                                 System.out.println("Sorry,cross-bank withdrawal is not supported.");
562                                 System.exit(0);
563                             }
564                             }*/
565                             /*for (int a = 0; a < chi.getList().size(); a++) {
566                                 for (int b = 0; b < chi.getList().get(a).getList2().size(); b++) {
567
568                                     if (str[2].equals(chi.getList().get(a).getList2().get(b).getID())) {
569
570                                         if(chi.getList().get(i).getList().get(j).getList().get(k)
571                                                 .getList().get(l).getValue() < Double.parseDouble(str[3])) {
572                                             System.out.println("Sorry,your account balance is insufficient.");
573                                             System.exit(0);
574                                         }
575
576
577                                         chi.getList().get(a).getList2().get(b).dealmoney(
578                                                 chi.getList().get(i).getList().get(j).getList().get(k).getList().get(l),
579                                                 Double.parseDouble(str[3]));
580                                         System.out.println(chi.getList().get(i).getList().get(j).getName()+"在"+chi.getList().get(i).getName()+"的"+str[2]+"号ATM机上存款"+"￥"+Math.abs(Double.parseDouble(str[3])));
581                                         System.out.println("当前余额为￥"+String.format("%.2f", Math.abs(chi.getList().get(i).getList().get(j).getList().get(k)
582                                                 .getList().get(l).getValue())).toString());
583                                         System.exit(0);
584                                         /*chi.getList().get(i).getList().get(j).getList().get(k)
585                                         .getList().get(l).getValue()*/
586                                 /*    }
587
588
589
590                                 }
591                             }
592
593                         }
594                 }
595                 }
596             }
597
598         System.out.println("Sorry,this card does not exist.");
599     }
600     }
601         // }
602         /*
603          * for(int i = 0 ; i < chi.getList().size();i++) { for(int j = 0; j <
604          * chi.getList().get(i).getList2().size();j++) {
605          * if(str[2].equals(chi.getList().get(i).getList2().get(j).getID())) { int []
606          * position2 = {i,j};
607          * chi.getList().get(i).getList2().get(j).dealmoney(chi.getList().get(i).getList
608          * ().get(j).getList().get(k).getList().get(l), j); } } }
609          */
610
611         /*
612          * Iterator<Bank>banki = chi.getList().iterator(); while(banki.hasNext()) {
613          * Iterator<User>useri = banki.next().getList().iterator();
614          * while(useri.hasNext()) { Iterator<Account>acci =
615          * useri.next().getList().iterator(); while(useri.hasNext()) {
616          * Iterator<Card>cardi = acci.next().getList().iterator();
617          * while(cardi.hasNext()) { if(!cardi.next().getNumber().equals(str[0]));{
618          * System.out.println("Sorry,this card does not exist."); } } } }
619          *
620          * }
621          */
622
623         /*if (!str[2].equals(chi.getList().get(a).getList2().get(b).getID())) {
624             System.out.println("Sorry,the ATM's id is wrong.");
625             System.exit(0);
626         }*/
627     /*}*/

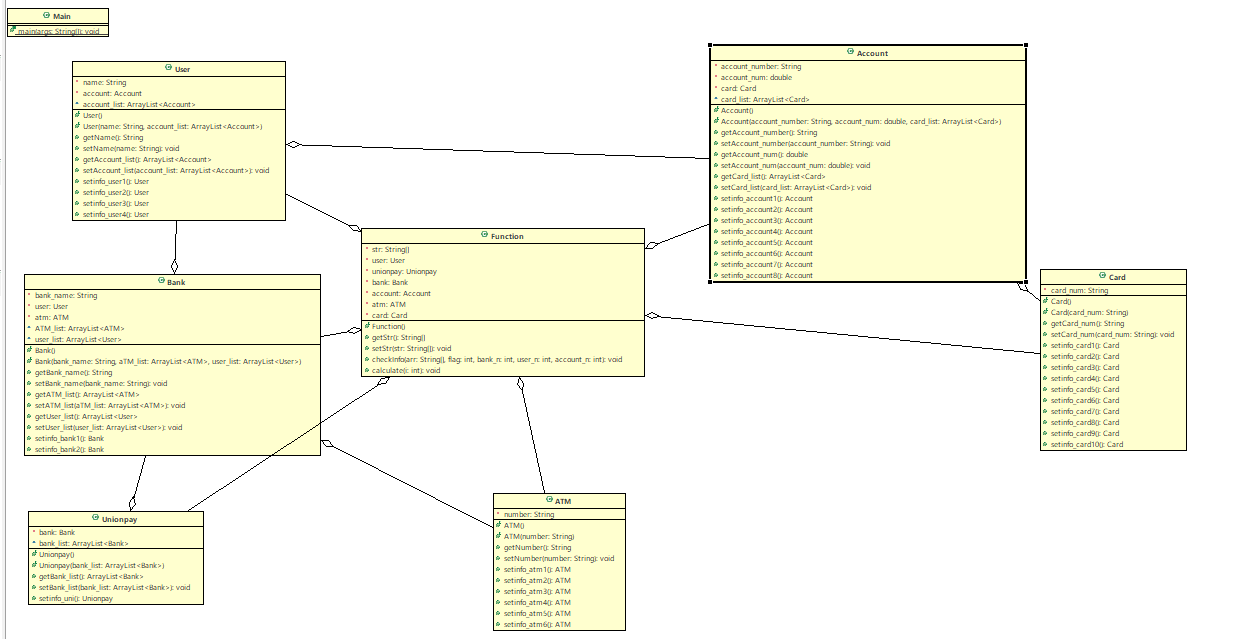

类图：

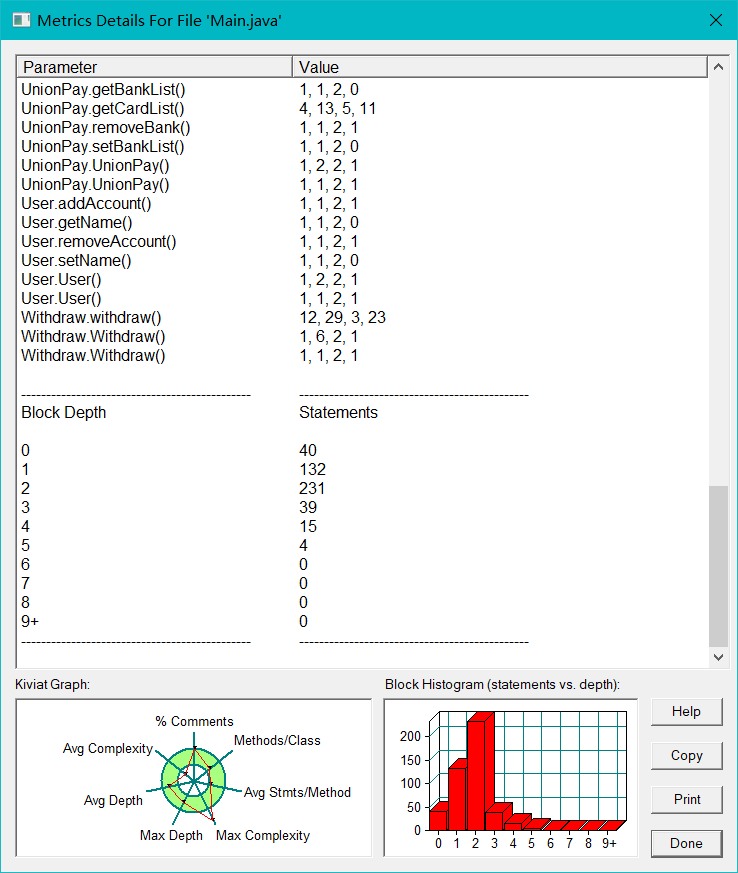

SourceMonitor的生成报表内容：

题目集09 ATM机类结构设计（二）

输入格式:

每一行输入一次业务操作，可以输入多行，最终以字符#终止。具体每种业务操作输入格式如下：

取款功能输入数据格式： 卡号密码 ATM机编号金额（由一个或多个空格分隔）
查询余额功能输入数据格式： 卡号

输出格式:

①输入错误处理

如果输入卡号不存在，则输出Sorry,this card does not exist.。
如果输入ATM机编号不存在，则输出Sorry,the ATM's id is wrong.。
如果输入银行卡密码错误，则输出Sorry,your password is wrong.。
如果输入取款金额大于账户余额，则输出Sorry,your account balance is insufficient.。

②取款业务输出

输出共两行，格式分别为：

业务：取款 [用户姓名]在[银行名称]的[ATM编号]上取款¥[金额]

当前余额为¥[金额]

其中，[]说明括起来的部分为输出属性或变量，金额均保留两位小数。

③查询余额业务输出

业务：查询余额 ¥[金额]

金额保留两位小数。

此题代码如下：

  1 import java.util.ArrayList;
  2 import java.util.Scanner;
  3 import java.util.Iterator;
  4 import java.util.regex.Matcher;
  5 import java.util.regex.Pattern;
  6 public class Main {
  7     public static void main(String[] args) {
  8         Scanner input = new Scanner(System.in);
  9
 10         UnionPay unionPay = new UnionPay();
 11
 12         Bank ccb = new Bank("1001","中国建设银行",0.02);
 13         Bank icbc = new Bank("1002","中国工商银行",0.03);
 14         Bank abc = new Bank("1003","中国农业银行",0.04);
 15         unionPay.addBank(ccb);
 16         unionPay.addBank(icbc);
 17         unionPay.addBank(abc);
 18
 19         ATM aTM1 = new ATM("01",ccb);
 20         ATM aTM2 = new ATM("02",ccb);
 21         ATM aTM3 = new ATM("03",ccb);
 22         ATM aTM4 = new ATM("04",ccb);
 23         ATM aTM5 = new ATM("05",icbc);
 24         ATM aTM6 = new ATM("06",icbc);
 25         ATM aTM7 = new ATM("07",abc);
 26         ATM aTM8 = new ATM("08",abc);
 27         ATM aTM9 = new ATM("09",abc);
 28         ATM aTM10 = new ATM("10",abc);
 29         ATM aTM11 = new ATM("11",abc);
 30
 31         ccb.addATM(aTM1);
 32         ccb.addATM(aTM2);
 33         ccb.addATM(aTM3);
 34         ccb.addATM(aTM4);
 35         icbc.addATM(aTM5);
 36         icbc.addATM(aTM6);
 37         abc.addATM(aTM7);
 38         abc.addATM(aTM8);
 39         abc.addATM(aTM9);
 40         abc.addATM(aTM10);
 41         abc.addATM(aTM11);
 42
 43
 44         User Yangguo = new User("杨过");
 45         User Guojing = new User("郭靖");
 46         User Zhangwuji = new User("张无忌");
 47         User Weixiaobao = new User("韦小宝");
 48         User zhangsanfeng = new User("张三丰");
 49         User linghuchong  = new User("令狐冲");
 50         User qiaofeng = new User("乔峰");
 51         User hongqigong = new User("洪七公");
 52
 53         Account ccbAcc1 = new Account("3217000010041315709",10000.00,Yangguo,ccb,"jieji");
 54         Account ccbAcc2 = new Account("3217000010041315715",10000.00,Yangguo,ccb,"jieji");
 55         Account ccbAcc3 = new Account("3217000010051320007",10000.00,Guojing,ccb,"jieji");
 56         Account ccbAcc4 = new Account("3640000010045442002",10000.00,zhangsanfeng,ccb,"daiji");
 57         Account icbcAcc1 = new Account("3222081502001312389",10000.00,Zhangwuji,icbc,"jieji");
 58         Account icbcAcc2 = new Account("3222081502001312390",10000.00,Zhangwuji,icbc,"jieji");
 59         Account icbcAcc3 = new Account("3222081502001312399",10000.00,Zhangwuji,icbc,"jieji");
 60         Account icbcAcc4 = new Account("3222081502051320785",10000.00,Weixiaobao,icbc,"jieji");
 61         Account icbcAcc5 = new Account("3222081502051320786",10000.00,Weixiaobao,icbc,"jieji");
 62         Account icbcAcc6 = new Account("3640000010045441009",10000.00,linghuchong,icbc,"daiji");
 63         Account abcAcc1 = new Account("3630000010033431001",10000.00,qiaofeng,abc,"daiji");
 64         Account abcAcc2 = new Account("3630000010033431008",10000.00,hongqigong,abc,"daiji");
 65
 66         ccb.addAccount(ccbAcc1);
 67         ccb.addAccount(ccbAcc2);
 68         ccb.addAccount(ccbAcc3);
 69         ccb.addAccount(ccbAcc4);
 70         icbc.addAccount(icbcAcc1);
 71         icbc.addAccount(icbcAcc2);
 72         icbc.addAccount(icbcAcc3);
 73         icbc.addAccount(icbcAcc4);
 74         icbc.addAccount(icbcAcc5);
 75         icbc.addAccount(icbcAcc6);
 76         abc.addAccount(abcAcc1);
 77         abc.addAccount(abcAcc2);
 78
 79         Yangguo.addAccount(ccbAcc1);
 80         Yangguo.addAccount(ccbAcc2);
 81         Guojing.addAccount(ccbAcc3);
 82         Zhangwuji.addAccount(icbcAcc1);
 83         Zhangwuji.addAccount(icbcAcc2);
 84         Zhangwuji.addAccount(icbcAcc3);
 85         Weixiaobao.addAccount(icbcAcc4);
 86         Weixiaobao.addAccount(icbcAcc5);
 87         zhangsanfeng.addAccount(ccbAcc4);
 88         linghuchong.addAccount(icbcAcc6);
 89         qiaofeng.addAccount(abcAcc1);
 90         hongqigong.addAccount(abcAcc2);
 91
 92         Card ccbCard1 = new Card("6217000010041315709","88888888",ccbAcc1);
 93         Card ccbCard2 = new Card("6217000010041315715","88888888",ccbAcc1);
 94         Card ccbCard3 = new Card("6217000010041315718","88888888",ccbAcc2);
 95         Card ccbCard4 = new Card("6217000010051320007","88888888",ccbAcc3);
 96         Card icbcCard5 = new Card("6222081502001312389","88888888",icbcAcc1);
 97         Card icbcCard6 = new Card("6222081502001312390","88888888",icbcAcc2);
 98         Card icbcCard7 = new Card("6222081502001312399","88888888",icbcAcc3);
 99         Card icbcCard8 = new Card("6222081502001312400","88888888",icbcAcc3);
100         Card icbcCard9 = new Card("6222081502051320785","88888888",icbcAcc4);
101         Card icbcCard10 = new Card("6222081502051320786","88888888",icbcAcc5);
102         Card ccbCard11 = new Card("6640000010045442002","88888888",ccbAcc4);
103         Card ccbCard12 = new Card("6640000010045442003","88888888",ccbAcc4);
104         Card icbcCard13 = new Card("6640000010045441009","88888888",icbcAcc6);
105         Card abcCard14 = new Card("6630000010033431001","88888888",abcAcc1);
106         Card abcCard15 = new Card("6630000010033431008","88888888",abcAcc2);
107
108         ccbAcc1.addCard(ccbCard1);
109         ccbAcc1.addCard(ccbCard2);
110         ccbAcc2.addCard(ccbCard3);
111         ccbAcc3.addCard(ccbCard4);
112         ccbAcc4.addCard(ccbCard11);
113         ccbAcc4.addCard(ccbCard12);
114         icbcAcc1.addCard(icbcCard5);
115         icbcAcc2.addCard(icbcCard6);
116         icbcAcc3.addCard(icbcCard7);
117         icbcAcc3.addCard(icbcCard8);
118         icbcAcc4.addCard(icbcCard9);
119         icbcAcc5.addCard(icbcCard10);
120         icbcAcc6.addCard(icbcCard13);
121         abcAcc1.addCard(abcCard14);
122         abcAcc1.addCard(abcCard15);
123
124         StringBuilder sb = new StringBuilder();
125
126         String data;
127
128         while(!((data = input.nextLine()).equals("#"))) {
129             sb.append(data + "\n");
130         }
131
132         String[] dt = sb.toString().split("\n");
133         for(int i = 0; i < dt.length; i++) {
134             String[] dataLine = dt[i].toString().split("\\s+");
135
136             if(dataLine.length == 1) {
137                 GetBalance gb = new GetBalance(unionPay);
138                 System.out.println(String.format("业务：查询余额 ¥%.2f", gb.getBalance(dataLine[0])));
139             }else {
140                 Withdraw wd = new
141                         Withdraw(unionPay,dataLine[0],dataLine[1],dataLine[2],Double.parseDouble(dataLine[3]));
142                 wd.withdraw();
143             }
144         }
145     }
146
147
148
149 }
150
151
152 class Withdraw {
153
154     private UnionPay unionPay;
155     private String cardNO;
156     private String cardPassword;
157     private String ATMID;
158     private double amount;
159
160     public Withdraw() {
161         super();
162
163     }
164
165
166     public Withdraw(UnionPay unionPay, String cardNO, String cardPassword, String aTMID, double amount) {
167         super();
168         this.unionPay = unionPay;
169         this.cardNO = cardNO;
170         this.cardPassword = cardPassword;
171         ATMID = aTMID;
172         this.amount = amount;
173     }
174
175     public void withdraw() {
176         /**
177          * 校验该卡是否存在
178          */
179         if(!ValidateData.cardCheck(unionPay, cardNO)) {
180             System.out.println("Sorry,this card does not exist.");
181             System.exit(0);
182         }
183         /**
184          * 校验ATM是否存在
185          */
186
187         if(!ValidateData.checkATMbyATMID(unionPay, ATMID)) {
188             System.out.println("Sorry,the ATM's id is wrong.");
189             System.exit(0);
190         }
191         /**
192          * 校验卡密码是否正确
193          */
194         if(!ValidateData.checkpassword(unionPay, cardNO, cardPassword)) {
195             System.out.println("Sorry,your password is wrong.");
196             System.exit(0);
197         }
198
199         //获取卡对应的账户
200         Account account = Get.gatAccountbyCardNO(unionPay, cardNO);
201         boolean overbalance = ValidateData.checkbalance(unionPay, cardNO, amount);
202         boolean overbank = ValidateData.checkBank(unionPay, cardNO, ATMID);
203         boolean jieji = Get.gatAccountbyCardNO(unionPay, cardNO).getAccountType().equals("jieji");
204
205         //跨银行且超额取款
206         if(overbank && overbalance) {
207             double charge ;
208             if(account.getBalance() < 0)
209                 charge = Get.getBankbyATMID(unionPay, ATMID).getRate()*amount + amount*0.05;
210             else
211                 charge = Get.getBankbyATMID(unionPay, ATMID).getRate()*amount + (amount - account.getBalance())*0.05;
212             account.setBalance(account.getBalance() - amount - charge);
213         }
214         //超额取款
215         else if(!overbank && overbalance) {
216             double charge ;
217             if(account.getBalance() < 0)
218                 charge = amount*0.05;
219             else
220                 charge = (amount - account.getBalance())*0.05;
221             account.setBalance(account.getBalance() - amount - charge);
222         }
223         //跨银行取款
224         else if(overbank && !overbalance) {
225             double charge = Get.getBankbyATMID(unionPay, ATMID).getRate()*amount;
226             account.setBalance(account.getBalance() - amount - charge);
227         }
228         //普通取款
229         else
230             account.setBalance(account.getBalance() - amount);
231
232         //透支借贷 或 借记卡超额取款
233         if(account.getBalance() < -50000 || (jieji&&(account.getBalance()<0))) {
234             System.out.println("Sorry,your account balance is insufficient.");
235             System.exit(0);
236         }
237
238         if(amount >= 0) {
239             showResult(account,ATMID,1);
240         }else {
241             showResult(account,ATMID,0);
242         }
243
244     }
245
246     public void showResult(Account account, String ATMID,int flag) {
247         String type = "";
248         if(flag == 1) {
249             type = "取款";
250         }else {
251             type = "存款";
252             amount *= -1;
253         }
254         String userName = account.getUser().getName();
255         String bankName = Get.getBankbyATMID(unionPay, ATMID).getBankName();
256         System.out.println("业务："+ type +" " +userName + "在" +
257                 bankName + "的" + ATMID + "号ATM机上" + type + String.format("¥%.2f", amount));
258         System.out.println("当前余额为" + String.format("¥%.2f", account.getBalance()));
259     }
260
261 }
262
263 class GetBalance {
264     private UnionPay unionPay;
265
266     public GetBalance() {
267         super();
268
269     }
270
271     public GetBalance(UnionPay unionPay) {
272         super();
273         this.unionPay = unionPay;
274     }
275
276     public double getBalance(String cardNO) {
277
278         return Get.gatAccountbyCardNO(unionPay, cardNO).getBalance();
279
280     }
281 }
282
283 class ValidateData {
284
285     // 检验卡号是否存在
286     public static boolean cardCheck(UnionPay unionPay, String cardNO) {
287         Card card = null;
288         ArrayList<Card> cardList = unionPay.getCardList();
289         Iterator<Card> cardItr = cardList.iterator();
290         while (cardItr.hasNext()) {
291             card = cardItr.next();
292             if (card.getCardNO().equals(cardNO)) {
293                 return true;
294             }
295         }
296         return false;
297     }
298
299     // 检验ATM机是否存在
300     public static boolean checkATMbyATMID(UnionPay unionPay, String ATMID) {
301         ATM aTM = null;
302         Iterator<ATM> aTMItr = unionPay.getATMList().iterator();
303
304         while (aTMItr.hasNext()) {
305             aTM = aTMItr.next();
306             if (aTM.getATMID().equals(ATMID)) {
307                 return true;
308             }
309         }
310         return false;
311     }
312
313     // 检验是否跨银行存取
314     public static boolean checkBank(UnionPay unionPay, String cardNO, String ATMID) {
315
316         String bankname1 = Get.gatAccountbyCardNO(unionPay, cardNO).getBank().getBankName();
317         String bankname2 = Get.getBankbyATMID(unionPay, ATMID).getBankName();
318         if (bankname1.equals(bankname2))
319             return false;
320         else
321             return true;
322
323     }
324
325     // 检验是否超额取款
326     public static boolean checkbalance(UnionPay unionPay, String cardNO, double amount) {
327
328         //获取卡对应的账户
329         Account account = Get.gatAccountbyCardNO(unionPay, cardNO);
330         if(account.getBalance() < amount)
331             return true;
332         else
333             return false;
334     }
335
336     // 检验密码是否输入正确
337     public static boolean checkpassword(UnionPay unionPay, String cardNO, String password) {
338         Iterator<Card> cardItr = unionPay.getCardList().iterator();
339
340         while (cardItr.hasNext()) {
341             if(cardItr.next().getCardNO().equals(cardNO) && cardItr.next().getCardPassword().equals(password))
342                 return true;
343         }
344         return false;
345     }
346
347 }
348
349 class Get{
350
351     //通过卡号获取卡
352     public static Card getCardbyCardNO(UnionPay unionPay,String cardNO) {
353         Card card = null;
354         Iterator<Bank> bankItr = unionPay.getBankList().iterator();
355
356         while(bankItr.hasNext()) {
357             ArrayList<Account> accountList = bankItr.next().getAccountList();
358             Iterator<Account> accountItr = accountList.iterator();
359             while(accountItr.hasNext()) {
360                 ArrayList<Card> cardList = accountItr.next().getList();
361                 Iterator<Card> cardItr = cardList.iterator();
362                 while(cardItr.hasNext()) {
363                     card = cardItr.next();
364                     if(card.getCardNO().equals(cardNO)) {
365                         return card;
366                     }
367                 }
368             }
369         }
370         return null;
371     }
372     //通过卡号获取账户
373     public static Account gatAccountbyCardNO(UnionPay unionPay,String cardNO) {
374         Card card = null;
375         Iterator<Bank> bankItr = unionPay.getBankList().iterator();
376
377         while(bankItr.hasNext()) {
378             ArrayList<Account> accountList = bankItr.next().getAccountList();
379             Iterator<Account> accountItr = accountList.iterator();
380             while(accountItr.hasNext()) {
381                 ArrayList<Card> cardList = accountItr.next().getList();
382                 Iterator<Card> cardItr = cardList.iterator();
383                 while(cardItr.hasNext()) {
384                     card = cardItr.next();
385                     if(card.getCardNO().equals(cardNO)) {
386                         return card.getAccount();
387                     }
388                 }
389             }
390         }
391         return null;
392     }
393
394     //通过ATM机编号获取银行
395     public static Bank getBankbyATMID(UnionPay unionPay,String ATMID) {
396         Iterator<Bank> bankItr = unionPay.getBankList().iterator();
397         Bank bank = null;
398         ATM aTM = null;
399
400         while(bankItr.hasNext()) {
401             bank = bankItr.next();
402             Iterator<ATM> aTMItr = bank.getATMList().iterator();
403
404             while(aTMItr.hasNext()) {
405                 aTM = aTMItr.next();
406                 if(aTM.getATMID().equals(ATMID)) {
407                     return aTM.getBank();
408                 }
409             }
410         }
411         return null;
412     }
413 }
414
415
416 class UnionPay {
417     private ArrayList<Bank> bankList = new ArrayList<Bank>();
418
419
420     public UnionPay() {
421         super();
422     }
423
424     public UnionPay(ArrayList<Bank> bankList) {
425         super();
426         this.bankList = bankList;
427     }
428
429
430     public ArrayList<Bank> getBankList() {
431         return bankList;
432     }
433
434     public void setBankList(ArrayList<Bank> bankList) {
435         this.bankList = bankList;
436     }
437
438     public void addBank(Bank bank) {
439         this.bankList.add(bank);
440     }
441
442     public void removeBank(Bank bank) {
443         this.bankList.remove(bank);
444     }
445
446
447     public ArrayList<Account> getAccountList() {
448         ArrayList<Account> AccountList = new ArrayList<Account>();
449         Account account = null;
450
451         Iterator<Bank> bankItr = getBankList().iterator();
452         while (bankItr.hasNext()) {
453             ArrayList<Account> accountList = bankItr.next().getAccountList();
454             Iterator<Account> accountItr = accountList.iterator();
455             while (accountItr.hasNext()) {
456                 account = accountItr.next();
457                 AccountList.add(account);
458             }
459         }
460
461         return AccountList;
462     }
463
464
465     public ArrayList<Card> getCardList() {
466         ArrayList<Card> CardList = new ArrayList<Card>();
467         Card card = null;
468
469         Iterator<Bank> bankItr = getBankList().iterator();
470         while (bankItr.hasNext()) {
471             ArrayList<Account> accountList = bankItr.next().getAccountList();
472             Iterator<Account> accountItr = accountList.iterator();
473             while (accountItr.hasNext()) {
474                 ArrayList<Card> cardList = accountItr.next().getList();
475                 Iterator<Card> cardItr = cardList.iterator();
476                 while (cardItr.hasNext()) {
477                     card = cardItr.next();
478                     CardList.add(card);
479                 }
480             }
481         }
482
483         return CardList;
484     }
485
486
487     public ArrayList<ATM> getATMList() {
488         ArrayList<ATM> ATMList = new ArrayList<ATM>();
489
490         Iterator<Bank> bankItr = getBankList().iterator();
491         Bank bank = null;
492         ATM aTM = null;
493         while (bankItr.hasNext()) {
494             bank = bankItr.next();
495             Iterator<ATM> aTMItr = bank.getATMList().iterator();
496
497             while (aTMItr.hasNext()) {
498                 aTM = aTMItr.next();
499                 ATMList.add(aTM);
500             }
501         }
502
503         return ATMList;
504
505     }
506 }
507
508 class Bank {
509     private String bankNO;
510     private String bankName;
511     private double rate;//手续费
512     private ArrayList<Account> accountList = new ArrayList<Account>();
513     private static ArrayList<ATM> ATMList = new ArrayList<ATM>();
514
515
516     public Bank() {
517         super();
518     }
519
520     public Bank(String bankNO, String bankName, double rate) {
521         super();
522         this.bankNO = bankNO;
523         this.bankName = bankName;
524         this.rate = rate;
525     }
526
527
528     public String getBankNO() {
529         return bankNO;
530     }
531
532     public void setBankNO(String bankNO) {
533         this.bankNO = bankNO;
534     }
535
536     public String getBankName() {
537         return bankName;
538     }
539
540     public void setBankName(String bankName) {
541         this.bankName = bankName;
542     }
543
544     public void addAccount(Account account) {
545         this.accountList.add(account);
546     }
547
548     public void removeAccount(Account account) {
549         this.accountList.remove(account);
550     }
551
552     public void addATM(ATM aTM) {
553         this.ATMList.add(aTM);
554     }
555
556     public void removeATM(ATM aTM) {
557         this.ATMList.remove(aTM);
558     }
559
560     public ArrayList<Account> getAccountList() {
561         return accountList;
562     }
563
564     public void setAccountList(ArrayList<Account> accountList) {
565         this.accountList = accountList;
566     }
567
568     public static ArrayList<ATM> getATMList() {
569         return ATMList;
570     }
571
572     public void setATMList(ArrayList<ATM> aTMList) {
573         ATMList = aTMList;
574     }
575
576     public double getRate() {
577         return rate;
578     }
579
580     public void setRate(double rate) {
581         this.rate = rate;
582     }
583
584
585 }
586
587 class User {
588     private String name;
589     ArrayList<Account> list = new ArrayList<Account>();
590
591     public User() {
592         super();
593     }
594
595     public User(String name) {
596         super();
597         this.name = name;
598     }
599
600     public String getName() {
601         return name;
602     }
603
604     public void setName(String name) {
605         this.name = name;
606     }
607
608     public void addAccount(Account account) {
609         this.list.add(account);
610     }
611
612     public void removeAccount(Account account) {
613         this.list.remove(account);
614     }
615 }
616
617 class Account {
618     private String accountNO;
619     private User user = null;
620     private Bank bank = null;
621     private double balance = 0;
622     private String accountType;
623     private static ArrayList<Card> list = new ArrayList<Card>();
624
625     public Account() {
626         super();
627     }
628
629     public Account(String accountNO, double balance, User user, Bank bank, String accountType) {
630         super();
631         this.accountNO = accountNO;
632         this.balance = balance;
633         this.user = user;
634         this.bank = bank;
635         this.accountType = accountType;
636     }
637
638     public void addCard(Card card) {
639         list.add(card);
640     }
641
642     public void removeCard(Card card) {
643         list.remove(card);
644     }
645
646     public double getBalance() {
647         return balance;
648     }
649
650     public void setBalance(double balance) {
651         this.balance = balance;
652     }
653
654     public String getAccountNO() {
655         return accountNO;
656     }
657
658     public void setAccountNO(String accountNO) {
659         this.accountNO = accountNO;
660     }
661
662     public User getUser() {
663         return user;
664     }
665
666     public void setUser(User user) {
667         this.user = user;
668     }
669
670     public Bank getBank() {
671         return bank;
672     }
673
674     public void setBank(Bank bank) {
675         this.bank = bank;
676     }
677
678     public ArrayList<Card> getList() {
679         return list;
680     }
681
682     public void setList(ArrayList<Card> list) {
683         Account.list = list;
684     }
685
686     public String getAccountType() {
687         return accountType;
688     }
689
690     public void setAccountType(String accountType) {
691         this.accountType = accountType;
692     }
693
694
695 }
696 /*class CreditAccount extends Account{
697     private String accountNO;
698     private double balance = 0;
699     private User user = null;
700     private Bank bank = null;
701     private static ArrayList<Card> list = new ArrayList<Card>();
702
703     public CreditAccount() {
704         super();
705         // TODO Auto-generated constructor stub
706     }
707
708     public CreditAccount(String accountNO, double balance, User user, Bank bank) {
709         super();
710         this.accountNO = accountNO;
711         this.balance = balance;
712         this.user = user;
713         this.bank = bank;
714     }
715
716     public void addCard(Card card) {
717         list.add(card);
718     }
719
720     public void removeCard(Card card) {
721         list.remove(card);
722     }
723
724     public double getBalance() {
725         return balance;
726     }
727
728     public void setBalance(double balance) {
729         this.balance = balance;
730     }
731
732     public String getAccountNO() {
733         return accountNO;
734     }
735
736     public void setAccountNO(String accountNO) {
737         this.accountNO = accountNO;
738     }
739
740     public User getUser() {
741         return user;
742     }
743
744     public void setUser(User user) {
745         this.user = user;
746     }
747
748     public Bank getBank() {
749         return bank;
750     }
751
752     public void setBank(Bank bank) {
753         this.bank = bank;
754     }
755
756     public ArrayList<Card> getList() {
757         return list;
758     }
759
760     public void setList(ArrayList<Card> list) {
761         CreditAccount.list = list;
762     }
763
764     public  static Account  getAmountbyCardNO(String cardNO) {
765         Iterator<Card> cardItr = CreditAccount.list.iterator();
766         Card card = null;
767
768         while(cardItr.hasNext()) {
769             card = cardItr.next();
770             if(card.getCardNO().equals(cardNO)) {
771                 return card.getAccount();
772             }
773         }
774
775         return null;
776     }
777
778
779 }
780 class DebitAccount extends Account{
781     private String accountNO;
782     private double balance = 0;
783     private User user = null;
784     private Bank bank = null;
785     private static ArrayList<Card> list = new ArrayList<Card>();
786
787     public DebitAccount() {
788         super();
789         // TODO Auto-generated constructor stub
790     }
791
792     public DebitAccount(String accountNO, double balance, User user, Bank bank) {
793         super();
794         this.accountNO = accountNO;
795         this.balance = balance;
796         this.user = user;
797         this.bank = bank;
798     }
799
800     public void addCard(Card card) {
801         list.add(card);
802     }
803
804     public void removeCard(Card card) {
805         list.remove(card);
806     }
807
808     public double getBalance() {
809         return balance;
810     }
811
812     public void setBalance(double balance) {
813         this.balance = balance;
814     }
815
816     public String getAccountNO() {
817         return accountNO;
818     }
819
820     public void setAccountNO(String accountNO) {
821         this.accountNO = accountNO;
822     }
823
824     public User getUser() {
825         return user;
826     }
827
828     public void setUser(User user) {
829         this.user = user;
830     }
831
832     public Bank getBank() {
833         return bank;
834     }
835
836     public void setBank(Bank bank) {
837         this.bank = bank;
838     }
839
840     public ArrayList<Card> getList() {
841         return list;
842     }
843
844     public void setList(ArrayList<Card> list) {
845         DebitAccount.list = list;
846     }
847
848     public  static Account getAmountbyCardNO(String cardNO) {
849         Iterator<Card> cardItr = DebitAccount.list.iterator();
850         Card card = null;
851
852         while(cardItr.hasNext()) {
853             card = cardItr.next();
854             if(card.getCardNO().equals(cardNO)) {
855                 return card.getAccount();
856             }
857         }
858
859         return null;
860     }
861 }*/
862
863 class Card {
864     private String cardNO;
865     private String cardPassword;
866     private Account account = null;
867
868     public Card() {
869         super();
870     }
871
872     public Card(String cardNO, String cardPassword, Account account) {
873         super();
874         this.cardNO = cardNO;
875         this.cardPassword = cardPassword;
876         this.account = account;
877     }
878
879     public String getCardNO() {
880         return cardNO;
881     }
882
883     public void setCardNO(String cardNO) {
884         this.cardNO = cardNO;
885     }
886
887     public String getCardPassword() {
888         return cardPassword;
889     }
890
891     public Account getAccount() {
892         return account;
893     }
894
895     public void setAccount(Account account) {
896         this.account = account;
897     }
898
899     public void setCardPassword(String cardPassword) {
900         this.cardPassword = cardPassword;
901     }
902
903
904
905     // 检验卡号格式
906     public boolean checkCard() {
907         Pattern p = Pattern.compile("\\d{16}+");
908         Matcher m = p.matcher(this.cardNO);
909         return m.matches();
910     }
911
912     // 检验密码是否正确
913     public boolean checkPassword(String password) {
914         return this.cardPassword.equals(password);
915     }
916
917 }
918
919 class ATM {
920     private String ATMID;
921     private Bank bank = null;
922
923     public ATM() {
924         super();
925     }
926
927     public ATM(String aTMID, Bank bank) {
928         super();
929         ATMID = aTMID;
930         this.bank = bank;
931     }
932
933     public String getATMID() {
934         return ATMID;
935     }
936
937     public void setATMID(String aTMID) {
938         ATMID = aTMID;
939     }
940
941     public Bank getBank() {
942         return bank;
943     }
944
945     public void setBank(Bank bank) {
946         this.bank = bank;
947     }
948 }

类图：

SourceMonitor的生成报表内容：

分析：

这两道题都是仿真ATM机的程序设计，第二题比第一加了一些内容，我认为这道题最重要的就是类的设计，要根据老师给的题目说明，仔细阅读，好好进行类的设计，类设计的好，代码就是事半功倍，首先根据不同的东西，比如银联，银行，这些都要设计成单独的类，来保证类的单一性原则，然后这些都是一些实体类，这些实体类要注意它们之间的关系，很重要，之后还要设计一些其他的代理类去完成他们之间应该有的操作，第二题相比第一题最重要的就是多了一个账户类的思考，账户设计成了一个抽象类，然后分别有两个账户类，借记账户和贷记账户去继承账户类。总之，类的设计很重要，我们在设计类的过程中要注意类与类之间的关系和类要遵守的规则。

3.踩坑心得

（1）题目集07第二题，刚开始写的时候一直不知道接口怎么用，一直在探索接口的使用方法，刚开始想用其中的一个方法，自己研究了一会发现整个有点难，一开始是想按照面积直接排序的方法，没有研究明白，后来就利用了一个较为简单的调用，一个交换数据的方法，然后自己写了一个冒泡排序对面积进行排序。

（2）题目集08刚开始的时候就没有弄清楚钱应该存在哪里，刚开始的时候就把余额存到了卡里，然后存取款都是卡里，到最后发现，一张卡重复取两次前，余额不会叠加减少，才发现了余额应该是存在账户里，然后就重新改了很多东西，在这里浪费了很多时间，还有就是大循环，刚开始把一张卡的功能全部实现了，就是写不出来最后的大循环，把很多张卡一起存款取款，这个也研究了很久。最后发现整个不是仅仅用个while或者for循环就能解决的，它需要很多操作才能完成大循环。

4.改进建议

（1）对于题目集07第二题，感觉以后更加深入的了解了接口的一些相关知识以后代码可能会更简单效率更好，学会好的方法，就可以节约很多时间，提高很多效率。

（2）对于ATM机的题目，感觉可以是结构更加完整，类与类的关系还可以更加完善一些。就包括每个类的方法是应该放在这个类中，还是应该放在其它类中，包括类与类之间的关系的设计应该如何选择，都有操作空间。

5.总结

（1）通过这三次题目集的学习，学到了继承多态方法的使用，可以说是巩固加强了多态继承这方面的使用。

（2）对于类与类之间的关系的掌握，更加的清楚明白了。、

（3）拿到一道题目，一个需要你完成的程序，怎样去设计，有一定的理解，学到了一些怎样去设计的知识。

（4）因为写了ATM这样综合性非常强的程序，对于编程水平来说我觉得是有一定提升的。

posted on 2021-06-20 17:48 SGod歇斯底里阅读(119) 评论(0) 收藏举报

刷新页面返回顶部

SGod歇斯底里

公告

Blog总结03（7~9次作业总结）

1.前言

2.设计与分析、

题目集07（7-1） 图形卡片排序游戏

输入格式:

输出格式:

本题源码如下：

类图如下：

SourceMonitor的生成报表内容：

题目集07（7-2）图形卡片分组游戏

输入格式:

输出格式:

此题源码如下：

类图：

SourceMonitor的生成报表内容：

分析：

题目集08 ATM机类结构设计（一）

输入格式:

输出格式:

此题源码如下：

类图：

SourceMonitor的生成报表内容：

题目集09 ATM机类结构设计（二）

输入格式:

输出格式:

此题代码如下：

类图：

SourceMonitor的生成报表内容：

分析：

3.踩坑心得

4.改进建议

5.总结

题目集07（7-1）图形卡片排序游戏
