Teamcenter:BMIDE 编辑器中不支持中文

BMIDE 编辑器中不支持中文

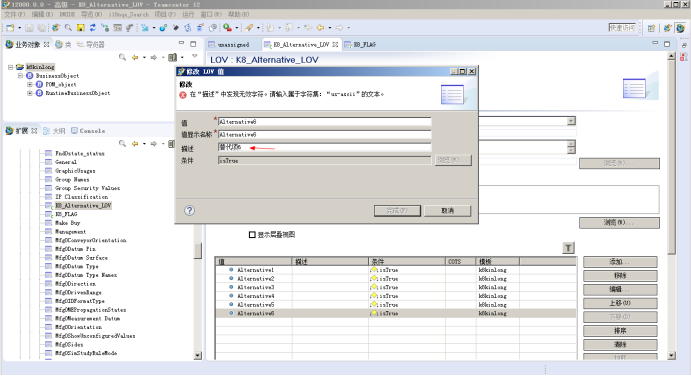

修改LOV值描述栏位有中文时，提示在“描述”中发现无效字符。请输入属于字符集:“us-ascii”文本。



解决办法

修改BMIDE对应的本地有有效编码为utf-8

1.编辑器打开%TC_ROOT%\lang\textserver\no_translation\textsrv_text.xml文件（如：C:\Siemens\Teamcenter12\lang\textserver\no_translation\textsrv_text.xml）

2.将locale_validation_encoding_en_US和locale_validation_encoding_zh_CN对应的key值均修改为utf-8

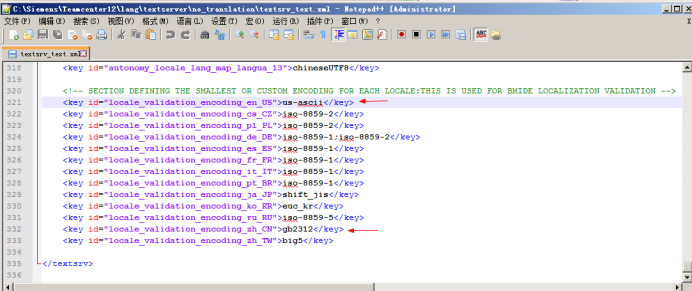

修改前



 --****内容开始 ********************

<!-- SECTION DEFINING THE SMALLEST OR CUSTOM ENCODING FOR EACH LOCALE:THIS IS USED FOR BMIDE LOCALIZATION VALIDATION -->

    <key id="locale_validation_encoding_en_US">us-ascii</key>

    <key id="locale_validation_encoding_cs_CZ">iso-8859-2</key>

    <key id="locale_validation_encoding_pl_PL">iso-8859-2</key>

    <key id="locale_validation_encoding_de_DE">iso-8859-1;iso-8859-2</key>

    <key id="locale_validation_encoding_es_ES">iso-8859-1</key>

    <key id="locale_validation_encoding_fr_FR">iso-8859-1</key>

    <key id="locale_validation_encoding_it_IT">iso-8859-1</key>

    <key id="locale_validation_encoding_pt_BR">iso-8859-1</key>

    <key id="locale_validation_encoding_ja_JP">shift_jis</key>

    <key id="locale_validation_encoding_ko_KR">euc_kr</key>

    <key id="locale_validation_encoding_ru_RU">iso-8859-5</key>

    <key id="locale_validation_encoding_zh_CN">gb2312</key>

    <key id="locale_validation_encoding_zh_TW">big5</key>

--**** 内容结束*************************

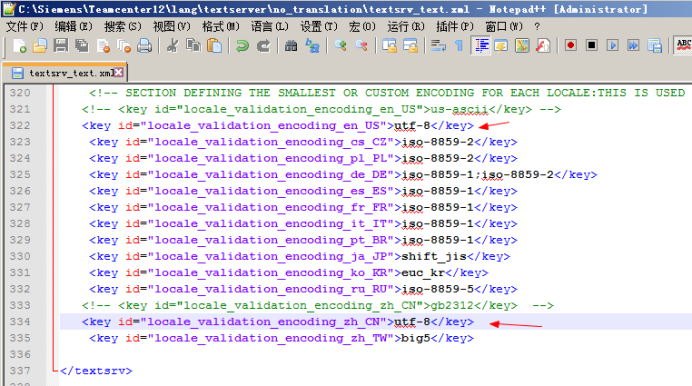

修改后



<!-- SECTION DEFINING THE SMALLEST OR CUSTOM ENCODING FOR EACH LOCALE:THIS IS USED FOR BMIDE LOCALIZATION VALIDATION -->

    <key id="locale_validation_encoding_en_US">utf-8</key>

    <key id="locale_validation_encoding_cs_CZ">iso-8859-2</key>

    <key id="locale_validation_encoding_pl_PL">iso-8859-2</key>

    <key id="locale_validation_encoding_de_DE">iso-8859-1;iso-8859-2</key>

    <key id="locale_validation_encoding_es_ES">iso-8859-1</key>

    <key id="locale_validation_encoding_fr_FR">iso-8859-1</key>

    <key id="locale_validation_encoding_it_IT">iso-8859-1</key>

    <key id="locale_validation_encoding_pt_BR">iso-8859-1</key>

    <key id="locale_validation_encoding_ja_JP">shift_jis</key>

    <key id="locale_validation_encoding_ko_KR">euc_kr</key>

    <key id="locale_validation_encoding_ru_RU">iso-8859-5</key>

    <key id="locale_validation_encoding_zh_CN">utf-8</key>

    <key id="locale_validation_encoding_zh_TW">big5</key>

--**** 内容结束*************************

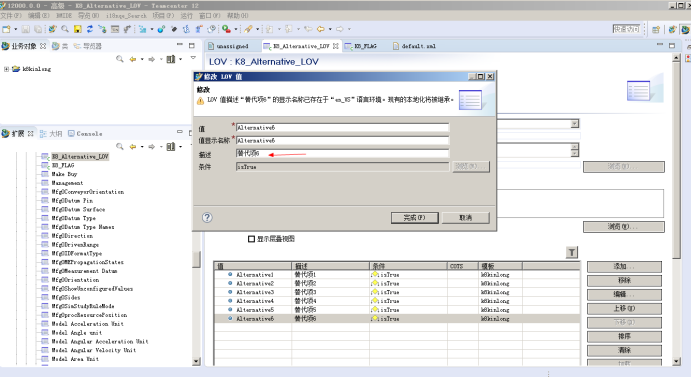

3.重启业务建模器 IDE，正确加载项目模板
