青鸾部署服务网络4个port做一个lacp

1.4个光口做一个LACP给服务网络 端口为trunk

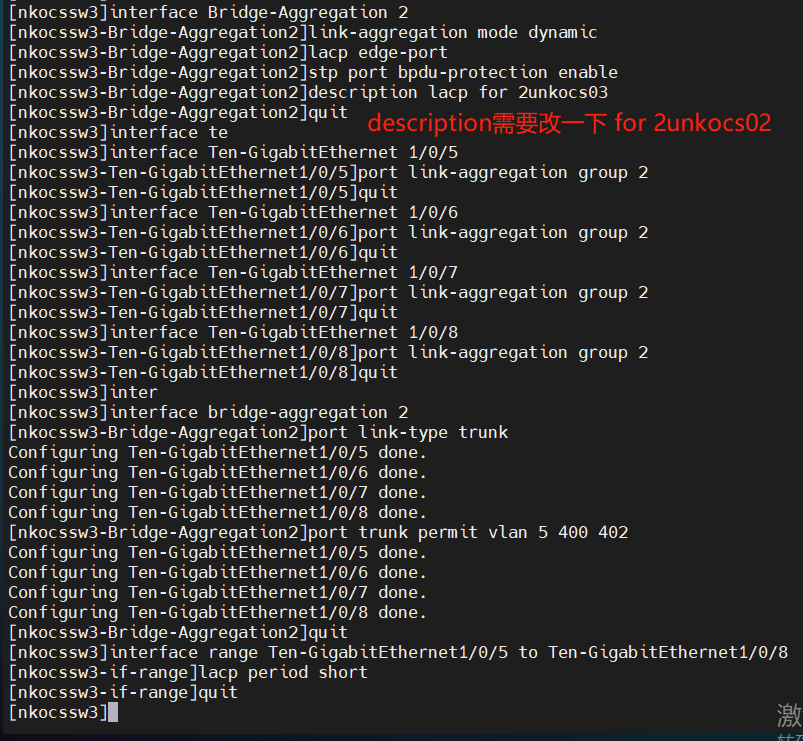

1.1逐个port进行配置   LACP2

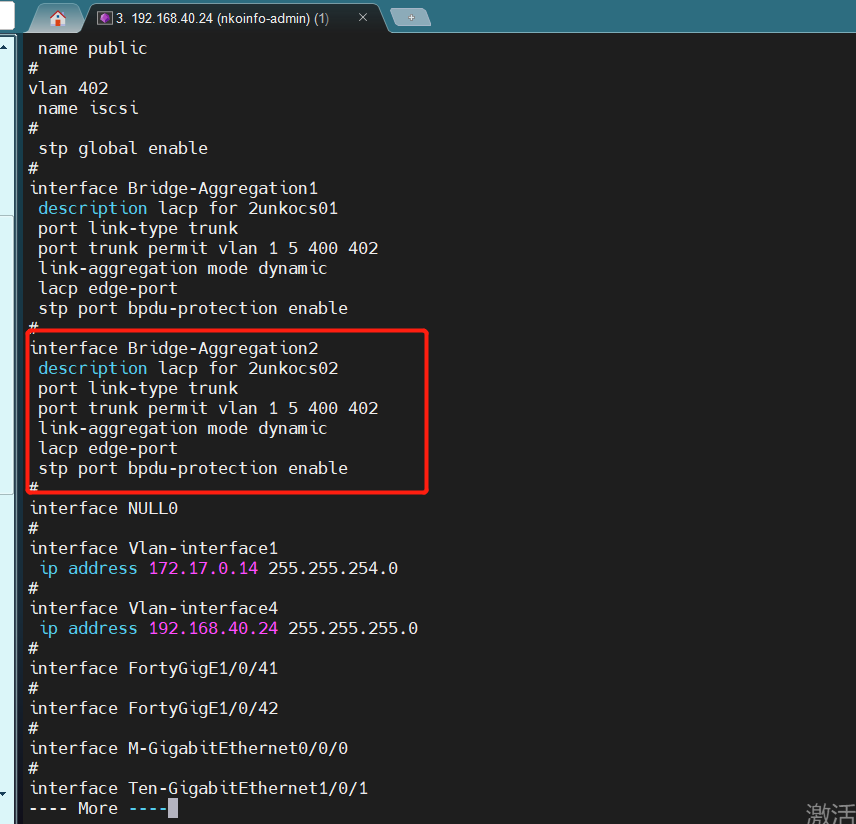

给各个port添加一个descrition

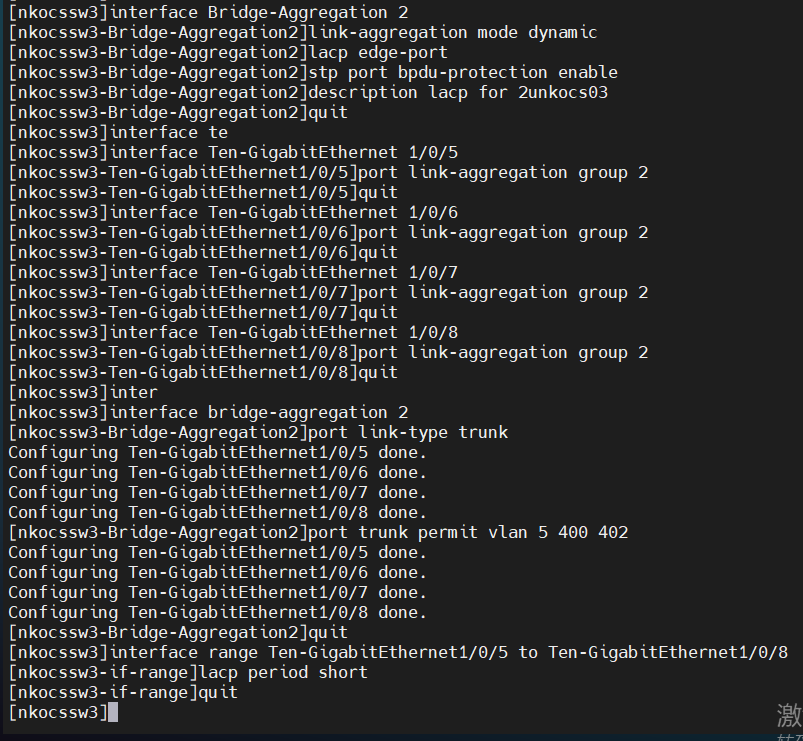

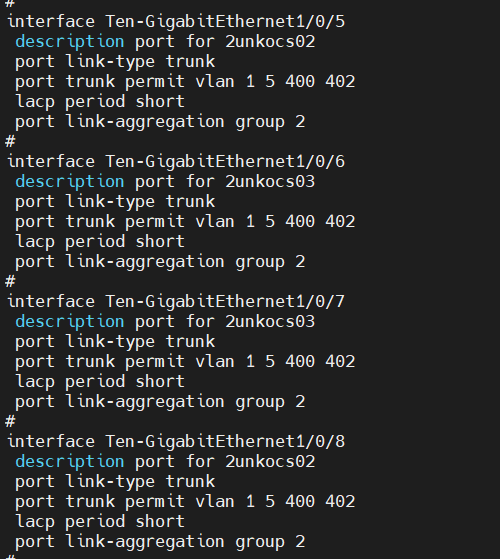

效果图如下

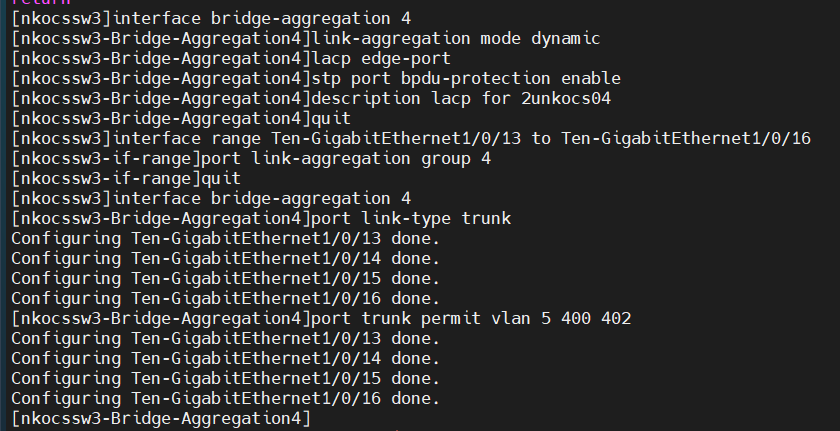

 1.2 或者批量配置端口  LACP4

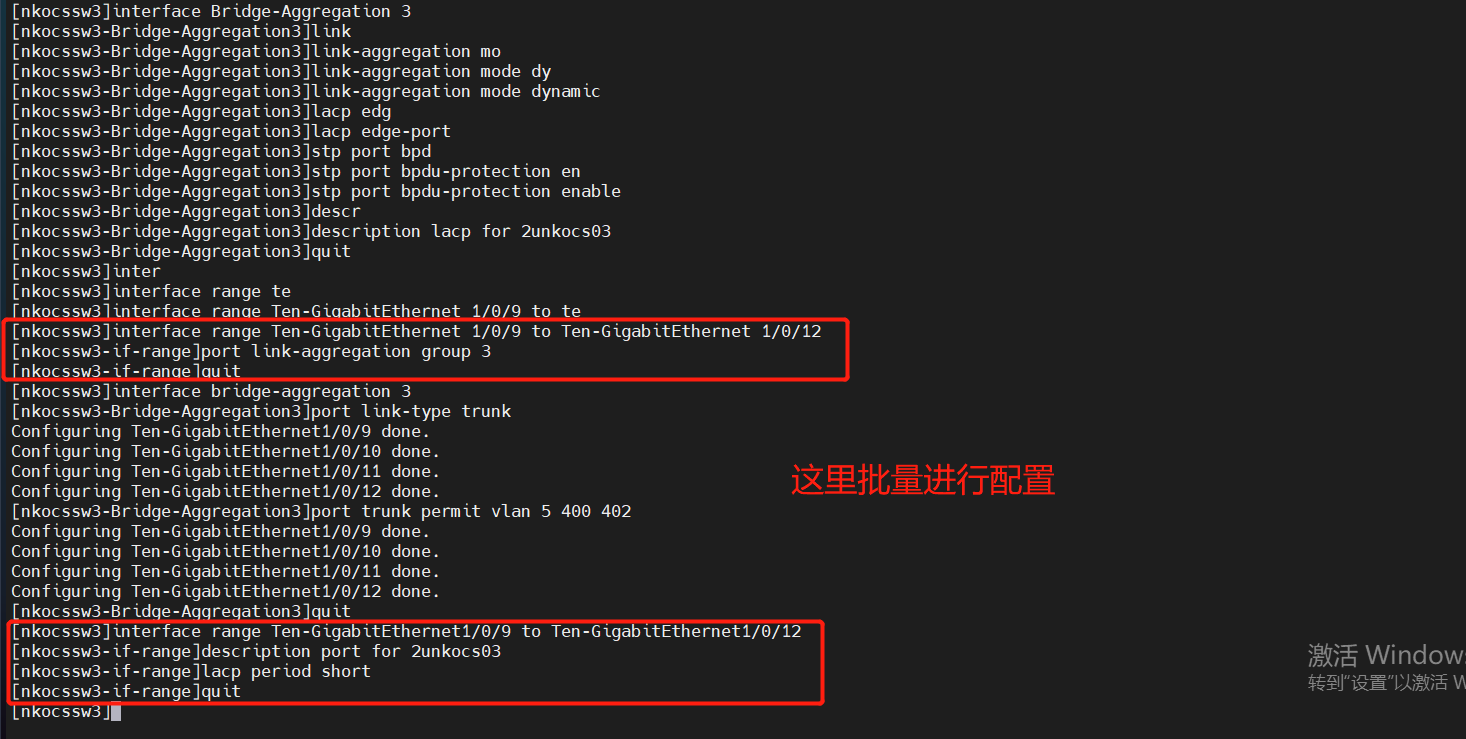

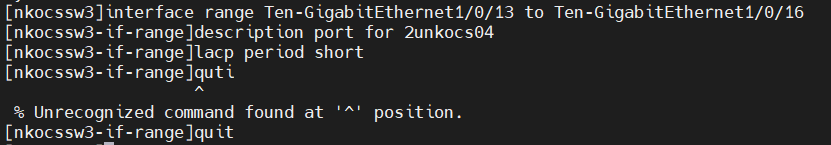

 下面带有标识，批量进行配置，省事

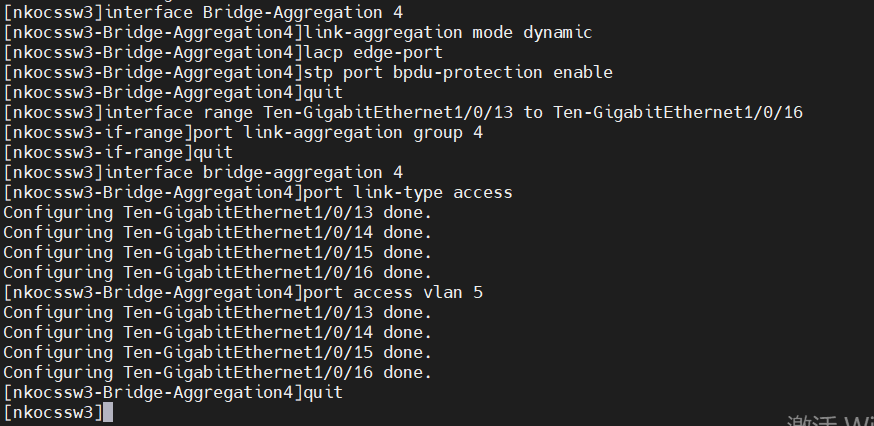

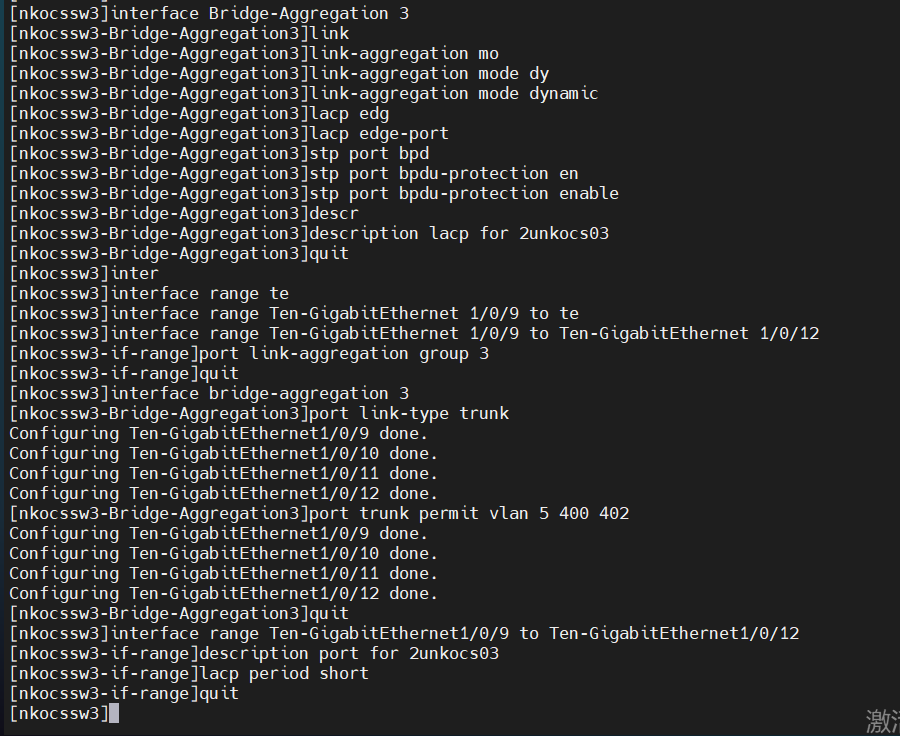

再举例LACP4，同样是批量进行配置









2.4个光口做一个LACP给服务网络 端口为access

2.1

[nkocssw3]interface Bridge-Aggregation 2
[nkocssw3-Bridge-Aggregation2]link-aggregation mode dynamic
[nkocssw3-Bridge-Aggregation2]lacp edge-port
[nkocssw3-Bridge-Aggregation2]stp port bpdu-protection enable
[nkocssw3-Bridge-Aggregation2]quit
[nkocssw3]interface range Ten-GigabitEthernet1/0/5 to Ten-GigabitEthernet1/0/8

[nkocssw3-if-range]port link-aggregation group 2
[nkocssw3-if-range]quit
[nkocssw3]interface bridge-aggregation 2
[nkocssw3-Bridge-Aggregation2]port link-type access
Configuring Ten-GigabitEthernet1/0/5 done.
Configuring Ten-GigabitEthernet1/0/6 done.
Configuring Ten-GigabitEthernet1/0/7 done.
Configuring Ten-GigabitEthernet1/0/8 done.
[nkocssw3-Bridge-Aggregation2]port access vlan 5
Configuring Ten-GigabitEthernet1/0/5 done.
Configuring Ten-GigabitEthernet1/0/6 done.
Configuring Ten-GigabitEthernet1/0/7 done.
Configuring Ten-GigabitEthernet1/0/8 done.
[nkocssw3-Bridge-Aggregation2]quit

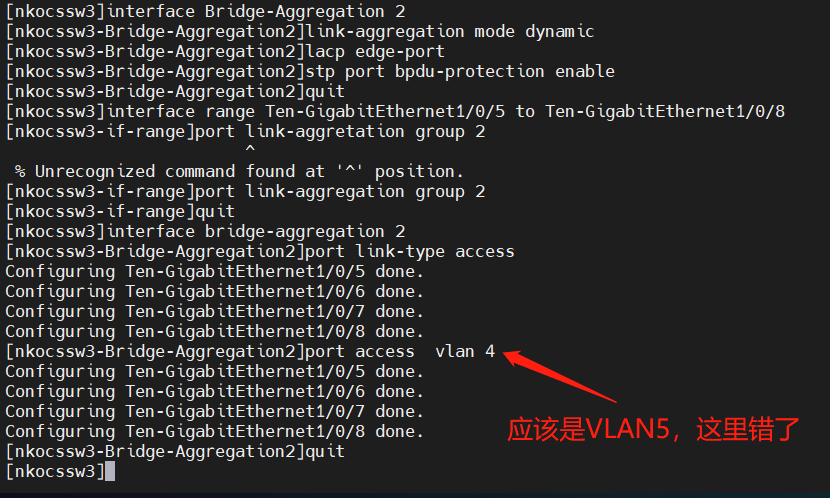

 下图是lacp4,没错，配置允许通过的VLAN就是VLAN5

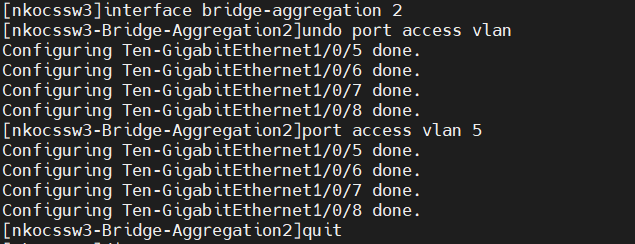

3.如果LACP端口配置允许通过的VLAN错了，需要修改，如图所示，不用全部重来，只要把原来的VLAN4配置动作取消，再让它允许VLAN55通过就可以

[nkocssw3]interface bridge-aggregation 2
[nkocssw3-Bridge-Aggregation2]undo port access vlan
Configuring Ten-GigabitEthernet1/0/5 done.
Configuring Ten-GigabitEthernet1/0/6 done.
Configuring Ten-GigabitEthernet1/0/7 done.
Configuring Ten-GigabitEthernet1/0/8 done.
[nkocssw3-Bridge-Aggregation2]port access vlan 5
Configuring Ten-GigabitEthernet1/0/5 done.
Configuring Ten-GigabitEthernet1/0/6 done.
Configuring Ten-GigabitEthernet1/0/7 done.
Configuring Ten-GigabitEthernet1/0/8 done.
[nkocssw3-Bridge-Aggregation2]quit
