idea结合maven小项目

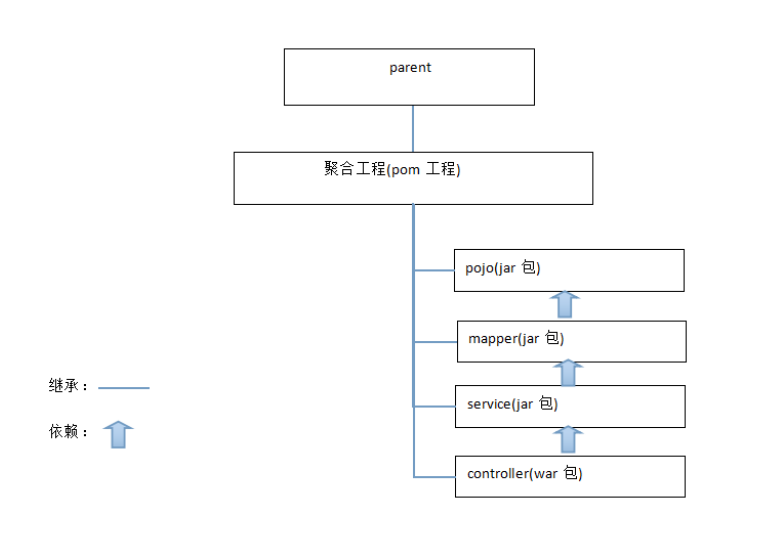

整体构造

（修改 POM 文件 ）parent

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.bjsxt</groupId>
    <artifactId>parent</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

        <properties>
            <junit.version>4.12</junit.version>
            <spring.version>4.1.3.RELEASE</spring.version>
            <mybatis.version>3.2.8</mybatis.version>
            <mybatis.spring.version>1.2.2</mybatis.spring.version>
            <mysql.version>5.1.32</mysql.version>
            <slf4j.version>1.6.4</slf4j.version>
            <druid.version>1.0.9</druid.version>
            <jstl.version>1.2</jstl.version>
            <servlet-api.version>2.5</servlet-api.version>
            <jsp-api.version>2.0</jsp-api.version>
            <tomcat.version>2.2</tomcat.version>
            <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        </properties>
        <!-- jar 包的依赖注入 ，由于该工程是一个父工程，
        所以 jar 包在该 pom 文件中只是声明-->
        <dependencyManagement>
            <dependencies>
                <!-- 单元测试 -->
                <dependency>
                    <groupId>junit</groupId>
                    <artifactId>junit</artifactId>
                    <version>${junit.version}</version>
                    <scope>test</scope>
                </dependency>
                <!-- 日志处理 -->
                <dependency>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                    <version>${slf4j.version}</version>
                </dependency>
                <!-- Mybatis -->
                <dependency>
                    <groupId>org.mybatis</groupId>
                    <artifactId>mybatis</artifactId>
                    <version>${mybatis.version}</version>
                </dependency>
                <dependency>
                    <groupId>org.mybatis</groupId>
                    <artifactId>mybatis-spring</artifactId>
                    <version>${mybatis.spring.version}</version>
                </dependency>
                <!-- MySql -->
                <dependency>
                    <groupId>mysql</groupId>
                    <artifactId>mysql-connector-java</artifactId>
                    <version>${mysql.version}</version>
                </dependency>
                <!-- 连接池 -->
                <dependency>
                    <groupId>com.alibaba</groupId>
                    <artifactId>druid</artifactId>
                    <version>${druid.version}</version>
                </dependency>
                <!-- Spring -->
                <dependency>
                    <groupId>org.springframework</groupId>
                    <artifactId>spring-context</artifactId>
                    <version>${spring.version}</version>
                </dependency>
                <dependency>
                    <groupId>org.springframework</groupId>
                    <artifactId>spring-beans</artifactId>
                    <version>${spring.version}</version>
                </dependency>
                <dependency>
                    <groupId>org.springframework</groupId>
                    <artifactId>spring-webmvc</artifactId>
                    <version>${spring.version}</version>
                </dependency>
                <dependency>
                    <groupId>org.springframework</groupId>
                    <artifactId>spring-jdbc</artifactId>
                    <version>${spring.version}</version>
                </dependency>
                <dependency>
                    <groupId>org.springframework</groupId>
                    <artifactId>spring-aspects</artifactId>
                    <version>${spring.version}</version>
                </dependency>
                <!-- JSP 相关 -->
                <dependency>
                    <groupId>jstl</groupId>
                    <artifactId>jstl</artifactId>
                    <version>${jstl.version}</version>
                </dependency>
                <dependency>
                    <groupId>javax.servlet</groupId>
                    <artifactId>servlet-api</artifactId>
                    <version>${servlet-api.version}</version>
                    <scope>provided</scope>
                </dependency>
                <dependency>
                    <groupId>javax.servlet</groupId>
                    <artifactId>jsp-api</artifactId>
                    <version>${jsp-api.version}</version>
                    <scope>provided</scope>
                </dependency>
            </dependencies>
        </dependencyManagement>
        <!-- 插件的开启 -->
        <build>
            <!-- tomcat 插件，由于子项目不一定每个都是 web
            项目，所以该插件只是声明，并未开启 -->
            <pluginManagement>
                <plugins>
                    <!-- 配置 Tomcat 插件 -->
                    <plugin>
                        <groupId>org.apache.tomcat.maven</groupId>
                        <artifactId>tomcat7-maven-plugin</artifactId>
                        <version>${tomcat.version}</version>
                    </plugin>
                </plugins>
            </pluginManagement>
            <!-- maven 的编译器插件，该插件主要是决定了当前
            项目所使用 jre 版本 。由于无论是 jar，还是 war 项目都需要
            制定 jar 的版本，所以该插件不需要生命，应当是开启的。-->
            <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.2</version>
                    <configuration>
                        <source>1.7</source>
                        <target>1.7</target>
                        <encoding>UTF-8</encoding>
                    </configuration>
                </plugin>
            </plugins>
        </build>
</project>

修改 manager-mapper 的 pom 文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>manager</artifactId>
        <groupId>com.bjsxt</groupId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../manager/pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>manager-mapper</artifactId>
    <packaging>jar</packaging>

    <dependencies>
        <dependency>
            <groupId>com.bjsxt</groupId>
            <artifactId>manager-pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>
</project>

修改 manager-service 的 pom 文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>manager</artifactId>
        <groupId>com.bjsxt</groupId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../manager/pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>jar</packaging>

    <artifactId>manager-service</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.bjsxt</groupId>
            <artifactId>manager-mapper</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>
    </dependencies>

</project>

修改 manager-controller 的 pom 文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>manager</artifactId>
        <groupId>com.bjsxt</groupId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../manager/pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>manager-controller</artifactId>
    <packaging>war</packaging>

    <dependencies>
        <dependency>
            <groupId>com.bjsxt</groupId>
            <artifactId>manager-service</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

    <!--    <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.2</version>
            <scope>provided</scope>
        </dependency>-->
        <!-- JSP 相关 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- 配置 Tomcat 插件 -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <configuration>
                    <port>8080</port>
                    <path>/</path>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

数据库配置文件：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm?characterEncoding=utf-8
jdbc.username=root
jdbc.password=root

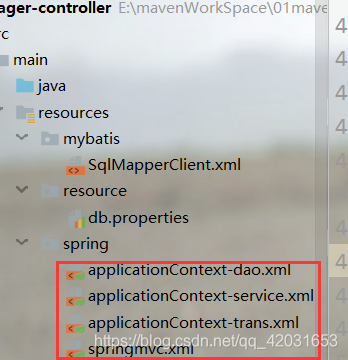

spring/applicationContext-dao.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- 配置解析properties文件的工具类 -->
	<context:property-placeholder location="classpath:resource/*.properties"/>

	<!-- 配置数据源 dataSource -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" destroy-method="close">
	    <property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="maxActive" value="10" />
		<property name="minIdle" value="5" />
	</bean>

	<!-- 创建mybatis的上下文对象  -->
	<bean class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource">
			<ref bean="dataSource"/>
		</property>
		<property name="configLocation">
			<value>classpath:mybatis/SqlMapperClient.xml</value>
		</property>
		<property name="typeAliasesPackage" value="com.bjsxt.pojo"/>
	</bean>

	<!-- 扫描mybatis的接口与映射配置文件 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.bjsxt.mapper"/>
	</bean>
</beans>

spring/applicationContext-service.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- 扫描bean对象 -->
	<context:component-scan base-package="com.bjsxt.service.impl"/>
</beans>

spring/applicationContext-trans.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
   <!-- 配置事物管理器的切面 -->
   <bean id="transactionMananger" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"/>
   </bean>

   <!-- 配置事物传播行为 ：其实就是那些方法应该受什么样的事物控制-->
    <tx:advice id="advice" transaction-manager="transactionMananger">
   	<tx:attributes>
   		<tx:method name="add*" propagation="REQUIRED"/>
   		<tx:method name="modify*" propagation="REQUIRED"/>
   		<tx:method name="update*" propagation="REQUIRED"/>
   		<tx:method name="dorp*" propagation="REQUIRED"/>
   		<tx:method name="del*" propagation="REQUIRED"/>
   		<tx:method name="find*" read-only="true"/>
   	</tx:attributes>
   </tx:advice>

   <!-- 那些类下的方法需要参与到当前的事物管理中 。配置切点 -->
   <aop:config>
   	<aop:advisor advice-ref="advice" pointcut="execution(* com.bjsxt.service.*.*(..))"/>
   </aop:config>
</beans>

spring/springmvc.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
      <!-- 包的扫描器主要是扫描@controller -->
      <context:component-scan base-package="com.bjsxt.web.controller"/>

	   <!-- 注册两个新对象 主要是为了来处理springmvc中的其他anntation 如：@requestmapping -->
	   <mvc:annotation-driven></mvc:annotation-driven>

	   <!-- 视图解析器 -->
	   <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" /><!-- jsp所在的前缀 -->
		<property name="suffix" value=".jsp" />
    </bean>
    <!-- 配置静态资源映射 -->
    <mvc:resources location="/WEB-INF/css/" mapping="/css/**"/>
	<mvc:resources location="/WEB-INF/js/" mapping="/js/**"/>
</beans>

posted @ 2019-12-11 08:56 sakura-yxf 阅读(291) 评论(0) 收藏举报

刷新页面返回顶部

sakura-yxf

idea结合maven小项目

公告
