kafka介绍 - 翻译自官网

1. kafka

Apache Kafka is an open-source distributed event streaming platform used by thousands of companies for high-performance data pipelines, streaming analytics, data integration, and mission-critical applications.

Apache Kafka 是一个开源分布式事件流平台，被数千家公司用于高性能数据管道、流分析、数据集成和关键任务应用程序。

2. kafka介绍

2.1 什么是事件流

Event streaming is the digital equivalent of the human body's central nervous system. It is the technological foundation for the 'always-on' world where businesses are increasingly software-defined and automated, and where the user of software is more software.

事件流是人体中枢神经系统的数字等价物。 它是“永远在线”世界的技术基础，在这个世界中，企业越来越多地由软件定义和自动化，软件的用户更多的是软件。

Technically speaking, event streaming is the practice of capturing data in real-time from event sources like databases, sensors, mobile devices, cloud services, and software applications in the form of streams of events; storing these event streams durably for later retrieval; manipulating, processing, and reacting to the event streams in real-time as well as retrospectively; and routing the event streams to different destination technologies as needed. Event streaming thus ensures a continuous flow and interpretation of data so that the right information is at the right place, at the right time.

从技术上讲，事件流是从数据库、传感器、移动设备、云服务和软件应用程序等事件源以事件流的形式实时捕获数据的做法； 持久地存储这些事件流以供以后检索； 实时和回顾性地操作、处理和响应事件流； 并根据需要将事件流路由到不同的目标技术。 因此，事件流可确保数据的连续流动和解释，以便正确的信息在正确的时间出现在正确的位置。

2.2 使用事件流可以做什么？

Event streaming is applied to a wide variety of use cases across a plethora of industries and organizations. Its many examples include:
To process payments and financial transactions in real-time, such as in stock exchanges, banks, and insurances.
To track and monitor cars, trucks, fleets, and shipments in real-time, such as in logistics and the automotive industry.
To continuously capture and analyze sensor data from IoT devices or other equipment, such as in factories and wind parks.
To collect and immediately react to customer interactions and orders, such as in retail, the hotel and travel industry, and mobile applications.
To monitor patients in hospital care and predict changes in condition to ensure timely treatment in emergencies.
To connect, store, and make available data produced by different divisions of a company.
To serve as the foundation for data platforms, event-driven architectures, and microservices.

事件流应用于众多行业和组织的各种用例。 它的许多例子包括：

• 实时处理支付和金融交易，例如在证券交易所、银行和保险中。
• 实时跟踪和监控汽车、卡车、车队和货物，例如物流和汽车行业。
• 持续捕获和分析来自 IoT 设备或其他设备（例如工厂和风电场）的传感器数据。
• 收集客户互动和订单并立即做出反应，例如在零售、酒店和旅游行业以及移动应用程序中。
• 监测住院病人并预测病情变化，以确保在紧急情况下得到及时治疗。
• 连接、存储和提供公司不同部门产生的数据。
• 作为数据平台、事件驱动架构和微服务的基础。

2.3 kafka是一个事件流平台，意味着什么？

Kafka combines three key capabilities so you can implement your use cases for event streaming end-to-end with a single battle-tested solution:

1. To publish (write) and subscribe to (read) streams of events, including continuous import/export of your data from other systems.
2. To store streams of events durably and reliably for as long as you want.
3. To process streams of events as they occur or retrospectively.

Kafka 结合了三个关键功能，因此您可以使用一个久经考验的解决方案来实现端到端的事件流用例：

• 发布（写入）和订阅（读取）事件流，包括从其他系统持续导入/导出数据。
• 根据需要持久可靠地存储事件流。
• 在事件发生时或追溯性地处理事件流。

And all this functionality is provided in a distributed, highly scalable, elastic, fault-tolerant, and secure manner. Kafka can be deployed on bare-metal hardware, virtual machines, and containers, and on-premises as well as in the cloud. You can choose between self-managing your Kafka environments and using fully managed services offered by a variety of vendors.

所有这些功能都是以分布式、高度可扩展、弹性、容错和安全的方式提供的。 Kafka 可以部署在裸机硬件、虚拟机和容器上，也可以部署在本地和云端。 您可以在自行管理 Kafka 环境和使用各种供应商提供的完全托管服务之间进行选择。

2.4 Kafka 是如何工作的？

Kafka is a distributed system consisting of servers and clients that communicate via a high-performance TCP network protocol. It can be deployed on bare-metal hardware, virtual machines, and containers in on-premise as well as cloud environments.

Kafka 是一个分布式系统，由通过高性能 TCP 网络协议进行通信的服务器和客户端组成。 它可以部署在内部和云环境中的裸机硬件、虚拟机和容器上。

Servers: Kafka is run as a cluster of one or more servers that can span multiple datacenters or cloud regions. Some of these servers form the storage layer, called the brokers. Other servers run Kafka Connect to continuously import and export data as event streams to integrate Kafka with your existing systems such as relational databases as well as other Kafka clusters. To let you implement mission-critical use cases, a Kafka cluster is highly scalable and fault-tolerant: if any of its servers fails, the other servers will take over their work to ensure continuous operations without any data loss.

服务器：Kafka 作为一个或多个服务器的集群运行，这些服务器可以跨越多个数据中心或云区域。其中一些服务器形成存储层，称为代理。其他服务器运行 Kafka Connect 以将数据作为事件流持续导入和导出，从而将 Kafka 与您现有的系统（例如关系数据库以及其他 Kafka 集群）集成。为了让您实现关键任务用例，Kafka 集群具有高度可扩展性和容错性：如果其中任何一个服务器出现故障，其他服务器将接管它们的工作，以确保连续运行而不会丢失任何数据。

Clients: They allow you to write distributed applications and microservices that read, write, and process streams of events in parallel, at scale, and in a fault-tolerant manner even in the case of network problems or machine failures. Kafka ships with some such clients included, which are augmented by dozens of clients provided by the Kafka community: clients are available for Java and Scala including the higher-level Kafka Streams library, for Go, Python, C/C++, and many other programming languages as well as REST APIs.

客户端：它们允许您编写分布式应用程序和微服务，即使在网络问题或机器故障的情况下，它们也可以并行、大规模和容错方式读取、写入和处理事件流。 Kafka 附带了一些这样的客户端，这些客户端由 Kafka 社区提供的数十个客户端进行了扩充：客户端可用于 Java 和 Scala，包括更高级别的 Kafka Streams 库，用于 Go、Python、C/C++ 和许多其他编程语言以及 REST API。

2.5 主要概念和术语

An event records the fact that "something happened" in the world or in your business. It is also called record or message in the documentation. When you read or write data to Kafka, you do this in the form of events. Conceptually, an event has a key, value, timestamp, and optional metadata headers. Here's an example event:
Event key: "Alice"
Event value: "Made a payment of $200 to Bob"
Event timestamp: "Jun. 25, 2020 at 2:06 p.m."

事件记录了在世界或您的企业中“发生了某些事情”的事实。 它在文档中也称为记录或消息。 当您向 Kafka 读取或写入数据时，您以事件的形式执行此操作。 从概念上讲，事件具有键、值、时间戳和可选的元数据标头。 这是一个示例事件：
事件key：“爱丽丝”
事件value：“向鲍勃支付了 200 美元”
事件timestamp：“2020 年 6 月 25 日下午 2:06”

Producers are those client applications that publish (write) events to Kafka, and consumers are those that subscribe to (read and process) these events. In Kafka, producers and consumers are fully decoupled and agnostic of each other, which is a key design element to achieve the high scalability that Kafka is known for. For example, producers never need to wait for consumers. Kafka provides various guarantees such as the ability to process events exactly-once.

生产者是那些向 Kafka 发布（写入）事件的客户端应用程序，而消费者是订阅（读取和处理）这些事件的那些客户端应用程序。 在 Kafka 中，生产者和消费者之间是完全解耦和不可知的，这是实现 Kafka 众所周知的高可扩展性的关键设计元素。 例如，生产者永远不需要等待消费者。 Kafka 提供了各种保证，例如exactly-once处理事件。

Events are organized and durably stored in topics. Very simplified, a topic is similar to a folder in a filesystem, and the events are the files in that folder. An example topic name could be "payments". Topics in Kafka are always multi-producer and multi-subscriber: a topic can have zero, one, or many producers that write events to it, as well as zero, one, or many consumers that subscribe to these events. Events in a topic can be read as often as needed—unlike traditional messaging systems, events are not deleted after consumption. Instead, you define for how long Kafka should retain your events through a per-topic configuration setting, after which old events will be discarded. Kafka's performance is effectively constant with respect to data size, so storing data for a long time is perfectly fine.

事件被组织并持久存储在主题中。 非常简单，主题类似于文件系统中的文件夹，事件就是该文件夹中的文件。 一个示例主题名称可以是“支付”。 Kafka 中的主题总是多生产者和多订阅者：一个主题可以有零个、一个或多个向其写入事件的生产者，以及零个、一个或多个订阅这些事件的消费者。 可以根据需要随时读取主题中的事件——与传统消息传递系统不同，事件在消费后不会被删除。 相反，您可以通过每个主题的配置设置来定义 Kafka 应该保留您的事件多长时间，之后旧事件将被丢弃。 数据大小不影响Kafka 的性能，因此长时间存储数据是完全没问题的。

Topics are partitioned, meaning a topic is spread over a number of "buckets" located on different Kafka brokers. This distributed placement of your data is very important for scalability because it allows client applications to both read and write the data from/to many brokers at the same time. When a new event is published to a topic, it is actually appended to one of the topic's partitions. Events with the same event key (e.g., a customer or vehicle ID) are written to the same partition, and Kafka guarantees that any consumer of a given topic-partition will always read that partition's events in exactly the same order as they were written.

主题是分区的，这意味着主题分布在位于不同 Kafka broker的多个“桶”中。 数据的这种分布式放置对于扩展性非常重要，因为它允许客户端应用程序同时从/向多个broker读取和写入数据。 当一个新事件发布到一个主题时，它实际上被追加到该主题的分区之一。 具有相同事件key（例如，客户或车辆 ID）的事件被写入同一分区，并且 Kafka 保证给定主题分区的任何消费者将始终以与写入事件完全相同的顺序读取该分区的事件。

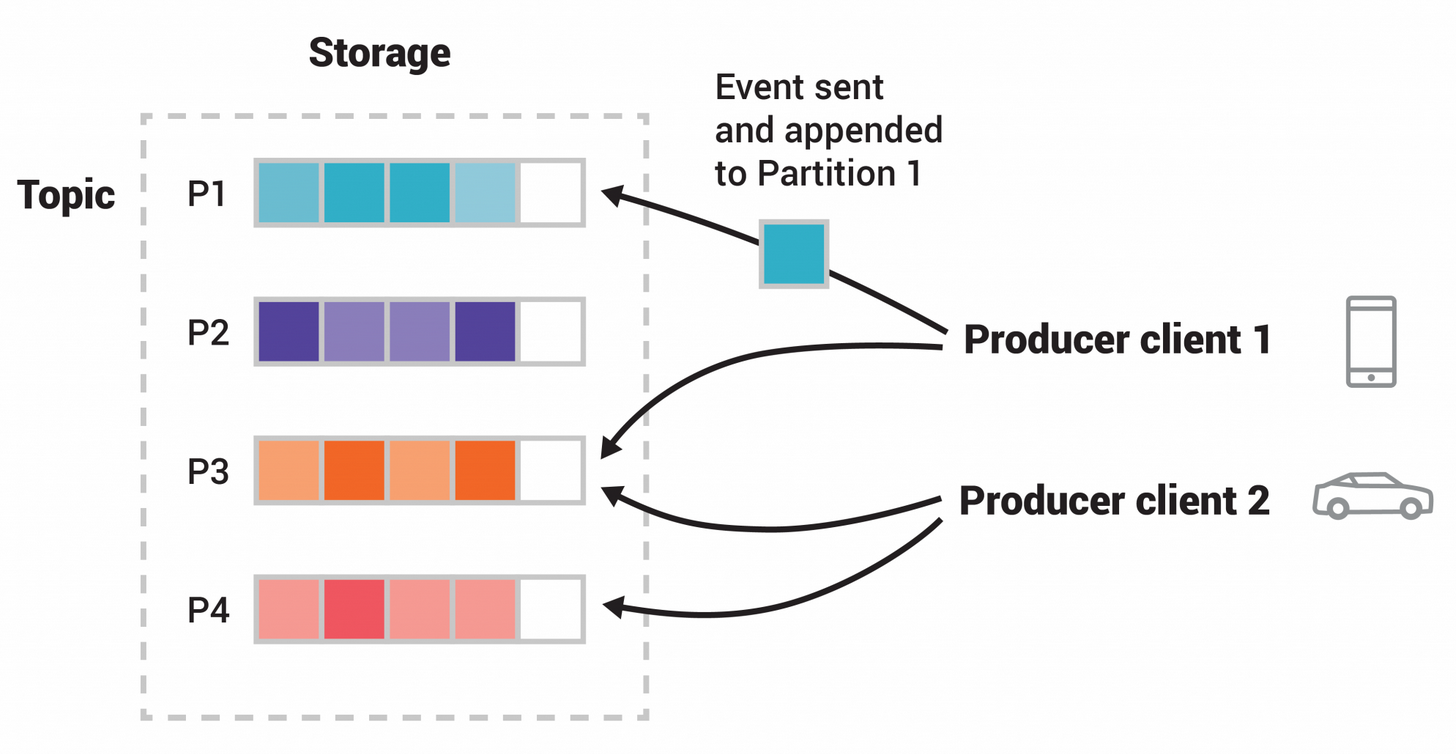

Figure: This example topic has four partitions P1–P4. Two different producer clients are publishing, independently from each other, new events to the topic by writing events over the network to the topic's partitions. Events with the same key (denoted by their color in the figure) are written to the same partition. Note that both producers can write to the same partition if appropriate.

图：此示例主题有四个分区 P1–P4。 两个不同的生产者客户端通过将事件通过网络写入主题的分区，相互独立地向主题发布新事件。 具有相同key的事件（在图中用它们的颜色表示）被写入同一个分区。 请注意，如果合适，两个生产者都可以写入同一个分区。

To make your data fault-tolerant and highly-available, every topic can be replicated, even across geo-regions or datacenters, so that there are always multiple brokers that have a copy of the data just in case things go wrong, you want to do maintenance on the brokers, and so on. A common production setting is a replication factor of 3, i.e., there will always be three copies of your data. This replication is performed at the level of topic-partitions.

为了使您的数据具有容错性和高可用性，每个主题都会有副本，甚至可以跨地理区域或数据中心进行复制，以便始终有多个broker拥有数据副本。 常见的生产设置是复本因子为 3，即，您的数据将始终存在三个副本。 副本在主题-分区级别来执行。

2.6 kafka APIs

In addition to command line tooling for management and administration tasks, Kafka has five core APIs for Java and Scala:
The Admin API to manage and inspect topics, brokers, and other Kafka objects.

用于管理和检查主题、broker和其他 Kafka 对象的 Admin API。

The Producer API to publish (write) a stream of events to one or more Kafka topics.

用于向一个或多个 Kafka 主题发布（写入）事件流的生产者 API。

The Consumer API to subscribe to (read) one or more topics and to process the stream of events produced to them.

消费者 API 订阅（读取）一个或多个主题并处理为它们生成的事件流。

The Kafka Streams API to implement stream processing applications and microservices. It provides higher-level functions to process event streams, including transformations, stateful operations like aggregations and joins, windowing, processing based on event-time, and more. Input is read from one or more topics in order to generate output to one or more topics, effectively transforming the input streams to output streams.

用于实现流处理应用程序和微服务的 Kafka Streams API。它提供了更高级别的函数来处理事件流，包括转换、有状态操作（如聚合和连接）、窗口化、基于事件时间的处理等。从一个或多个主题读取输入以生成一个或多个主题的输出，有效地将输入流转换为输出流。

The Kafka Connect API to build and run reusable data import/export connectors that consume (read) or produce (write) streams of events from and to external systems and applications so they can integrate with Kafka. For example, a connector to a relational database like PostgreSQL might capture every change to a set of tables. However, in practice, you typically don't need to implement your own connectors because the Kafka community already provides hundreds of ready-to-use connectors.

Kafka Connect API 用于构建和运行可重用的数据导入/导出连接器，这些连接器从外部系统和应用程序使用（读取）或生成（写入）事件流，以便它们可以与 Kafka 集成。例如，连接到关系数据库（如 PostgreSQL）的连接器可能会捕获对一组表的每个更改。但是，在实践中，您通常不需要实现自己的连接器，因为 Kafka 社区已经提供了数百个现成的连接器。
