实验 6:OpenDaylight 实验——OpenDaylight 及 Postman 实现流表下发
一、实验目的
熟悉 Postman 的使用;熟悉如何使用 OpenDaylight 通过 Postman 下发流表。
二、实验任务
流表有软超时和硬超时的概念,分别对应流表中的 idle_timeout 和 hard_timeout。
- idle timeout:如果值为非 0,那么在对应的时间内如果没有数据包匹配流表,时间到该流表将被删除;值为 0 不设软超时机制。
- hard timeout:如果值为非 0,那么在对应的时间内不论是否有数据包匹配流表,时间到流表都会被删除;值为 0 不设硬超时机制。
推荐阅读:SDNLAB 文章:OpenFlow 协议超时机制简介
https://www.sdnlab.com/22563.html
本实验通过 OpenDaylight 及 Postman 下发关于硬超时的流表,实现拓扑内主机h1 和 h3 在一定时间内的网络断开。Postman 是一个 http 请求工具,可用于 RESTAPI 的接口调试。实验拓扑如下:
三、实验步骤
1. 实验环境
安装了 Ubuntu 16.04.5 Desktop amd64 的虚拟机
2. 实验过程
(1)Postman 安装
https://www.postman.com/downloads/
- 站点会监测系统版本,请下载 Linux 版本,解压到/home/ubuntu/你的用户名/目录下即可。指导书示例目录:/home/ubuntu/sdn/Postman,进入上述目录,运行Postman 文件即可
- 1.解压代码 $tar -zxvf Postman-linux-64-7.33.1.tar.gz
- 2.运行Postman $./Postman

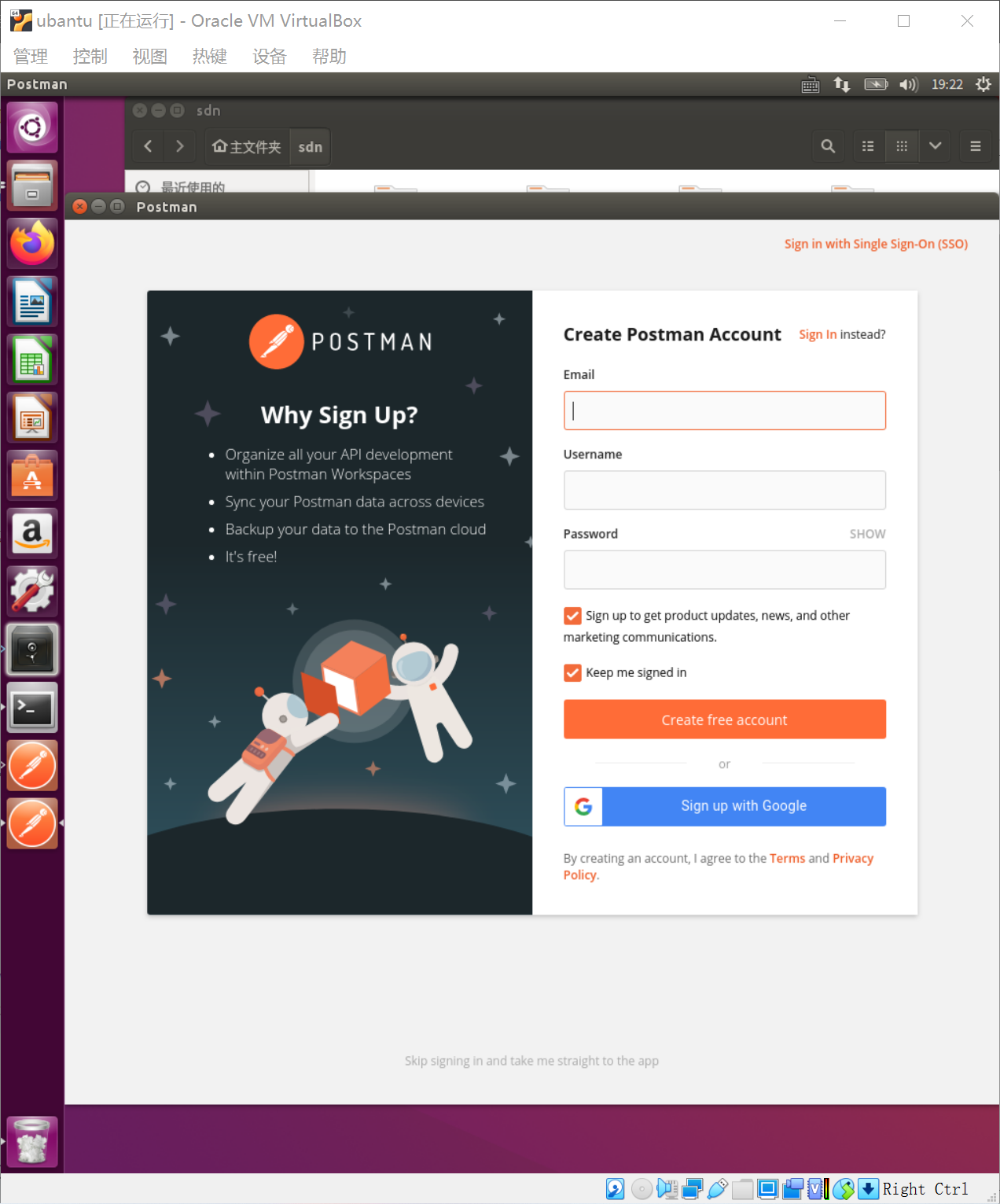

结果如下
(2)清理旧数据
- 启动 OpenDaylight,通过 Postman 的 Delete 动作清空残留流表(如有)
(3)生成拓扑并连接 OpenDaylight
- $ sudo mn --topo=single,3 --controller=remote,ip=127.0.0.1,port=6633 --switch ovsk,protocols=OpenFlow13

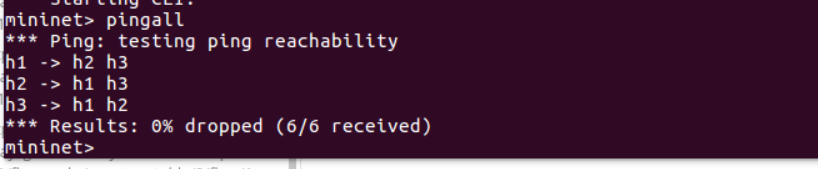

- $ pingall
(4)使用 Postman 填入 JSON 格式的 http 请求
{
"flow":[
{
"id":"1",
"match":{
"in-port":"1",
"ethernet-match":{
"ethernet-type":{
"type":"0x0800"
}
},
"ipv4-destination":"10.0.0.3/32"
},
"instructions":{
"instruction":[
{
"order":"0",
"apply-actions":{
"action":[
{
"order":"0",
"drop-action":{}
}
]
}
}
]
},
"flow-name":"flow1",
"priority":"65535",
"hard-timeout":"10",
"cookie":"2",
"table_id":"0"
}
]
}

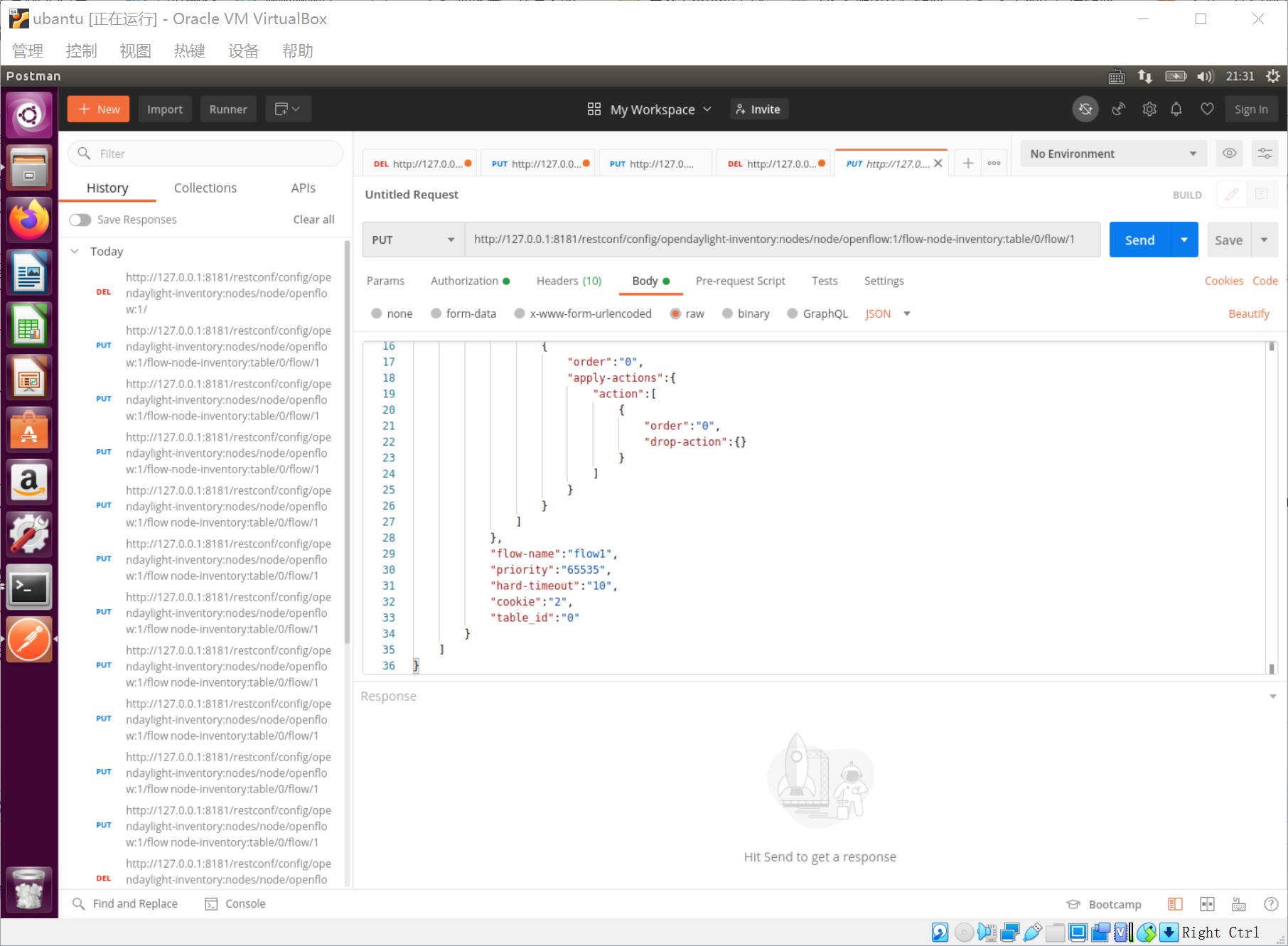

先在 Mininet CLI 中运行 h1 ping h3,再在 Postman 处选择动作 PUT,填入硬超时流表内容(见附录),可以先阅读一下流表的内容,关注 match 匹配字段以及对应的 instructions 指令中的动作 action,这里是直接 drop 数据包。为了让流表能够匹配,将优先级 priority调到最大。点击右上角 send,发送请求。
(5)验证结果
h1 ping h3 有 10 秒时间是中断的,结果符合预期。
问题及其解决方案
在提交post请求时返回错误
解决方法:有可能是复制到虚拟机时,地址的横杠漏掉,加上就能成功
