SpringCloudAlibaba~环境搭建

！！！此篇博客只是为了记录后续学习SpringCloud Aibaba所准备的环境。没有用到任何一个分布式组件，只是先搭建代码环境。

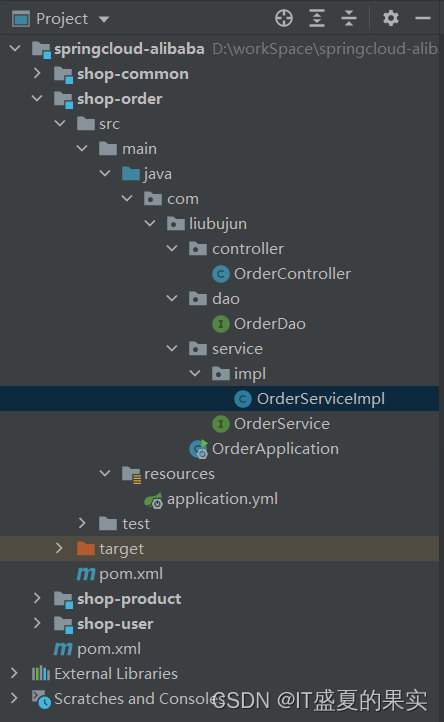

1 环境简介

此篇项目代码分为5个模块：springcloud-alibaba父工程、共用模块shop-common、订单微服务shop-order、商品微服务shop-product、用户微服务服务shop-user。

技术选型：

数据库：Mysql5.7

持久层：SpringData Jpa

其他：SpringCloud Alibaba

1）springcloud-alibaba父工程

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.liubujun</groupId>
    <artifactId>springcloud-alibaba</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>shop-common</module>
        <module>shop-user</module>
        <module>shop-product</module>
        <module>shop-order</module>
    </modules>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
    </parent>

    <!--依赖版本锁定-->
    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-cloud.version>Greenwich.RELEASE</spring-cloud.version>
        <spring-cloud-alibaba.version>2.1.0.RELEASE</spring-cloud-alibaba.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

2）共用模块shop-common

Order实体类：

package com.liubujun;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

/**
 * @Author: liubujun
 * @Date: 2022/3/29 17:46
 */

@Entity(name = "shop_order")
@Data
public class Order {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private  Long oid;

    //用户id
    private Integer uid;
    //用户名
    private String username;


    //商品id
    private Integer pid;
    //商品名称
    private String pname;
    //商品价格
    private Double pprice;


    //购买数量
    private Integer number;
}

Product实体类：

package com.liubujun;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

/**
 * @Author: liubujun
 * @Date: 2022/3/29 17:44
 */

@Entity(name = "shop_product")
@Data
public class Product {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer pid;
    private String pname;
    private Double pprice;
    private Integer stock;
}

User实体类：

package com.liubujun;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

/**
 * @Author: liubujun
 * @Date: 2022/3/29 17:37
 */

@Entity(name = "shop_user")
@Data
public class User {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer uid;
    private String username;
    private String password;
    private String telephone;

}

3）订单微服务shop-order

controller层：

package com.liubujun.controller;

import com.alibaba.fastjson.JSON;
import com.liubujun.Order;
import com.liubujun.Product;
import com.liubujun.service.OrderService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

/**
 * @Author: liubujun
 * @Date: 2022/3/29 21:36
 */

@RestController
@Slf4j
public class OrderController {

    @Autowired
    private RestTemplate restTemplate;

    @Autowired
    private OrderService orderService;

    @RequestMapping("/order/prod/{pid}")
    public Order order(@PathVariable("pid") Integer pid){
        log.info("接收到{}号商品的下单请求，调用商品微服务查询此商品信息",pid);

        Product product
                = restTemplate.getForObject("http://localhost:8081/product/" + pid, Product.class);

        log.info("查询到{}号商品的信息，内容:{}",pid, JSON.toJSONString(product));
        //下单
        Order order = new Order();

        order.setUid(1);
        order.setUsername("测试第一");

        order.setPid(pid);
        order.setPname(product.getPname());
        order.setPprice(product.getPprice());
        order.setNumber(1);

        orderService.createOrder(order);

        log.info("创建订单成功",JSON.toJSONString(order));

        return order;

    }

}

dao层：

public interface OrderDao extends JpaRepository<Order,Integer> {
}

orderService层：

public interface OrderService {

    void createOrder(Order order);
}

orderServiceImpl层：

@Service
public class OrderServiceImpl implements OrderService {

    @Autowired
    private OrderDao orderDao;

    @Override
    public void createOrder(Order order) {
        orderDao.save(order);
    }
}

OrderApplication启动类：

@SpringBootApplication
public class OrderApplication {
    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class);
    }

    @Bean
    public RestTemplate restTemplate(){

         return new RestTemplate();
    }
}

配置文件：

server:
  port: 8091
spring:
  application:
    name: server-order
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql:///shop?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=true
    username: root
    password: lj123456
  jpa:
    properties:
      hibernate:
        hbm2ddl:
          auto: update
        dialect: org.hibernate.dialect.MySQL5InnoDBDialect

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud-alibaba</artifactId>
        <groupId>com.liubujun</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>shop-order</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.liubujun</groupId>
            <artifactId>shop-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

4）商品微服务shop-product：

controller层：

@RestController
@Slf4j
public class ProductController {

    @Autowired
    private ProductService productService;

    @RequestMapping("/product/{pid}")
    public Product product(@PathVariable("pid") Integer pid) {
        log.info("接下来要进行{}号商品的查询",pid);
        Product product =  productService.findById(pid);
        log.info("商品信息查询成功，内容为{}", JSON.toJSONString(product));
        return product;
    }



}

dao层：

public interface ProductDao extends JpaRepository<Product,Integer> {
}

service层：

public interface ProductService {

    Product findById(Integer pid);
}

service实现层：

@Service
public class ProductServiceImpl implements ProductService {

    @Autowired
    private ProductDao productDao;

    @Override
    public Product findById(Integer pid) {
        return productDao.findById(pid).get();
    }
}

配置文件：

server:
  port: 8081
spring:
  application:
    name: server-product
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql:///shop?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=true
    username: root
    password: lj123456
  jpa:
    properties:
      hibernate:
        hbm2ddl:
          auto: update
        dialect: org.hibernate.dialect.MySQL5InnoDBDialect

5）用户微服务服务shop-user

其余各层没有多余代码

配置文件：

server:
  port: 8071
spring:
  application:
    name: server-user
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql:///shop?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=true
    username: root
    password: lj123456
  jpa:
    properties:
      hibernate:
        hbm2ddl:
          auto: update
        dialect: org.hibernate.dialect.MySQL5InnoDBDialect

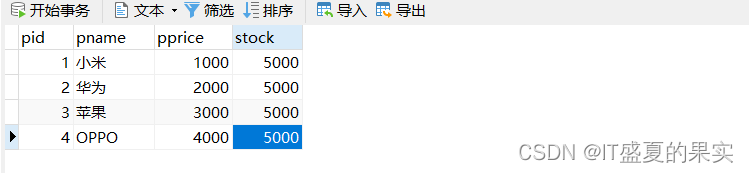

向产品表中加入4条数据：

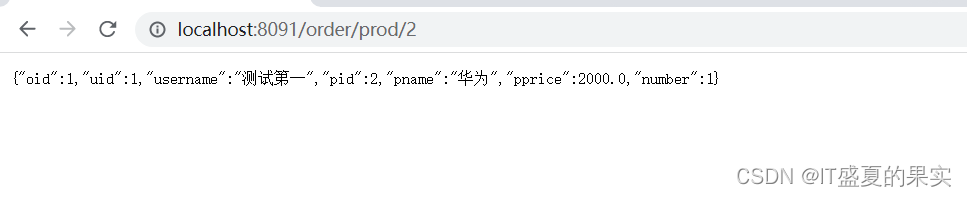

访问订单微服务：

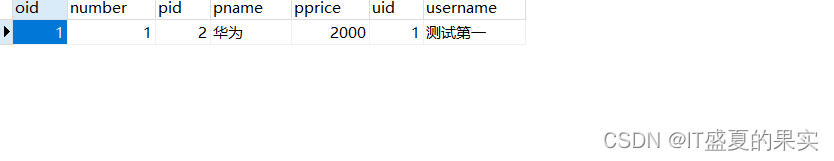

并且订单表中也插入了一条数据

注意：

1）由于我们在配置文件中配置了dialect，所以只需要建好数据库（shop）表就会自动创建了。

2）本文中订单微服务调用了产品微服务是用了restTemplate直接去调用的。

3）后续会将springcloud Alibaba的组件都加入到这个demo上来
