Java VisualVM 观察自定义线程池

背景

在一次使用自定义线程池中，我发现了部分代码是用完没有进行shutdown的，这样是否会造成资源浪费？

一、单体架构下：测试自定义线程池：

1.1、首先我们把运行时时的线程数量打印出来，放上代码：然后打开Java VisualVM进行观测：

public class ThreadTest {

    public static void main(String[] args) throws Exception {

        AtomicInteger atomicInteger = new AtomicInteger();
        for (int i = 0; i < 10; i++) {
            test(atomicInteger);
        }
    }

    public static void  test(AtomicInteger atomicInteger) throws InterruptedException {
        //用于获取到本java进程，进而获取总线程数
        RuntimeMXBean runtimeBean = ManagementFactory.getRuntimeMXBean();
        String jvmName = runtimeBean.getName();
        System.out.println("JVM Name = " + jvmName);
        long pid = Long.valueOf(jvmName.split("@")[0]);
        System.out.println("JVM PID  = " + pid);
        ThreadMXBean bean = ManagementFactory.getThreadMXBean();
        int n = 3000000;
        for (int i = 0; i < n; i++) {
            ThreadPoolExecutor executor = new ThreadPoolExecutor(10, 20, 1000, TimeUnit.SECONDS, new LinkedBlockingDeque<>());
            for (int j = 0; j < 10; j++) {
                executor.execute(() -> {
                    System.out.println(atomicInteger.getAndIncrement()+"==="+ Thread.currentThread().getName()+"==当前线程总数为：" + bean.getThreadCount());
                });
            }
　　　　　　　　// 此处控制是否释放运行完线程
           executor.shutdown();
        }
        Thread.sleep(10000);
        System.out.println("线程总数为 = " + bean.getThreadCount());
    }

}

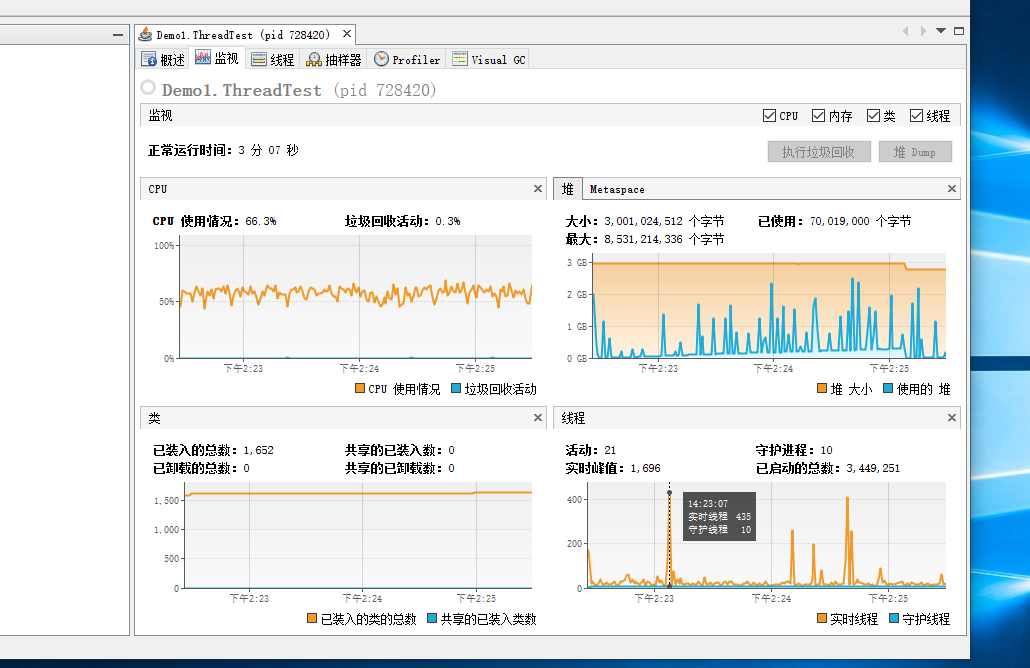

1.2 我们测试看看实际情况：

可以看到线程池有时候还没来得及释放的时候，峰值是400多

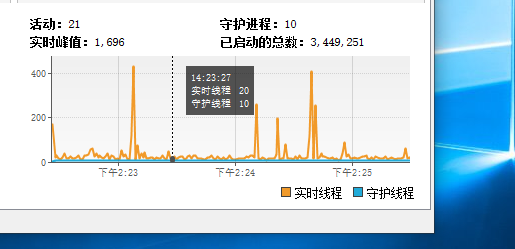

1.3非峰值很稳定在20多附近。

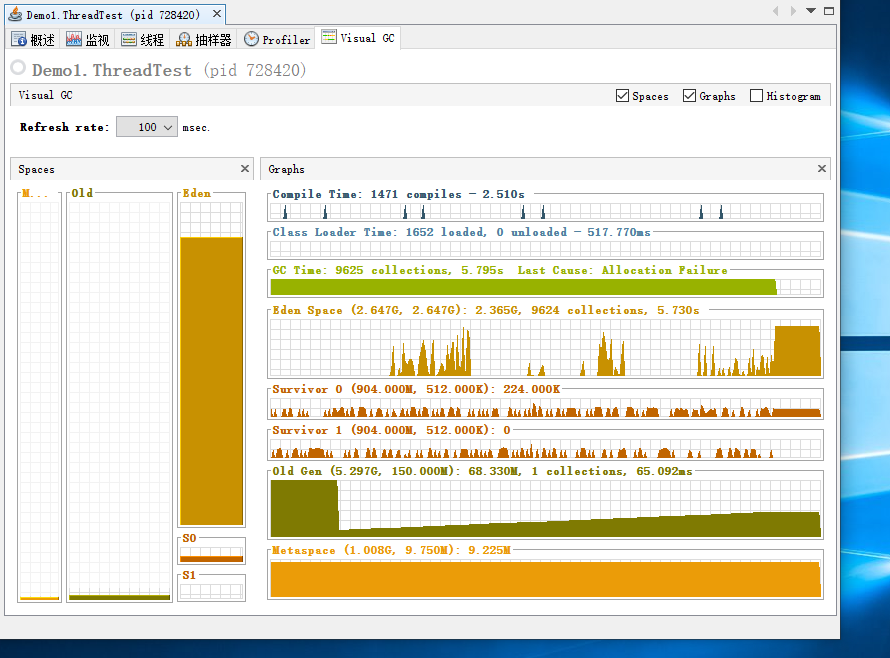

1.4附上内存图等情况：

2.1

第二次，因为如果不做线程睡眠，直接把服务干挂了，连着visualVm都启动不了，我们代码需要调整下：

public class ThreadTest {

    public static void main(String[] args) throws Exception {

        AtomicInteger atomicInteger = new AtomicInteger();
        for (int i = 0; i < 10; i++) {
            test(atomicInteger);
        }
    }

    public static void  test(AtomicInteger atomicInteger) throws InterruptedException {
        //用于获取到本java进程，进而获取总线程数
        RuntimeMXBean runtimeBean = ManagementFactory.getRuntimeMXBean();
        String jvmName = runtimeBean.getName();
        System.out.println("JVM Name = " + jvmName);
        long pid = Long.valueOf(jvmName.split("@")[0]);
        System.out.println("JVM PID  = " + pid);
        ThreadMXBean bean = ManagementFactory.getThreadMXBean();
        int n = 3000000;
        for (int i = 0; i < n; i++) {

　　　　　　// 千万不要再这里new了线程，然后不shutdown，数量大的话你会直接挂的

ThreadPoolExecutor executor = new ThreadPoolExecutor(10, 20, 1000, TimeUnit.SECONDS, new LinkedBlockingDeque<>()); for (int j = 0; j < 10; j++) {

　　　　　　　　　　// 此处线程睡眠
                Thread.sleep(500);
                executor.execute(() -> {
                    System.out.println(atomicInteger.getAndIncrement()+"==="+ Thread.currentThread().getName()+"==当前线程总数为：" + bean.getThreadCount());
                });
            }
            // 此处控制线程运行完是否释放
          //  executor.shutdown();
        }
        Thread.sleep(10000);
        System.out.println("线程总数为 = " + bean.getThreadCount());
    }

}

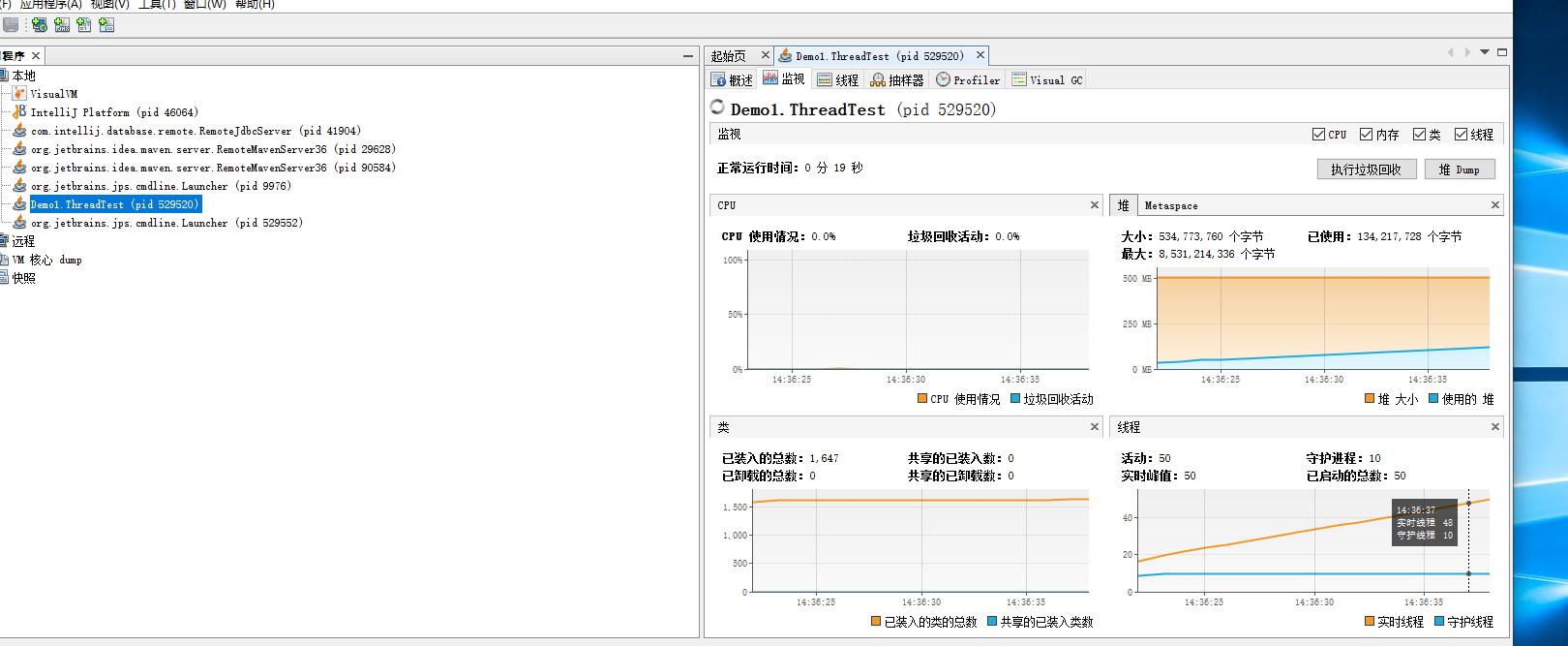

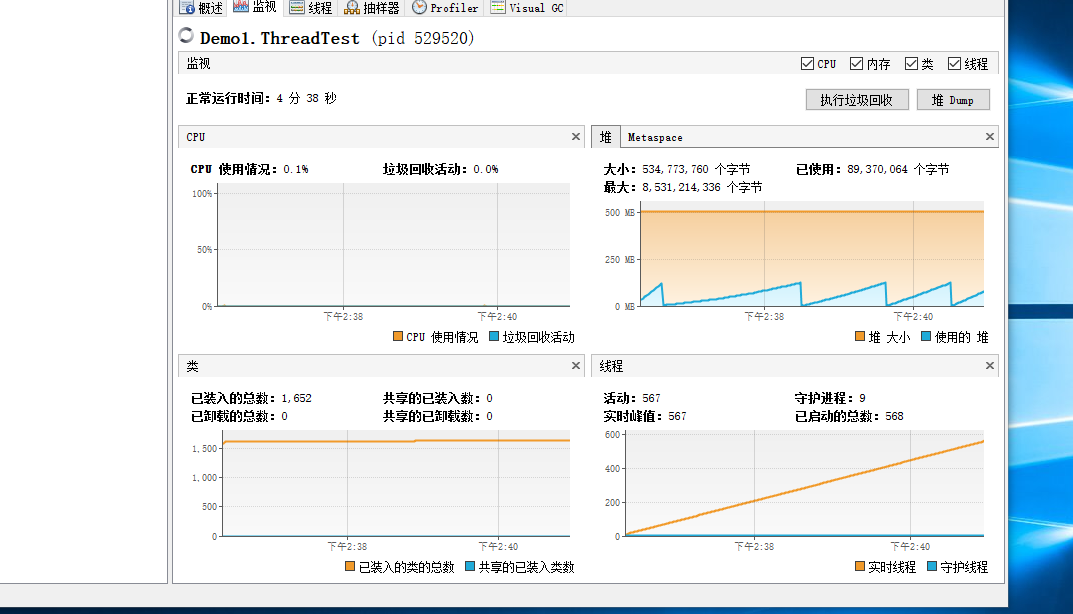

2.2调整后效果如下：你发现线程数量永远是网上升的

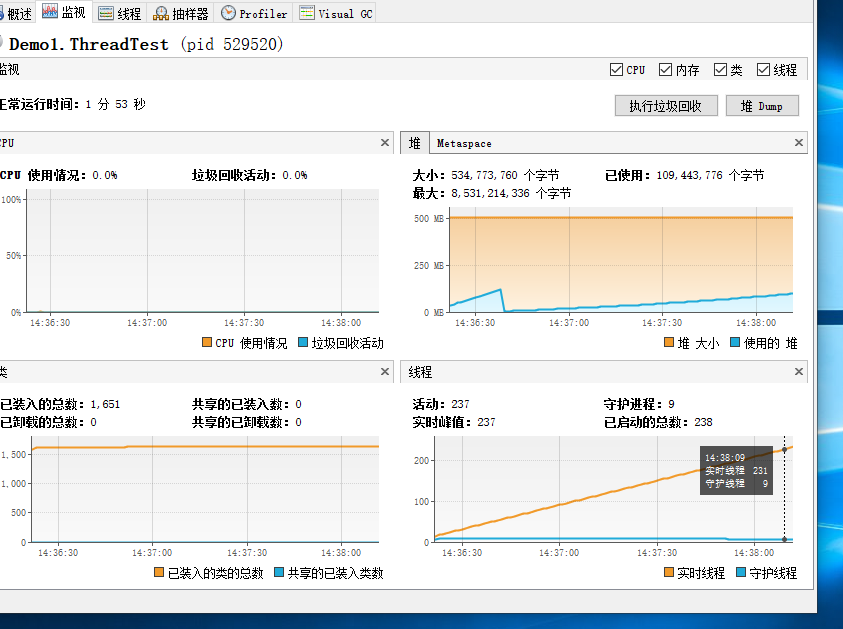

2.3回收不了，已经越来越多了。

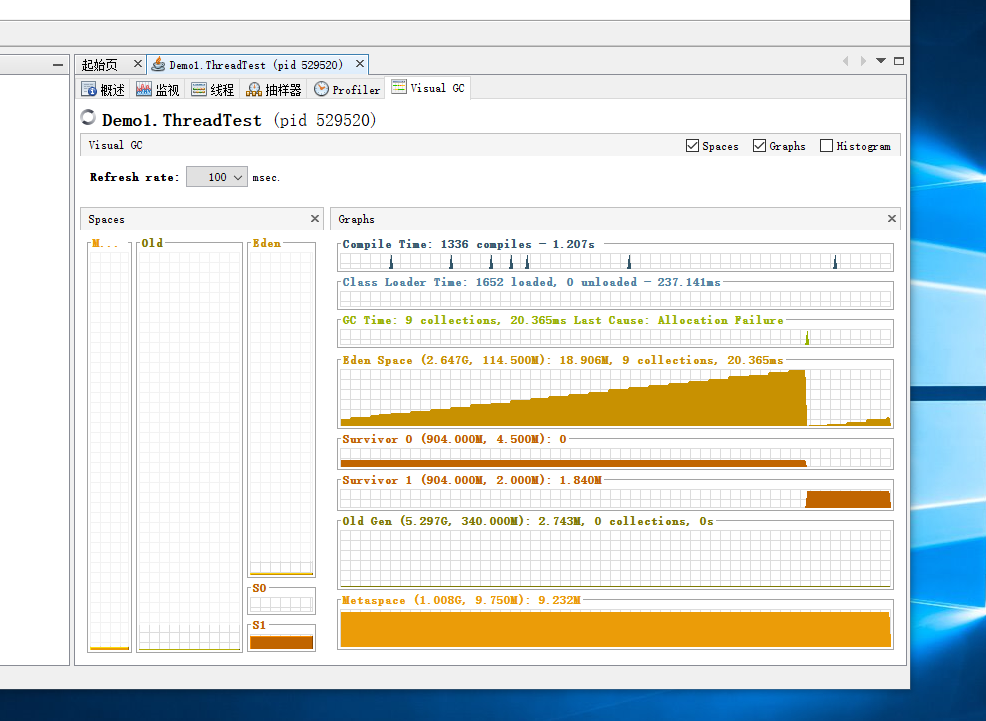

2.4附上内存情况

3.1我们把new的动作移出来：

public class ThreadTest {

    public static void main(String[] args) throws Exception {

        AtomicInteger atomicInteger = new AtomicInteger();
//        for (int i = 0; i < 10; i++) {
            test(atomicInteger);
//        }
    }

    public static void  test(AtomicInteger atomicInteger) throws InterruptedException {
        //用于获取到本java进程，进而获取总线程数
        RuntimeMXBean runtimeBean = ManagementFactory.getRuntimeMXBean();
        String jvmName = runtimeBean.getName();
        System.out.println("JVM Name = " + jvmName);
        long pid = Long.valueOf(jvmName.split("@")[0]);
        System.out.println("JVM PID  = " + pid);
        ThreadMXBean bean = ManagementFactory.getThreadMXBean();
        int n = 3000000;
        ThreadPoolExecutor executor = new ThreadPoolExecutor(10, 20, 1000, TimeUnit.SECONDS, new LinkedBlockingDeque<>());
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < 10; j++) {
                Thread.sleep(100);
                executor.execute(() -> {
                    System.out.println(atomicInteger.getAndIncrement()+"==="+ Thread.currentThread().getName()+"==当前线程总数为：" + bean.getThreadCount());
                });
            }
            // 此处控制线程运行完是否释放
        }
//        executor.shutdown();
        Thread.sleep(10000);
        System.out.println("线程总数为 = " + bean.getThreadCount());
    }

}

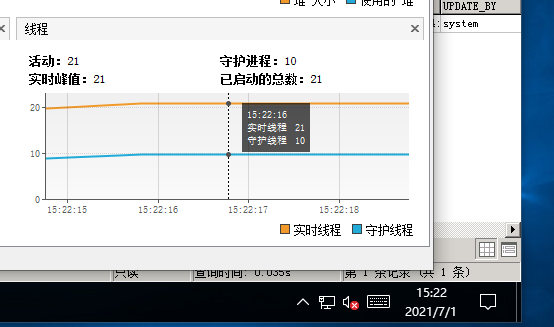

3.2 线程数量如下

可以看到，只要不在循环中去new你的线程池就不会爆炸。所以一定要去手动shutdown，不然很可能就会挂。

三、我们用自带的线程池子测试：

① 第一种线程池： Executors.newSingleThreadExecutor();

② 第二种线程池： Executors.newCachedThreadPool();

代码如下：

public class QfRunner {


    public static void main(String[] args) throws InterruptedException {
        getOne();
    }

    public static void getOne() throws InterruptedException {
        System.out.println(Thread.currentThread().getName()+":main");

        ArrayList<String> strings = new ArrayList<>();

        // 这个池子没问题，稳定在2-4个线程
     //   Executors.newSingleThreadExecutor();
        // 这个池子没问题，稳定在2-4个线程
        ExecutorService pool = Executors.newCachedThreadPool();

        for (int i = 0; i < 100; i++) {
            Thread.sleep(100);
            pool.execute(new QfFlowLauncher(strings));
        }
//        pool.shutdown();
    }


    static class QfFlowLauncher implements Runnable{
        private List<String> leaveFlowNoList;

        public QfFlowLauncher(List<String> leaveFlowNoList){
            this.leaveFlowNoList = leaveFlowNoList;
        }

        @Override
        public void run() {
            System.out.println(Thread.currentThread().getName()+":run");
        }
    }
}

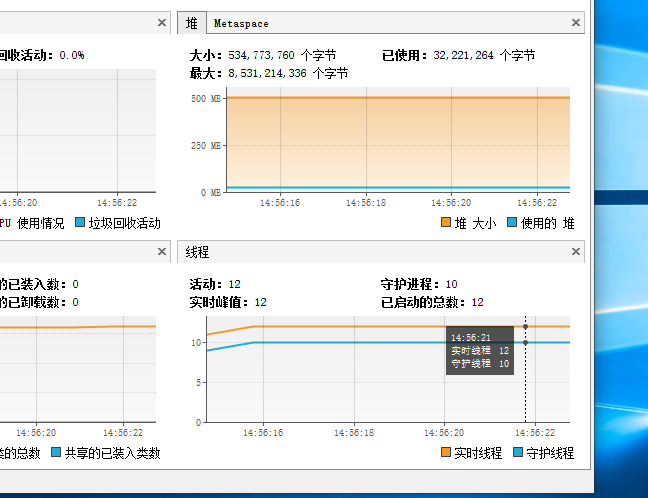

可以看到，线程数量是没变化的，堆的大小也没什么变化

我们把它

//        pool.shutdown();

放开注释之后继续看，效果是一样的：

③ 第三种线程池：

ExecutorService pool = Executors.newFixedThreadPool(10);

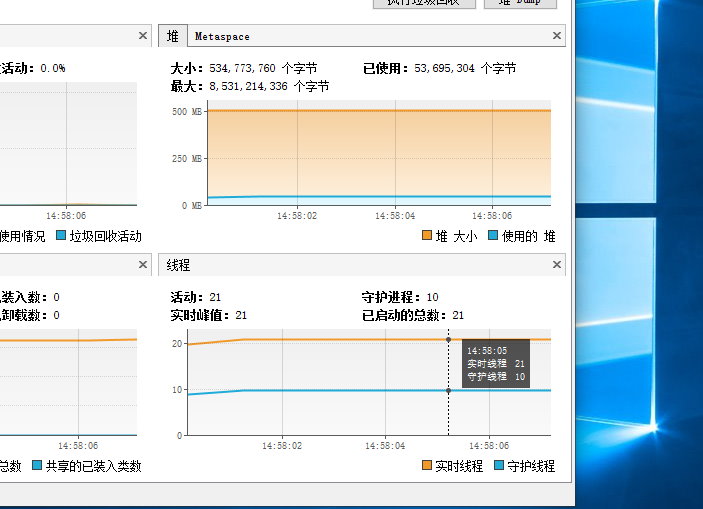

发现数量也是稳定，就算shutDown没有回收，效果也是一样的

四、测试自定义线程池：

4.1 上来就1000个并发量：

public class ThreadTest {

    public static void main(String[] args) throws Exception {

        AtomicInteger atomicInteger = new AtomicInteger();
        for (int i = 0; i < 1000; i++) {
       new Thread(()-> {
           try {
               test(atomicInteger);
           } catch (InterruptedException e) {
               e.printStackTrace();
           }
       }).start();
        }
    }

    public static void  test(AtomicInteger atomicInteger) throws InterruptedException {
        //用于获取到本java进程，进而获取总线程数
        RuntimeMXBean runtimeBean = ManagementFactory.getRuntimeMXBean();
        String jvmName = runtimeBean.getName();
        System.out.println("JVM Name = " + jvmName);
        long pid = Long.valueOf(jvmName.split("@")[0]);
        System.out.println("JVM PID  = " + pid);
        ThreadMXBean bean = ManagementFactory.getThreadMXBean();
        int n = 3000000;
        ThreadPoolExecutor executor = new ThreadPoolExecutor(10, 20, 1000, TimeUnit.SECONDS, new LinkedBlockingDeque<>());

            for (int j = 0; j < 10; j++) {
                Thread.sleep(100);
                executor.execute(() -> {
                    System.out.println(atomicInteger.getAndIncrement()+"==="+ Thread.currentThread().getName()+"==当前线程总数为：" + bean.getThreadCount());
                });
            }
            // 此处控制线程运行完是否释放

        executor.shutdown();
        Thread.sleep(10000);
        System.out.println("线程总数为 = " + bean.getThreadCount());
    }

}

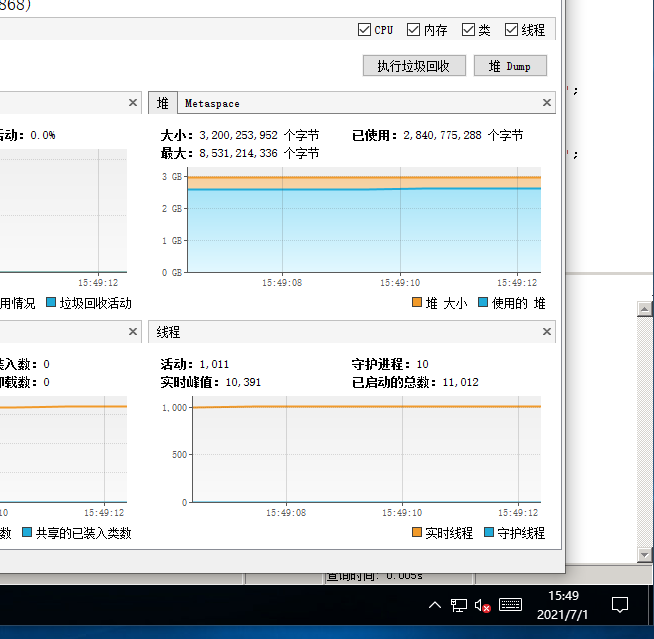

4.2我们看我们的池子，线程数都1万个了，：

5.1 再利用jmeter测试之后，发现的确和上述一样，并发高的情况下，发现运行正常，

1秒1000的并发量下，还是没问题的代码如下：

    public  void  testadd(AtomicInteger atomicInteger) throws InterruptedException {
        //用于获取到本java进程，进而获取总线程数
        RuntimeMXBean runtimeBean = ManagementFactory.getRuntimeMXBean();
        String jvmName = runtimeBean.getName();
        System.out.println("JVM Name = " + jvmName);
        long pid = Long.valueOf(jvmName.split("@")[0]);
        System.out.println("JVM PID  = " + pid);
        ThreadMXBean bean = ManagementFactory.getThreadMXBean();
        ThreadPoolExecutor executor = new ThreadPoolExecutor(100, 200000, 10000, TimeUnit.SECONDS, new LinkedBlockingDeque<>());

        executor.execute(() -> {
                System.out.println(atomicInteger.getAndIncrement()+"==="+ Thread.currentThread().getName()+"==当前线程总数为：" + bean.getThreadCount());
            });
        // 此处控制线程运行完是否释放
        executor.shutdown();
        Thread.sleep(10000);
        System.out.println("线程总数为 = " + bean.getThreadCount());
    }

5.2 测试情况如图：

6. 如果我们把他弄成static情况下，会直接爆了，所以千万不要写成static的：

private  static   ThreadPoolExecutor executor = new ThreadPoolExecutor(10, 20, 1000, TimeUnit.SECONDS, new LinkedBlockingDeque<>());
