简述
在这篇文章里，我将介绍如何在AHK里给GUI加上滚动条。
实际上，这个问题已经困扰了我很久，这几天悄然在github上找到了实现方法。
但它是v1版本的，我将其语法升级到v2版本，并已经开始使用了。
值得说明的是，网上还有其他添加滚动条的库，比如：这个
接下来，我将对其使用方法及原理进行介绍。

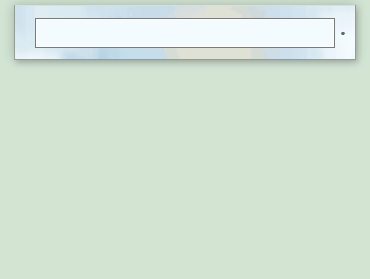

效果图
可以看到，当高度超过一定值时会出现滚动条，这点在稍后也会提到。
原理
实际上，滚动区域的所有控件是由一个单独的GUI管理，而这个GUI又被一个父gui包裹，实际上是给父gui添加滚动条。

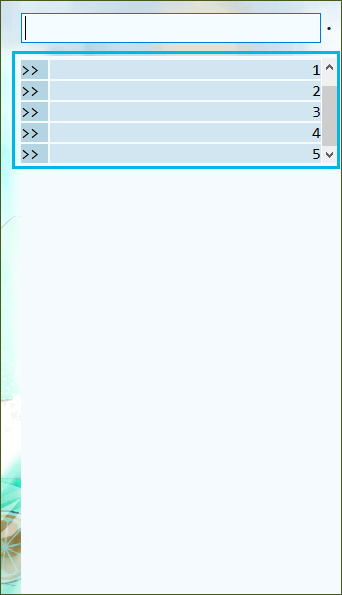

而在上面的动图中，父gui就在输入框的下面，如下图所示，使用蓝框标注：
剩下的就是滚动条的api调用了。
代码
下面是实现滚动条的脚本代码，我保留了源脚本的注释，并将语法升为了AHK2。
此脚本没有额外依赖
#Requires AutoHotkey v2.0
; ======================================================================================================================
; Namepace: ScrollGUI
; Function: Creates a scrollable GUI as a parent for GUI windows.
; Tested with: AHK 1.1.20.03 (1.1.20+ required)
; Tested on: Win 8.1 (x64)
; License: The Unlicense -> http://unlicense.org
; Change log:
; 1.0.00.00/2015-02-06/just me - initial release on ahkscript.org
; 1.0.01.00/2015-02-08/just me - bug fixes
; 1.1.00.00/2015-02-13/just me - bug fixes, mouse wheel handling, AutoSize method
; 1.2.00.00/2015-03-12/just me - mouse wheel handling, resizing, OnMessage, bug fixes
; ======================================================================================================================
class ScrollGUI {
static instances := {}
__New(HGUI, Width, Height, GuiOptions := "", ScrollBars := 3, Wheel := 0) {
; ===================================================================================================================
; __New Creates a scrollable parent window (ScrollGUI) for the passed GUI.
; Parameters:
; HGUI - HWND of the GUI child window.
; Width - Width of the client area of the ScrollGUI.
; Pass 0 to set the client area to the width of the child GUI.
; Height - Height of the client area of the ScrollGUI.
; Pass 0 to set the client area to the height of the child GUI.
; ----------- Optional:
; GuiOptions - GUI options to be used when creating the ScrollGUI (e.g. +LabelMyLabel).
; Default: empty (no options)
; ScrollBars - Scroll bars to register:
; 1 : horizontal
; 2 : vertical
; 3 : both
; Default: 3
; Wheel - Register WM_MOUSEWHEEL / WM_MOUSEHWHEEL messages:
; 1 : register WM_MOUSEHWHEEL for horizontal scrolling (reqires Win Vista+)
; 2 : register WM_MOUSEWHEEL for vertical scrolling
; 3 : register both
; 4 : register WM_MOUSEWHEEL for vertical and Shift+WM_MOUSEWHEEL for horizontal scrolling
; Default: 0
; Return values:
; On failure: False
; Remarks:
; The dimensions of the child GUI are determined internally according to the visible children.
; The maximum width and height of the parent GUI will be restricted to the dimensions of the child GUI.
; If you register mouse wheel messages, the messages will be passed to the focused control, unless the mouse
; is hovering on one of the ScrollGUI's scroll bars. If the control doesn't process the message, it will be
; returned back to the ScrollGUI.
; Common controls seem to ignore wheel messages whenever the CTRL is down. So you can use this modifier to
; scroll the ScrollGUI even if a scrollable control has the focus.
; ===================================================================================================================
static WS_HSCROLL := "0x100000", WS_VSCROLL := "0x200000"
ScrollBars &= 3, Wheel &= 7
if ((ScrollBars != 1) && (ScrollBars != 2) && (ScrollBars != 3))
|| ((Wheel != 0) && (Wheel != 1) && (Wheel != 2) && (Wheel != 3) && (Wheel != 4))
return false
; if ![1, 2, 3].Includes(ScrollBars) || ![0, 1, 2, 3, 4].Includes(wheel)
; return false
if !DllCall("User32.dll\IsWindow", "Ptr", HGUI, "UInt")
return false
; Child GUI
if !this._AutoSize(HGUI, &GuiW, &GuiH)
return false
g := GuiFromHwnd(HGUI)
g.Opt('-Caption -Resize')
g.Show(Format('w{} h{} Hide', GuiW, GuiH))
MaxH := GuiW, MaxV := GuiH, LineH := Ceil(MaxH / 20), LineV := Ceil(MaxV / 20)
; ScrollGUI
if (Width = 0) || (Width > MaxH)
Width := MaxH
if (Height = 0) || (Height > MaxV)
Height := MaxV
Styles := (ScrollBars & 1 ? " +" . WS_HSCROLL : "") . (ScrollBars & 2 ? " +" . WS_VSCROLL : "")
container := Gui(GuiOptions Styles)
HWND := container.Hwnd
container.Show(Format('w{} h{} hide', Width, Height))
container.Opt(Format('+MaxSize{}x{}', MaxH, MaxV))
PageH := Width + 1, PageV := Height + 1
; Instance variables
this.container := container, this.HWND := HWND, this.HGUI := HGUI
this.Width := Width, this.Height := Height
this.UseShift := this.ScrollH := this.ScrollV := false
if (ScrollBars & 1) {
this.SetScrollInfo(0, { Max: MaxH, Page: PageH, Pos: 0 }) ; SB_HORZ = 0
OnMessage(0x0114, (p*) => this.On_WM_Scroll(p*)) ; WM_HSCROLL = 0x0114
if (Wheel & 1)
OnMessage(0x020E, (p*) => this.On_WM_Wheel(p*)) ; WM_MOUSEHWHEEL = 0x020E
else if (Wheel & 4) {
OnMessage(0x020A, (p*) => this.On_WM_Wheel(p*)) ; WM_MOUSEWHEEL = 0x020A
this.UseShift := true
}
this.MaxH := MaxH, this.LineH := LineH, this.PageH := PageH, this.PosH := 0
this.ScrollH := true, this.WheelH := Wheel & 5
}
if (ScrollBars & 2) {
this.SetScrollInfo(1, { Max: MaxV, Page: PageV, Pos: 0 }) ; SB_VERT = 1
OnMessage(0x0115, (p*) => this.On_WM_Scroll(p*)) ; WM_VSCROLL = 0x0115
if (Wheel & 6)
OnMessage(0x020A, (p*) => this.On_WM_Wheel(p*)) ; WM_MOUSEWHEEL = 0x020A
this.MaxV := MaxV, this.LineV := LineV, this.PageV := PageV, this.PosV := 0
this.ScrollV := true, this.WheelV := Wheel & 6
}
; Set the position of the child GUI
g.Opt('+parent' HWND)
g.Show('x0 y0')
; Adjust the scroll bars
ScrollGUI.Instances.%HWND% := this
this.Size()
OnMessage(0x0005, (p*) => this.On_WM_Size(p*)) ; WM_SIZE = 0x0005
}
__Delete() {
this.Destroy()
}
; ===================================================================================================================
; Show Shows the ScrollGUI.
; Parameters:
; Title - Title of the ScrollGUI window
; ShowOptions - Gui, Show command options, width or height options are ignored
; Return values:
; On success: True
; On failure: false
; ===================================================================================================================
Show(Title := "", ShowOptions := "") {
ShowOptions := RegExReplace(ShowOptions, "i)\+?AutoSize")
W := this.Width, H := this.Height
this.container.Show(ShowOptions ' w' w ' h' h)
WinSetTitle(Title, this.container)
return true
}
; ===================================================================================================================
; Destroy Destroys the ScrollGUI and the associated child GUI.
; Parameters:
; None.
; Return values:
; On success: True
; On failure: false
; Remarks:
; Use this method instead of 'Gui, Destroy' to remove the ScrollGUI from the 'Instances' object.
; ===================================================================================================================
Destroy() {
if ScrollGUI.Instances.HasProp(this.HWND) {
GuiFromHwnd(this.HWND).Destroy()
ScrollGUI.Instances.DeleteProp(this.HWND)
return true
}
}
; ===================================================================================================================
; AdjustToChild Adjust the scroll bars to the new child dimensions.
; Parameters:
; None
; Return values:
; On success: True
; On failure: false
; Remarks:
; Call this method whenever the visible area of the child GUI has to be changed, e.g. after adding, hiding,
; unhiding, resizing, or repositioning controls.
; The dimensions of the child GUI are determined internally according to the visible children.
; ===================================================================================================================
AdjustToChild() {
RC := Buffer(16, 0)
DllCall("User32.dll\GetWindowRect", "Ptr", this.HGUI, "Ptr", RC.Ptr)
PrevW := NumGet(RC, 8, "Int") - NumGet(RC, 0, "Int")
PrevH := Numget(RC, 12, "Int") - NumGet(RC, 4, "Int")
DllCall("User32.dll\ScreenToClient", "Ptr", this.HWND, "Ptr", RC.Ptr)
XC := XN := NumGet(RC, 0, "Int")
YC := YN := NumGet(RC, 4, "Int")
if !this._AutoSize(this.HGUI, &GuiW, &GuiH)
return false
g := GuiFromHwnd(this.HGUI)
g.Show(Format('x{} y{} w{} h{}', XC, YC, GuiW, GuiH))
MaxH := GuiW, MaxV := GuiH
this.container.Opt(Format('+MaxSize{}x{}', MaxH, MaxV))
if (GuiW < this.Width) || (GuiH < this.Height) {
g.Show('w' GuiW ' h' GuiH)
this.Width := GuiW, this.SetPage(1, MaxH + 1)
this.Height := GuiH, this.SetPage(2, MaxV + 1)
}
LineH := Ceil(MaxH / 20), LineV := Ceil(MaxV / 20)
if this.ScrollH {
this.SetMax(1, MaxH)
this.LineH := LineH
if (XC + MaxH) < this.Width {
XN += this.Width - (XC + MaxH)
if (XN > 0)
XN := 0
this.SetScrollInfo(0, { Pos: XN * -1 })
this.GetScrollInfo(0, &SI)
this.PosH := NumGet(SI, 20, "Int")
}
}
if this.ScrollV {
this.SetMax(2, MaxV)
this.LineV := LineV
if (YC + MaxV) < this.Height {
YN += this.Height - (YC + MaxV)
if (YN > 0)
YN := 0
this.SetScrollInfo(1, { Pos: YN * -1 })
this.GetScrollInfo(1, &SI)
this.PosV := NumGet(SI, 20, "Int")
}
}
if (XC != XN) || (YC != YN)
DllCall("User32.dll\ScrollWindow", "Ptr", this.HWND, "Int", XN - XC, "Int", YN - YC, "Ptr", 0, "Ptr", 0)
return true
}
; ===================================================================================================================
; SetMax Sets the width or height of the scrolling area.
; Parameters:
; SB - Scroll bar to set the value for:
; 1 = horizontal
; 2 = vertical
; Max - Width respectively height of the scrolling area in pixels
; Return values:
; On success: True
; On failure: False
; ===================================================================================================================
SetMax(SB, Max) {
; SB_HORZ = 0, SB_VERT = 1
SB--
if (SB != 0) && (SB != 1)
return false
if (SB = 0)
this.MaxH := Max
else
this.MaxV := Max
return this.SetScrollInfo(SB, { Max: Max })
}
; ===================================================================================================================
; SetLine Sets the number of pixels to scroll by line.
; Parameters:
; SB - Scroll bar to set the value for:
; 1 = horizontal
; 2 = vertical
; Line - Number of pixels.
; Return values:
; On success: True
; On failure: false
; ===================================================================================================================
SetLine(SB, Line) {
; SB_HORZ = 0, SB_VERT = 1
SB--
if (SB != 0) && (SB != 1)
return false
if (SB = 0)
this.LineH := Line
else
this.LineV := Line
return true
}
; ===================================================================================================================
; SetPage Sets the number of pixels to scroll by page.
; Parameters:
; SB - Scroll bar to set the value for:
; 1 = horizontal
; 2 = vertical
; Page - Number of pixels.
; Return values:
; On success: True
; On failure: false
; Remarks:
; If the ScrollGUI is resizable, the page size will be recalculated automatically while resizing.
; ===================================================================================================================
SetPage(SB, Page) {
; SB_HORZ = 0, SB_VERT = 1
SB--
if (SB != 0) && (SB != 1)
return false
if (SB = 0)
this.PageH := Page
else
this.PageV := Page
return this.SetScrollInfo(SB, { Page: Page })
}
; ===================================================================================================================
; Methods for internal or system use!!!
; ===================================================================================================================
_AutoSize(HGUI, &Width, &Height) {
DHW := A_DetectHiddenWindows
DetectHiddenWindows(1)
RECT := Buffer(16, 0)
Width := Height := 0
HWND := HGUI
CMD := 5 ; GW_CHILD
L := T := R := B := LH := TH := ""
while (HWND := DllCall("GetWindow", "Ptr", HWND, "UInt", CMD, "UPtr")) && (CMD := 2) {
WinGetPos(&x, &y, &w, &h, HWND)
W += X, H += Y
Styles := WinGetStyle(HWND)
if (Styles & 0x10000000) { ; WS_VISIBLE
if (L = "") || (X < L)
L := X
if (T = "") || (Y < T)
T := Y
if (R = "") || (W > R)
R := W
if (B = "") || (H > B)
B := H
}
else {
if (LH = "") || (X < LH)
LH := X
if (TH = "") || (Y < TH)
TH := Y
}
}
DetectHiddenWindows DHW
if (LH != "") {
POINT := Buffer(8, 0)
NumPut('int', LH, POINT, 0)
DllCall("ScreenToClient", "Ptr", HGUI, "Ptr", &POINT)
LH := NumGet(POINT, 0, "Int")
}
if (TH != "") {
POINT := Buffer(8, 0)
NumPut('int', TH, POINT, 4)
DllCall("ScreenToClient", "Ptr", HGUI, "Ptr", &POINT)
TH := NumGet(POINT, 4, "Int")
}
NumPut('int', L, RECT, 0), NumPut('int', T, RECT, 4)
NumPut('int', R, RECT, 8), NumPut('int', B, RECT, 12)
DllCall("MapWindowPoints", "Ptr", 0, "Ptr", HGUI, "Ptr", RECT.Ptr, "UInt", 2)
Width := NumGet(RECT, 8, "Int") + (LH != "" ? LH : NumGet(RECT, 0, "Int"))
Height := NumGet(RECT, 12, "Int") + (TH != "" ? TH : NumGet(RECT, 4, "Int"))
return true
}
; ===================================================================================================================
GetScrollInfo(SB, &SI) {
SI := Buffer(28, 0) ; SCROLLINFO
NumPut("UInt", 28, SI, 0)
NumPut("UInt", 0x17, SI, 4) ; SIF_ALL = 0x17
return DllCall("User32.dll\GetScrollInfo", "Ptr", this.HWND, "Int", SB, "Ptr", SI.Ptr, "UInt")
}
; ===================================================================================================================
SetScrollInfo(SB, Values) {
static SIF := { Max: 0x01, Page: 0x02, Pos: 0x04 }
static Off := { Max: 12, Page: 16, Pos: 20 }
Mask := 0
SI := Buffer(28, 0) ; SCROLLINFO
NumPut("UInt", 28, SI, 0)
for Key, Value In Values.OwnProps() {
if SIF.HasProp(Key) {
Mask |= SIF.%Key%
NumPut("UInt", Value, SI, Off.%Key%)
}
}
if (Mask) {
NumPut("UInt", Mask | 0x08, SI, 4) ; SIF_DISABLENOSCROLL = 0x08
return DllCall("User32.dll\SetScrollInfo", "Ptr", this.HWND, "Int", SB, "Ptr", SI.Ptr, "UInt", 1, "UInt")
}
return false
}
; ===================================================================================================================
On_WM_Scroll(WP, LP, Msg, HWND) {
; WM_HSCROLL = 0x0114, WM_VSCROLL = 0x0115
if (ScrollGUI.instances.HasProp(HWND))
Instance := ScrollGUI.Instances.%HWND%
if ((Msg = 0x0114) && Instance.ScrollH)
|| ((Msg = 0x0115) && Instance.ScrollV)
return Instance.Scroll(WP, LP, Msg, HWND)
}
; ===================================================================================================================
Scroll(WP, LP, Msg, HWND) {
; WM_HSCROLL = 0x0114, WM_VSCROLL = 0x0115
static SB_LINEMINUS := 0, SB_LINEPLUS := 1, SB_PAGEMINUS := 2, SB_PAGEPLUS := 3, SB_THUMBTRACK := 5
if (LP != 0)
return
SB := (Msg = 0x0114 ? 0 : 1) ; SB_HORZ : SB_VERT
SC := WP & 0xFFFF
SD := (Msg = 0x0114 ? this.LineH : this.LineV)
SI := 0
if !this.GetScrollInfo(SB, &SI)
return
PA := PN := NumGet(SI, 20, "Int")
PN := (SC = 0) ? PA - SD ; SB_LINEMINUS
: (SC = 1) ? PA + SD ; SB_LINEPLUS
: (SC = 2) ? PA - NumGet(SI, 16, "UInt") ; SB_PAGEMINUS
: (SC = 3) ? PA + NumGet(SI, 16, "UInt") ; SB_PAGEPLUS
: (SC = 5) ? NumGet(SI, 24, "Int") ; SB_THUMBTRACK
: PA
if (PA = PN)
return 0
this.SetScrollInfo(SB, { Pos: PN })
this.GetScrollInfo(SB, &SI)
PN := NumGet(SI, 20, "Int")
if (SB = 0)
this.PosH := PN
else
this.PosV := PN
if (PA != PN) {
HS := (Msg = 0x0114) ? PA - PN : 0
VS := (Msg = 0x0115) ? PA - PN : 0
DllCall("User32.dll\ScrollWindow", "Ptr", this.HWND, "Int", HS, "Int", VS, "Ptr", 0, "Ptr", 0)
}
return 0
}
; ===================================================================================================================
On_WM_Size(WP, LP, Msg, HWND) {
if ((WP = 0) || (WP = 2)) && ScrollGUI.instances.HasProp(HWND)
return ScrollGUI.Instances.%HWND%.Size(LP & 0xFFFF, (LP >> 16) & 0xFFFF)
}
; ===================================================================================================================
Size(Width := 0, Height := 0) {
if (Width = 0) || (Height = 0) {
RC := Buffer(16, 0)
DllCall("User32.dll\GetClientRect", "Ptr", this.HWND, "Ptr", RC.Ptr)
Width := NumGet(RC, 8, "Int")
Height := Numget(RC, 12, "Int")
}
SH := SV := 0
if this.ScrollH {
if (Width != this.Width) {
this.SetScrollInfo(0, { Page: Width + 1 })
this.Width := Width
this.GetScrollInfo(0, &SI)
PosH := NumGet(SI, 20, "Int")
SH := this.PosH - PosH
this.PosH := PosH
}
}
if this.ScrollV {
if (Height != this.Height) {
this.SetScrollInfo(1, { Page: Height + 1 })
this.Height := Height
this.GetScrollInfo(1, &SI)
PosV := NumGet(SI, 20, "Int")
SV := this.PosV - PosV
this.PosV := PosV
}
}
if (SH) || (SV)
DllCall("User32.dll\ScrollWindow", "Ptr", this.HWND, "Int", SH, "Int", SV, "Ptr", 0, "Ptr", 0)
return 0
}
; ===================================================================================================================
On_WM_Wheel(WP, LP, Msg, HWND) {
; MK_SHIFT = 0x0004, WM_MOUSEWHEEL = 0x020A, WM_MOUSEHWHEEL = 0x020E, WM_NCHITTEST = 0x0084
HACT := WinActive("A") + 0
if (HACT != HWND) && (ScrollGUI.instances.HasProp(HACT)) {
Instance := ScrollGUI.Instances.%HACT%
OnBar := SendMessage(0x0084, 0, LP & 0xFFFFFFFF, , HACT)
if (OnBar = 6) && Instance.WheelH ; HTHSCROLL = 6
return Instance.Wheel(WP, LP, 0x020E, HACT)
if (OnBar = 7) && Instance.WheelV ; HTVSCROLL = 7
return Instance.Wheel(WP, LP, 0x020A, HACT)
}
if (ScrollGUI.instances.HasProp(HWND)) {
Instance := ScrollGUI.Instances.%HWND%
if ((Msg = 0x020E) && Instance.WheelH)
|| ((Msg = 0x020A) && (Instance.WheelV || (Instance.WheelH && Instance.UseShift && (WP & 0x0004))))
return Instance.Wheel(WP, LP, Msg, HWND)
}
}
; ===================================================================================================================
Wheel(WP, LP, Msg, HWND) {
; MK_SHIFT = 0x0004, WM_MOUSEWHEEL = 0x020A, WM_MOUSEHWHEEL = 0x020E, WM_HSCROLL = 0x0114, WM_VSCROLL = 0x0115
; SB_LINEMINUS = 0, SB_LINEPLUS = 1
if (Msg = 0x020A) && this.UseShift && (WP & 0x0004)
Msg := 0x020E
Msg := (Msg = 0x020A ? 0x0115 : 0x0114)
SB := ((WP >> 16) > 0x7FFF) || (WP < 0) ? 1 : 0
return this.Scroll(SB, 0, Msg, HWND)
}
}
使用示例
下面是我写的几个例子，可以帮助快速的了解其功能。
#Include ScrollGui.ahk
Esc:: ExitApp()
; ========== sample 1
; 演示常规使用
parent := Gui('+Resize')
parent.BackColor := 'f1ffb1'
parent.AddText('x0 y0', 'Sample')
child := Gui()
Loop 100 { ; 添加一些控件
i := A_Index
Loop 5 {
If A_Index = 1
child.AddText('xm y+10 w21 h21 0x201', i)
Else
child.AddText('xm y+10 w21 h21 yp 0x201', i)
child.AddEdit(' x+10 yp w55 hp r1', A_Index)
}
}
; 注意：width 和 height 参数超过 child 的宽高则无效，以最大为准
; 所以，可能需要像下面一样添加占位
; e.g.
; child.AddText('w300 h400 x0 y0')
SG1 := ScrollGUI(child.Hwnd, 0, 100, "-Caption -Resize", 2, 2)
SG1.SetLine(2, 31)
SG1.Show("ScrollGUI1 Title", "x0 y100 NA")
; 将窗口嵌入到 gui 中
SG1.container.Opt('+Parent' parent.Hwnd)
DllCall('SetParent', 'ptr', SG1.container.Hwnd, 'ptr', parent.Hwnd)
parent.Show('w300 h400')
; ========= sample 2
; 演示 AdjustToChild 方法的使用方法
g2 := Gui()
g2.AddButton('x0 y0 w80 h20', 'Change size').OnEvent('Click', fn)
Loop 10 {
i := A_Index
Loop 5 {
If A_Index = 1
g2.AddText('xm y+10 w22 0x201', i)
Else
g2.AddText('x+10 w22 yp 0x201', i)
g2.AddEdit('x+10 yp w55 hp r1', A_Index)
}
}
SG2 := ScrollGUI(g2.Hwnd, 330, 200, "Caption Resize", 3, 4)
SG2.Show("ScrollGUI2 Title", "x100 y500 NA")
fn(*) {
SG2.container.Move(, , 30) ; 父容器尺寸变化时需要调用
SG2.AdjustToChild()
; 同样，子 gui 添加了新控件时也到调用，不再演示
}
; ========== sample 3
; 演示手动发送消息
child1 := Gui()
child1.SetFont('s15')
child1.AddText('x0 y0 w200 h100')
Loop 60 {
i := A_Index
t := child1.AddText('x0 yp+20 h20 Border Backgroundc8ffcb', i)
}
child1.BackColor := 'e5ffee'
SG3 := ScrollGUI(child1.Hwnd, 200, 200, "-Caption -Resize", 2, 2)
SG3.SetLine(2, 20)
SG3.Show("ScrollGUI1 Title", "x500 y500 NA")
container := SG3.container
a:: {
SG3.On_WM_Scroll(1, 0, 0x0115, container.Hwnd)
}
d:: {
SG3.On_WM_Scroll(0, 0, 0x0115, container.Hwnd)
}
q:: {
while SG3.PosV > 1
SendMessage(0x0115, 2, 0, SG3.container)
}
e:: {
while SG3.MaxV - SG3.PageV + 1 > SG3.PosV
SendMessage(0x0115, 3, 0, SG3.container)
}
; 如果要隐藏滚动条，调用下面的方法
; WinSetRegion('0-0 w180 h200', container)
浙公网安备 33010602011771号
