Crosstalk高速信号质量测试仪有什么优势

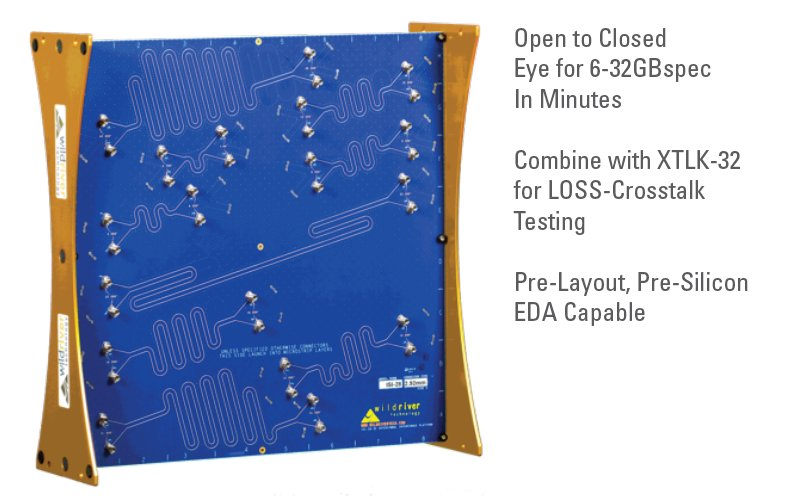

XTK-28/32 Crosstalk Modeling Platform

Fully test SERDES – Dial in channel optimization strategies – meaningful IBIS AMI simulations



FEATURES:



• Industry first Crosstalk Channel Modeling Package for creating real Crosstalk, not synthesized!

• Family of ICR for common compliance specifications 802.3, CEI, USB 3.0, 10GBase-KR, SAS3, PCI Express Gen3, 40GbE, 100GbE, 16XFC

• Keysight ADS EDA Kit available

• S-parameter library for pre-silicon analysis

• Clean-pure crosstalk with no signal integrity structure set included

• Crosstalk with -5 and -10dB return loss for mimicking problem backplane channels

• Optional WRT skew matched cables pairs to use with ISI-28/32 for adding loss

• Works with ISI-28 Loss platform and WRT skew matched cables



 APPLICATIONS:



• SERDES Receiver Tolerance Testing

• IBIS AMI and Serial Link analysis

• Communication Channel Optimization using DFE, FFE, CTLE, and Gain Stage Elements

• Jitter Analysis and Benchmarking
