zabbix通过简单命令监控elasticsearch集群状态
简单命令监控elasticsearch集群状态
原理：
使用curl命令模拟访问任意一个es节点可以反馈的集群状态，集群的状态需要为green
curl -sXGET http://serverip:9200/_cluster/health/?pretty
{
"cluster_name" : "yunva-es",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 7,
"number_of_data_nodes" : 6,
"active_primary_shards" : 66,
"active_shards" : 132,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
前端使用了nginx验证，需要模拟登陆
curl模拟用户登录命令格式：
curl -u username:password -sXGET http://serverip:9200/_cluster/health/?pretty | grep "status"|awk -F '[ "]+' '{print $4}'
1.修改客户端zabbix配置：
vim /etc/zabbix/zabbix_agentd.conf
UserParameter=es_status,curl -u elkadmin:hSeC7ENeirAAPzv047m4 -sXGET http://serverip/_cluster/health/?pretty | grep "status"|awk -F '[ "]+' '{print $4}'|grep -c 'green'
重启zabbix-agent使配置生效
service zabbix-agent restart
在zabbix-server端测试
zabbix_get -s ip -p 10050 -k es_status
2.在zabbix的web页面添加对应的监控：
添加监控项item
Confuguration --> Hosts --> 找到对应的主机，点开 Items --> Create item

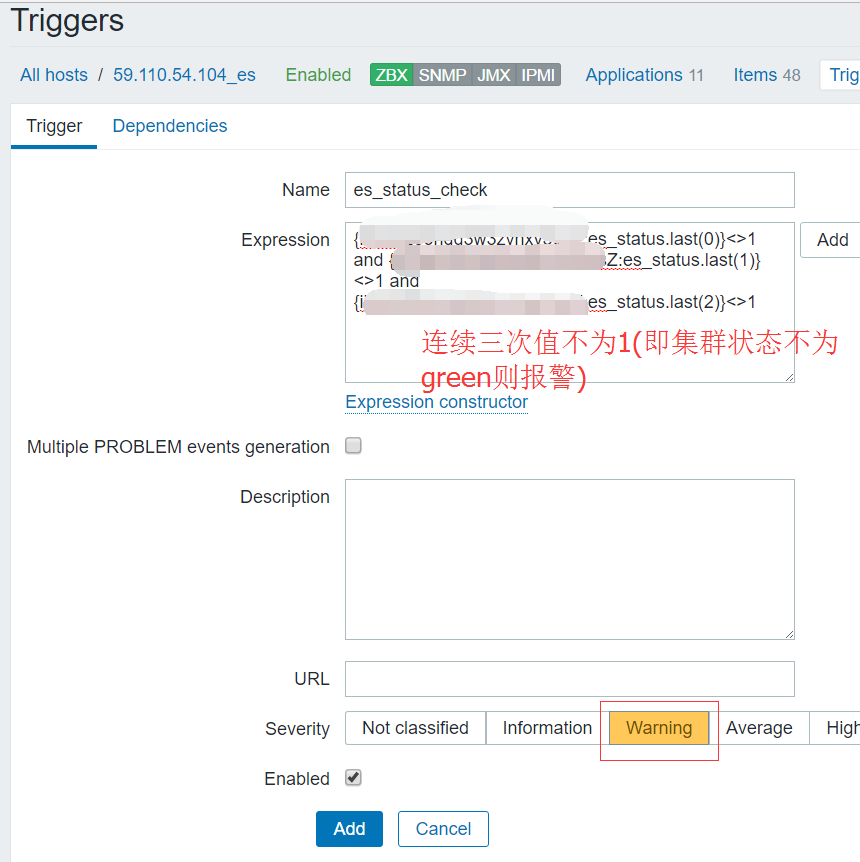

创建触发器：
Name
es_status_check
es_cluster_status is not green
3.针对es集群中的每个节点做进程监控，如果进程挂了自动重启
配置监控进程item

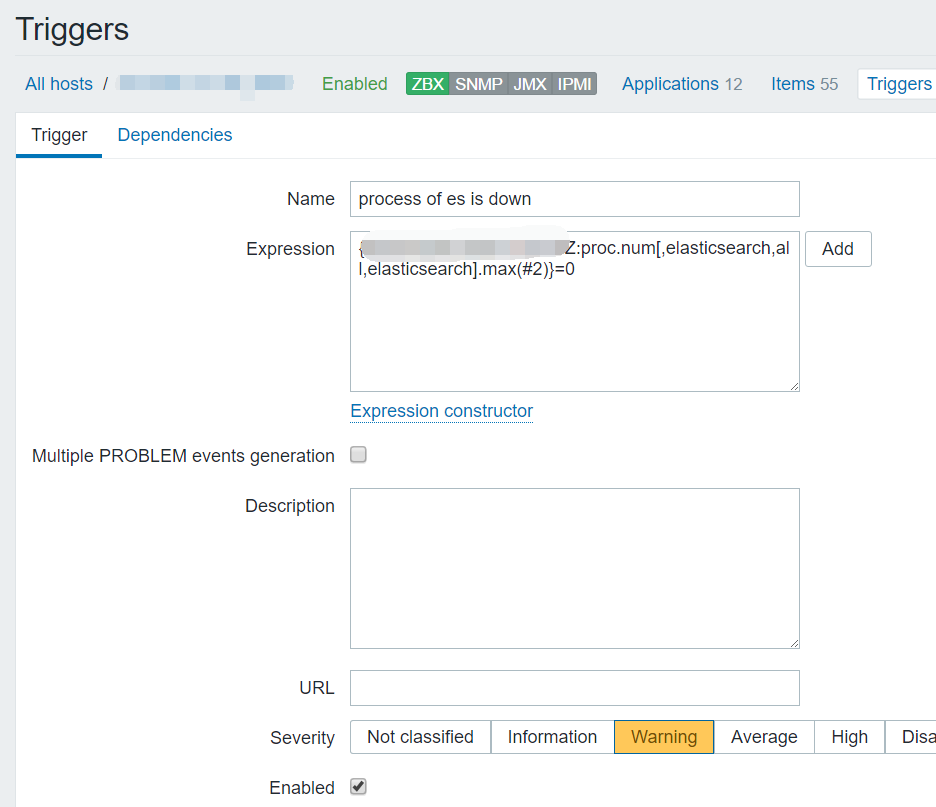

配置触发器
配置action，看参考
zabbix系列(九)zabbix3.0实现自动触发zabbix-agent端shell脚本任务
http://blog.csdn.net/reblue520/article/details/52315154
触发脚本：
/usr/local/zabbix-agent/scripts/start_es.sh
#!/bin/bash
# if elasticsearch exists kill it
source /etc/profile
count_es=`ps -ef|grep elasticsearch|grep -v grep|wc -l`
if [ $count_es -gt 1 ];then
ps -ef|grep elasticsearch|grep -v grep|/bin/kill `awk '{print $2}'`
fi
# start it
su yunva -c "cd /data/elasticsearch-5.0.1/bin && /bin/bash elasticsearch &"
执行：
sudo /bin/bash /usr/local/zabbix-agent/scripts/start_es.sh
报错：
which: no java in (/sbin:/bin:/usr/sbin:/usr/bin)
Could not find any executable java binary. Please install java in your PATH or set JAVA_HOME
解决办法：
在脚本中添加
source /etc/profile
以root用户运行elasticsearch
报错：
can not run elasticsearch as root
网上的方法，针对elasticsearch5.1不起作用
解决方法1：
在执行elasticSearch时加上参数-Des.insecure.allow.root=true，完整命令如下
./elasticsearch -Des.insecure.allow.root=true
解决办法2：
用vi打开elasicsearch执行文件，在变量ES_JAVA_OPTS使用前添加以下命令
ES_JAVA_OPTS="-Des.insecure.allow.root=true"
解决办法：
su yunva -c "cd /data/elasticsearch-5.0.1/bin && /bin/bash elasticsearch &"
自动拉起kibana服务的脚本：
cat /usr/local/zabbix/scripts/restart_kibana.sh
#!/bin/bash
# if kibana exists kill it
count_kibana=`ps -ef|grep kibana|grep -v grep|wc -l`
if [ $count_kibana -eq 1 ];then
ps -ef|grep kibana|grep -v grep|/bin/kill `awk '{print $2}'`
fi
# start it
# 小小总结一下
1.修改zabbix_agentd.conf文件打开远程shell命令 # egrep -v '^#|^$' /usr/local/zabbix_agents_3.2.0/scripts/conf/zabbix_agentd.conf EnableRemoteCommands=1 UnsafeUserParameters=1 # 打开zabbix的命令 echo "Defaults:zabbix !requiretty" >> /etc/sudoers zabbix ALL=(ALL) NOPASSWD: ALL >> /etc/sudoers 2.监控命令 UserParameter=es_status,curl -sXGET http://172.16.0.230:9200/_cluster/health/?pretty | grep "status"|awk -F '[ "]+' '{print $4}'|grep -c 'green' UserParameter=es_debug,sudo /bin/find /opt/elasticsearch-5.6.15 -name hs_err_pid*.log -o -name java_pid*.hprof|wc -l
# 默认的端口监控可能出问题，替换为如下命令 UserParameter=net.tcp.listen.grep[*],grep -q $(printf '%04X.00000000:0000.0A' $1) /proc/net/tcp ;if [ $? -eq 0 ];then echo 1;else grep -q "$(printf '%04X 0000000000000000000000 0000000000:0000 0A' $1)" /proc/net/tcp6;if [ $? -eq 0 ];then echo 1;else echo 0;fi;fi 3.当出现java内存溢出时触发重启elasticsearch的脚本 # vim /usr/local/zabbix_agents_3.2.0/scripts/start_es.sh #!/bin/bash # if elasticsearch exists kill it source /etc/profile # 删除java报错产生的文件 /usr/bin/sudo /bin/find /opt/elasticsearch-5.6.15 -name hs_err_pid*.log -o -name java_pid*.hprof | xargs rm -f # kill并重新启动elasticsearch count_es=`ps -ef|grep elasticsearch|grep -v grep|wc -l` if [ $count_es -ge 1 ];then ps -ef|grep elasticsearch|grep -v grep|/bin/kill -9 `awk '{print $2}'` fi # start it su elasticsearch -c "cd /opt/elasticsearch-5.6.15/bin && /bin/bash elasticsearch -d" 4.监控模板 <?xml version="1.0" encoding="UTF-8"?> <zabbix_export> <version>3.2</version> <date>2019-08-09T06:14:18Z</date> <groups> <group> <name>Templates</name> </group> </groups> <templates> <template> <template>es_cluster_monitor</template> <name>es_cluster_monitor</name> <description/> <groups> <group> <name>Templates</name> </group> </groups> <applications/> <items> <item> <name>es_debug</name> <type>0</type> <snmp_community/> <multiplier>0</multiplier> <snmp_oid/> <key>es_debug</key> <delay>30</delay> <history>90</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts/> <units/> <delta>0</delta> <snmpv3_contextname/> <snmpv3_securityname/> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase/> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase/> <formula>1</formula> <delay_flex/> <params/> <ipmi_sensor/> <data_type>0</data_type> <authtype>0</authtype> <username/> <password/> <publickey/> <privatekey/> <port/> <description/> <inventory_link>0</inventory_link> <applications/> <valuemap/> <logtimefmt/> </item> <item> <name>es_status</name> <type>0</type> <snmp_community/> <multiplier>0</multiplier> <snmp_oid/> <key>es_status</key> <delay>30</delay> <history>90</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts/> <units/> <delta>0</delta> <snmpv3_contextname/> <snmpv3_securityname/> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase/> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase/> <formula>1</formula> <delay_flex/> <params/> <ipmi_sensor/> <data_type>0</data_type> <authtype>0</authtype> <username/> <password/> <publickey/> <privatekey/> <port/> <description/> <inventory_link>0</inventory_link> <applications/> <valuemap/> <logtimefmt/> </item> <item> <name>es_9200</name> <type>0</type> <snmp_community/> <multiplier>0</multiplier> <snmp_oid/> <key>net.tcp.listen.grep[9200]</key> <delay>30</delay> <history>90</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts/> <units/> <delta>0</delta> <snmpv3_contextname/> <snmpv3_securityname/> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase/> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase/> <formula>1</formula> <delay_flex/> <params/> <ipmi_sensor/> <data_type>0</data_type> <authtype>0</authtype> <username/> <password/> <publickey/> <privatekey/> <port/> <description/> <inventory_link>0</inventory_link> <applications/> <valuemap/> <logtimefmt/> </item> <item> <name>es_9300</name> <type>0</type> <snmp_community/> <multiplier>0</multiplier> <snmp_oid/> <key>net.tcp.listen.grep[9300]</key> <delay>30</delay> <history>90</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts/> <units/> <delta>0</delta> <snmpv3_contextname/> <snmpv3_securityname/> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase/> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase/> <formula>1</formula> <delay_flex/> <params/> <ipmi_sensor/> <data_type>0</data_type> <authtype>0</authtype> <username/> <password/> <publickey/> <privatekey/> <port/> <description/> <inventory_link>0</inventory_link> <applications/> <valuemap/> <logtimefmt/> </item> <item> <name>es_process</name> <type>0</type> <snmp_community/> <multiplier>0</multiplier> <snmp_oid/> <key>proc.num[,,all,elasticsearch]</key> <delay>30</delay> <history>90</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts/> <units/> <delta>0</delta> <snmpv3_contextname/> <snmpv3_securityname/> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase/> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase/> <formula>1</formula> <delay_flex/> <params/> <ipmi_sensor/> <data_type>0</data_type> <authtype>0</authtype> <username/> <password/> <publickey/> <privatekey/> <port/> <description/> <inventory_link>0</inventory_link> <applications/> <valuemap/> <logtimefmt/> </item> </items> <discovery_rules/> <httptests/> <macros/> <templates/> <screens/> </template> </templates> <triggers> <trigger> <expression>{cms_uts_es:es_status.last(0)}<>1 and {cms_uts_es:es_status.last(1)}<>1 and {cms_uts_es:es_status.last(2)}<>1</expression> <recovery_mode>0</recovery_mode> <recovery_expression/> <name>es cluster is not green</name> <correlation_mode>0</correlation_mode> <correlation_tag/> <url/> <status>0</status> <priority>0</priority> <description/> <type>0</type> <manual_close>0</manual_close> <dependencies/> <tags/> </trigger> <trigger> <expression>{cms_uts_es:proc.num[,,all,elasticsearch].last(0)}<1 and {cms_uts_es:proc.num[,,all,elasticsearch].last(1)}<1 and {cms_uts_es:proc.num[,,all,elasticsearch].last(2)}<1</expression> <recovery_mode>0</recovery_mode> <recovery_expression/> <name>es process was down</name> <correlation_mode>0</correlation_mode> <correlation_tag/> <url/> <status>0</status> <priority>0</priority> <description/> <type>0</type> <manual_close>0</manual_close> <dependencies/> <tags/> </trigger> <trigger> <expression>{cms_uts_es:net.tcp.listen.grep[9200].max(#2)}=0</expression> <recovery_mode>0</recovery_mode> <recovery_expression/> <name>es_9200 port down</name> <correlation_mode>0</correlation_mode> <correlation_tag/> <url/> <status>0</status> <priority>0</priority> <description/> <type>0</type> <manual_close>0</manual_close> <dependencies/> <tags/> </trigger> <trigger> <expression>{cms_uts_es:net.tcp.listen.grep[9300].max(#2)}=0</expression> <recovery_mode>0</recovery_mode> <recovery_expression/> <name>es_9300 port down</name> <correlation_mode>0</correlation_mode> <correlation_tag/> <url/> <status>0</status> <priority>0</priority> <description/> <type>0</type> <manual_close>0</manual_close> <dependencies/> <tags/> </trigger> <trigger> <expression>{cms_uts_es:es_debug.last()}<>0</expression> <recovery_mode>0</recovery_mode> <recovery_expression/> <name>es_debug error</name> <correlation_mode>0</correlation_mode> <correlation_tag/> <url/> <status>0</status> <priority>0</priority> <description/> <type>0</type> <manual_close>0</manual_close> <dependencies/> <tags/> </trigger> </triggers> </zabbix_export>
