zabbix系列(七)zabbix3.0添加对tcp连接数及状态的监控
原理：
netstat -an|awk '/^tcp/{++S[$NF]}END{for(a in S) print a,S[a]}'
TIME_WAIT 79
ESTABLISHED 6
LISTEN 3
可以使用man netstat查看TCP的各种状态信息描述
ESTABLISHED socket已经建立连接
CLOSED socket没有被使用，无连接
CLOSING 服务器端和客户端都同时关闭连接
CLOSE_WAIT 等待关闭连接
TIME_WAIT 表示收到了对方的FIN报文，并发送出了ACK报文，等待2MSL后就可回到CLOSED状态
LAST_ACK 远端关闭，当前socket被动关闭后发送FIN报文，等待对方ACK报文
LISTEN 监听状态
SYN_RECV 接收到SYN报文
SYN_SENT 已经发送SYN报文
FIN_WAIT1 The socket is closed, and the connection is shutting down
FIN_WAIT2 Connection is closed, and the socket is waiting for a shutdown from the remote end.
2.在需要被监控的zabbix-agent端添加脚本编写
创建文件夹
mkdir -p /usr/local/zabbix-agent/scripts/
mkdir -p /etc/zabbix/zabbix_agentd.d/
vim /usr/local/zabbix-agent/scripts/tcp_conn_status.sh
#!/bin/bash
#this script is used to get tcp and udp connetion status
#tcp status
metric=$1
tmp_file=/tmp/tcp_status.txt
/bin/netstat -an|awk '/^tcp/{++S[$NF]}END{for(a in S) print a,S[a]}' > $tmp_file
case $metric in
closed)
output=$(awk '/CLOSED/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
listen)
output=$(awk '/LISTEN/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
synrecv)
output=$(awk '/SYN_RECV/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
synsent)
output=$(awk '/SYN_SENT/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
established)
output=$(awk '/ESTABLISHED/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
timewait)
output=$(awk '/TIME_WAIT/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
closing)
output=$(awk '/CLOSING/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
closewait)
output=$(awk '/CLOSE_WAIT/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
lastack)
output=$(awk '/LAST_ACK/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
finwait1)
output=$(awk '/FIN_WAIT1/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
finwait2)
output=$(awk '/FIN_WAIT2/{print $2}' $tmp_file)
if [ "$output" == "" ];then
echo 0
else
echo $output
fi
;;
*)
echo -e "\e[033mUsage: sh $0 [closed|closing|closewait|synrecv|synsent|finwait1|finwait2|listen|established|lastack|timewait]\e[0m"
esac
赋予脚本执行权限
chmod o+x /usr/local/zabbix-agent/scripts/tcp_conn_status.sh
3.agent的配置文件 /etc/zabbix/zabbix_agentd.conf 中定义了其他key的包含目录 Include=/etc/zabbix/zabbix_agentd.d/, 接着在 /etc/zabbix/zabbix_agentd.d/ 目录新建一个文件 tcp-status-params.conf, 内容如下
vim /etc/zabbix/zabbix_agentd.d/tcp-status-params.conf
UserParameter=tcp.status[*],/usr/local/zabbix-agent/scripts/tcp_conn_status.sh $1
重启agent
service zabbix-agent restart
4.zabbix-master服务端测试
zabbix_get -s 192.168.3.86 -p 10050 -k "tcp.status[listen]"
13

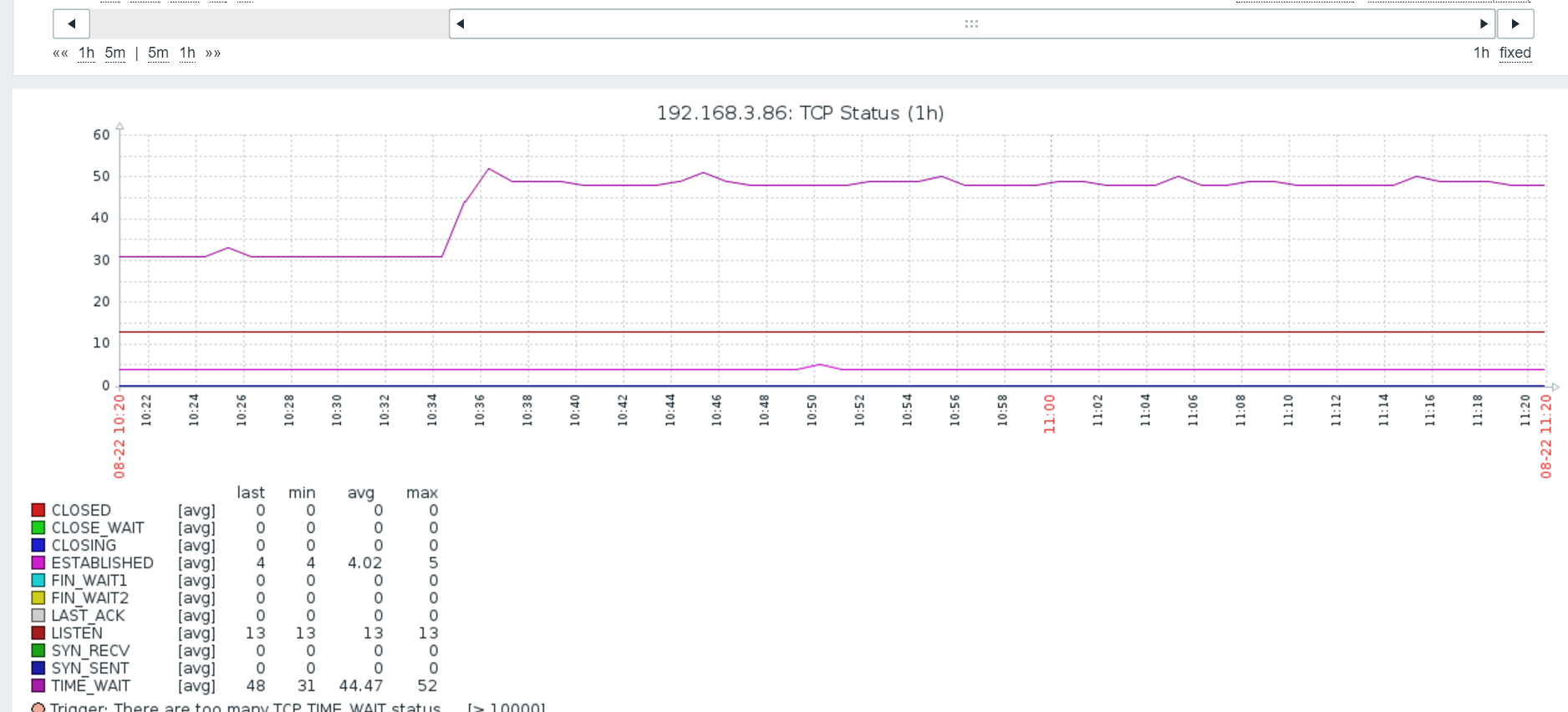

5.zabbix web端配置：

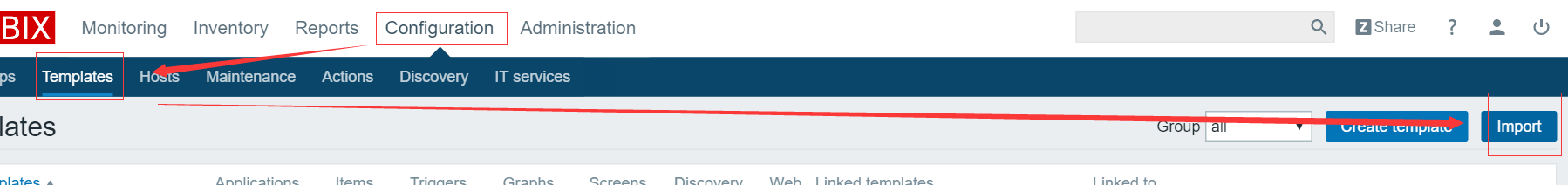

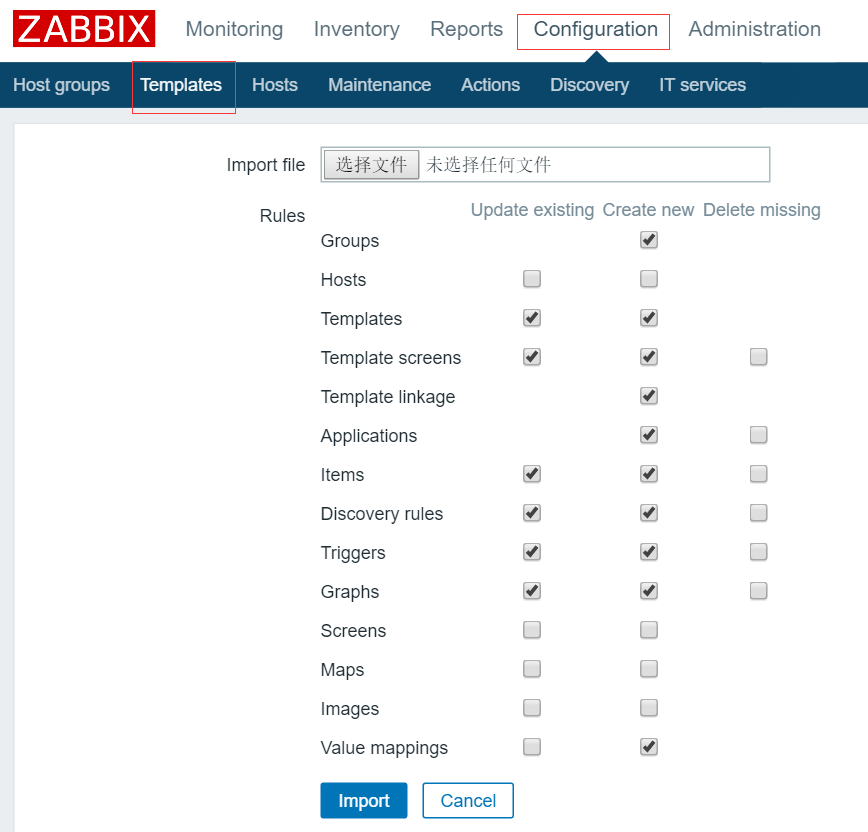

登录Zabbix3.0 的web界面，一次选择 Configuration > Templates ， 在主界面的右上角有个 Import 按钮，用来导入模板
zabbix-tcp-status.xml
