攻防世界_misc_m0_01

环境

m0_01，USB流量分析，云影密码

flag{THISISFLAG}

wp

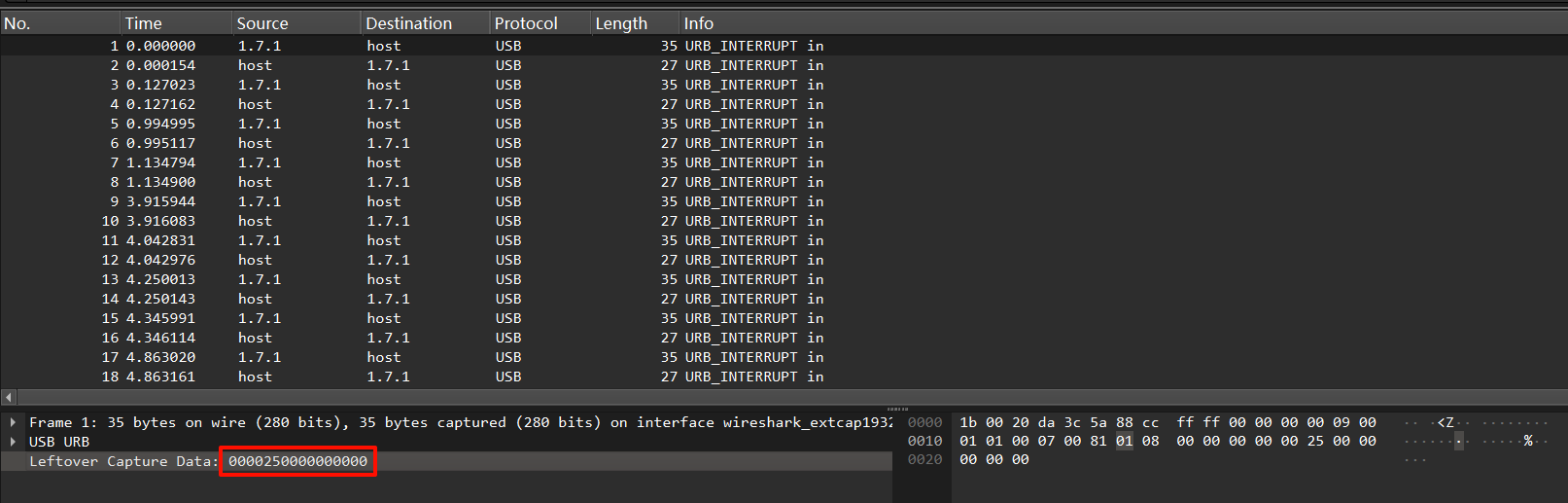

发现是键盘流量，为8字节，鼠标的话是4字节

用wireshark自带的命令行工具tshark，默认在wireshark安装根目录

tshark.exe -r D:\用户\下载\12.pcapng -T fields -e usb.capdata >D:\用户\下载\1.txt

删除多余的空行

def preprocess_data(input_file, output_file):
  """
  预处理数据：将原始USB数据文件转换为格式化数据
  :param input_file: 输入文件路径
  :param output_file: 输出文件路径
  """
  with open(input_file, 'r') as f, open(output_file, 'w') as fi:
    while True:
      line = f.readline().strip()
      if not line:
        break
      if len(line) == 16:  # 如果是键盘数据，长度为16；鼠标数据为8
        formatted_line = ':'.join([line[i:i + 2] for i in range(0, len(line), 2)])
        fi.write(formatted_line + '\n')
def parse_keyboard_data(output_file):
  """
  解析键盘数据并转换为可读文本
  :param output_file: 格式化后的数据文件路径
  :return: 解析后的键盘输入列表
  """
  # 定义键盘映射
  normal_keys = {
    "04": "a", "05": "b", "06": "c", "07": "d", "08": "e",
    "09": "f", "0a": "g", "0b": "h", "0c": "i", "0d": "j",
    "0e": "k", "0f": "l", "10": "m", "11": "n", "12": "o",
    "13": "p", "14": "q", "15": "r", "16": "s", "17": "t",
    "18": "u", "19": "v", "1a": "w", "1b": "x", "1c": "y",
    "1d": "z", "1e": "1", "1f": "2", "20": "3", "21": "4",
    "22": "5", "23": "6", "24": "7", "25": "8", "26": "9",
    "27": "0", "28": "<RET>", "29": "<ESC>", "2a": "<DEL>", "2b": "\t",
    "2c": "<SPACE>", "2d": "-", "2e": "=", "2f": "[", "30": "]", "31": "\\",
    "32": "<NON>", "33": ";", "34": "'", "35": "<GA>", "36": ",", "37": ".",
    "38": "/", "39": "<CAP>", "3a": "<F1>", "3b": "<F2>", "3c": "<F3>", "3d": "<F4>",
    "3e": "<F5>", "3f": "<F6>", "40": "<F7>", "41": "<F8>", "42": "<F9>", "43": "<F10>",
    "44": "<F11>", "45": "<F12>"
  }
  shift_keys = {
    "04": "A", "05": "B", "06": "C", "07": "D", "08": "E",
    "09": "F", "0a": "G", "0b": "H", "0c": "I", "0d": "J",
    "0e": "K", "0f": "L", "10": "M", "11": "N", "12": "O",
    "13": "P", "14": "Q", "15": "R", "16": "S", "17": "T",
    "18": "U", "19": "V", "1a": "W", "1b": "X", "1c": "Y",
    "1d": "Z", "1e": "!", "1f": "@", "20": "#", "21": "$",
    "22": "%", "23": "^", "24": "&", "25": "*", "26": "(", "27": ")",
    "28": "<RET>", "29": "<ESC>", "2a": "<DEL>", "2b": "\t", "2c": "<SPACE>",
    "2d": "_", "2e": "+", "2f": "{", "30": "}", "31": "|", "32": "<NON>", "33": "\"",
    "34": ":", "35": "<GA>", "36": "<", "37": ">", "38": "?", "39": "<CAP>", "3a": "<F1>",
    "3b": "<F2>", "3c": "<F3>", "3d": "<F4>", "3e": "<F5>", "3f": "<F6>", "40": "<F7>",
    "41": "<F8>", "42": "<F9>", "43": "<F10>", "44": "<F11>", "45": "<F12>"
  }
  output = []
  with open(output_file, 'r') as keys:
    for line in keys:
      # 过滤无效行
      if not (line[0] == '0' and (line[1] in ('0', '2')) and line[3] == '0' and line[4] == '0' and
              line[6:8] != "00" and line[9] == '0' and line[10] == '0' and line[12] == '0' and
              line[13] == '0' and line[15] == '0' and line[16] == '0' and line[18] == '0' and
              line[19] == '0' and line[21] == '0' and line[22] == '0'):
        continue
      # 解析按键
      key_code = line[6:8]
      if key_code in normal_keys:
        output.append(shift_keys[key_code] if line[1] == '2' else normal_keys[key_code])
      else:
        output.append('[unknown]')
  return output
def handle_special_keys(output):
  """
  处理特殊按键（如删除键和大写锁定键）
  :param output: 解析后的键盘输入列表
  :return: 处理后的最终输出
  """
  # 处理删除键
  while '<DEL>' in output:
    index = output.index('<DEL>')
    if index > 0:
      del output[index]
      del output[index - 1]
  # 处理大写锁定键
  caps_flag = False
  for i in range(len(output)):
    if output[i] == "<CAP>":
      caps_flag = not caps_flag
      output[i] = ''
    elif caps_flag:
      output[i] = output[i].upper()
  # 移除空字符串
  output = [char for char in output if char]
  return ''.join(output)
def main():
  input_file = '1.txt'
  output_file = 'out.txt'
  # 数据预处理
  preprocess_data(input_file, output_file)
  # 解析键盘数据
  parsed_output = parse_keyboard_data(output_file)
  # 处理特殊按键
  final_output = handle_special_keys(parsed_output)
  # 输出结果
  print("Final Output:", final_output)
if __name__ == "__main__":
  main()

得到884080810882108108821042084010421只有01248，云影密码解密即可
