基于mykernel 2.0编写一个操作系统内核

一 、配置mykernel 2.0

　　实验环境：VMware+虚拟机Ubuntu 18.04.1 LTS amd64

　　配置命令：

wget https://raw.github.com/mengning/mykernel/master/mykernel-2.0_for_linux-5.4.34.patch
sudo apt install axel
axel -n 20 https://mirrors.edge.kernel.org/pub/linux/kernel/v5.x/linux-5.4.34.tar.xz
xz -d linux-5.4.34.tar.xz //解压
tar -xvf linux-5.4.34.tar
cd linux-5.4.34
patch -p1 < ../mykernel-2.0_for_linux-5.4.34.patch
sudo apt install build-essential libncurses-dev bison flex libssl-dev libelf-dev
make defconfig 10 make -j$(nproc)
sudo apt install qemu 12 qemu-system-x86_64 -kernel arch/x86/boot/bzImage

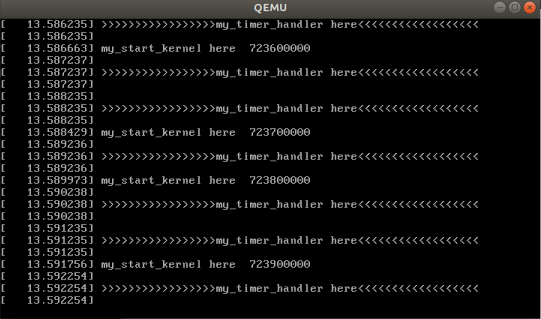

　配置成功后结果如下，从qemu窗口中可以看到my_start_kernel在执行：　　





二、基于mykernel 2.0编写一个操作系统内核并进行分析

　　1 首先在mykernel目录下增加一个mypcb.h 头文件，用来定义进程控制块（Process Control Block），也就是进程结构体的定义。

　　　　 结构体Thread 结构体，用于存储当前进程中正在执行的线程的ip和sp



/*
 *  linux/mykernel/mypcb.h
 */

//最大的任务数
#define MAX_TASK_NUM        4
#define KERNEL_STACK_SIZE   1024*8


/* CPU-specific state of this task */
struct Thread {
    unsigned long       ip;
    unsigned long       sp;
};


typedef struct PCB{
    int pid;
    volatile long state; /* -1 unrunnable, 0 runnable, >0 stopped */
    char stack[KERNEL_STACK_SIZE];
    /* CPU-specific state of this task */
    struct Thread thread;
    unsigned long   task_entry;
    struct PCB *next;
}tPCB;

//调度函数
void my_schedule(void);

　

　2 对mymain.c中的my_start_kernel函数进行修改，并在mymain.c中实现了my_process函数，用来作为进程的代码模拟一个个进程，时间片轮转调度。



#include "mypcb.h"


tPCB task[MAX_TASK_NUM];
tPCB * my_current_task = NULL;
volatile int my_need_sched = 0;


void my_process(void);


void __init my_start_kernel(void)
{
    int pid = 0;
    int i;
    /* Initialize process 0*/
    task[pid].pid = pid;
    task[pid].state = 0;/* -1 unrunnable, 0 runnable, >0 stopped */
    task[pid].task_entry = task[pid].thread.ip = (unsigned long)my_process;
    task[pid].thread.sp = (unsigned long)&task[pid].stack[KERNEL_STACK_SIZE-1];
    task[pid].next = &task[pid];
    /*fork more process */
    for(i=1;i<MAX_TASK_NUM;i++)
    {
        memcpy(&task[i],&task[0],sizeof(tPCB));
        task[i].pid = i;
        task[i].state = -1;
        task[i].thread.sp = (unsigned long)&task[i].stack[KERNEL_STACK_SIZE-1];
        task[i].next = task[i-1].next;
        task[i-1].next = &task[i];
    }
    /* start process 0 by task[0] */
    pid = 0;
    my_current_task = &task[pid];
    asm volatile(
        "movq %1,%%rsp\n\t"  /* set task[pid].thread.sp to rsp */
        "pushq %1\n\t"          /* push rbp */
        "pushq %0\n\t"          /* push task[pid].thread.ip */
        "ret\n\t"              /* pop task[pid].thread.ip to rip */
        :
        : "c" (task[pid].thread.ip),"d" (task[pid].thread.sp)   /* input c or d mean %ecx/%edx*/
    );
}

void my_process(void)
{
    int i = 0;
    while(1)
    {
        i++;
        if(i%10000000 == 0)
        {
            printk(KERN_NOTICE "this is process %d -\n",my_current_task->pid);
            if(my_need_sched == 1)
            {
                my_need_sched = 0;
                my_schedule();
            }
            printk(KERN_NOTICE "this is process %d +\n",my_current_task->pid);
        }
    }
}

　

　3 对myinterrupt.c的修改，my_timer_handler用来记录时间片，时间片消耗完之后完成调度。并在该文件中完成，my_schedule(void)函数的实现



#include "mypcb.h"


extern tPCB task[MAX_TASK_NUM];
extern tPCB * my_current_task;
extern volatile int my_need_sched;
volatile int time_count = 0;


/*
 * Called by timer interrupt.
 */
void my_timer_handler(void)
{
    if(time_count%1000 == 0 && my_need_sched != 1)
    {
        printk(KERN_NOTICE ">>>my_timer_handler here<<<\n");
        my_need_sched = 1;
    }
    time_count ++ ;
    return;
}


void my_schedule(void)
{
    tPCB * next;
    tPCB * prev;


    if(my_current_task == NULL
        || my_current_task->next == NULL)
    {
      return;
    }
    printk(KERN_NOTICE ">>>my_schedule<<<\n");
    /* schedule */
    next = my_current_task->next;
    prev = my_current_task;
    if(next->state == 0)/* -1 unrunnable, 0 runnable, >0 stopped */
    {
      my_current_task = next;
      printk(KERN_NOTICE ">>>switch %d to %d<<<\n",prev->pid,next->pid);
      /* switch to next process */
      asm volatile(
         "pushq %%rbp\n\t"       /* save rbp of prev */
         "movq %%rsp,%0\n\t"     /* save rsp of prev */
         "movq %2,%%rsp\n\t"     /* restore  rsp of next */
         "movq $1f,%1\n\t"       /* save rip of prev */
         "pushq %3\n\t"
         "ret\n\t"               /* restore  rip of next */
         "1:\t"                  /* next process start here */
         "popq %%rbp\n\t"
        : "=m" (prev->thread.sp),"=m" (prev->thread.ip)
        : "m" (next->thread.sp),"m" (next->thread.ip)
      );
    }
    return;
}

　

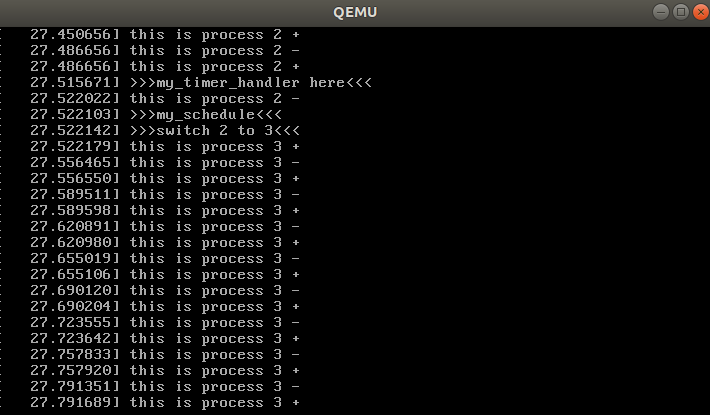

　4 重新编译（linux 目录下make命令），再次运行，查看运行结果，可以看见进程的切换





三、执行流程分析

　　　系统启动后，首先运行mymain.c中的my_start_kernel函数，里面是一个while(1) 循环，永远执行下去。然后是myinterrupt.c，里面的my_timer_handler 函数会被内核周期性的调用，每调用1000次，就去将全局变量my_need_sched的值修改为1，my_start_kernel中的while循环发现my_need_sched值变为1后，就进行进程的调度，完成进程的切换，如此往复。
