记录一次查询数据库数据写入磁盘文件的优化
项目场景：
项目上有个需求，需要把自己系统上数据库的数据写入到共享盘的txt文件给其他系统供数，这里称作 卸数，所以下文也都称之为 卸数
问题描述
刚开始做卸数功能，就是流水线下去，jdbc查询数据库->转换数据格式->存到List集合->写入磁盘
刚开始上线的时候，数据量不大，一切都是那么的美好。但是随着时间的推移，数据开始逐渐增多，由于表中存在大字段，所以即使十几万的数据写到磁盘也有好几个G，程序运行大概需要二十几分钟，线上就开始不断超时预警
如果数据量继续增长，由于是全部放到List集合中，很可能出现OOM
原因分析：
先看下第一版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
/**
* 第一版，单线程先读后写
* 数据量:50000
* 单线程分页查询耗时:25078ms
* 文件大小：287M 第一版耗时:62643 ms
* 数据量:100000
* 单线程分页查询耗时:81071ms
* 文件大小：575M 第一版耗时:218091 ms
*
* @throws Exception
*/
private static void first() throws Exception {
File file = new File("test.del");
file.delete();
long line = 0;
long start = System.currentTimeMillis();
getData(select());
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!data.isEmpty()) {
Map<String, Object> map = data.poll();
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第一版耗时:" + (end - start) + " ms ");
}

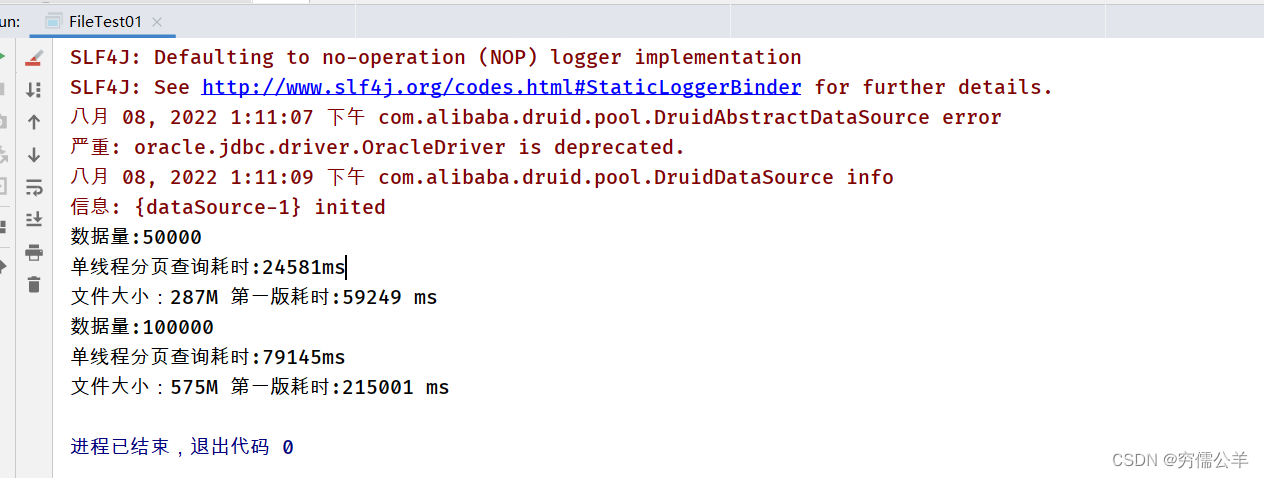

本地模拟运行情况，如下：

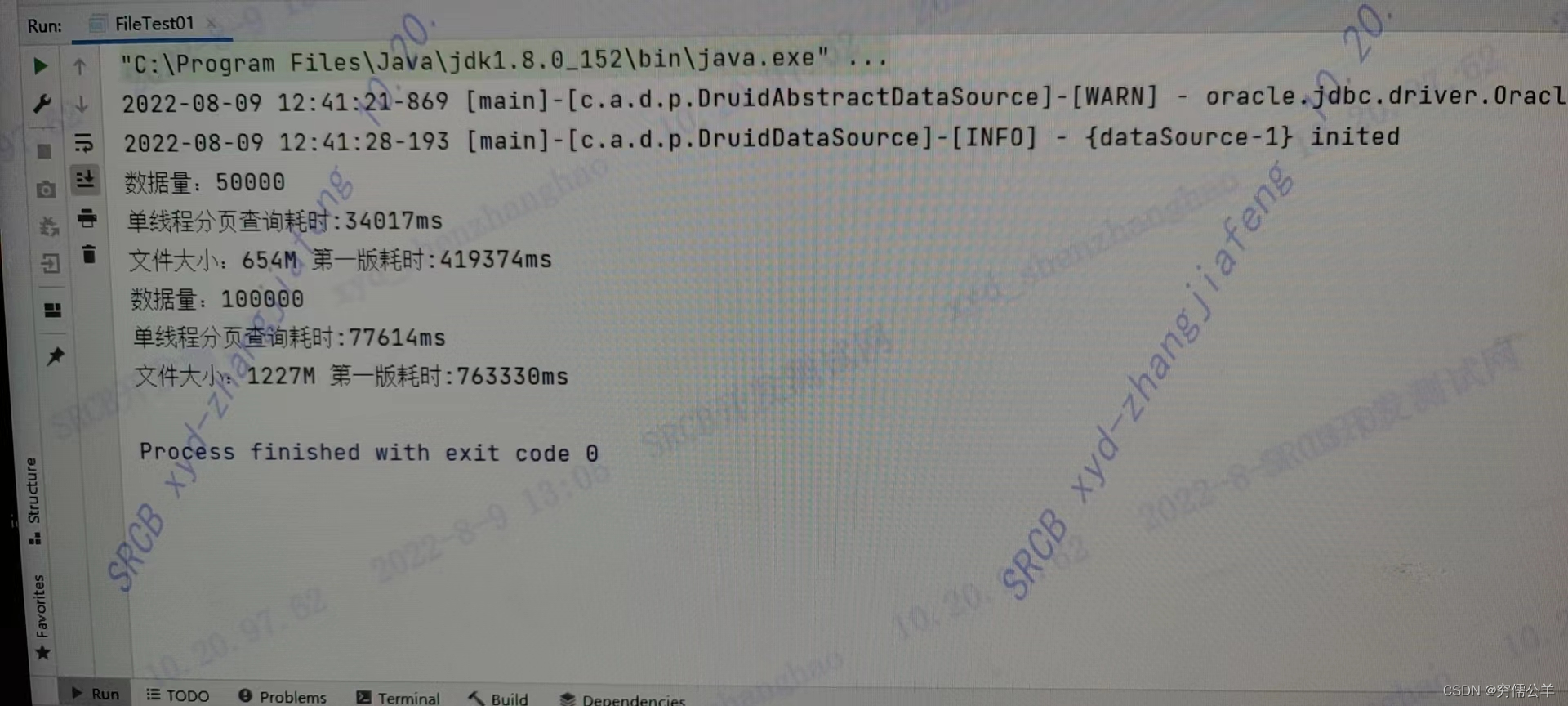

实际运行情况，如下：
云上5w数据用了7分钟左右，10w用了12分钟左右。首先怀疑是串行循环写入速度太慢，先把循环和写入分离为两个线程
第二版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
/**
* 第二版：读写分离
* 数据量:50000
* 单线程分页查询耗时:25921ms
* 文件大小：287M 第二版耗时:63351 ms
* 数据量:100000
* 单线程分页查询耗时:78366ms
* 文件大小：575M 第二版耗时:204218 ms
*/
private static void second() throws Exception {
File file = new File("test1.del");
file.delete();
long start = System.currentTimeMillis();
getData(select());
ExecutorService executorService = Executors.newSingleThreadExecutor();
BlockingQueue<StringJoiner> queue = new LinkedBlockingQueue<>();
AtomicBoolean flag = new AtomicBoolean(false);
executorService.submit(() -> {
int line = 0;
while (!data.isEmpty()) {
Map<String, Object> map = data.poll();
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
queue.add(sj);
}
flag.set(true);
});
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!flag.get() || !queue.isEmpty()) {
StringJoiner sj = queue.poll();
if (sj != null) {
bf.write(sj.toString());
} else {
Thread.sleep(5_00);
}
}
} catch (Exception e) {
e.printStackTrace();
}
executorService.shutdown();
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第二版耗时:" + (end - start) + " ms ");
}

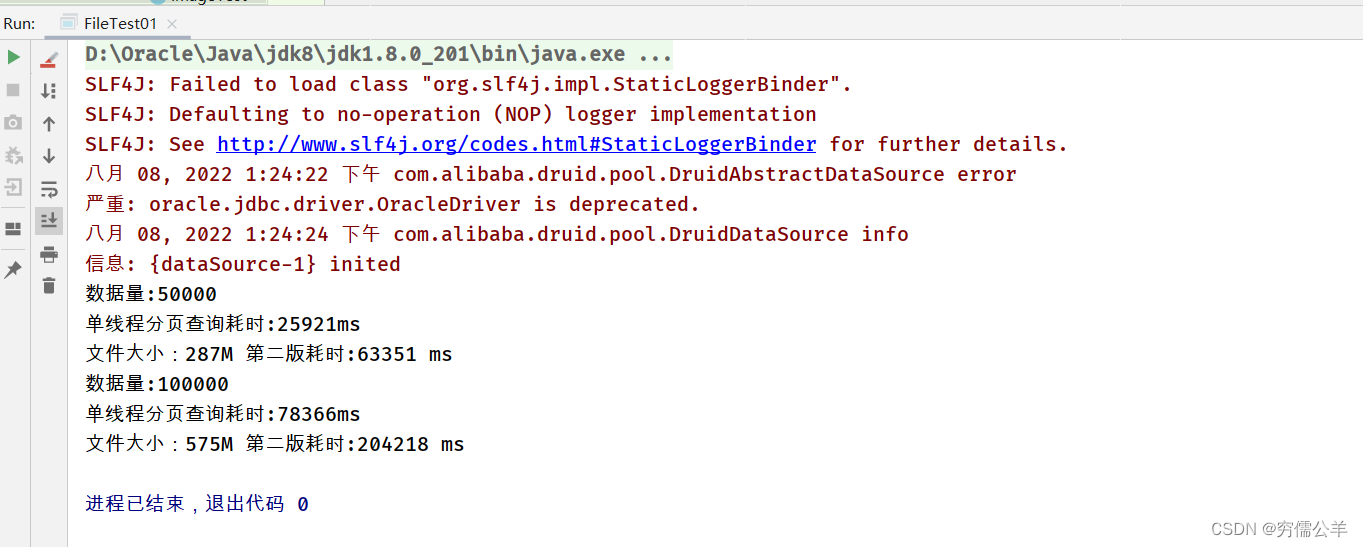

本地模拟运行情况，如下：

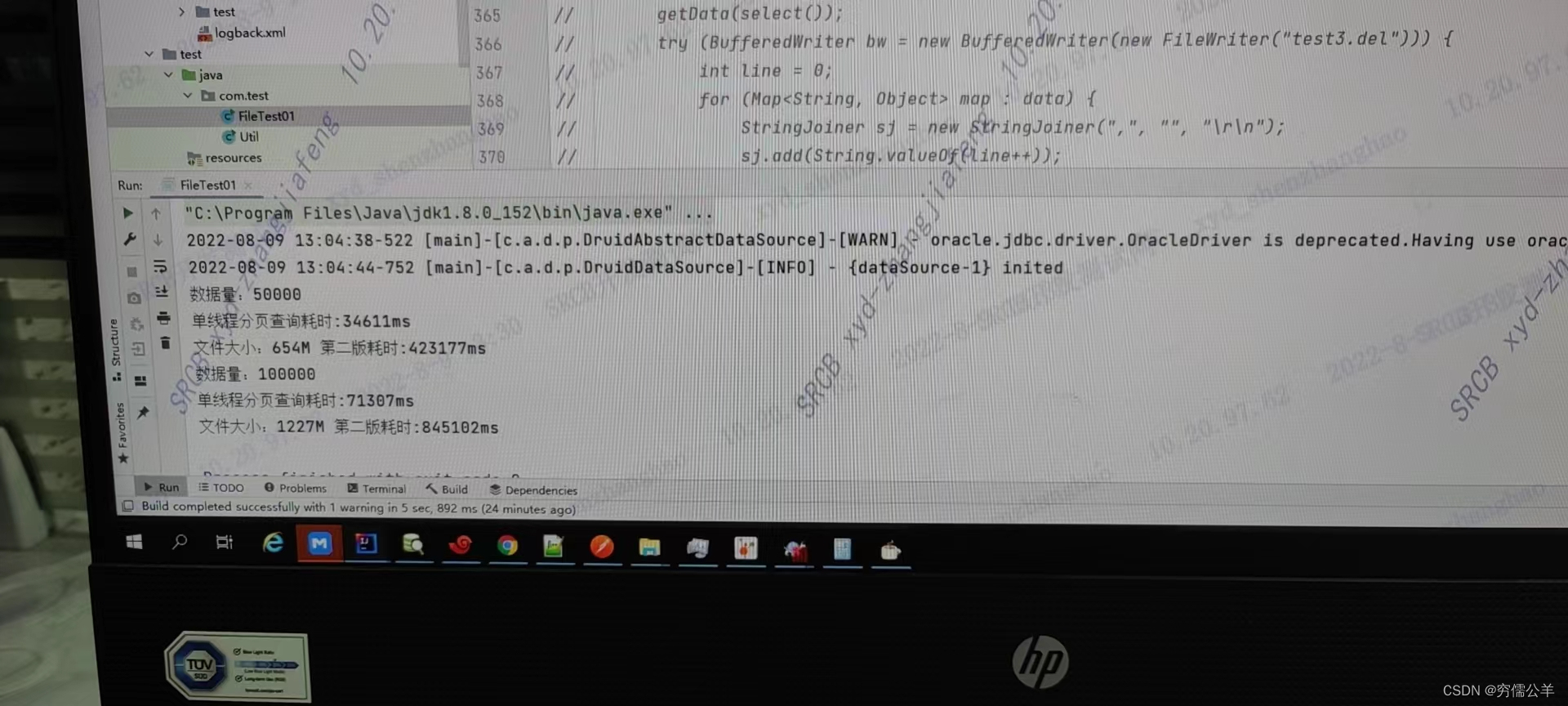

实际运行情况，如下：
发现无论是本地还是云上没有实质性的提升，云上甚至更慢了，负优化了属于是

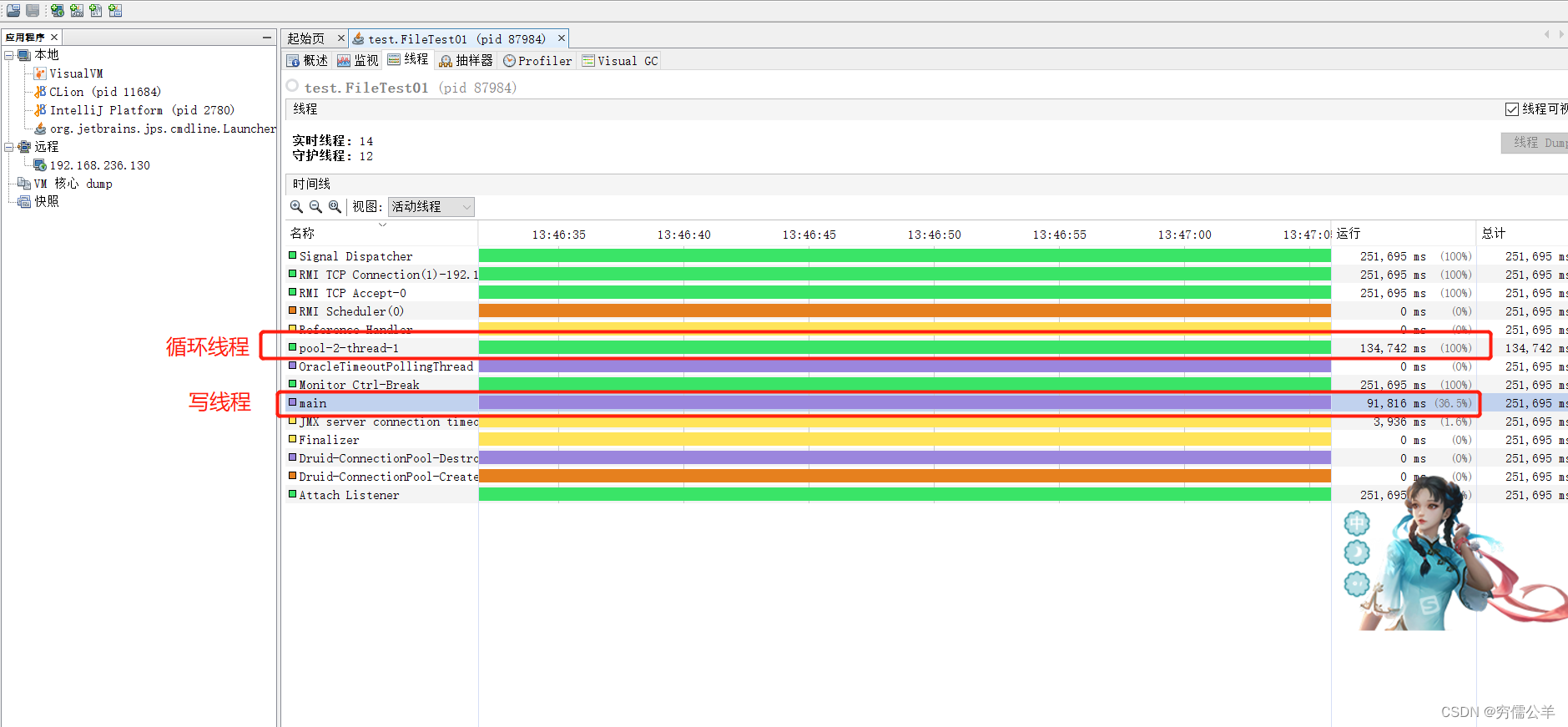

使用jvisualvm查看了下读写线程的情况，发现写线程大部分时间处于休眠状态，怀疑是循环转换大字段过慢导致的，于是把foreach循环改成并行流循环
第三版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
/**
* 第三版：并行流加快循环速度写入
* 数据量:50000
* 单线程分页查询耗时:24282ms
* 文件大小：287M 第三版耗时:165395 ms
* 数据量:100000
* 单线程分页查询耗时:78425ms
* 文件大小：575M 第三版耗时:492103 ms
*
* @throws Exception
*/
private static void third() throws Exception {
File file = new File("test2.del");
file.delete();
long start = System.currentTimeMillis();
getData(select());
ExecutorService executorService = Executors.newSingleThreadExecutor();
AtomicLong line = new AtomicLong(0);
AtomicBoolean flag = new AtomicBoolean(false);
BlockingQueue<StringJoiner> queue = new LinkedBlockingQueue<>();
executorService.submit(() -> {
data.parallelStream().forEach(map -> {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line.incrementAndGet()));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
queue.add(sj);
});
flag.set(true);
});
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!flag.get() || !queue.isEmpty()) {
StringJoiner sj = queue.poll();
if (sj != null) {
bf.write(sj.toString());
}
}
} catch (Exception e) {
e.printStackTrace();
}
executorService.shutdown();
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第三版耗时:" + (end - start) + " ms ");
data.clear();
}

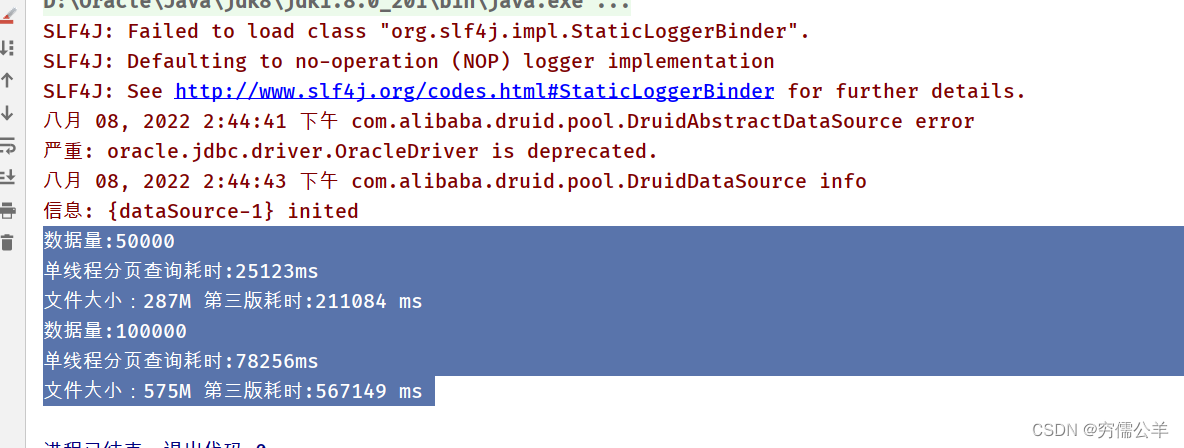

本地模拟运行情况，如下：

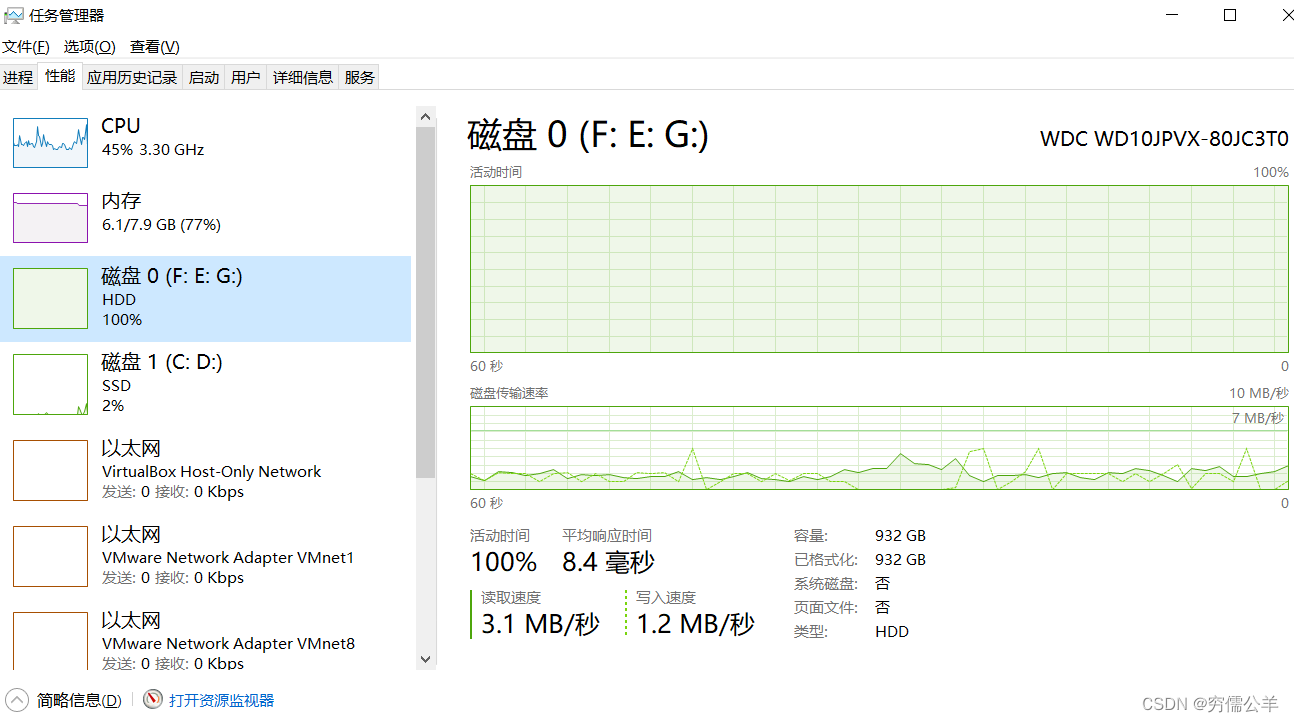

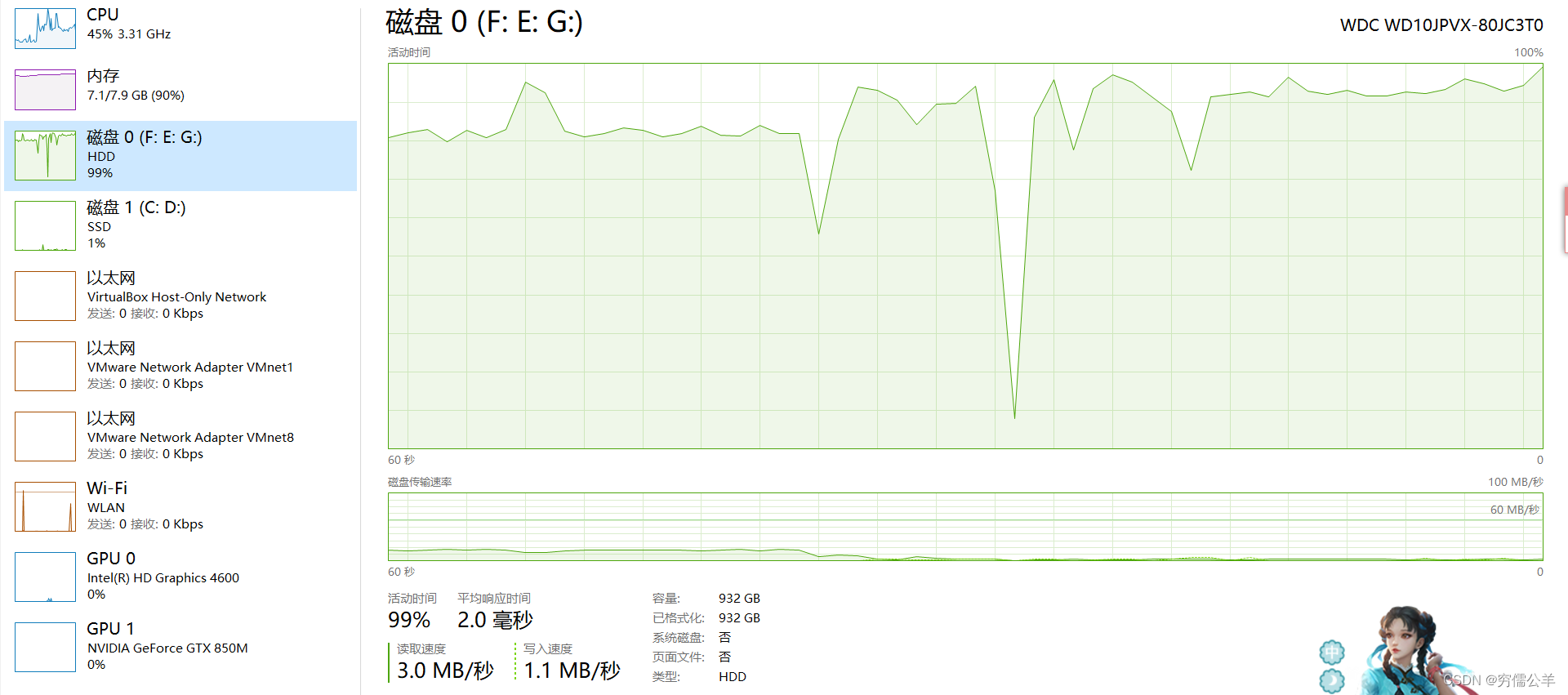

本地由于磁盘跑不动了，所以，还不如以前的

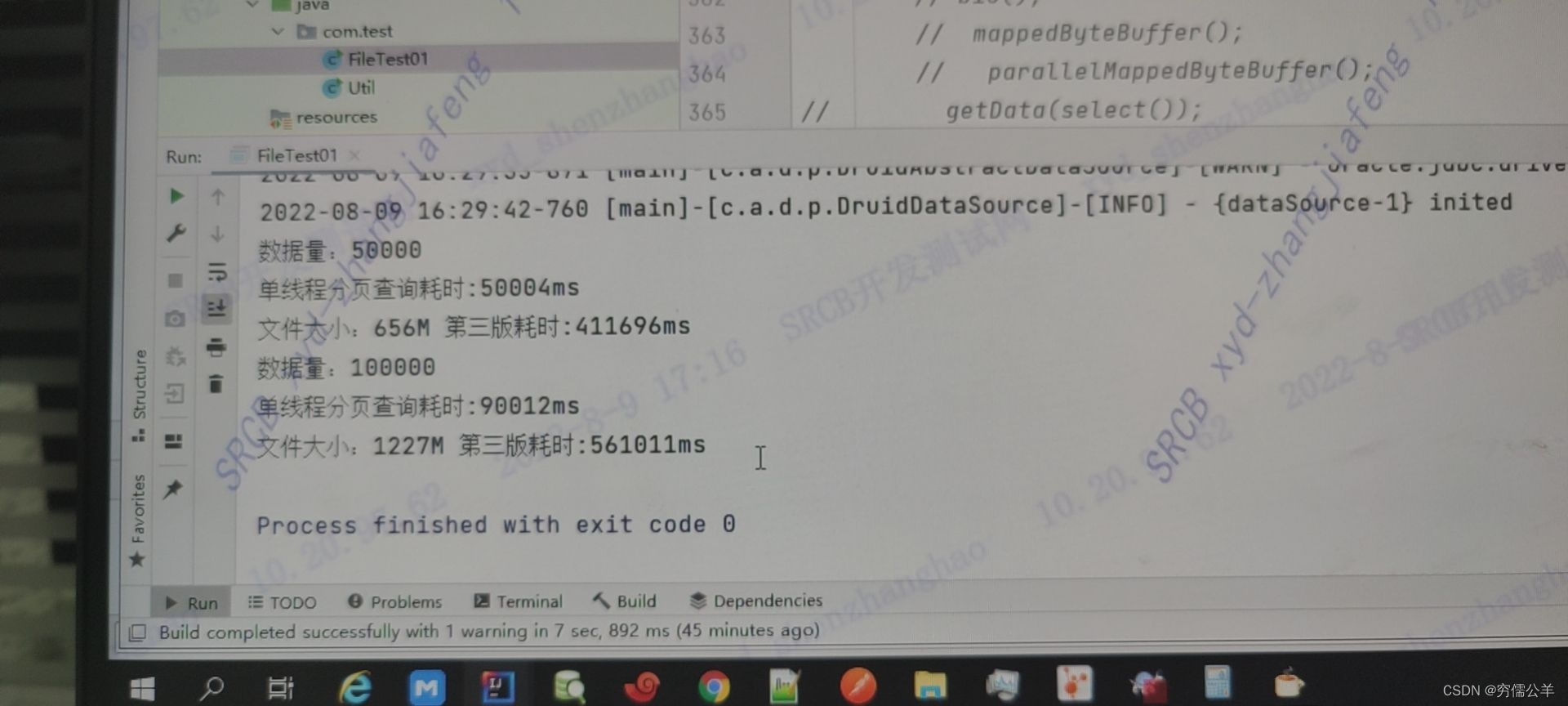

实际运行情况，如下：
云上明显有所好转，比之之前快了许多。但是明显还不是最优解，由于现在查询和写入是串行的，查询之后又要额外循环一遍，而且存在OOM的情况。所以可以把读写并行化，一边查询，一边写入
第四版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
private static volatile boolean isFinish = false;
private static void parallelGetData(ResultSet rs, CountDownLatch cdl, boolean isPark) throws SQLException {
try {
long start = System.currentTimeMillis();
int columnCount = rs.getMetaData().getColumnCount();
while (rs.next()) {
Map<String, Object> map = new HashMap<>();
for (int i = 1; i <= columnCount; i++) {
if (rs.getObject(i) instanceof Clob) {
map.put(rs.getMetaData().getColumnName(i), clobToString((Clob) rs.getObject(i)));
} else {
map.put(rs.getMetaData().getColumnName(i), rs.getObject(i));
}
}
if (isPark) {
if (data.size() > 5_0000) {
LockSupport.park();
}
}
data.add(map);
}
long end = System.currentTimeMillis();
System.out.println("单线程分页查询耗时:" + (end - start) + "ms");
} catch (Exception e) {
e.printStackTrace();
} finally {
rs.close();
rs.getStatement().close();
if (cdl != null)
cdl.countDown();
}
}
/**
* 第四版：bio读写并行
* 数据量:50000
* 单线程分页查询耗时:32781ms
* 文件大小：287M 第四版耗时:34207 ms
* 数据量:100000
* 单线程分页查询耗时:125139ms
* 文件大小：575M 第四版耗时:125863 ms
*
* @throws Exception
*/
private static void four() {
isFinish = false;
File file = new File("test3.del");
file.delete();
ExecutorService executorService = Executors.newSingleThreadExecutor();
long start = System.currentTimeMillis();
executorService.submit(() -> {
try {
parallelGetData(select(), null, false);
} catch (SQLException e) {
e.printStackTrace();
} finally {
isFinish = true;
}
});
long line = 0;
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map == null) {
continue;
}
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
sj.add("\"" + map.get(key) + "\"");
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第四版耗时:" + (end - start) + " ms ");
}

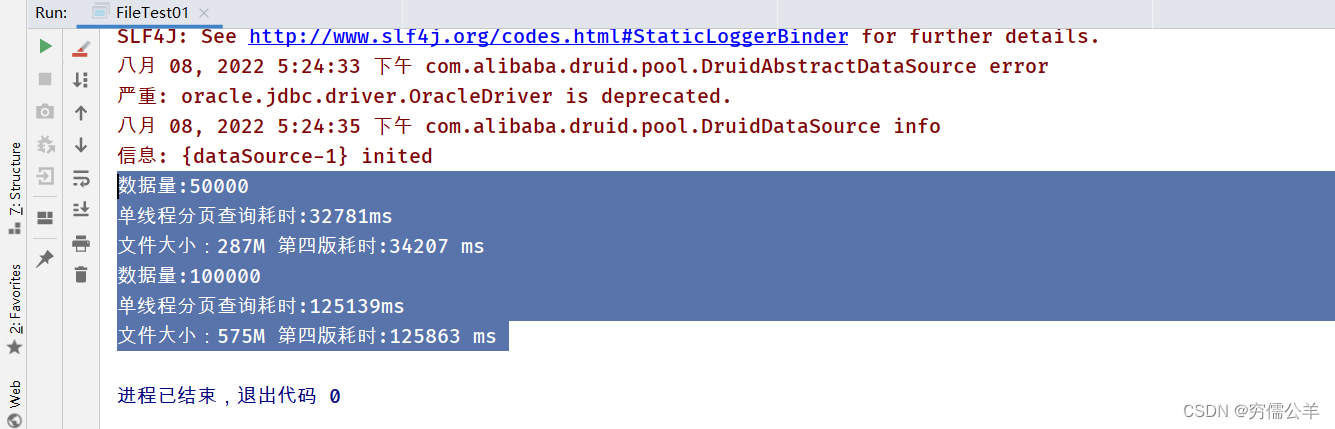

本地模拟运行情况，如下：

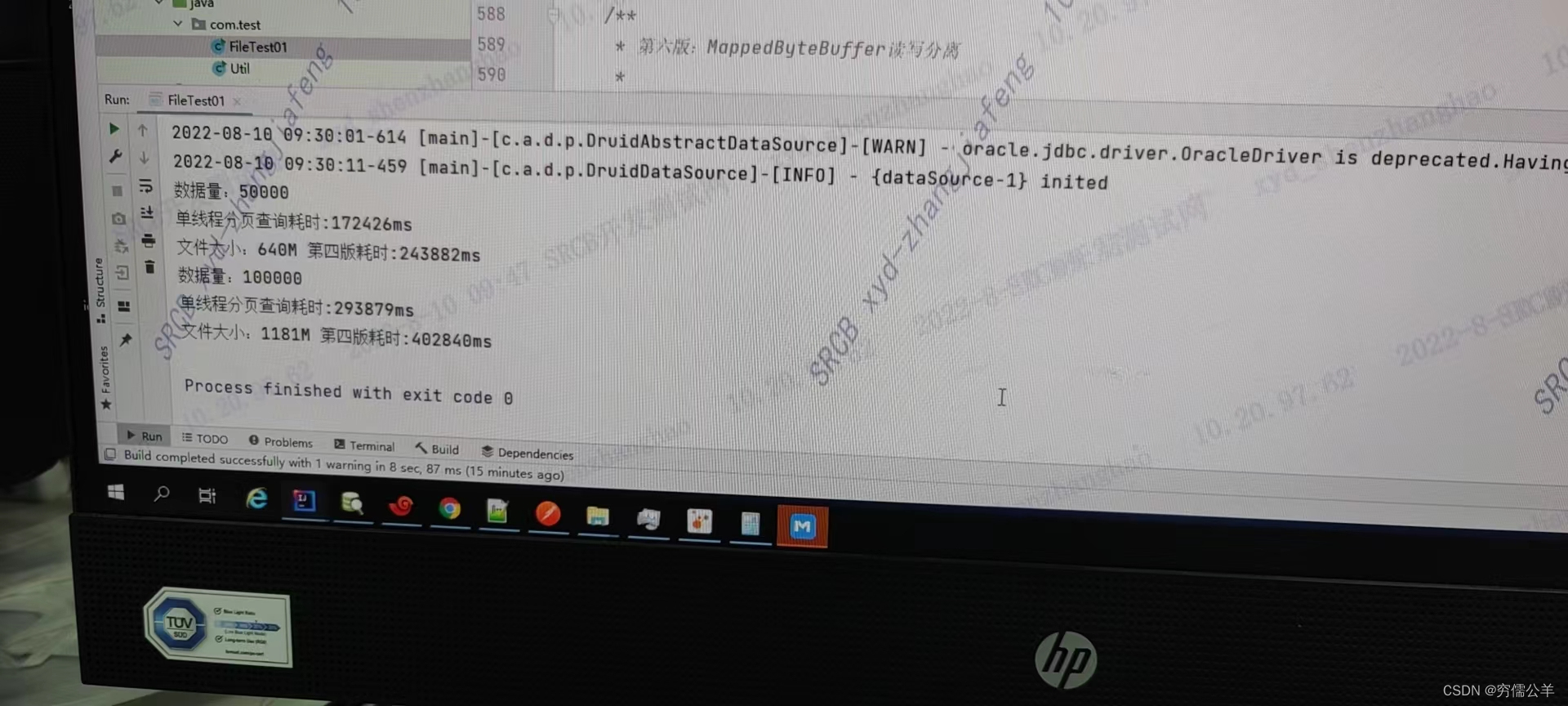

实际运行情况，如下：
较之第三版，又快了一丢丢。从结果上看，写不比读慢多少，主要时间还是在查询上边，所以尝试把单线程查询改成多线程查询
第五版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
private static volatile boolean isFinish = false;
/**
* 第五版：多线程读，单线程写(bio)
* 数据量:50000
* 单线程分页查询耗时:150690ms
* 单线程分页查询耗时:165977ms
* 单线程分页查询耗时:176273ms
* 单线程分页查询耗时:171153ms
* 单线程分页查询耗时:157838ms
* 文件大小：287M 第五版耗时:187235 ms
* 数据量:100000
* 单线程分页查询耗时:184424ms
* 单线程分页查询耗时:207333ms
* 单线程分页查询耗时:186972ms
* 单线程分页查询耗时:370479ms
* 单线程分页查询耗时:226568ms
* 文件大小：575M 第五版耗时:395681 ms
*/
private static void five(int threadNum, int pageSize) {
isFinish = false;
File file = new File("test5.del");
long start = System.currentTimeMillis();
read(threadNum, pageSize);
long line = 0;
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map == null) {
continue;
}
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
} finally {
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第五版耗时:" + (end - start) + " ms ");
}
private static void parallelGetData(ResultSet rs, CountDownLatch cdl, boolean isPark) throws SQLException {
try {
long start = System.currentTimeMillis();
int columnCount = rs.getMetaData().getColumnCount();
while (rs.next()) {
Map<String, Object> map = new HashMap<>();
for (int i = 1; i <= columnCount; i++) {
if (rs.getObject(i) instanceof Clob) {
map.put(rs.getMetaData().getColumnName(i), clobToString((Clob) rs.getObject(i)));
} else {
map.put(rs.getMetaData().getColumnName(i), rs.getObject(i));
}
}
if (isPark) {
if (data.size() > 5_0000) {
LockSupport.park();
}
}
data.add(map);
}
long end = System.currentTimeMillis();
System.out.println("单线程分页查询耗时:" + (end - start) + "ms");
} catch (Exception e) {
e.printStackTrace();
} finally {
rs.close();
rs.getStatement().close();
if (cdl != null)
cdl.countDown();
}
}
private static void read(final int threadNum, final int pageSize) {
CountDownLatch cdl = new CountDownLatch(threadNum);
ExecutorService executorService = Executors.newFixedThreadPool(threadNum + 1);
for (int i = 0; i < threadNum; i++) {
int startPage = i * pageSize;
int endPage = (i + 1) * pageSize;
executorService.submit(() -> {
try {
parallelGetData(select(startPage, endPage), cdl, false);
} catch (SQLException e) {
e.printStackTrace();
}
});
}
executorService.submit(() -> {
try {
cdl.await();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
executorService.shutdown();
isFinish = true;
}
});
}

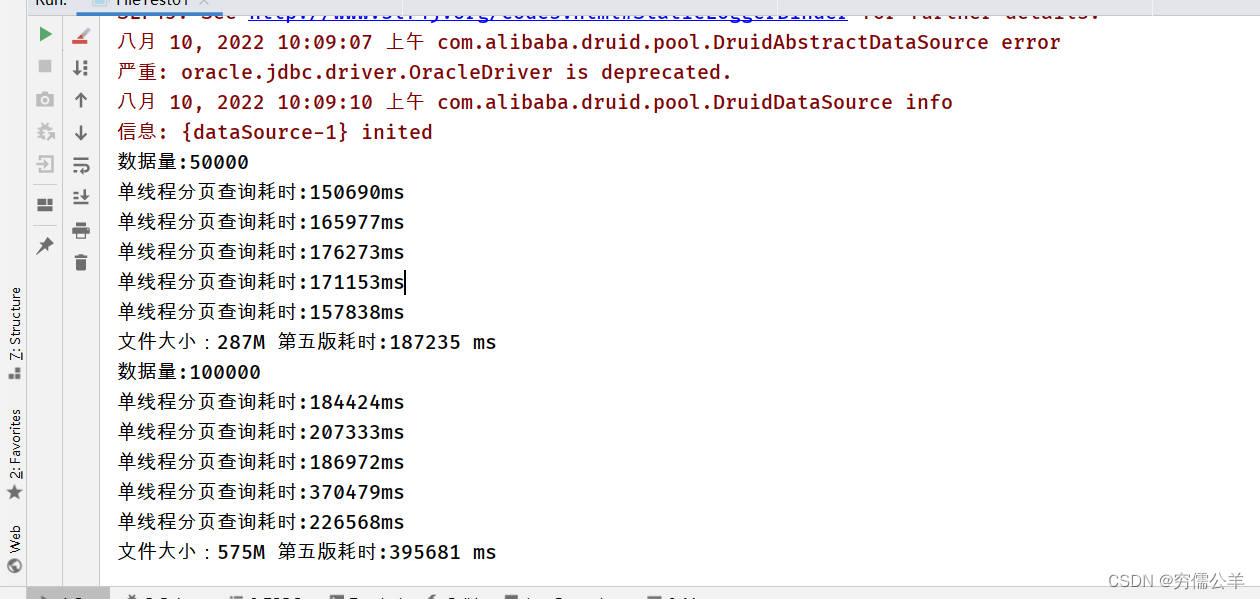

本地模拟运行情况，如下：
本地还是因为磁盘成为瓶颈，多线程读并未提高查询的速度

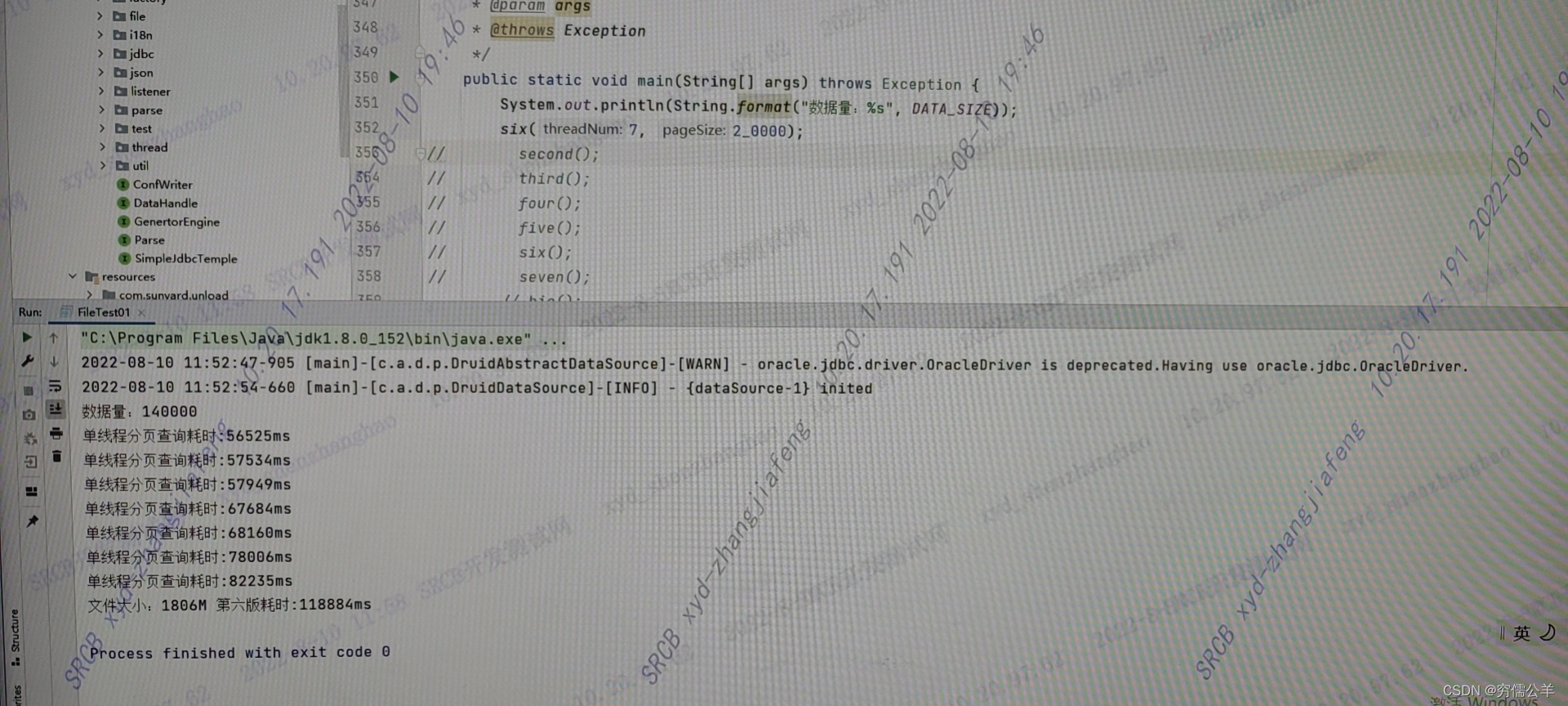

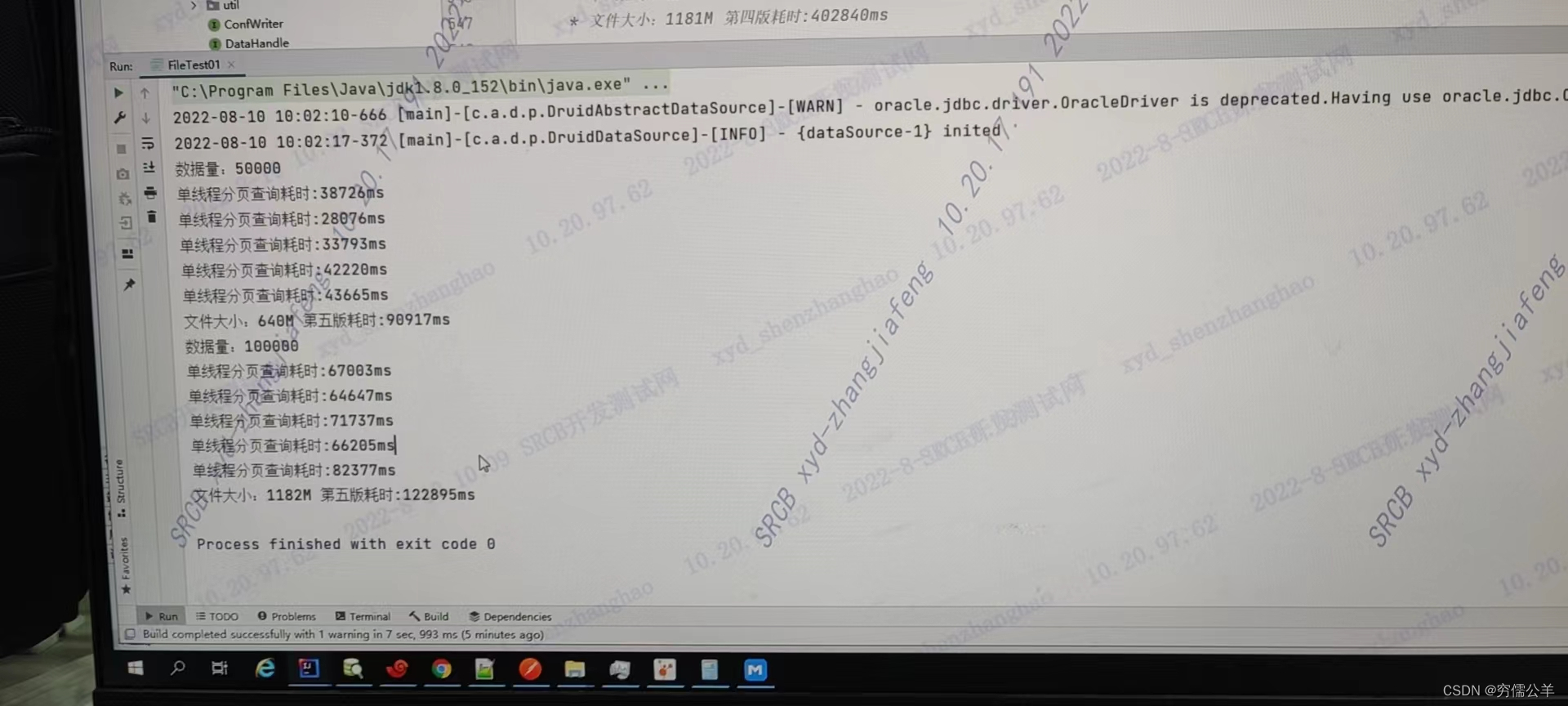

实际运行情况，如下：
云上可以很明显的看出差距了，5w数据只要1.5分钟左右，10w数据2分钟左右。数据量增长一倍，耗时却没有翻倍
在看结果，发现最慢的查询线程要82377ms，但是最终耗时却在122895ms，尝试用NIO提高写入速度
第六版的代码，如下：
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
private static volatile boolean isFinish = false;
private static void read(final int threadNum, final int pageSize) {
CountDownLatch cdl = new CountDownLatch(threadNum);
ExecutorService executorService = Executors.newFixedThreadPool(threadNum + 1);
for (int i = 0; i < threadNum; i++) {
int startPage = i * pageSize;
int endPage = (i + 1) * pageSize;
executorService.submit(() -> {
try {
parallelGetData(select(startPage, endPage), cdl, false);
} catch (SQLException e) {
e.printStackTrace();
}
});
}
executorService.submit(() -> {
try {
cdl.await();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
executorService.shutdown();
isFinish = true;
}
});
}
private static void parallelGetData(ResultSet rs, CountDownLatch cdl, boolean isPark) throws SQLException {
try {
long start = System.currentTimeMillis();
int columnCount = rs.getMetaData().getColumnCount();
while (rs.next()) {
Map<String, Object> map = new HashMap<>();
for (int i = 1; i <= columnCount; i++) {
if (rs.getObject(i) instanceof Clob) {
map.put(rs.getMetaData().getColumnName(i), clobToString((Clob) rs.getObject(i)));
} else {
map.put(rs.getMetaData().getColumnName(i), rs.getObject(i));
}
}
if (isPark) {
if (data.size() > 5_0000) {
LockSupport.park();
}
}
data.add(map);
}
long end = System.currentTimeMillis();
System.out.println("单线程分页查询耗时:" + (end - start) + "ms");
} catch (Exception e) {
e.printStackTrace();
} finally {
rs.close();
rs.getStatement().close();
if (cdl != null)
cdl.countDown();
}
}
/**
* 第六版：多线程读，单线程写(nio)
*/
private static void six() {
isFinish = false;
File file = new File("test6.del");
long start = System.currentTimeMillis();
read(5, 3_0000);
long line = 0;
try (RandomAccessFile memoryAccessFile = new RandomAccessFile(file, "rw")) {
FileChannel fileChannel = memoryAccessFile.getChannel();
long position = 0;
MappedByteBuffer mappedByteBuffer = null;
List<byte[]> deque = new LinkedList<>();
long length = 0;
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map != null) {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
byte[] bs = sj.toString().getBytes(StandardCharsets.UTF_8);
if (length + bs.length > MAX_SIZE) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
deque.clear();
position += length;
length = 0;
}
length += bs.length;
deque.add(bs);
}
}
if (!deque.isEmpty()) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
position += length;
deque.clear();
}
} catch (Exception e) {
e.printStackTrace();
} finally {
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第六版耗时:" + (end - start) + " ms ");
}
本地已经没有试的必要了，直接看云上的情况吧

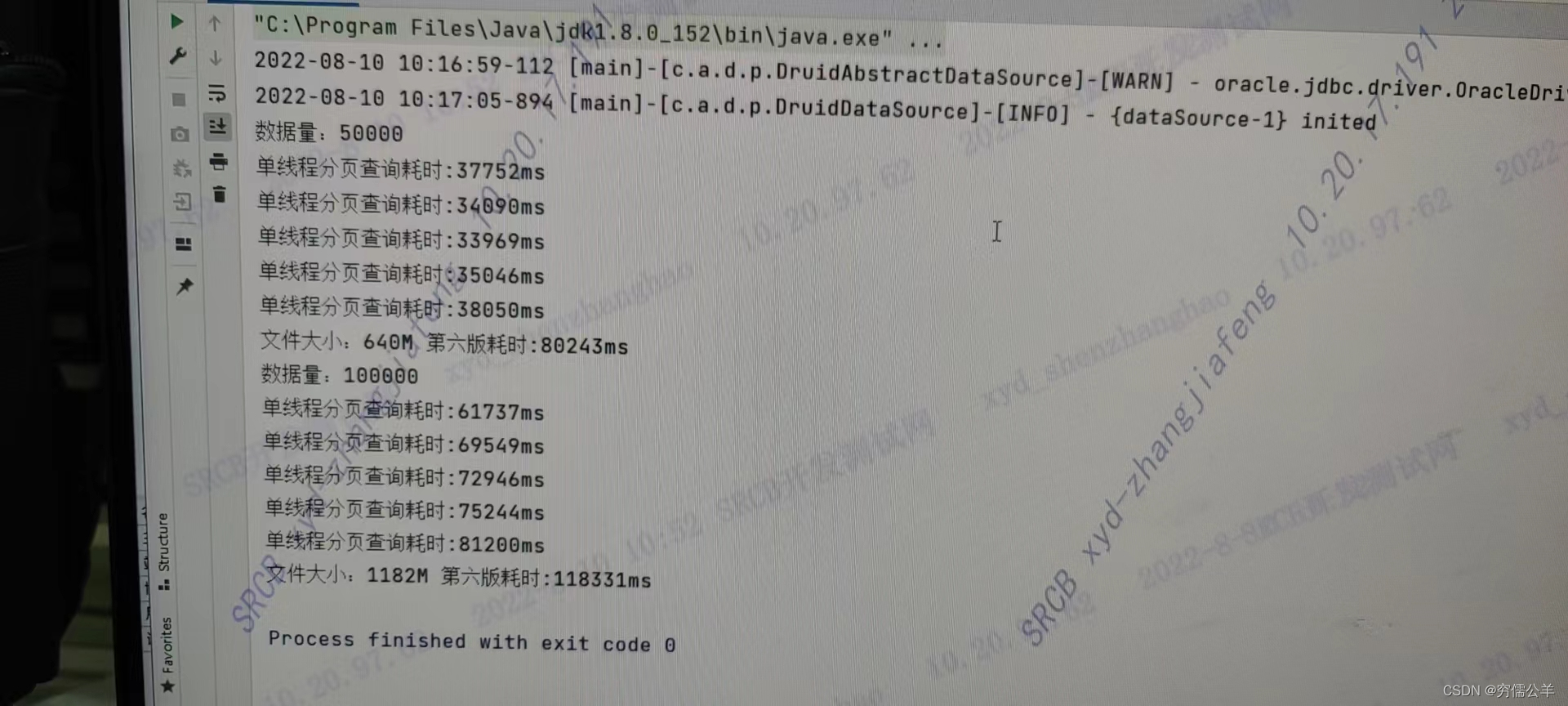

实际运行情况，如下：
貌似又快了一丢丢
解决方案：
采用最终版对全量数据做个测试，大概14w左右的数据量，开7个查询线程
最终运行结果，如下：
14w数据，大约2g左右，执行时间大概在2分钟左右，如果还想再快，是不是还可以采用多线程写入？不过现在差强人意，应该足够使用了
注意：这个读写速度差不多，是因为数据库存在大字段，如果没有存在大字段，很快就查询完毕了，所以还是会有OOM的问题，出现这种情况，可以尝试多线程写入，或者是让读线程达到阈值后park一下
全部测试代码：
package test;
import com.alibaba.druid.pool.DruidDataSourceFactory;
import javax.sql.DataSource;
import java.io.*;
import java.nio.ByteBuffer;
import java.nio.MappedByteBuffer;
import java.nio.channels.FileChannel;
import java.nio.charset.StandardCharsets;
import java.sql.Clob;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.*;
import java.util.concurrent.*;
import java.util.concurrent.atomic.AtomicBoolean;
import java.util.concurrent.atomic.AtomicLong;
import java.util.concurrent.atomic.AtomicReference;
import java.util.concurrent.locks.LockSupport;
/**
* @author hqd
* @title: FileTest01
* @projectName test-001
* @description: TODO
* @date 2022-07-26
*/
public class FileTest01 {
private static final BlockingQueue<Map<String, Object>> data = new LinkedBlockingQueue<>();
private static volatile boolean isFinish = false;
private static final int MAX_SIZE = 1024 * 1024 * 8;
private static final int PARALLE_MAX_SIZE = 1024 * 1024 * 64;
private static int DATA_SIZE = 5_0000;
static DataSource ds = null;
static {
Properties pro = new Properties();
try (InputStream is = FileTest01.class.getClassLoader().getResourceAsStream("druid.properties");) {
pro.load(is);
//2.获取连接池对象
ds = DruidDataSourceFactory.createDataSource(pro);
ds.getConnection();
//3.获取连接
} catch (Exception e) {
e.printStackTrace();
}
}
private static void bio() {
isFinish = false;
new File("test.del").delete();
final AtomicReference<Thread> readThread = new AtomicReference<>();
ExecutorService executorService = Executors.newSingleThreadExecutor();
long start = System.currentTimeMillis();
executorService.submit(() -> {
try {
readThread.set(Thread.currentThread());
getData(select());
} catch (SQLException e) {
e.printStackTrace();
} finally {
isFinish = true;
}
});
long line = 0;
try (BufferedWriter bf = new BufferedWriter(new FileWriter("test.del"))) {
while (!isFinish || !data.isEmpty()) {
if (data.size() < 1_000 && readThread.get() != null) {
LockSupport.unpark(readThread.get());
}
Map<String, Object> map = data.poll();
if (map == null) {
continue;
}
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
sj.add("\"" + map.get(key) + "\"");
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
long end = System.currentTimeMillis();
System.out.println("bio耗时:" + (end - start) + "ms");
data.clear();
}
private static void channel(RandomAccessFile memoryAccessFile, ResultSet resultSet) throws SQLException, IOException {
long start = System.currentTimeMillis();
FileChannel fileChannel = memoryAccessFile.getChannel();
ByteBuffer buf = ByteBuffer.allocate(1024 * 1024 * 4);
int line = 0;
while (resultSet.next()) {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
String id = resultSet.getString(1);
String clob = clobToString(resultSet.getClob(2));
sj.add(String.valueOf(line++)).add("\"" + id + "\"").add("\"" + clob + "\"");
byte[] bs = sj.toString().getBytes(StandardCharsets.UTF_8);
if (buf.position() + bs.length > buf.capacity()) {
buf.flip();
while (buf.hasRemaining()) {
fileChannel.write(buf);
}
buf.clear();
}
buf.put(bs);
}
long end = System.currentTimeMillis();
System.out.println("fc耗时:" + (end - start) + "ms");
}
private static void parallelMappedByteBuffer() throws Exception {
new File("test2.del").delete();
long appStart = System.currentTimeMillis();
getData(select());
try (RandomAccessFile memoryAccessFile = new RandomAccessFile("test2.del", "rw")) {
FileChannel fileChannel = memoryAccessFile.getChannel();
parallelInvoke(fileChannel);
} catch (IOException e) {
e.printStackTrace();
} finally {
}
long appEnd = System.currentTimeMillis();
System.out.println("并行流耗时:" + (appEnd - appStart) + "ms");
}
private static void mappedByteBuffer() {
isFinish = false;
new File("test1.del").delete();
long appStart = System.currentTimeMillis();
ExecutorService executorService = Executors.newSingleThreadExecutor();
final AtomicReference<Thread> readThread = new AtomicReference<>();
executorService.submit(() -> {
try {
readThread.set(Thread.currentThread());
getData(select());
} catch (SQLException e) {
e.printStackTrace();
} finally {
isFinish = true;
}
});
try (RandomAccessFile memoryAccessFile = new RandomAccessFile("test1.del", "rw")) {
FileChannel fileChannel = memoryAccessFile.getChannel();
invoke(fileChannel, readThread.get());
} catch (IOException e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
long appEnd = System.currentTimeMillis();
System.out.println("读写并行耗时:" + (appEnd - appStart) + "ms");
}
private static void parallelInvoke(FileChannel fileChannel) {
final AtomicLong line = new AtomicLong(0);
AtomicBoolean flag = new AtomicBoolean(false);
BlockingQueue<StringJoiner> deque = new LinkedBlockingQueue<>();
ExecutorService executorService = Executors.newSingleThreadExecutor();
executorService.submit(() -> {
data.parallelStream().forEach(map -> {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line.getAndIncrement()));
for (String key : map.keySet()) {
sj.add("\"" + map.get(key) + "\"");
}
deque.add(sj);
});
flag.set(true);
});
MappedByteBuffer mappedByteBuffer = null;
List<byte[]> list = new LinkedList<>();
long length = 0;
long position = 0;
try {
while (!flag.get() || !deque.isEmpty()) {
StringJoiner sj = deque.poll();
if (sj == null) {
continue;
}
byte[] bytes = sj.toString().getBytes(StandardCharsets.UTF_8);
if (length + bytes.length > PARALLE_MAX_SIZE) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
mappedByteBuffer.force();
list.clear();
position += length;
length = 0;
}
length += bytes.length;
list.add(bytes);
}
if (!list.isEmpty()) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : list) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
list.clear();
}
} catch (Exception e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
}
private static void invoke(FileChannel fileChannel, Thread readThread) {
try {
long line = 0;
long position = 0;
MappedByteBuffer mappedByteBuffer = null;
List<byte[]> deque = new LinkedList<>();
long length = 0;
while (!isFinish || !data.isEmpty()) {
if (data.size() < 1_000 && readThread != null) {
LockSupport.unpark(readThread);
}
Map<String, Object> map = data.poll();
if (map != null) {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
sj.add("\"" + map.get(key) + "\"");
}
byte[] bs = sj.toString().getBytes(StandardCharsets.UTF_8);
if (length + bs.length > MAX_SIZE) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
deque.clear();
position += length;
length = 0;
}
length += bs.length;
deque.add(bs);
}
}
if (!deque.isEmpty()) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
position += length;
deque.clear();
}
} catch (Exception e) {
e.printStackTrace();
}
}
private static void read(final int threadNum, final int pageSize) {
CountDownLatch cdl = new CountDownLatch(threadNum);
ExecutorService executorService = Executors.newFixedThreadPool(threadNum + 1);
for (int i = 0; i < threadNum; i++) {
int startPage = i * pageSize;
int endPage = (i + 1) * pageSize;
executorService.submit(() -> {
try {
parallelGetData(select(startPage, endPage), cdl, false);
} catch (SQLException e) {
e.printStackTrace();
}
});
}
executorService.submit(() -> {
try {
cdl.await();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
executorService.shutdown();
isFinish = true;
}
});
}
/**
* 30w 查询耗时:2499023ms 循环耗时:1736967ms Mapped耗时:1776848ms
*
* @param args
* @throws Exception
*/
public static void main(String[] args) throws Exception {
// long end = System.currentTimeMillis();
// System.out.println("多线程分页查询耗时:" + (end - start) + "ms");
// getData(select());
// bio();
// mappedByteBuffer();
// parallelMappedByteBuffer();
System.out.println(String.format("数据量:%s", DATA_SIZE));
five(5, 1_0000);
DATA_SIZE = 10_0000;
System.out.println(String.format("数据量:%s", DATA_SIZE));
five(5, 2_0000);
// second();
// third();
// four();
// five();
// six();
}
/**
* 第一版，单线程先读后写
* 数据量:50000
* 单线程分页查询耗时:25078ms
* 文件大小：287M 第一版耗时:62643 ms
* 数据量:100000
* 单线程分页查询耗时:81071ms
* 文件大小：575M 第一版耗时:218091 ms
*
* @throws Exception
*/
private static void first() throws Exception {
File file = new File("test.del");
file.delete();
long line = 0;
long start = System.currentTimeMillis();
getData(select());
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!data.isEmpty()) {
Map<String, Object> map = data.poll();
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第一版耗时:" + (end - start) + " ms ");
}
/**
* 第二版：读写分离
* 数据量:50000
* 单线程分页查询耗时:25921ms
* 文件大小：287M 第二版耗时:63351 ms
* 数据量:100000
* 单线程分页查询耗时:78366ms
* 文件大小：575M 第二版耗时:204218 ms
*/
private static void second() throws Exception {
File file = new File("test1.del");
file.delete();
long start = System.currentTimeMillis();
getData(select());
ExecutorService executorService = Executors.newSingleThreadExecutor();
BlockingQueue<StringJoiner> queue = new LinkedBlockingQueue<>();
AtomicBoolean flag = new AtomicBoolean(false);
executorService.submit(() -> {
int line = 0;
while (!data.isEmpty()) {
Map<String, Object> map = data.poll();
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
queue.add(sj);
}
flag.set(true);
});
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!flag.get() || !queue.isEmpty()) {
StringJoiner sj = queue.poll();
if (sj != null) {
bf.write(sj.toString());
} else {
Thread.sleep(5_00);
}
}
} catch (Exception e) {
e.printStackTrace();
}
executorService.shutdown();
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第二版耗时:" + (end - start) + " ms ");
}
/**
* 第三版：并行流加快循环速度写入
* 数据量:50000
* 单线程分页查询耗时:24282ms
* 文件大小：287M 第三版耗时:165395 ms
* 数据量:100000
* 单线程分页查询耗时:78425ms
* 文件大小：575M 第三版耗时:492103 ms
*
* @throws Exception
*/
private static void third() throws Exception {
File file = new File("test2.del");
file.delete();
long start = System.currentTimeMillis();
getData(select());
ExecutorService executorService = Executors.newSingleThreadExecutor();
AtomicLong line = new AtomicLong(0);
AtomicBoolean flag = new AtomicBoolean(false);
BlockingQueue<StringJoiner> queue = new LinkedBlockingQueue<>();
executorService.submit(() -> {
data.parallelStream().forEach(map -> {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line.incrementAndGet()));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
queue.add(sj);
});
flag.set(true);
});
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!flag.get() || !queue.isEmpty()) {
StringJoiner sj = queue.poll();
if (sj != null) {
bf.write(sj.toString());
}
}
} catch (Exception e) {
e.printStackTrace();
}
executorService.shutdown();
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第三版耗时:" + (end - start) + " ms ");
data.clear();
}
/**
* 第四版：bio读写并行
* 数据量:50000
* 单线程分页查询耗时:32781ms
* 文件大小：287M 第四版耗时:34207 ms
* 数据量:100000
* 单线程分页查询耗时:125139ms
* 文件大小：575M 第四版耗时:125863 ms
*
* @throws Exception
*/
private static void four() {
isFinish = false;
File file = new File("test3.del");
file.delete();
ExecutorService executorService = Executors.newSingleThreadExecutor();
long start = System.currentTimeMillis();
executorService.submit(() -> {
try {
parallelGetData(select(), null, false);
} catch (SQLException e) {
e.printStackTrace();
} finally {
isFinish = true;
}
});
long line = 0;
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map == null) {
continue;
}
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
sj.add("\"" + map.get(key) + "\"");
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第四版耗时:" + (end - start) + " ms ");
}
/**
* 第五版：多线程读，单线程写(bio)
* 数据量:50000
* 单线程分页查询耗时:150690ms
* 单线程分页查询耗时:165977ms
* 单线程分页查询耗时:176273ms
* 单线程分页查询耗时:171153ms
* 单线程分页查询耗时:157838ms
* 文件大小：287M 第五版耗时:187235 ms
* 数据量:100000
* 单线程分页查询耗时:184424ms
* 单线程分页查询耗时:207333ms
* 单线程分页查询耗时:186972ms
* 单线程分页查询耗时:370479ms
* 单线程分页查询耗时:226568ms
* 文件大小：575M 第五版耗时:395681 ms
*/
private static void five(int threadNum, int pageSize) {
isFinish = false;
File file = new File("test5.del");
long start = System.currentTimeMillis();
read(threadNum, pageSize);
long line = 0;
try (BufferedWriter bf = new BufferedWriter(new FileWriter(file))) {
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map == null) {
continue;
}
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
bf.write(sj.toString());
}
} catch (Exception e) {
e.printStackTrace();
} finally {
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第五版耗时:" + (end - start) + " ms ");
}
/**
* 第六版：多线程读，单线程写(nio)
*/
private static void six() {
isFinish = false;
File file = new File("test6.del");
long start = System.currentTimeMillis();
read(5, 3_0000);
long line = 0;
try (RandomAccessFile memoryAccessFile = new RandomAccessFile(file, "rw")) {
FileChannel fileChannel = memoryAccessFile.getChannel();
long position = 0;
MappedByteBuffer mappedByteBuffer = null;
List<byte[]> deque = new LinkedList<>();
long length = 0;
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map != null) {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
byte[] bs = sj.toString().getBytes(StandardCharsets.UTF_8);
if (length + bs.length > MAX_SIZE) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
deque.clear();
position += length;
length = 0;
}
length += bs.length;
deque.add(bs);
}
}
if (!deque.isEmpty()) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
position += length;
deque.clear();
}
} catch (Exception e) {
e.printStackTrace();
} finally {
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第六版耗时:" + (end - start) + " ms ");
}
/**
* nio读写并行
* 数据量:50000
* 单线程分页查询耗时:32250ms
* 文件大小：287M 第五版耗时:33274 ms
* 数据量:100000
* 单线程分页查询耗时:91807ms
* 文件大小：575M 第五版耗时:92478 ms
*
* @throws Exception
*/
private static void seven() {
isFinish = false;
File file = new File("test4.del");
file.delete();
long start = System.currentTimeMillis();
ExecutorService executorService = Executors.newSingleThreadExecutor();
executorService.submit(() -> {
try {
parallelGetData(select(), null, false);
} catch (SQLException e) {
e.printStackTrace();
} finally {
isFinish = true;
}
});
try (RandomAccessFile memoryAccessFile = new RandomAccessFile(file, "rw")) {
FileChannel fileChannel = memoryAccessFile.getChannel();
long line = 0;
long position = 0;
MappedByteBuffer mappedByteBuffer = null;
List<byte[]> deque = new LinkedList<>();
long length = 0;
while (!isFinish || !data.isEmpty()) {
Map<String, Object> map = data.poll();
if (map != null) {
StringJoiner sj = new StringJoiner(",", "", "\r\n");
sj.add(String.valueOf(line++));
for (String key : map.keySet()) {
if (map.get(key) instanceof Clob) {
sj.add("\"" + clobToString((Clob) map.get(key)) + "\"");
} else {
sj.add("\"" + map.get(key) + "\"");
}
}
byte[] bs = sj.toString().getBytes(StandardCharsets.UTF_8);
if (length + bs.length > MAX_SIZE) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
deque.clear();
position += length;
length = 0;
}
length += bs.length;
deque.add(bs);
}
}
if (!deque.isEmpty()) {
mappedByteBuffer = fileChannel.map(FileChannel.MapMode.READ_WRITE, position, length);
for (byte[] b : deque) {
mappedByteBuffer.put(b);
}
mappedByteBuffer.force();
position += length;
deque.clear();
}
} catch (IOException e) {
e.printStackTrace();
} finally {
executorService.shutdown();
}
long end = System.currentTimeMillis();
System.out.println("文件大小：" + (file.length() / 1024 / 1024) + "M 第六版耗时:" + (end - start) + " ms ");
}
private static ResultSet select() throws SQLException {
return select(0, DATA_SIZE);
}
private static ResultSet select(int start, int end) throws SQLException {
PreparedStatement pstmt = ds.getConnection().prepareStatement("SELECT * FROM " +
"( SELECT A.*, ROWNUM RN FROM (SELECT empno,ename,job,mgr,hiredate,sal,comm,deptno,INFO FROM TEST_EMP ) A WHERE ROWNUM < ? ) WHERE RN >= ?");
pstmt.setInt(1, end);
pstmt.setInt(2, start);
pstmt.setFetchSize(1_000);
return pstmt.executeQuery();
}
private static void getData(ResultSet rs) throws SQLException {
getData(rs, null, false);
}
private static void getData(ResultSet rs, CountDownLatch cdl) throws SQLException {
getData(rs, cdl, false);
}
private static void parallelGetData(ResultSet rs, CountDownLatch cdl, boolean isPark) throws SQLException {
try {
long start = System.currentTimeMillis();
int columnCount = rs.getMetaData().getColumnCount();
while (rs.next()) {
Map<String, Object> map = new HashMap<>();
for (int i = 1; i <= columnCount; i++) {
if (rs.getObject(i) instanceof Clob) {
map.put(rs.getMetaData().getColumnName(i), clobToString((Clob) rs.getObject(i)));
} else {
map.put(rs.getMetaData().getColumnName(i), rs.getObject(i));
}
}
if (isPark) {
if (data.size() > 5_0000) {
LockSupport.park();
}
}
data.add(map);
}
long end = System.currentTimeMillis();
System.out.println("单线程分页查询耗时:" + (end - start) + "ms");
} catch (Exception e) {
e.printStackTrace();
} finally {
rs.close();
rs.getStatement().close();
if (cdl != null)
cdl.countDown();
}
}
private static void getData(ResultSet rs, CountDownLatch cdl, boolean isPark) throws SQLException {
try {
long start = System.currentTimeMillis();
int columnCount = rs.getMetaData().getColumnCount();
while (rs.next()) {
Map<String, Object> map = new HashMap<>();
for (int i = 1; i <= columnCount; i++) {
map.put(rs.getMetaData().getColumnName(i), rs.getObject(i));
}
if (isPark) {
if (data.size() > 5_0000) {
LockSupport.park();
}
}
data.add(map);
}
long end = System.currentTimeMillis();
System.out.println("单线程分页查询耗时:" + (end - start) + "ms");
} catch (Exception e) {
e.printStackTrace();
} finally {
rs.close();
rs.getStatement().close();
if (cdl != null)
cdl.countDown();
}
}
private static String clobToString(Clob clob) {
try {
Reader is = clob.getCharacterStream();// 得到流
BufferedReader br = new BufferedReader(is);
String s = br.readLine();
StringBuffer sb = new StringBuffer();
while (s != null) {// 执行循环将字符串全部取出付值给StringBuffer由StringBuffer转成STRING
sb.append(s + "\n");
s = br.readLine();
}
return sb.toString();
} catch (Exception e) {
}
return "";
}
}
连接池配置
driverClassName=oracle.jdbc.driver.OracleDriver
url=jdbc:oracle:thin:@127.0.0.1:1521/orcl
username=scott
password=scott
#初始化连接数量
initialSize=10
#最大连接数
maxActive=20
#最大等待时间
maxWait=3000
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.hqd</groupId>
<artifactId>test-001</artifactId>
<version>1.0-SNAPSHOT</version>
<dependencies>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.6</version>
</dependency>
<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc6</artifactId>
<version>11.2.0.3</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>utf8</encoding>
</configuration>
</plugin>
</plugins>
</build>
</project>
如果数据量继续增长，瓶颈在IO或者是网络，这时候是否就得考虑分库分表和集群了？(￣▽￣)~
浙公网安备 33010602011771号
