XCode Script脚本实现符号文件上传到bugly
bugly解析错误信息需要符号文件，而符号文件每次都要手动去上传，有时候遗漏了，archive文件被删除后，想要解析出崩溃信息就很难了，所以，可以通过添加脚本，在archive完成的时候，自动上传符号文件到bugly
手动上传符号文件可以看这里
官方上传符号文件java工具包：buglyqq-upload-symbol
官方符号文件解析java工具包：buglySymboliOS
1.下载上面两个工具包，完成后在/Users/用户名/ [也就是$HOME目录] 建一个bin目录 把buglyqq-upload-symbol.jar和buglySymboliOS.jar拷贝bin目录中，后面的shell脚本会用到这两个文件

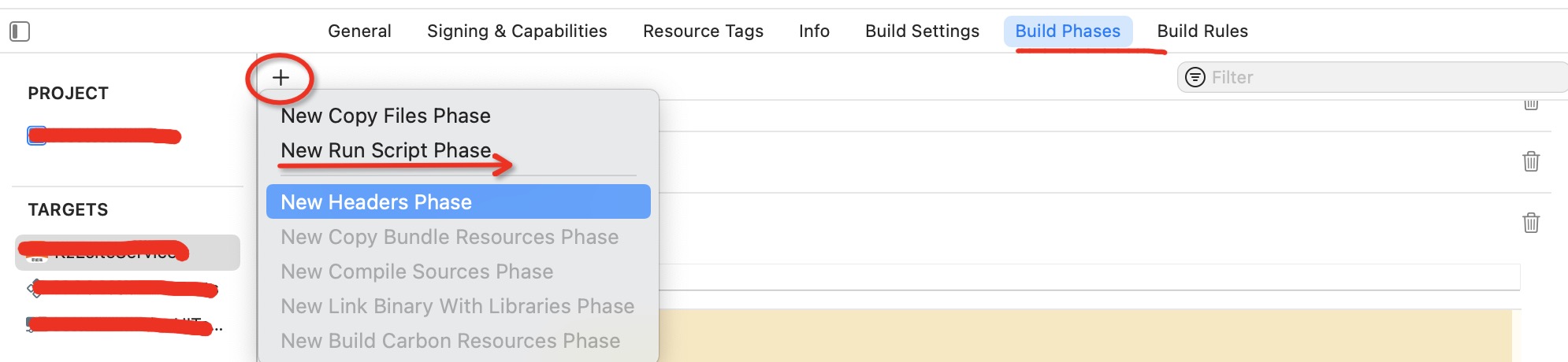

2.打开Xcode工程 在build Phases中添加一个script脚本文件，把下面代码shell脚本复制到文件中
3.配置BUGLY_APP_ID/BUGLY_APP_KEY对应的值即可 注意 buglyqq-upload-symbol.jar和buglySymboliOS.jar这两个文件一定要在$HOME/bin目录下，或者你也可以单独配置对应的路径 只要能找到这两个文件即可
4.执行archive会发现生成的符号文件自动上传到bugly了
注：脚本文件是在bugly官方脚本基础上做的修改，原来的通过url直接上传到bugly的方式已经失效，新脚本使用buglyqq-upload-symbol.jar来实现上传功能
XCode环境变量宏定义可以看这里

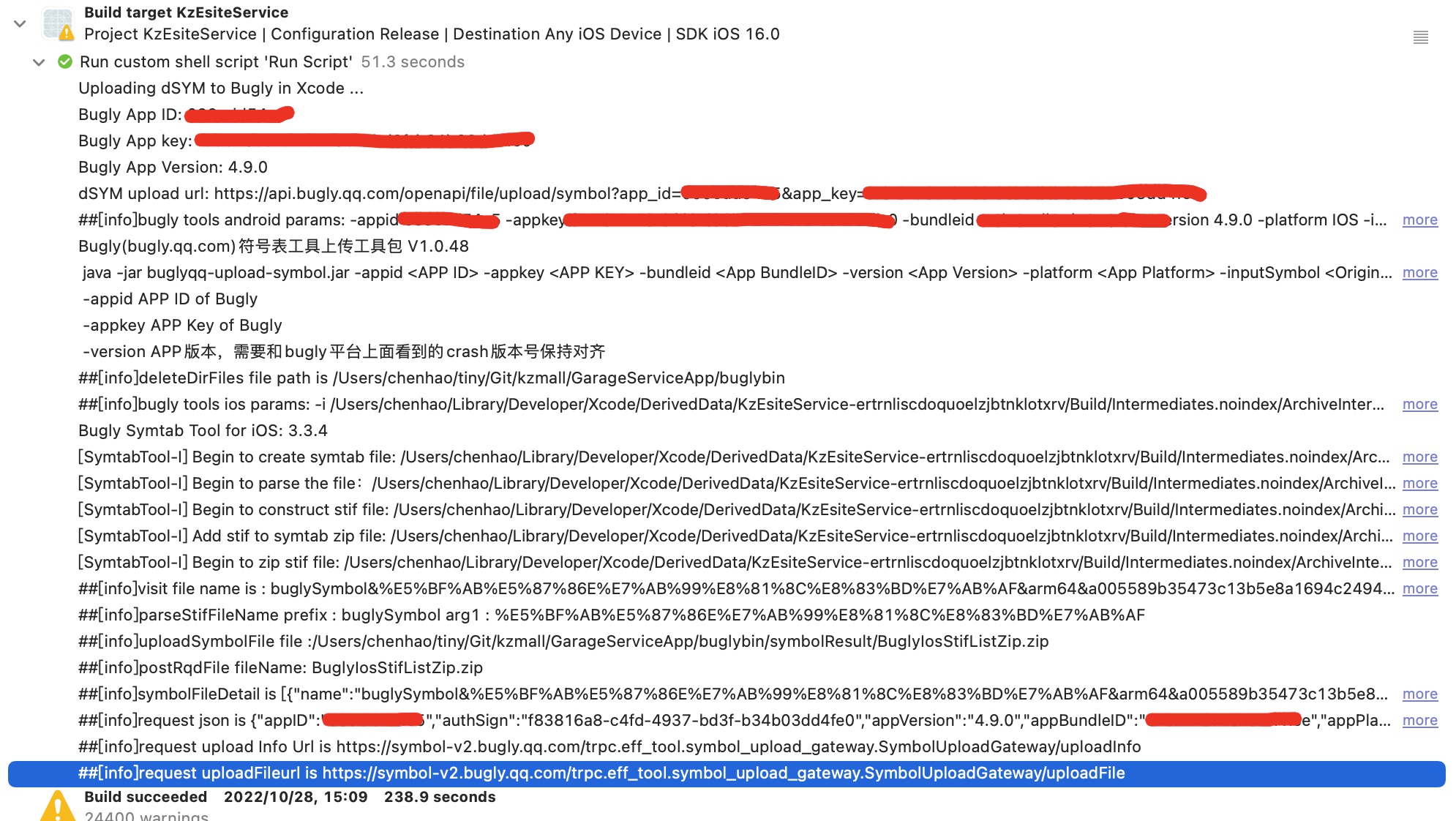

上传成功可以在XCode看到上传符号文件的记录
#!/bin/sh
#
# Copyright 2016 Bugly, Tencent. All rights reserved.
#
# V1.4.0
#
# 2016.08.03
#
#
#
######################################################
# 1. 脚本集成到Xcode工程的Target
######################################################
#
# --- Copy the SCRIPT to the Run Script of Build Phases in the Xcode project ---
#
# #
BUGLY_APP_ID="xxxxxxx"
# #
BUGLY_APP_KEY="xxxxxxx"
# #
UPLOAD_DSYM_ONLY=1
#
# # 脚本默认配置的版本格式为CFBundleShortVersionString(CFBundleVersion), 如果你修改默认的版本格式, 请设置此变量, 如果不想修改, 请忽略此设置
# CUSTOMIZED_APP_VERSION=""
#
# # Debug模式编译是否上传，1＝上传 0＝不上传，默认不上传
UPLOAD_DEBUG_SYMBOLS=0
#
# # 模拟器编译是否上传，1=上传 0=不上传，默认不上传
UPLOAD_SIMULATOR_SYMBOLS=0
#
# #只有Archive操作时上传, 1=支持Archive上传 0=所有Release模式编译都上传
UPLOAD_ARCHIVE_ONLY=1
#
# #
# source dSYMUpload.sh
#
# --- END OF SCRIPT ---
#
#
#
#
#######################################################
# 2. 脚本根据输入参数处理
#######################################################
#
# #命令行下输入应用基本信息, .dSYM文件的父目录路径, 输出文件目录即可
#
# sh dSYMUpload.sh <bugly_app_id> <bugly_app_key> <app_bundle_identifier> <app_version> <dSYM_src_dir> <bSYMBOL_dest_dir>
#
# #
#
# #注意:
# # 1. dSYMUpload.sh会调用buglySymboliOS.jar进行.dSYM解析，所以依赖Java运行时环境
# # 2. dSYMUpload.sh和buglySymboliOS.jar的文件路径需一致
#
#
#
# --- CONTENT OF SCRIPT ---
#
# dsym文件
AppDsymFile = ""
# Bugly服务域名
BUGLY_DSYM_UPLOAD_DOMAIN="api.bugly.qq.com"
# 注意jar工具的路径跟dSYMUpload.sh脚本路径一致, 请务必保证jar路径的正确性
BUGLY_SYMBOL_JAR_PATH="dsymtool/buglySymboliOS.jar"
# 查找添加到系统目录的jar工具
if [ ! -f "${BUGLY_SYMBOL_JAR_PATH}" ]; then
BUGLY_SYMBOL_JAR_PATH="$HOME/bin/buglySymboliOS.jar"
fi
BUGLFQQ_UPLOAD_SYMOBL_PATH="$HOME/bin/buglyqq-upload-symbol.jar"
# 打印错误信息
function exitWithMessage(){
echo "--------------------------------"
echo "${1}"
echo "--------------------------------"
exit ${2}
}
# 上传bSYMBOL文件
function dSYMUpload() {
P_APP_ID="$1"
P_APP_KEY="$2"
P_APP_BUNDLE_ID="$3"
P_APP_VERSION="$4"
P_BSYMBOL_ZIP_FILE="$5"
dsymFile = "$6"
#
P_BSYMBOL_ZIP_FILE_NAME=${P_BSYMBOL_ZIP_FILE##*/}
P_BSYMBOL_ZIP_FILE_NAME=${P_BSYMBOL_ZIP_FILE_NAME//&/_}
P_BSYMBOL_ZIP_FILE_NAME="${P_BSYMBOL_ZIP_FILE_NAME// /_}"
DSYM_UPLOAD_URL="https://${BUGLY_DSYM_UPLOAD_DOMAIN}/openapi/file/upload/symbol?app_id=${P_APP_ID}&app_key=${P_APP_KEY}"
echo "dSYM upload url: ${DSYM_UPLOAD_URL}"
echo "-----------------------------"
# STATUS=$(/usr/bin/curl -k "${DSYM_UPLOAD_URL}" --form "api_version=1" --form "app_id=${P_APP_ID}" --form "app_key=${P_APP_KEY}" --form "symbolType=2" --form "bundleId=${BUNDLE_IDENTIFIER}" --form "productVersion=${BUGLY_APP_VERSION}" --form "fileName=${P_BSYMBOL_ZIP_FILE_NAME}" --form "file=@${P_BSYMBOL_ZIP_FILE}" --verbose)
#防止太快，打包不了
sleep 30
(/usr/bin/java -Xms512m -Xmx1024m -Dfile.encoding=UTF8 -jar ${BUGLFQQ_UPLOAD_SYMOBL_PATH} -appid "${P_APP_ID}" -appkey "${P_APP_KEY}" -bundleid "${BUNDLE_IDENTIFIER}" -version "${BUGLY_APP_VERSION}" -platform "IOS" -inputSymbol ${dsymFile})
echo "-----------------------------"
echo "dSYM upload complete."
# UPLOAD_RESULT="FAILTURE"
# echo "Bugly server response: ${STATUS}"
# if [ ! "${STATUS}" ]; then
# echo "Error: Failed to upload the zip archive file."
# elif [[ "${STATUS}" == *"{\"reponseCode\":\"0\"}"* ]]; then
# echo "Success to upload the dSYM for the app [${BUNDLE_IDENTIFIER} ${BUGLY_APP_VERSION}]"
# UPLOAD_RESULT="SUCCESS"
# else
# echo "Error: Failed to upload the zip archive file to Bugly."
# fi
#Remove temp dSYM archive
#echo "Remove temporary zip archive: ${DSYM_ZIP_FPATH}"
#/bin/rm -f "${DSYM_ZIP_FPATH}"
# if [ "$?" -ne 0 ]; then
# exitWithMessage "Error: Failed to remove temporary zip archive." 0
# fi
# echo "--------------------------------"
# echo "${UPLOAD_RESULT} - dSYM upload complete."
# if [[ "${UPLOAD_RESULT}" == "FAILTURE" ]]; then
# echo "--------------------------------"
# echo "Failed to upload the dSYM"
# echo "Please check the script and try it again."
# fi
}
# .dSYM解析为bSYMBOL文件
function dSYMParse() {
DSYM_FILE="$1"
DSYM_SYMBOL_FILE="$2"
echo "--------------------------------"
echo "Extract symbol info from .dSYM file. to ${DSYM_SYMBOL_FILE}"
(/usr/bin/java -Xms512m -Xmx1024m -Dfile.encoding=UTF8 -jar "${BUGLY_SYMBOL_JAR_PATH}" -i "${DSYM_FILE}" -o "${DSYM_SYMBOL_FILE}" ) || exitWithMessage "Error: Failed to extract symbols." 1
echo "--------------------------------"
}
# 执行
function run() {
CONFIG_BUGLY_APP_ID="$1"
CONFIG_BUGLY_APP_KEY="$2"
CONFIG_BUGLY_APP_BUNDLE_IDENTIFIER="$3"
CONFIG_BUGLY_APP_VERSION="$4"
CONFIG_DSYM_SOURCE_DIR="$5"
CONFIG_DSYM_DEST_DIR="$6"
CONFIG_UPLOAD_DSYM_ONLY="$7"
# 检查必须参数是否设置
if [ ! "${CONFIG_BUGLY_APP_ID}" ]; then
exitWithMessage "Error: Bugly App ID not defined. Please set 'BUGLY_APP_ID' " 0
fi
if [[ "${CONFIG_BUGLY_APP_ID}" == *"App ID"* ]]; then
exitWithMessage "Error: Bugly App ID not defined." 0
fi
if [ ! "${CONFIG_BUGLY_APP_KEY}" ]; then
exitWithMessage "Error: Bugly App Key not defined." 0
fi
if [ ! "${CONFIG_BUGLY_APP_BUNDLE_IDENTIFIER}" ]; then
exitWithMessage "Error: Bundle Identifier not defined." 0
fi
if [ ! "${CONFIG_BUGLY_APP_VERSION}" ]; then
exitWithMessage "Error: App Version not defined." 0
fi
if [ ! -e "${CONFIG_DSYM_SOURCE_DIR}" ]; then
exitWithMessage "Error: Invalid dir ${CONFIG_DSYM_SOURCE_DIR}" 0
fi
if [ ! "${CONFIG_DSYM_DEST_DIR}" ]; then
exitWithMessage "Error: Invalid dir ${CONFIG_DSYM_DEST_DIR}" 0
fi
if [ ! -e "${CONFIG_DSYM_DEST_DIR}" ]; then
mkdir ${CONFIG_DSYM_DEST_DIR}
fi
DSYM_FOLDER="${CONFIG_DSYM_SOURCE_DIR}"
IFS=$'\n'
echo "Scaning dSYM FOLDER: ${DSYM_FOLDER} ..."
RET="F"
#
for dsymFile in $(find "$DSYM_FOLDER" -name '*.dSYM'); do
RET="T"
echo "Found dSYM file: $dsymFile"
DSYM_FILE_NAME=${dsymFile##*/}
DSYM_SYMBOL_ZIP_FILE_NAME="${DSYM_FILE_NAME}.zip"
DSYM_SYMBOL_ZIP_FILE_NAME="${DSYM_SYMBOL_ZIP_FILE_NAME// /_}"
DSYM_SYMBOL_ZIP_FILE=${CONFIG_DSYM_DEST_DIR}/${DSYM_SYMBOL_ZIP_FILE_NAME}
if [ $CONFIG_UPLOAD_DSYM_ONLY -eq 1 ]; then
if [ -e $DSYM_SYMBOL_ZIP_FILE ]; then
rm -f $DSYM_SYMBOL_ZIP_FILE
fi
# 如果只上传dSYM，直接压缩dSYM目录
zip -r -j $DSYM_SYMBOL_ZIP_FILE $dsymFile -x *.plist
else
# 使用符号表工具来生成Symbol文件
dSYMParse $dsymFile $DSYM_SYMBOL_ZIP_FILE
fi
# 上传
# dSYMUpload $CONFIG_BUGLY_APP_ID $CONFIG_BUGLY_APP_KEY $CONFIG_BUGLY_APP_BUNDLE_IDENTIFIER $CONFIG_BUGLY_APP_VERSION $DSYM_SYMBOL_ZIP_FILE $dsymFile
if echo "$dsymFile" | grep -q -E '\.app.dSYM$'; then
dSYMUpload $CONFIG_BUGLY_APP_ID $CONFIG_BUGLY_APP_KEY $CONFIG_BUGLY_APP_BUNDLE_IDENTIFIER $CONFIG_BUGLY_APP_VERSION $DSYM_SYMBOL_ZIP_FILE $dsymFile
fi
done
if [ $RET = "F" ]; then
exitWithMessage "No .dSYM found in ${DSYM_FOLDER}" 0
fi
}
# 在Xcode工程中执行
function runInXcode(){
echo "Uploading dSYM to Bugly in Xcode ..."
echo "Info.Plist : ${INFOPLIST_FILE}"
# BUNDLE_VERSION=$(/usr/libexec/PlistBuddy -c 'Print CFBundleVersion' "${INFOPLIST_FILE}")
# BUNDLE_SHORT_VERSION=$(/usr/libexec/PlistBuddy -c 'Print CFBundleShortVersionString' "${INFOPLIST_FILE}")
BUNDLE_VERSION="$MARKETING_VERSION"
BUNDLE_SHORT_VERSION="$CURRENT_PROJECT_VERSION"
BUNDLE_IDENTIFIER="${PRODUCT_BUNDLE_IDENTIFIER}"
# 组装Bugly默认识别的版本信息(格式为CFBundleShortVersionString(CFBundleVersion), 例如: 1.0(1))
# if [ ! "${CUSTOMIZED_APP_VERSION}" ]; then
# BUGLY_APP_VERSION="${BUNDLE_SHORT_VERSION}(${BUNDLE_VERSION})"
# else
BUGLY_APP_VERSION="${BUNDLE_VERSION}"
# fi
echo "--------------------------------"
echo "Prepare application information."
echo "--------------------------------"
echo "Product Name: ${PRODUCT_NAME}"
echo "Bundle Identifier: ${BUNDLE_IDENTIFIER}"
echo "Version: ${BUNDLE_SHORT_VERSION}"
echo "Build: ${BUNDLE_VERSION}"
echo "Bugly App ID: ${BUGLY_APP_ID}"
echo "Bugly App key: ${BUGLY_APP_KEY}"
echo "Bugly App Version: ${BUGLY_APP_VERSION}"
echo "--------------------------------"
echo "Check the arguments ..."
##检查模拟器编译是否允许上传符号
if [ "$EFFECTIVE_PLATFORM_NAME" == "-iphonesimulator" ]; then
if [ $UPLOAD_SIMULATOR_SYMBOLS -eq 0 ]; then
exitWithMessage "Warning: Build for simulator and skipping to upload. \nYou can modify 'UPLOAD_SIMULATOR_SYMBOLS' to 1 in the script." 0
fi
fi
##检查是否是Release模式编译
if [ "${CONFIGURATION=}" == "Debug" ]; then
if [ $UPLOAD_DEBUG_SYMBOLS -eq 0 ]; then
exitWithMessage "Warning: Build for debug mode and skipping to upload. \nYou can modify 'UPLOAD_DEBUG_SYMBOLS' to 1 in the script." 0
fi
fi
##检查是否Archive操作
if [ $UPLOAD_ARCHIVE_ONLY -eq 1 ]; then
if [[ "$TARGET_BUILD_DIR" == *"/Archive"* ]]; then
echo "Archive the package"
else
exitWithMessage "Warning: Build for NOT Archive mode and skipping to upload. \nYou can modify 'UPLOAD_ARCHIVE_ONLY' to 0 in the script." 0
fi
fi
#
run ${BUGLY_APP_ID} ${BUGLY_APP_KEY} ${BUNDLE_IDENTIFIER} ${BUGLY_APP_VERSION} ${DWARF_DSYM_FOLDER_PATH} ${BUILD_DIR}/BuglySymbolTemp ${UPLOAD_DSYM_ONLY}
}
# 根据Xcode的环境变量判断是否处于Xcode环境
INFO_PLIST_FILE="${INFOPLIST_FILE}"
BuildInXcode="F"
if [ -f "${INFO_PLIST_FILE}" ]; then
BuildInXcode="T"
fi
if [ $BuildInXcode = "T" ]; then
runInXcode
else
echo "\nUsage: dSYMUpload.sh <bugly_app_id> <bugly_app_key> <app_bundle_identifier> <app_version> <dSYM_src_dir> <bSYMBOL_dest_dir> [upload_dsym_only]\n"
# 你可以在此处直接设置BuglyAppID和BuglyAppKey，排除不常变参数的输入
BUGLY_APP_ID="$1"
BUGLY_APP_KEY="$2"
BUNDLE_IDENTIFIER="$3"
BUGLY_APP_VERSION="$4"
DWARF_DSYM_FOLDER_PATH="$5"
SYMBOL_OUTPUT_PATH="$6"
UPLOAD_DSYM_ONLY=$7
run ${BUGLY_APP_ID} ${BUGLY_APP_KEY} ${BUNDLE_IDENTIFIER} ${BUGLY_APP_VERSION} ${DWARF_DSYM_FOLDER_PATH} ${SYMBOL_OUTPUT_PATH} ${UPLOAD_DSYM_ONLY}
fi
