常用页面效果 --- 京东商品图片放大镜效果

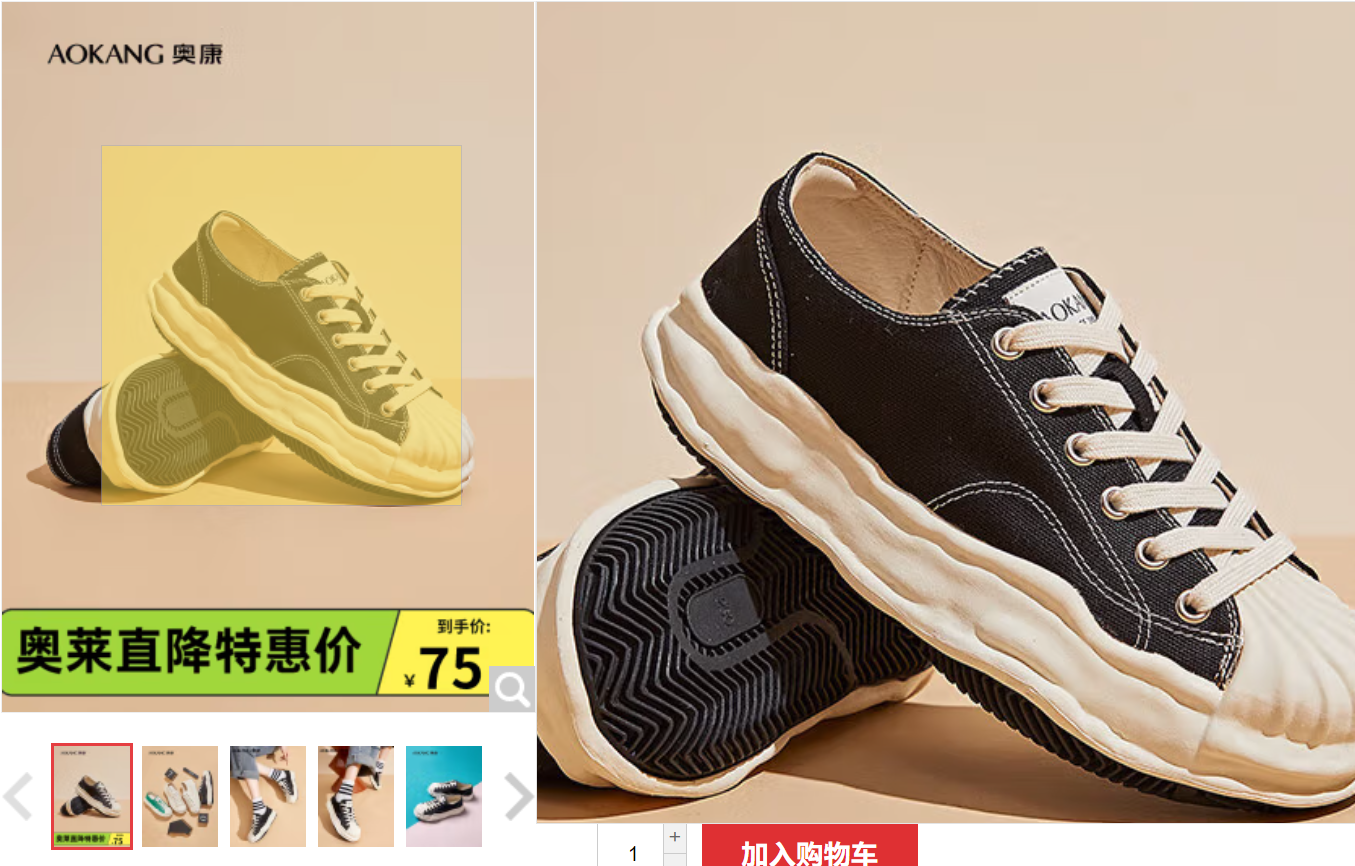

1. 效果图
当鼠标悬浮在图片中,会放大图片的细节
2. 素材
3. 实现
1. 鼠标悬浮在右侧小图时,左侧中图显示对应鼠标悬浮的图片
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<style>
*{
border: 0;
margin: 0;
}
.box .middle{
width: 350px;
height: 466px;
position: relative;
}
.box .small{
width: 100px;
position: absolute;
top: 0;
left: 320px;
}
.box .small img{
width: 90px;
height: 90px;
margin-top: 5px;
}
.active{
border: 2px solid red;
}
.box .small li img:first-child{
margin-top: 0;
}
li{
list-style: none;
}
</style>
</head>
<body>
<div class="box">
<div class="middle">
<img src="jpgs/0.jpg" alt="">
</div>
<ul class="small">
<li class="active"><img src="jpgs/0.jpg" alt=""></li>
<li><img src="jpgs/1.jpg" alt=""></li>
<li><img src="jpgs/2.jpg" alt=""></li>
<li><img src="jpgs/3.jpg" alt=""></li>
<li><img src="jpgs/4.jpg" alt=""></li>
</ul>
<div class="large"></div>
</div>
<script>
const small = document.querySelector(".box .small")
const middle = document.querySelector(".box .middle")
const large = document.querySelector(".box .large")
// 1. 鼠标悬浮在右侧小图时,左侧中图显示对应鼠标悬浮的图片
small.addEventListener("mouseover",function (e) {
if (e.target.tagName === "IMG"){
// 删除其他元素的选中效果
this.querySelector(".active").classList.remove("active")
// 给当前元素加选中效果
e.target.parentNode.classList.add("active")
// 换掉中图的img标签的src属性值
middle.children[0].src = e.target.src
}
})
</script>
</body>
</html>
2. 鼠标悬浮在中等盒子,右侧显示大盒子,并且悬浮大盒子时,一样显示大盒子
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<style>
*{
border: 0;
margin: 0;
}
.box .middle{
width: 350px;
height: 466px;
position: relative;
}
.box .small{
width: 100px;
position: absolute;
top: 0;
left: 320px;
}
.box .small img{
width: 90px;
height: 90px;
margin-top: 5px;
}
.active{
border: 2px solid red;
}
.box .small li img:first-child{
margin-top: 0;
}
li{
list-style: none;
}
.large{
width: 466px;
height: 466px;
display: none;
position: absolute;
background-size: 700px 932px;
top: 0;
left: 350px;
}
</style>
</head>
<body>
<div class="box">
<div class="middle">
<img src="images/0.jpg" alt="">
</div>
<ul class="small">
<li class="active"><img src="images/0.jpg" alt=""></li>
<li><img src="images/1.jpg" alt=""></li>
<li><img src="images/2.jpg" alt=""></li>
<li><img src="images/3.jpg" alt=""></li>
<li><img src="images/4.jpg" alt=""></li>
</ul>
<div class="large"></div>
</div>
<script>
const small = document.querySelector(".box .small")
const middle = document.querySelector(".box .middle")
const large = document.querySelector(".box .large")
// 1. 鼠标悬浮在右侧小图时,左侧中图显示对应鼠标悬浮的图片
small.addEventListener("mouseover",function (e) {
if (e.target.tagName === "IMG"){
// 删除其他元素的选中效果
this.querySelector(".active").classList.remove("active")
// 给当前元素加选中效果
e.target.parentNode.classList.add("active")
// 换掉中图的img标签的src属性值
middle.children[0].src = e.target.src
// 换掉大盒子的背景图片
console.log(`url${e.target.src}`)
large.style.backgroundImage = `url(${e.target.src})`
}
})
// 2. 鼠标悬浮在中等盒子,右侧显示大盒子
middle.addEventListener("mouseenter",show)
// 2.1 鼠标离开中等盒子,等200ms隐藏大盒子
middle.addEventListener("mouseleave",deShow)
let timerID = null
function show() {
if (large.style.backgroundImage){
clearTimeout(timerID)
large.style.display = "block"
}
}
function deShow() {
timerID= setTimeout(function () {
large.style.display = "none"
},200)
}
// 2. 鼠标悬浮在大盒子,右侧显示大盒子
large.addEventListener("mouseenter",show)
// 2.1 鼠标离开大盒子,等200ms隐藏大盒子
large.addEventListener("mouseleave",deShow)
</script>
</body>
</html>
3. 让黑色遮罩层跟着鼠标走
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<style>
* {
border: 0;
margin: 0;
}
.box {
height: 2000px;
position: relative;
top: 200px;
left: 200px;
}
.box .middle img{
width: 350px;
height: 466px;
}
.box .small {
width: 100px;
position: absolute;
top: 0;
left: 320px;
}
.box .small img {
width: 90px;
height: 90px;
margin-top: 5px;
}
.active {
border: 2px solid red;
}
.box .small li img:first-child {
margin-top: 0;
}
li {
list-style: none;
}
.large {
width: 466px;
height: 466px;
display: none;
position: absolute;
background-size: 700px 932px;
top: 0;
left: 350px;
}
.layer {
width: 200px;
height: 200px;
background-color: gray;
opacity: .3;
display: none;
position: absolute;
top: 0;
left: 0;
}
</style>
</head>
<body>
<div class="box">
<div class="middle">
<img src="images/0.jpg" alt="">
<div class="layer"></div>
</div>
<ul class="small">
<li class="active"><img src="images/0.jpg" alt=""></li>
<li><img src="images/1.jpg" alt=""></li>
<li><img src="images/2.jpg" alt=""></li>
<li><img src="images/3.jpg" alt=""></li>
<li><img src="images/4.jpg" alt=""></li>
</ul>
<div class="large"></div>
</div>
<script>
const small = document.querySelector(".box .small")
const middle = document.querySelector(".box .middle")
const large = document.querySelector(".box .large")
const layer = document.querySelector(".box .middle .layer")
// 1. 鼠标悬浮在右侧小图时,左侧中图显示对应鼠标悬浮的图片
small.addEventListener("mouseover", function (e) {
if (e.target.tagName === "IMG") {
// 删除其他元素的选中效果
this.querySelector(".active").classList.remove("active")
// 给当前元素加选中效果
e.target.parentNode.classList.add("active")
// 换掉中图的img标签的src属性值
middle.children[0].src = e.target.src
// 换掉大盒子的背景图片
console.log(`url${e.target.src}`)
large.style.backgroundImage = `url(${e.target.src})`
}
})
// 2. 鼠标悬浮在中等盒子,右侧显示大盒子
middle.addEventListener("mouseenter", show)
// 2.1 鼠标离开中等盒子,等200ms隐藏大盒子
middle.addEventListener("mouseleave", deShow)
let timerID = null
function show() {
if (large.style.backgroundImage) {
clearTimeout(timerID)
large.style.display = "block"
}
}
function deShow() {
timerID = setTimeout(function () {
large.style.display = "none"
}, 200)
}
// 2. 鼠标悬浮在大盒子,右侧显示大盒子
large.addEventListener("mouseenter", show)
// 2.1 鼠标离开大盒子,等200ms隐藏大盒子
large.addEventListener("mouseleave", deShow)
// 3. 中等盒子中的黑色遮罩层
// 实现思路:
// 3.1 显示隐藏 黑色遮罩 的盒子
middle.addEventListener("mouseenter", function () {
layer.style.display = "block"
})
middle.addEventListener("mouseleave", function () {
layer.style.display = "none"
})
// 3.2 让黑色这招跟着鼠标走,需要用到鼠标移动事件 mousemove 让黑色盒子移动的核心思想: 不断的将鼠标在中等盒子内的坐标给黑色遮罩层,这样遮罩层就可以跟着一起移动了
middle.addEventListener("mousemove", function (e) {
// 1. 先得到鼠标在整个页面的坐标
let mouseX = e.pageX
let mouseY = e.pageY
// 2. 再得到当前盒子在整个页面的坐标
let boxX = middle.getBoundingClientRect().left
let boxY = middle.getBoundingClientRect().top
let x = mouseX - boxX
// 3. 盒子距顶部的距离会根据鼠标滚动页面的变化而变化,所以需要减去鼠标滚动的距离
let y = mouseY - boxY - document.documentElement.scrollTop
// 4. 不断的将鼠标在中等盒子内的坐标给黑色遮罩层
// 限定水平方向大于等于0,小于等于350
// 限定垂直方向大于等于0,小于等于466
// 水平坐标x,如果小于等于100(阴影遮罩宽度的一半),移动距离固定为0,不应该移动
// 水平坐标x,如果大于等于100,小于等于350-200(整个遮罩层的宽度),则移动距离为x-100(阴影遮罩宽度的一半)
// 水平坐标x,如果大于等于250,移动距离固定为350-200(整个遮罩层的宽度),就不应该移动了
// 垂直坐标y,同理
if (0<=x<350 && 0<=y<=466){
let mx=0,my=0
if (x<=100) mx=0
if (x>=250) mx=150
if (x>=100&&x<=250) mx = x - 100
layer.style.left = mx + "px"
if (y<=100) my=0
if (y>=366) my=266
if (y>=100 && y<=366) my = y -100
layer.style.top = my + "px"
}
})
</script>
</body>
</html>
4. 大盒子的背景图片坐标要跟着鼠标在中等盒子的移动而反向移动
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<style>
* {
border: 0;
margin: 0;
}
.box {
height: 2000px;
position: relative;
top: 200px;
left: 200px;
}
.box .middle img{
width: 350px;
height: 466px;
}
.box .small {
width: 100px;
position: absolute;
top: 0;
left: 320px;
}
.box .small img {
width: 90px;
height: 90px;
margin-top: 5px;
}
.active {
border: 2px solid red;
}
.box .small li img:first-child {
margin-top: 0;
}
li {
list-style: none;
}
.large {
width: 350px;
height: 466px;
display: none;
position: absolute;
background-size: 700px 932px;
top: 0;
left: 350px;
}
.layer {
width: 200px;
height: 200px;
background-color: gray;
opacity: .3;
display: none;
position: absolute;
top: 0;
left: 0;
}
</style>
</head>
<body>
<div class="box">
<div class="middle">
<img src="images/0.jpg" alt="">
<div class="layer"></div>
</div>
<ul class="small">
<li class="active"><img src="images/0.jpg" alt=""></li>
<li><img src="images/1.jpg" alt=""></li>
<li><img src="images/2.jpg" alt=""></li>
<li><img src="images/3.jpg" alt=""></li>
<li><img src="images/4.jpg" alt=""></li>
</ul>
<div class="large"></div>
</div>
<script>
const small = document.querySelector(".box .small")
const middle = document.querySelector(".box .middle")
const large = document.querySelector(".box .large")
const layer = document.querySelector(".box .middle .layer")
// 1. 鼠标悬浮在右侧小图时,左侧中图显示对应鼠标悬浮的图片
small.addEventListener("mouseover", function (e) {
if (e.target.tagName === "IMG") {
// 删除其他元素的选中效果
this.querySelector(".active").classList.remove("active")
// 给当前元素加选中效果
e.target.parentNode.classList.add("active")
// 换掉中图的img标签的src属性值
middle.children[0].src = e.target.src
// 换掉大盒子的背景图片
console.log(`url${e.target.src}`)
large.style.backgroundImage = `url(${e.target.src})`
}
})
// 2. 鼠标悬浮在中等盒子,右侧显示大盒子
middle.addEventListener("mouseenter", show)
// 2.1 鼠标离开中等盒子,等200ms隐藏大盒子
middle.addEventListener("mouseleave", deShow)
let timerID = null
function show() {
if (large.style.backgroundImage) {
clearTimeout(timerID)
large.style.display = "block"
}
}
function deShow() {
timerID = setTimeout(function () {
large.style.display = "none"
}, 200)
}
// 2. 鼠标悬浮在大盒子,右侧显示大盒子
large.addEventListener("mouseenter", show)
// 2.1 鼠标离开大盒子,等200ms隐藏大盒子
large.addEventListener("mouseleave", deShow)
// 3. 中等盒子中的黑色遮罩层
// 实现思路:
// 3.1 显示隐藏 黑色遮罩 的盒子
middle.addEventListener("mouseenter", function () {
layer.style.display = "block"
})
middle.addEventListener("mouseleave", function () {
layer.style.display = "none"
})
// 3.2 让黑色这招跟着鼠标走,需要用到鼠标移动事件 mousemove 让黑色盒子移动的核心思想: 不断的将鼠标在中等盒子内的坐标给黑色遮罩层,这样遮罩层就可以跟着一起移动了
middle.addEventListener("mousemove", function (e) {
// 1. 先得到鼠标在整个页面的坐标
let mouseX = e.pageX
let mouseY = e.pageY
// 2. 再得到当前盒子在整个页面的坐标
let boxX = middle.getBoundingClientRect().left
let boxY = middle.getBoundingClientRect().top
let x = mouseX - boxX
// 3. 盒子距顶部的距离会根据鼠标滚动页面的变化而变化,所以需要减去鼠标滚动的距离
let y = mouseY - boxY - document.documentElement.scrollTop
// 4. 不断的将鼠标在中等盒子内的坐标给黑色遮罩层
// 限定水平方向大于等于0,小于等于350
// 限定垂直方向大于等于0,小于等于466
// 水平坐标x,如果小于等于100(阴影遮罩宽度的一半),移动距离固定为0,不应该移动
// 水平坐标x,如果大于等于100,小于等于350-200(整个遮罩层的宽度),则移动距离为x-100(阴影遮罩宽度的一半)
// 水平坐标x,如果大于等于250,移动距离固定为350-200(整个遮罩层的宽度),就不应该移动了
// 垂直坐标y,同理
if (0<=x<350 && 0<=y<=466){
let mx=0,my=0
if (x<=100) mx=0
if (x>=250) mx=150
if (x>=100&&x<=250) mx = x - 100
layer.style.left = mx + "px"
if (y<=100) my=0
if (y>=366) my=266
if (y>=100 && y<=366) my = y - 100
layer.style.top = my + "px"
// 3.3 大盒子的背景图片坐标要跟着鼠标在中等盒子的移动而反向移动, 是它的2倍像素
large.style.backgroundPositionX = -(mx * 2) + "px"
large.style.backgroundPositionY = -(my * 2) + "px"
}
})
</script>
</body>
</html>
python防脱发技巧
浙公网安备 33010602011771号
