docker安装seata
version: '3'
services:
seata-server:
image: seataio/seata-server:latest
ports:
- "8091:8091"
- "7091:7091"
environment:
- SEATA_PORT=8091
- STORE_MODE=file
mysql:
image: mysql:8.0.32
container_name: mysql
environment:
- MYSQL_ROOT_PASSWORD=12345678
command: --default-authentication-plugin=mysql_native_password --default-time-zone='+08:00'
volumes:
- ./mysql:/docker-entrypoint-initdb.d
- ./mysql/mysqld.cnf:/etc/mysql/mysql.conf.d/mysqld.cnf
ports:
- "3306:3306"
mysql数据库文件和mysql配置(可选不一定非要docker，只需要大于8.0就行)
CREATE database if NOT EXISTS seata_client default character set utf8mb4 collate utf8mb4_unicode_ci;
USE seata_client;
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
CREATE TABLE IF NOT EXISTS order_tbl (
id int(11) NOT NULL AUTO_INCREMENT,
user_id varchar(255) DEFAULT NULL,
commodity_code varchar(255) DEFAULT NULL,
count int(11) DEFAULT '0',
money int(11) DEFAULT '0',
descs varchar(255) DEFAULT '',
PRIMARY KEY (id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
INSERT INTO seata_client.order_tbl (id, user_id, commodity_code, count, money, descs) VALUES (1, 'NO-100001', 'C100000', 100, 10, 'init desc');
DROP TABLE IF EXISTS undo_log;
CREATE TABLE undo_log (
id bigint NOT NULL AUTO_INCREMENT,
branch_id bigint NOT NULL,
xid varchar(100) NOT NULL,
context varchar(128) NOT NULL,
rollback_info longblob NOT NULL,
log_status int NOT NULL,
log_created datetime NOT NULL,
log_modified datetime NOT NULL,
ext varchar(100) DEFAULT NULL,
PRIMARY KEY (id),
KEY idx_unionkey (xid,branch_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
本次主要测试at跟xa模式，at模式跟xa模式差距不大,at是seata特有的模式，需要本地一个undo_log记录数据
连接seata的配置文件
# time 时间单位对应的是 time.Duration(1)
seata:
enabled: true
# application id
application-id: applicationName
# service group
tx-service-group: default_tx_group
access-key: aliyunAccessKey
secret-key: aliyunSecretKey
enable-auto-data-source-proxy: true
data-source-proxy-mode: AT
client:
rm:
# Maximum cache length of asynchronous queue
async-commit-buffer-limit: 10000
# The maximum number of retries when report reports the status
report-retry-count: 5
# The interval for regularly checking the metadata of the db（AT）
table-meta-check-enable: false
# Whether to report the status if the transaction is successfully executed（AT）
report-success-enable: false
# Whether to allow regular check of db metadata（AT）
saga-branch-register-enable: false
saga-json-parser: fastjson
saga-retry-persist-mode-update: false
saga-compensate-persist-mode-update: false
#Ordered.HIGHEST_PRECEDENCE + 1000 #
tcc-action-interceptor-order: -2147482648
# Parse SQL parser selection
sql-parser-type: druid
lock:
retry-interval: 30
retry-times: 10
retry-policy-branch-rollback-on-conflict: true
tm:
commit-retry-count: 5
rollback-retry-count: 5
default-global-transaction-timeout: 60s
degrade-check: false
degrade-check-period: 2000
degrade-check-allow-times: 10s
interceptor-order: -2147482648
undo:
# Judge whether the before image and after image are the same，If it is the same, undo will not be recorded
data-validation: false
# Serialization method
log-serialization: json
# undo log table name
log-table: undo_log
# Only store modified fields
only-care-update-columns: true
compress:
# Compression type. Allowed Options: None, Gzip, Zip, Sevenz, Bzip2, Lz4, Zstd, Deflate
type: None
# Compression threshold Unit: k
threshold: 64k
load-balance:
type: RandomLoadBalance
virtual-nodes: 10
service:
vgroup-mapping:
# Prefix for Print Log
default_tx_group: default
grouplist:
default: 127.0.0.1:8091
enable-degrade: false
# close the transaction
disable-global-transaction: false
transport:
shutdown:
wait: 3s
# Netty related configurations
# type
type: TCP
server: NIO
heartbeat: true
# Encoding and decoding mode
serialization: seata
# Message compression mode
compressor: none
# Allow batch sending of requests (TM)
enable-tm-client-batch-send-request: false
# Allow batch sending of requests (RM)
enable-rm-client-batch-send-request: true
# RM send request timeout
rpc-rm-request-timeout: 30s
# TM send request timeout
rpc-tm-request-timeout: 30s
# Configuration Center
config:
type: file
file:
name: config.conf
nacos:
namespace: ""
server-addr: 127.0.0.1:8848
group: SEATA_GROUP
username: ""
password: ""
##if use MSE Nacos with auth, mutex with username/password attribute
#access-key: ""
#secret-key: ""
data-id: seata.properties
# Registration Center
registry:
type: file
file:
name: registry.conf
nacos:
application: seata-server
server-addr: 127.0.0.1:8848
group: "SEATA_GROUP"
namespace: ""
username: ""
password: ""
##if use MSE Nacos with auth, mutex with username/password attribute #
#access-key: "" #
#secret-key: "" #
log:
exception-rate: 100
tcc:
fence:
# Anti suspension table name
log-table-name: tcc_fence_log_test
clean-period: 60s
# getty configuration
getty:
reconnect-interval: 0
# temporary not supported connection-num
connection-num: 1
session:
compress-encoding: false
tcp-no-delay: true
tcp-keep-alive: true
keep-alive-period: 120s
tcp-r-buf-size: 262144
tcp-w-buf-size: 65536
tcp-read-timeout: 1s
tcp-write-timeout: 5s
wait-timeout: 1s
max-msg-len: 16498688
session-name: client_test
cron-period: 1s
utils.go
package util
import (
"database/sql"
"os"
sql2 "github.com/seata/seata-go/pkg/datasource/sql"
)
func GetAtMySqlDb() *sql.DB {
dsn := "root:root@tcp(192.168.252.1:3306)/seata_client?multiStatements=true&interpolateParams=true"
dbAt, err := sql.Open(sql2.SeataATMySQLDriver, dsn)
if err != nil {
panic("init seata at mysql driver error")
}
return dbAt
}
func GetXAMySqlDb() *sql.DB {
dsn := "root:root@tcp(192.168.252.1:3306)/seata_client?multiStatements=true&interpolateParams=true"
dbAt, err := sql.Open(sql2.SeataXAMySQLDriver, dsn)
if err != nil {
panic("init seata at mysql driver error")
}
return dbAt
}
客户端，模拟用户请求
package main
import (
"context"
"flag"
"fmt"
"github.com/parnurzeal/gorequest"
"github.com/seata/seata-go/pkg/constant"
"github.com/seata/seata-go/pkg/tm"
"github.com/seata/seata-go/pkg/util/log"
"net/http"
"time"
"github.com/seata/seata-go/pkg/client"
)
var serverIpPort = "http://127.0.0.1:8080"
func main() {
flag.Parse()
client.InitPath("../../../conf/seatago.yml")
bgCtx, cancel := context.WithTimeout(context.Background(), time.Minute*10)
defer cancel()
sampleUpdate(bgCtx)
}
func updateData(ctx context.Context) (re error) {
request := gorequest.New()
log.Infof("branch transaction begin")
request.Post(serverIpPort+"/updateDataSuccess").
Set(constant.XidKey, tm.GetXID(ctx)).
End(func(response gorequest.Response, body string, errs []error) {
if response.StatusCode != http.StatusOK {
re = fmt.Errorf("update data fail")
}
})
return
}
func sampleUpdate(ctx context.Context) {
if err := tm.WithGlobalTx(ctx, &tm.GtxConfig{
Name: "ATSampleLocalGlobalTx_Update",
Timeout: time.Second * 30,
}, updateData); err != nil {
log.Info(err)
}
}
服务端，模拟api网关，往不同的微服务发请求
package main
import (
"context"
"database/sql"
"fmt"
"github.com/gin-gonic/gin"
"github.com/seata/seata-go-samples/util"
"github.com/seata/seata-go/pkg/client"
ginmiddleware "github.com/seata/seata-go/pkg/integration/gin"
"github.com/seata/seata-go/pkg/util/log"
"net/http"
)
var db *sql.DB
func main() {
client.InitPath("../../../conf/seatago.yml")
//TODO 这里是不同模式
// db = util.GetXAMySqlDb() //xa
db = util.GetAtMySqlDb() //at
r := gin.Default()
r.Use(ginmiddleware.TransactionMiddleware())
r.POST("/updateDataSuccess", updateDataSuccessHandler)
if err := r.Run(":8080"); err != nil {
log.Fatalf("start tcc server fatal: %v", err)
}
}
func updateDataSuccessHandler(c *gin.Context) {
log.Infof("get tm updateData")
if err := updateDataSuccess(c); err != nil {
c.JSON(http.StatusBadRequest, "updateData failure")
return
}
if err := updateDataSuccess2(c); err != nil {
c.JSON(http.StatusBadRequest, "updateData2 failure")
return
}
//c.JSON(http.StatusOK, "updateData ok") //成功
c.JSON(http.StatusBadRequest, "updateData failure") //TODO 测试fail,回滚
}
func updateDataSuccess(ctx context.Context) error {
sql := "update order_tbl set count=? where id=?"
ret, err := db.ExecContext(ctx, sql, 10, 1)
if err != nil {
fmt.Printf("update failed, err:%v\n", err)
return nil
}
rows, err := ret.RowsAffected()
if err != nil {
fmt.Printf("update failed, err:%v\n", err)
return nil
}
fmt.Printf("更新成功 success： %d.\n", rows)
return nil
}
func updateDataSuccess2(ctx context.Context) error {
sql := "update order_tbl set count=? where id=?"
ret, err := db.ExecContext(ctx, sql, 101, 1)
if err != nil {
fmt.Printf("update failed, err:%v\n", err)
return nil
}
rows, err := ret.RowsAffected()
if err != nil {
fmt.Printf("update failed, err:%v\n", err)
return nil
}
fmt.Printf("更新成功 success： %d.\n", rows)
return nil
}
把原生sql连接改成gorm连接
package main
import (
"context"
"database/sql"
"time"
"github.com/seata/seata-go/pkg/client"
sql2 "github.com/seata/seata-go/pkg/datasource/sql"
"github.com/seata/seata-go/pkg/tm"
"gorm.io/driver/mysql"
"gorm.io/gorm"
)
type OrderTblModel struct {
Id int64 `gorm:"column:id" json:"id"`
UserId string `gorm:"column:user_id" json:"user_id"`
CommodityCode string `gorm:"commodity_code" json:"commodity_code"`
Count int64 `gorm:"count" json:"count"`
Money int64 `gorm:"money" json:"money"`
Descs string `gorm:"descs" json:"descs"`
}
func main() {
initConfig()
// insert
tm.WithGlobalTx(context.Background(), &tm.GtxConfig{
Name: "ATSampleLocalGlobalTx",
Timeout: time.Second * 30,
}, insertData)
<-make(chan struct{})
}
func initConfig() {
// init seata client config
client.InitPath("../../conf/seatago.yml")
// init db object
initDB()
}
var gormDB *gorm.DB
func initDB() {
sqlDB, err := sql.Open(sql2.SeataATMySQLDriver, "root:12345678@tcp(127.0.0.1:3306)/seata_client?multiStatements=true&interpolateParams=true")
if err != nil {
panic("init service error")
}
gormDB, err = gorm.Open(mysql.New(mysql.Config{
Conn: sqlDB,
}), &gorm.Config{})
}
// insertData insert one data
func insertData(ctx context.Context) error {
data := OrderTblModel{
UserId: "NO-100003",
CommodityCode: "C100001",
Count: 101,
Money: 11,
Descs: "insert desc",
}
return gormDB.WithContext(ctx).Table("order_tbl").Create(&data).Error
}
// deleteData delete one data
func deleteData(ctx context.Context) error {
return gormDB.WithContext(ctx).Where("id = ?", "1").Delete(&OrderTblModel{}).Error
}
// updateDate update one data
func updateData(ctx context.Context) error {
return gormDB.WithContext(ctx).Model(&OrderTblModel{}).Where("id = ?", "1").Update("commodity_code", "C100002").Error
}

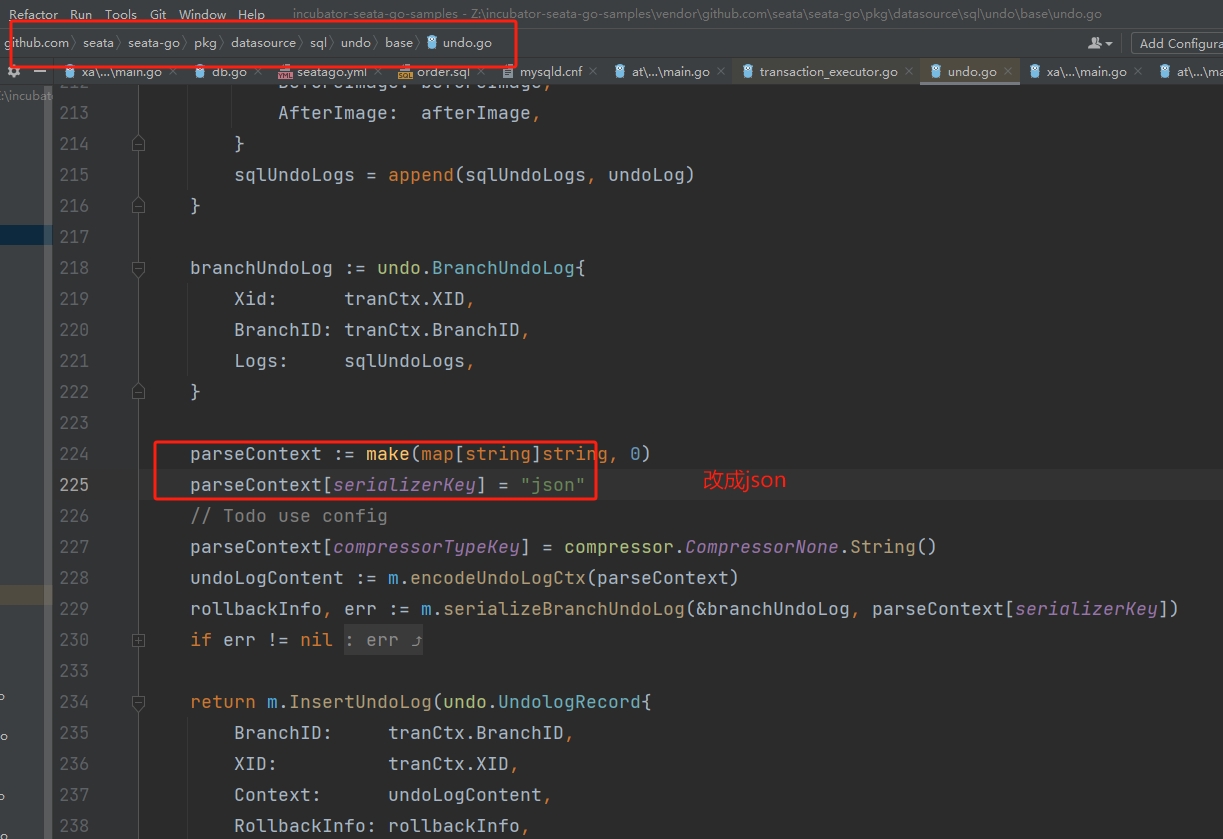

最后，如果报错 first phase error: undo log parser type jackson not found 那么请修改
这句是写死的，没有走配置
![]()
