如何使用 vxe-table 实现穿梭框的功能，同时还能支持数据拖拽穿梭

如何使用 vxe-table 实现穿梭框的功能，同时还能支持数据拖拽穿梭
使用 vxe-table 来实现该功能非常简单，以下的使用方法及说明

查看官网：https://vxetable.cn
gitbub：https://github.com/x-extends/vxe-table
gitee：https://gitee.com/x-extends/vxe-table

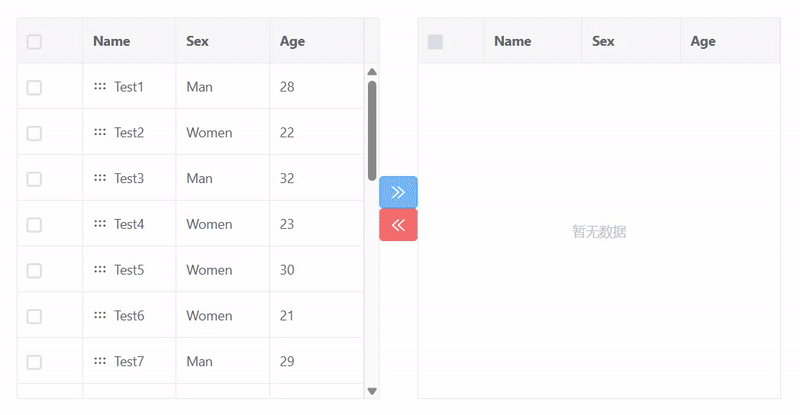

按钮穿梭

通过复选框选择来实现左右交换数据

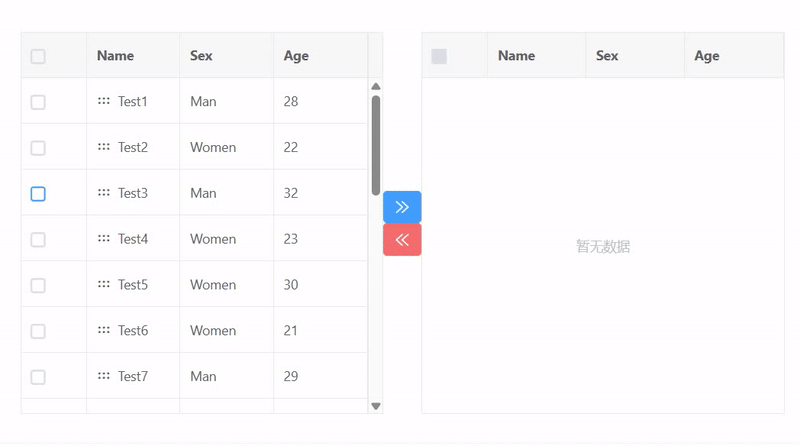

拖拽穿梭

当使用拖拽穿梭数据时，需要确保数据主键不重复，通过 row-config.keyField 指定主键字段名

代码

<template>
  <div>
    <div class="my-table-transfer">
      <div class="my-table-transfer-left">
        <vxe-grid ref="gridRef1" v-bind="gridOptions1"></vxe-grid>
      </div>
      <div class="my-table-transfer-handle">
        <vxe-button status="primary" icon="vxe-icon-arrow-double-right" style="width: 100%;" @click="addEvent"></vxe-button>
        <vxe-button status="error" icon="vxe-icon-arrow-double-left" style="width: 100%;" @click="delEvent"></vxe-button>
      </div>
      <div class="my-table-transfer-right">
        <vxe-grid ref="gridRef2" v-bind="gridOptions2"></vxe-grid>
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref, reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'

const gridRef1 = ref()
const gridRef2 = ref()

const gridOptions1 = reactive({
  border: true,
  showOverflow: true,
  height: '100%',
  rowConfig: {
    keyField: 'id',
    drag: true
  },
  rowDragConfig: {
    isCrossDrag: true,
    isCrossTableDrag: true
  },
  columns: [
    { type: 'checkbox', width: 70 },
    { field: 'name', title: 'Name', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' }
  ],
  data: [
    { id: 10001, name: 'Test1', nickname: 'T1', role: 'Develop', sex: 'Man', age: 28, address: 'Shenzhen' },
    { id: 10002, name: 'Test2', nickname: 'T2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
    { id: 10003, name: 'Test3', nickname: 'T3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
    { id: 10004, name: 'Test4', nickname: 'T4', role: 'Designer', sex: 'Women', age: 23, address: 'test abc' },
    { id: 10005, name: 'Test5', nickname: 'T5', role: 'Develop', sex: 'Women', age: 30, address: 'Shanghai' },
    { id: 10006, name: 'Test6', nickname: 'T6', role: 'Designer', sex: 'Women', age: 21, address: 'Shenzhen' },
    { id: 10007, name: 'Test7', nickname: 'T7', role: 'Test', sex: 'Man', age: 29, address: 'Shenzhen' },
    { id: 10008, name: 'Test8', nickname: 'T8', role: 'Develop', sex: 'Man', age: 35, address: 'test abc' },
    { id: 10009, name: 'Test9', nickname: 'T9', role: 'Develop', sex: 'Man', age: 35, address: 'Shenzhen' },
    { id: 100010, name: 'Test10', nickname: 'T10', role: 'Develop', sex: 'Man', age: 35, address: 'Guangzhou' },
    { id: 100011, name: 'Test11', nickname: 'T11', role: 'Develop', sex: 'Man', age: 49, address: 'Guangzhou' },
    { id: 100012, name: 'Test12', nickname: 'T12', role: 'Develop', sex: 'Women', age: 45, address: 'Shanghai' },
    { id: 100013, name: 'Test13', nickname: 'T13', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
    { id: 100014, name: 'Test14', nickname: 'T14', role: 'Test', sex: 'Man', age: 29, address: 'Shanghai' },
    { id: 100015, name: 'Test15', nickname: 'T15', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' },
    { id: 100016, name: 'Test16', nickname: 'T16', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
    { id: 100017, name: 'Test17', nickname: 'T17', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' },
    { id: 100018, name: 'Test18', nickname: 'T18', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' },
    { id: 100019, name: 'Test19', nickname: 'T19', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' },
    { id: 100020, name: 'Test20', nickname: 'T20', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' },
    { id: 100021, name: 'Test21', nickname: 'T21', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' },
    { id: 100022, name: 'Test22', nickname: 'T22', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' }
  ]
})

const gridOptions2 = reactive({
  border: true,
  showOverflow: true,
  height: '100%',
  rowConfig: {
    keyField: 'id',
    drag: true
  },
  rowDragConfig: {
    isCrossDrag: true,
    isCrossTableDrag: true
  },
  columns: [
    { type: 'checkbox', width: 70 },
    { field: 'name', title: 'Name', dragSort: true },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' }
  ],
  data: []
})

const addEvent = () => {
  const $grid1 = gridRef1.value
  const $grid2 = gridRef2.value
  if ($grid1 && $grid2) {
    const selectRecords = $grid1.getCheckboxRecords()
    if (selectRecords.length) {
      $grid1.remove(selectRecords)
      $grid2.insertAt(selectRecords, -1)
    } else {
      VxeUI.modal.message({
        content: '请勾选左侧数据',
        status: 'warning'
      })
    }
  }
}

const delEvent = () => {
  const $grid1 = gridRef1.value
  const $grid2 = gridRef2.value
  if ($grid1 && $grid2) {
    const selectRecords = $grid2.getCheckboxRecords()
    if (selectRecords.length) {
      $grid2.remove(selectRecords)
      $grid1.insertAt(selectRecords, -1)
    } else {
      VxeUI.modal.message({
        content: '请勾选右侧数据',
        status: 'warning'
      })
    }
  }
}

</script>

<style lang="scss" scoped>
.my-table-transfer {
  display: flex;
  height: 400px;
  overflow: hidden;
}
.my-table-transfer-handle {
  display: flex;
  flex-direction: column;
  justify-content: center;
  flex-shrink: 0;
  width: 40px;
}
.my-table-transfer-left,
.my-table-transfer-right {
  width: 50%;
  overflow: hidden;
}
</style>

https://gitee.com/x-extends/vxe-table
