Consul入门--Window

一 Consul安装

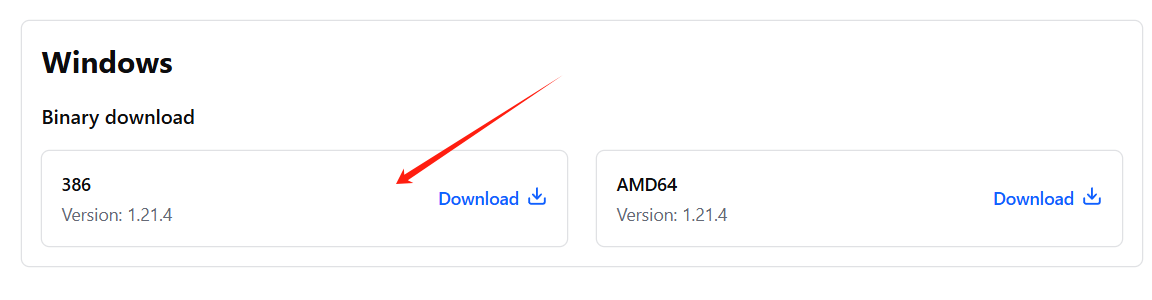

1.打开官网，选择window版本下载

http://2v7740o742.vicp.fun:2024/upload/2025/08/to072p2ngqg1dol31uc7g3s26s.zip

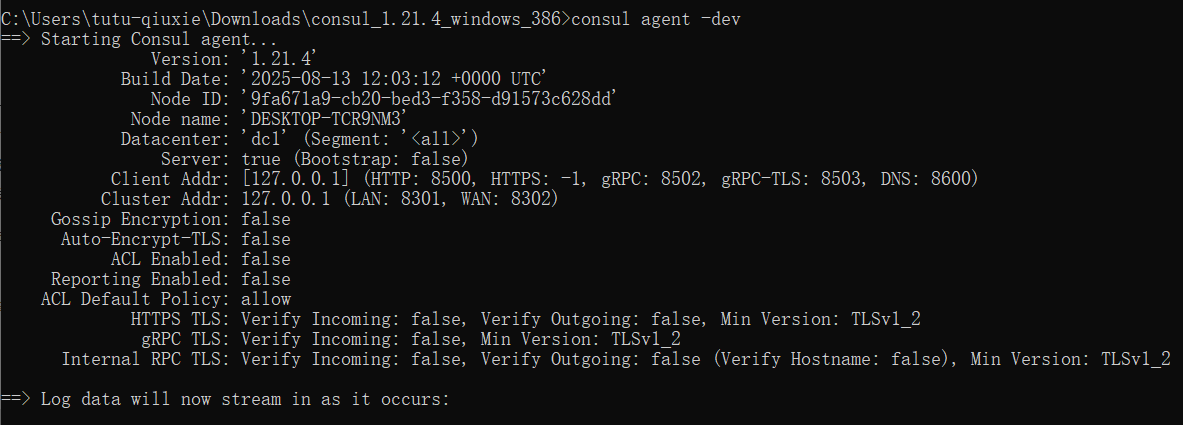

2.解压压缩包，在Consul解压目录下打开cmd，输入consul agent -dev，启动consul

二 Consul在Java的应用

建立两个Java项目，一个作为生产者，一个作为消费者

（一）生产者

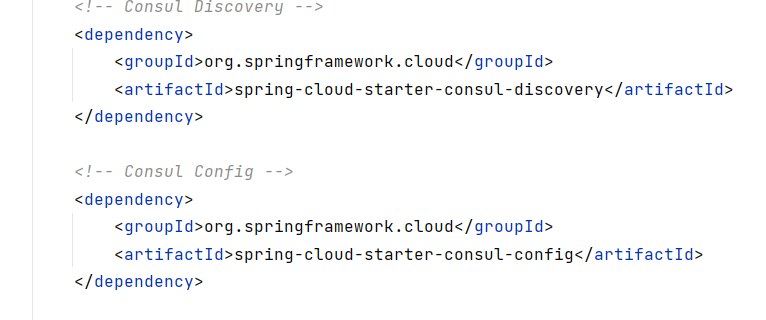

1.导入consul的依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <!-- Spring Boot 2.7.x 是 JDK8 最后支持的版本 -->
        <version>2.7.18</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.example</groupId>
    <artifactId>demo1</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo1</name>
    <description>demo1</description>

    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>2021.0.9</spring-cloud.version>
    </properties>

    <!-- 引入 Spring Cloud 依赖管理 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <!-- Web 模块 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Consul Discovery -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>

        <!-- Consul Config -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-config</artifactId>
        </dependency>

        <!-- 测试模块 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

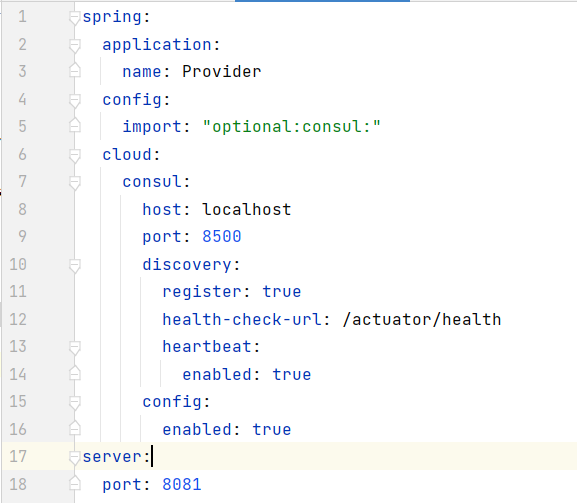

2.在application.yml文件下配置consul

spring:
  application:
    name: Provider
  config:
    import: "optional:consul:"
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        register: true
        health-check-url: /actuator/health
        heartbeat:
          enabled: true
      config:
        enabled: true
server:
  port: 8081

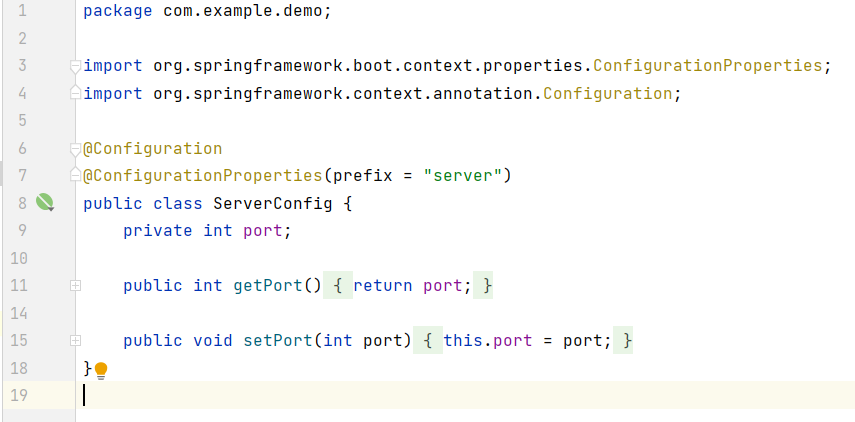

　　 3.创建SpringBoot配置类

package com.example.demo;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@ConfigurationProperties(prefix = "server")
public class ServerConfig {
    private int port;

    public int getPort() {
        return port;
    }

    public void setPort(int port) {
        this.port = port;
    }
}

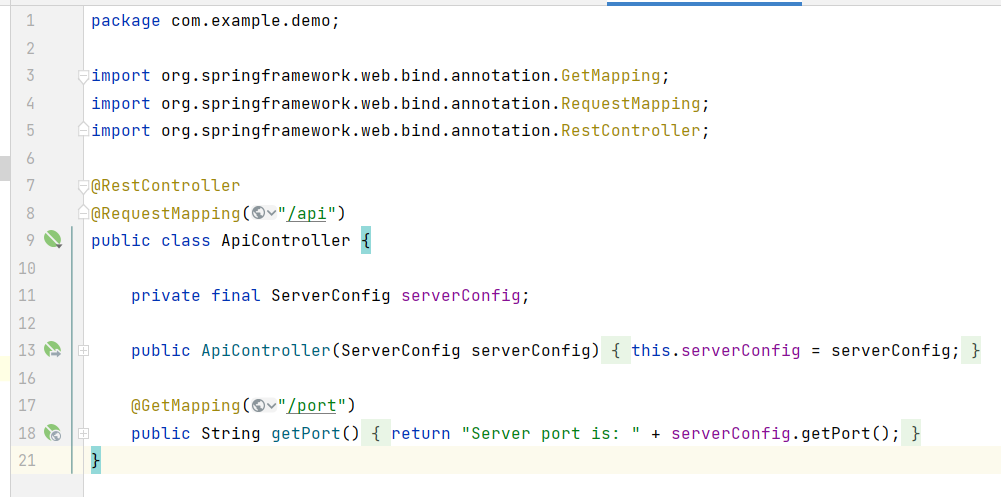

4.使用配置

package com.example.demo;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api")
public class ApiController {

    private final ServerConfig serverConfig;

    public ApiController(ServerConfig serverConfig) {
        this.serverConfig = serverConfig;
    }

    @GetMapping("/port")
    public String getPort() {
        return "Server port is: " + serverConfig.getPort();
    }
}

5.在启动类上加入注解@EnableDiscoveryClient

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class Demo1Application {

    public static void main(String[] args) {
        SpringApplication.run(Demo1Application.class, args);
    }

}

6.在Consul服务启动下，运行项目，打开网址http://localhost:8500/ui/dc1/services，生产者部分完成

（二）消费者

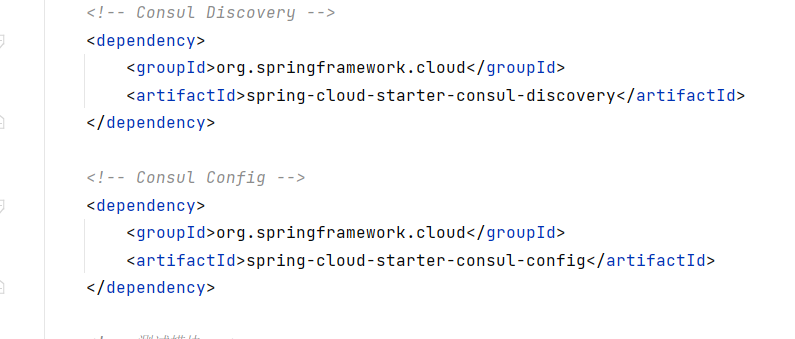

1.导入consul的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <!-- Spring Boot 2.7.x 是 JDK8 最后支持的版本 -->
        <version>2.7.18</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.example</groupId>
    <artifactId>demo2</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo2</name>
    <description>demo2</description>

    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>2021.0.9</spring-cloud.version>
    </properties>

    <!-- 引入 Spring Cloud 依赖管理 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <!-- Web 模块 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Consul Discovery -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>

        <!-- Consul Config -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-config</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--引入junit单元测试依赖-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

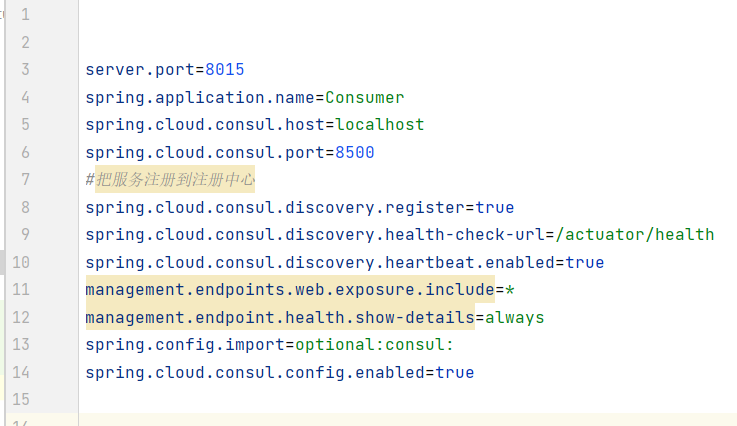

2.在application.properties文件下配置consul

server.port=8015
spring.application.name=Consumer
spring.cloud.consul.host=localhost
spring.cloud.consul.port=8500
#把服务注册到注册中心
spring.cloud.consul.discovery.register=true
spring.cloud.consul.discovery.health-check-url=/actuator/health
spring.cloud.consul.discovery.heartbeat.enabled=true
management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always
spring.config.import=optional:consul:
spring.cloud.consul.config.enabled=true

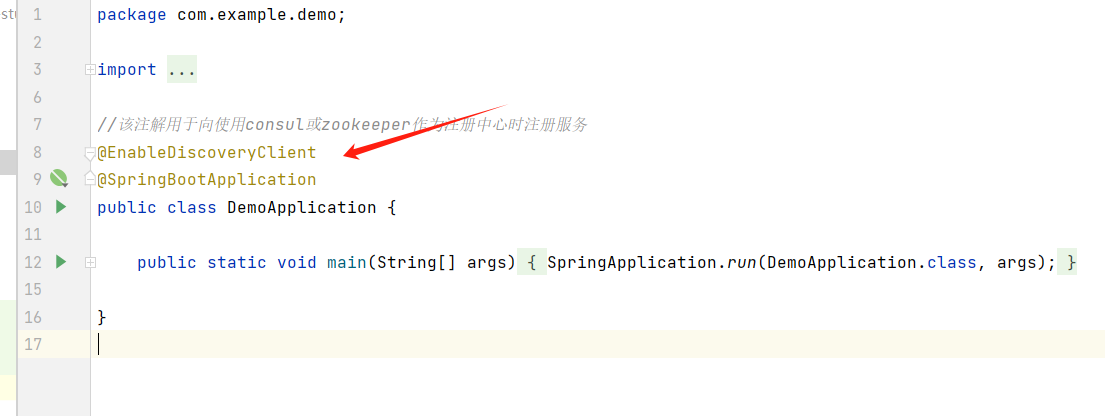

3.在启动类上加入注解@EnableDiscoveryClient

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

//该注解用于向使用consul或zookeeper作为注册中心时注册服务
@EnableDiscoveryClient
@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

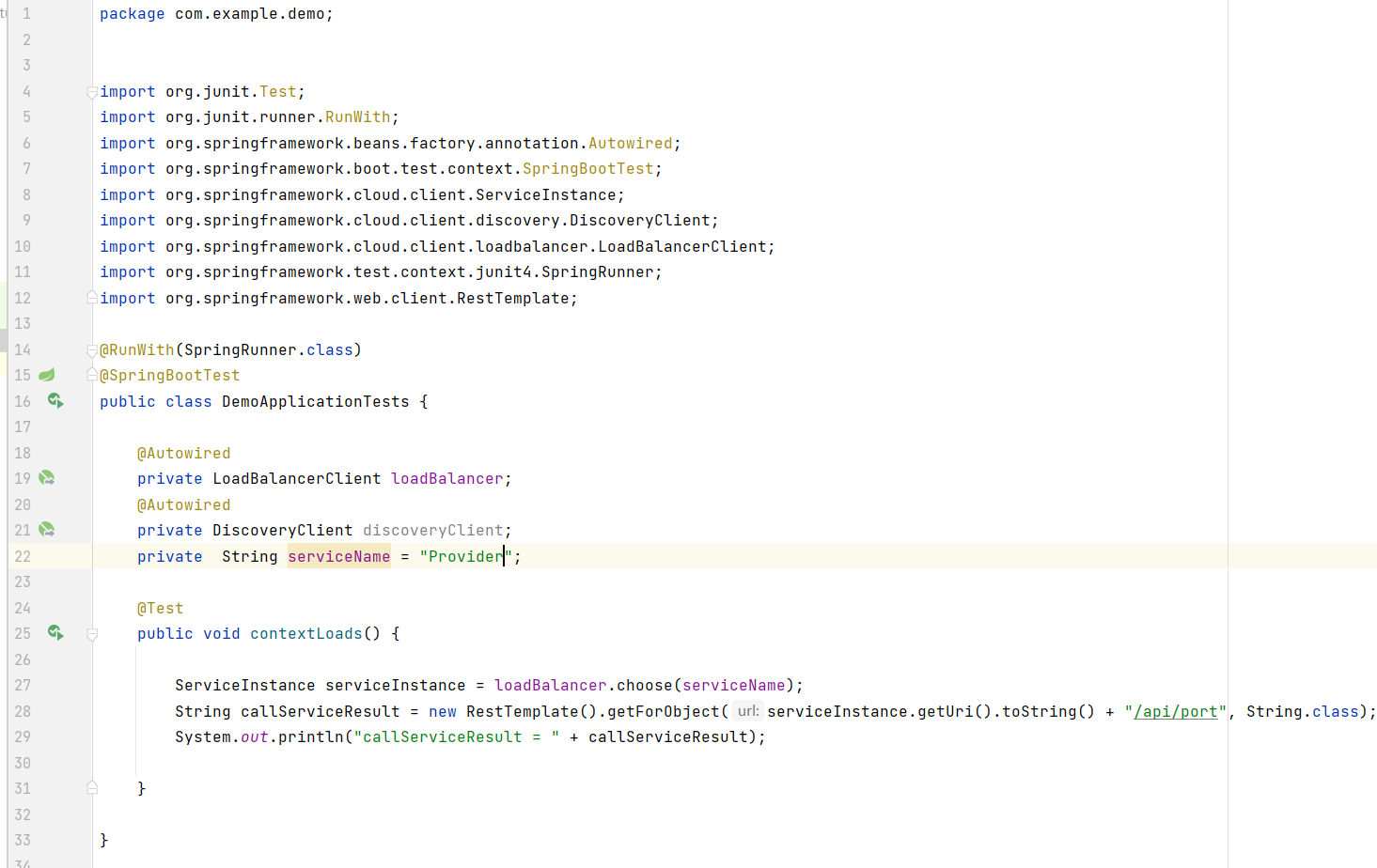

4.创建测试类，测试consul

package com.example.demo;


import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.web.client.RestTemplate;

@RunWith(SpringRunner.class)
@SpringBootTest
public class DemoApplicationTests {

    @Autowired
    private LoadBalancerClient loadBalancer;
    @Autowired
    private DiscoveryClient discoveryClient;
    private  String serviceName = "Provider";

    @Test
    public void contextLoads() {

        ServiceInstance serviceInstance = loadBalancer.choose(serviceName);
        String callServiceResult = new RestTemplate().getForObject(serviceInstance.getUri().toString() + "/api/port", String.class);
        System.out.println("callServiceResult = " + callServiceResult);

    }

}

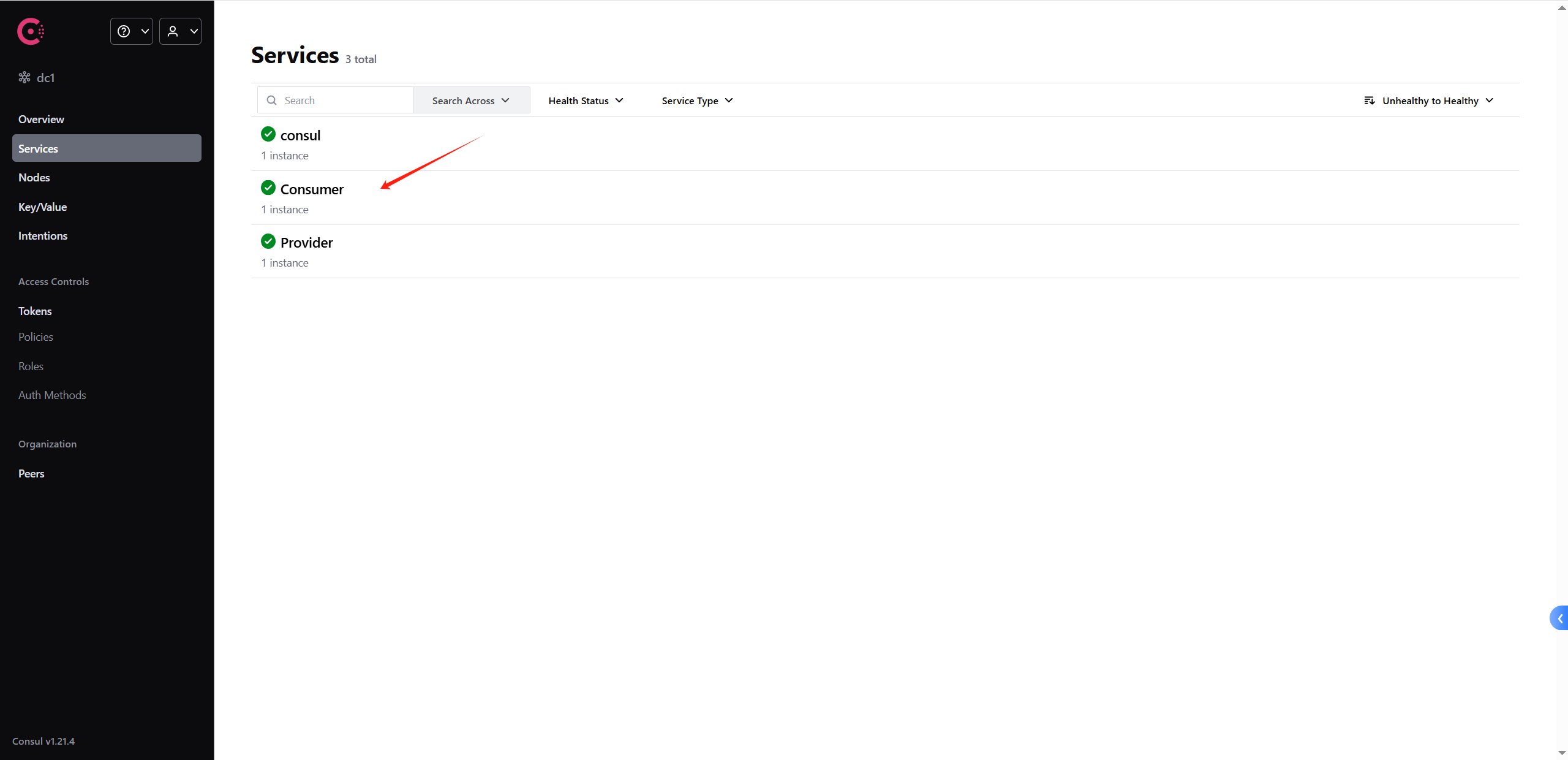

5.在Consul服务启动下，运行项目，打开网址http://localhost:8500/ui/dc1/services，消费者部分完成
