kafka集群搭建（windows环境)

Apache Downloads 下载zk

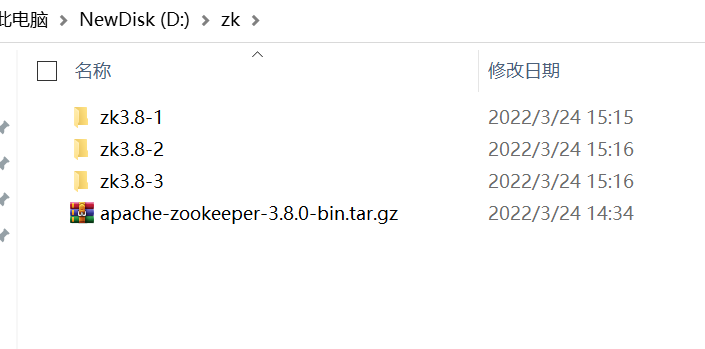

 准备三份

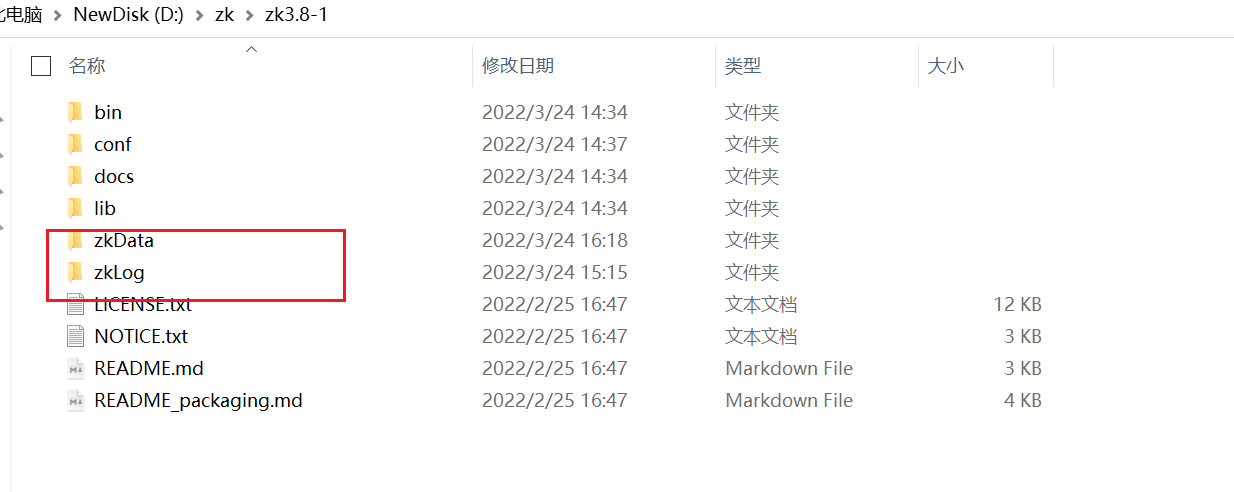

 每个zk都创建这两个文件夹

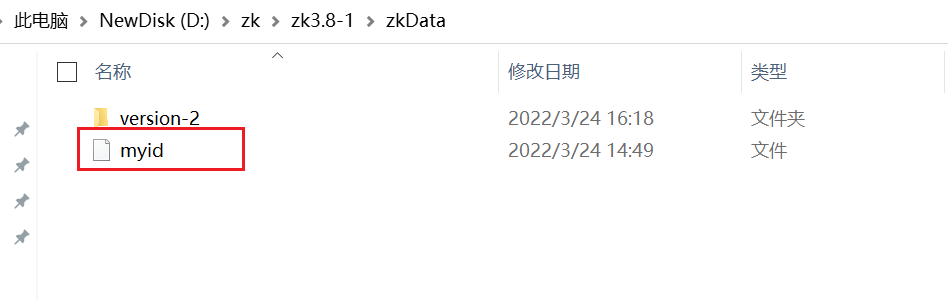

 在每个zkData都创建myid文件，没有后缀名

内容分别写着 1   2  3 (zk3.8-1  写的1，3.8-2写的2 ，类推)

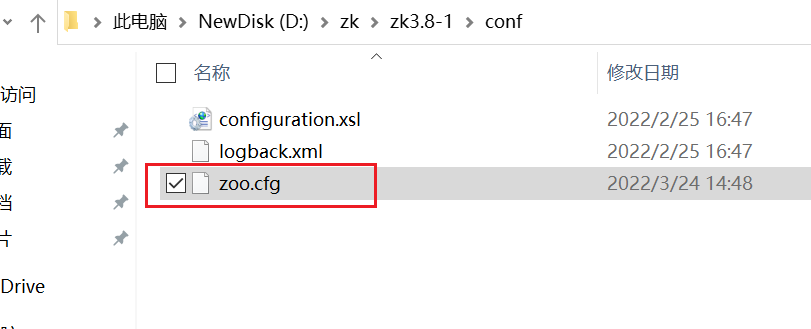

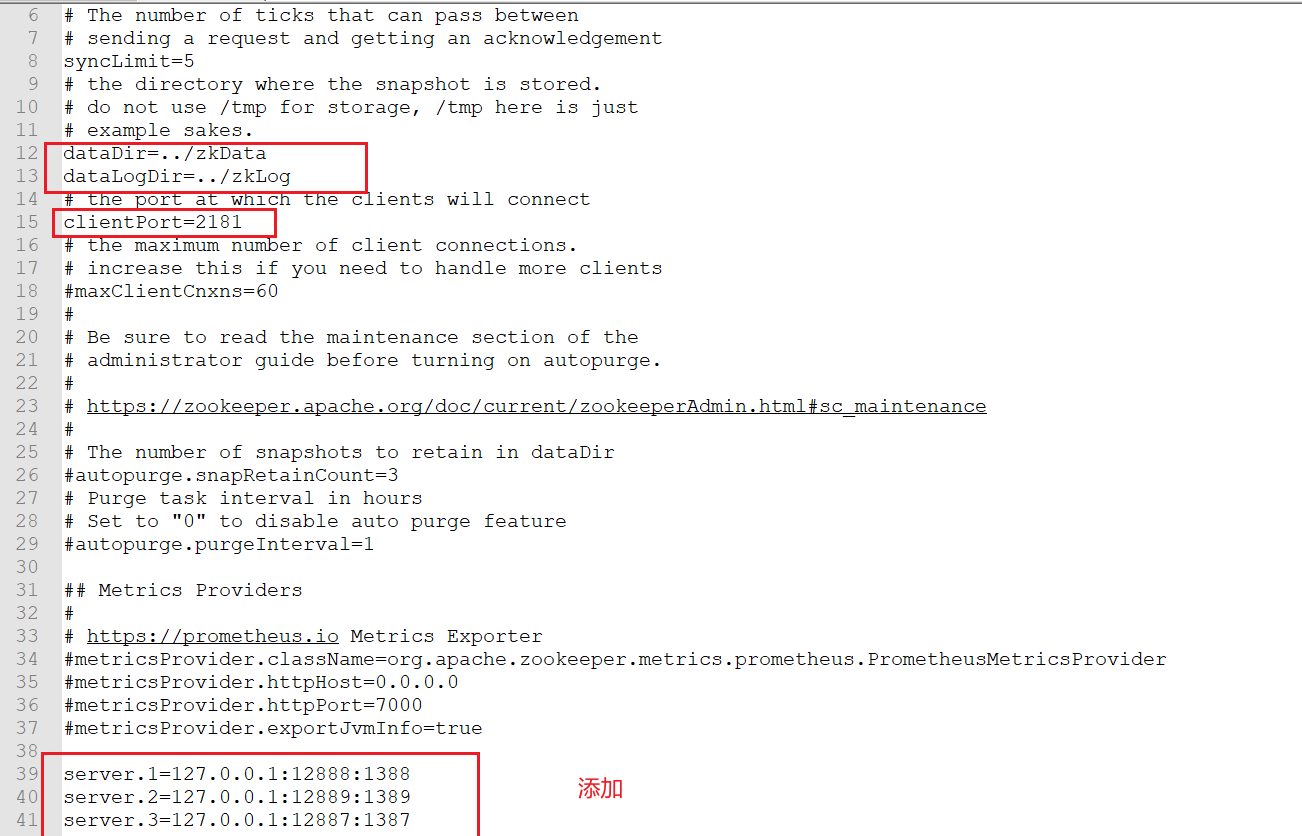

将conf中刚下载的文件改成zoo.cfg





myid的数字和server.x对应 ， 除了clientPort修改为2081,2082,2083之外别的照抄，由于是一个电脑操作，只能改端口不改ip



 进入bin启动zkServer.cmd

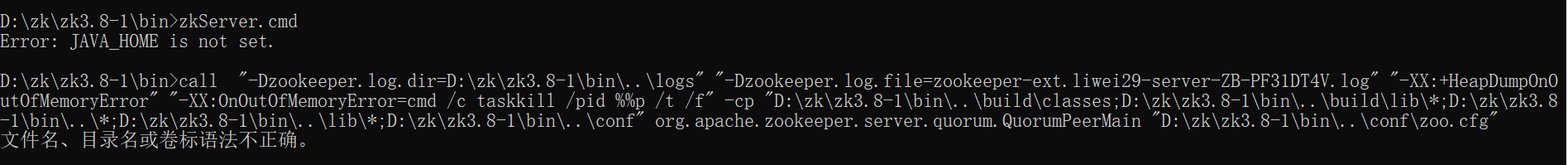

启动报错

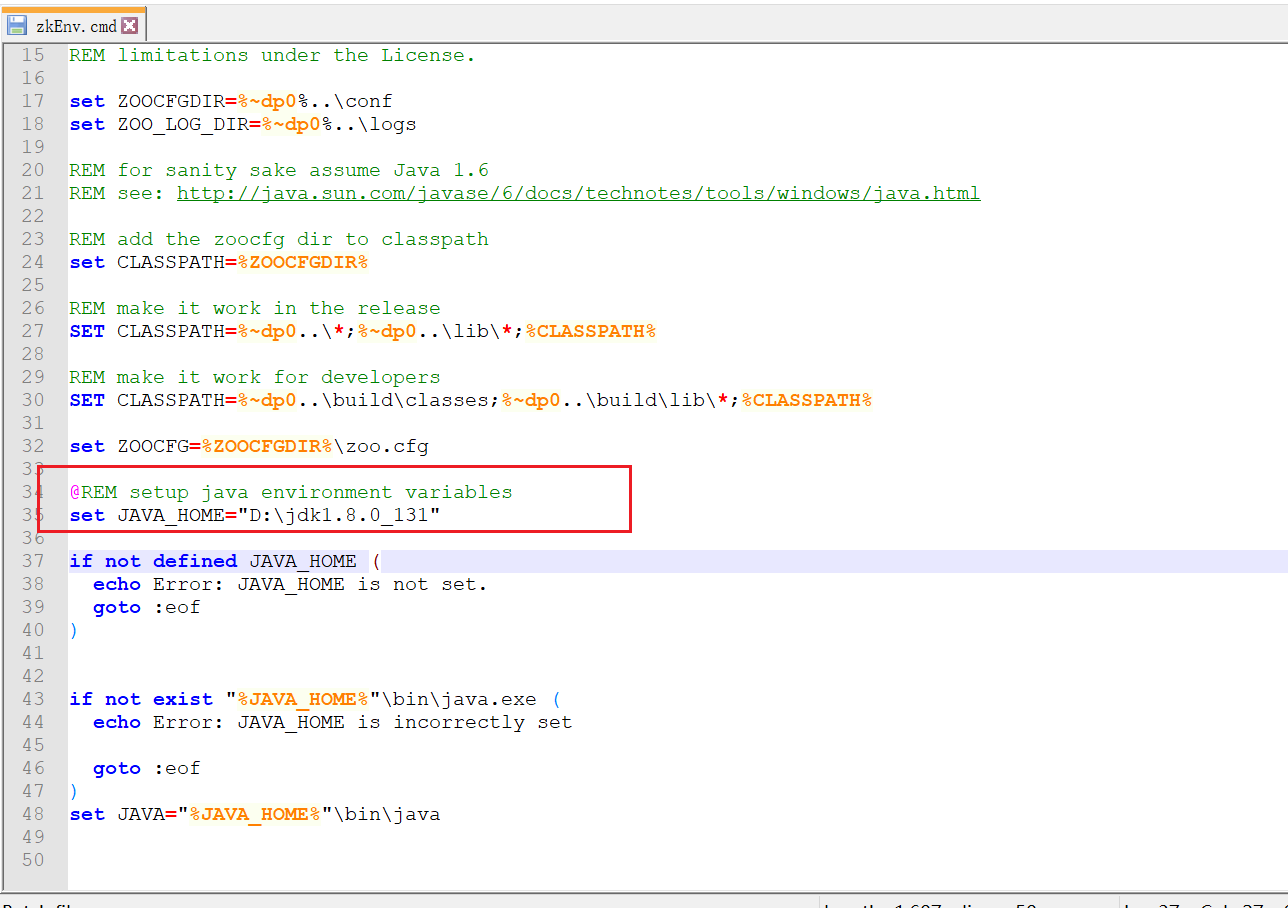

 修改zkEnv的java的home



 如果还是找不到，建议把java的jdk复制一份放在别的盘符

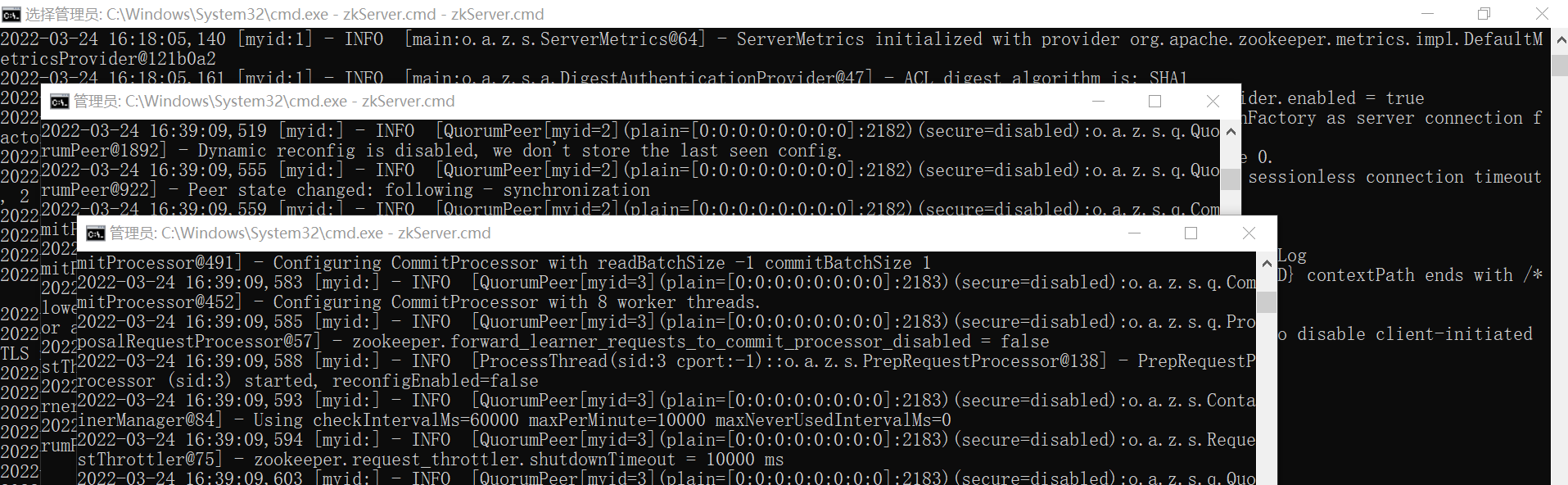

 都启动成功后

 Apache Kafka 下载kafka

报错：

D:\kafka\kafka1\bin\windows>kafka-server-start.bat ../../config/server.properties
Error: missing `server' JVM at `C:\Program Files (x86)\Java\jre1.8.0_131\bin\server\jvm.dll'.
Please install or use the JRE or JDK that contains these missing components.

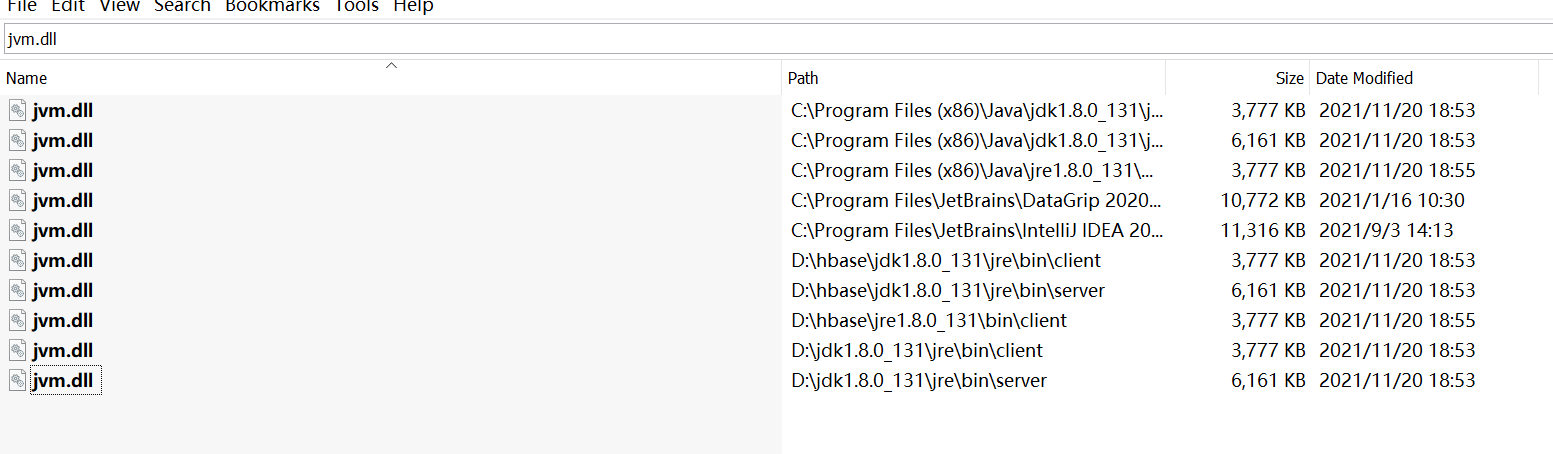

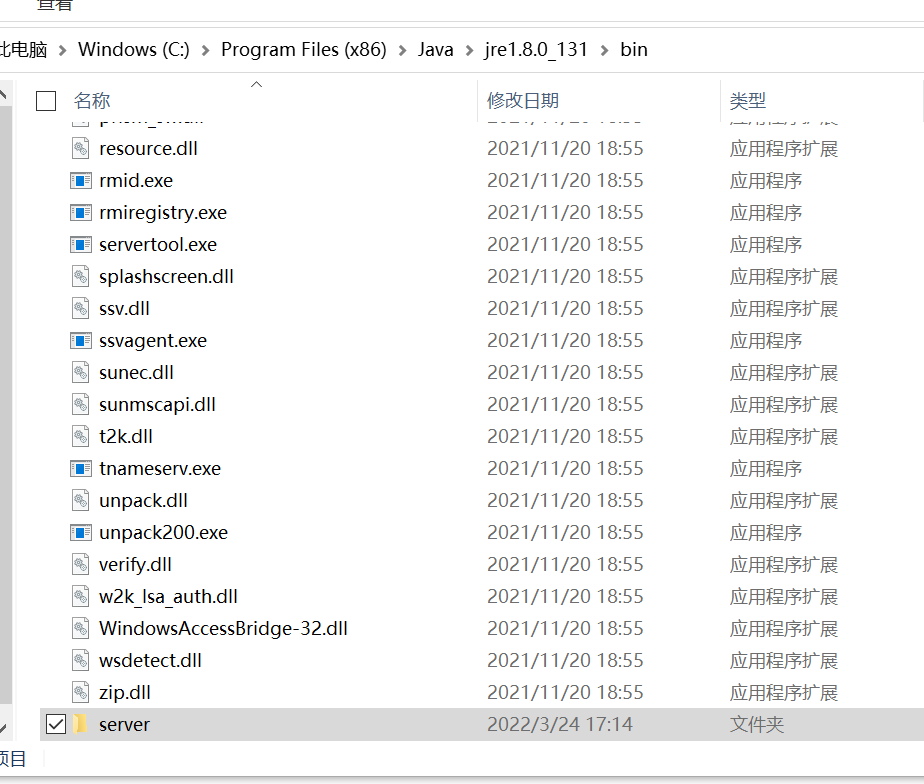

搜到jvm.dll，复制到当前文件夹







继续启动，报错

Unrecognized VM option 'UseCompressedOops'
Did you mean '(+/-)CheckCompressedOops'?
Error: Could not create the Java Virtual Machine.
Error: A fatal exception has occurred. Program will exit.

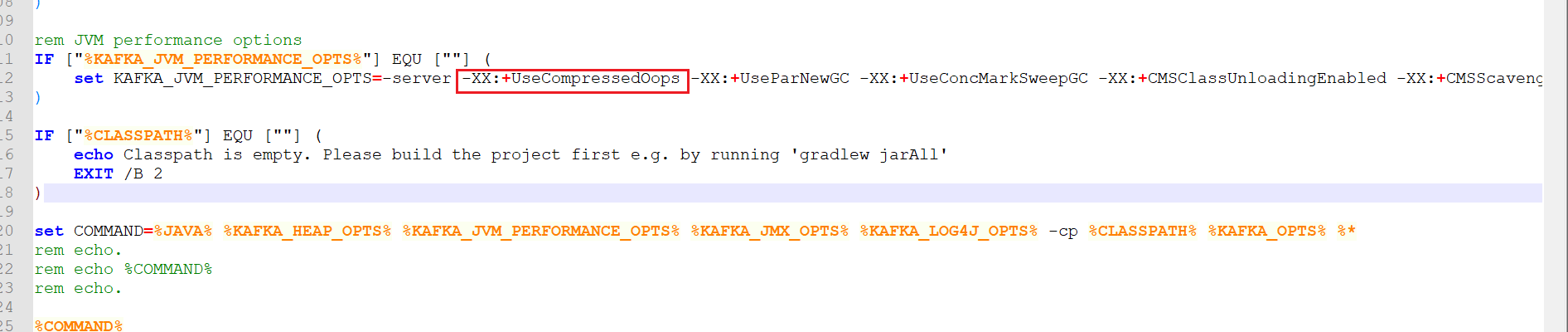

删除这个:kafka-run-class.bat文件中







启动第一个没问题，启动第二个第三个报错。

[2022-03-24 17:22:15,099] FATAL [Kafka Server 2], Fatal error during KafkaServer startup. Prepare to shutdown (kafka.server.KafkaServer)
kafka.common.KafkaException: Failed to acquire lock on file .lock in D:\tmp\kafka-logs. A Kafka instance in another process or thread is using this directory.
at kafka.log.LogManager$$anonfun$lockLogDirs$1.apply(LogManager.scala:98)
at kafka.log.LogManager$$anonfun$lockLogDirs$1.apply(LogManager.scala:95)
at scala.collection.TraversableLike$$anonfun$map$1.apply(TraversableLike.scala:233)
at scala.collection.TraversableLike$$anonfun$map$1.apply(TraversableLike.scala:233)
at scala.collection.IndexedSeqOptimized$class.foreach(IndexedSeqOptimized.scala:34)
at scala.collection.mutable.WrappedArray.foreach(WrappedArray.scala:33)
at scala.collection.TraversableLike$class.map(TraversableLike.scala:233)
at scala.collection.mutable.WrappedArray.map(WrappedArray.scala:33)
at kafka.log.LogManager.lockLogDirs(LogManager.scala:95)

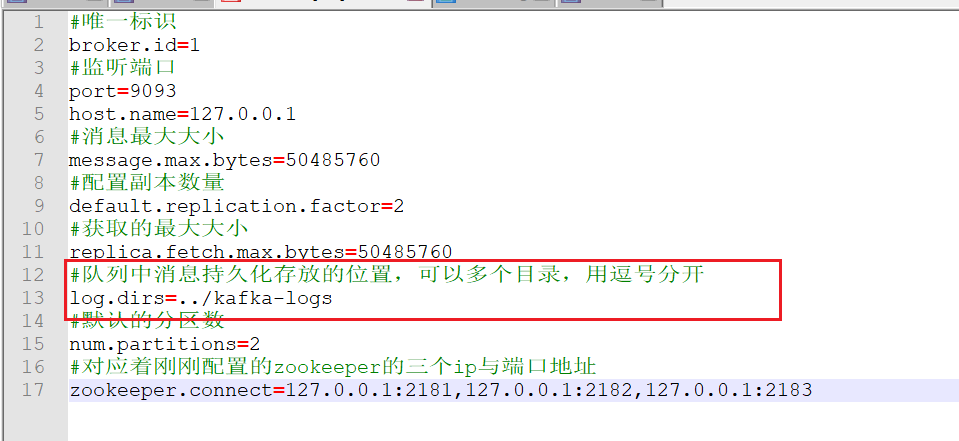

把config的/server.properties

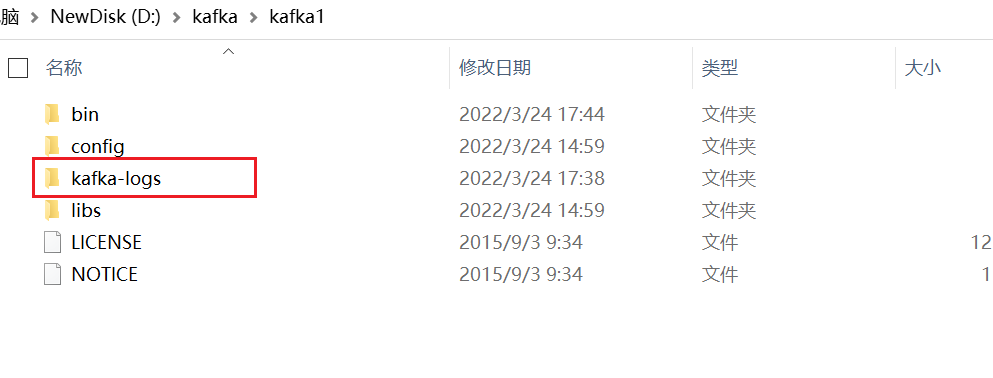

然后在外面创建文件夹





 正常启动成功



测试集群

（1）创建一个 topic

kafka-topics.bat --create --zookeeper 127.0.0.1:2181 --replication-factor 1 --partitions 1 --topic test



（2）查看是否创建成功

kafka-topics.bat --list --zookeeper localhost:2181



（3）发送消息

kafka-console-producer.bat --broker-list localhost:9092 --topic test

This is a message



（4）接收消息

kafka-console-consumer.bat --zookeeper localhost:2181 --topic test --from-beginning



不同客户端能接收到消息，说明配置成功
