zabbix监控tcp的11种状态

监控tcp的11种状态

• 通过shell脚本，传递参数，根据参数返回结果

  [root@zabbix_agent zabbix]# pwd
  /etc/zabbix
  [root@zabbix_agent zabbix]# mkdir shell && cd shell

  [root@zabbix_agent shell]# vim tcp_status.sh
  #!/bin/bash
  metric=$1
  tmp_file=/tmp/tcp_status.txt
  /usr/bin/netstat -an|awk '/^tcp/{++S[$NF]}END{for(a in S) print a,S[a]}' > $tmp_file

  case $metric in
     closed)
            output=$(awk '/CLOSED/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     listen)
            output=$(awk '/LISTEN/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     synrecv)
            output=$(awk '/SYN_RECV/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     synsent)
            output=$(awk '/SYN_SENT/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     established)
            output=$(awk '/ESTABLISHED/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     timewait)
            output=$(awk '/TIME_WAIT/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     closing)
            output=$(awk '/CLOSING/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     closewait)
            output=$(awk '/CLOSE_WAIT/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
          ;;
     lastack)
            output=$(awk '/LAST_ACK/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
           ;;
     finwait1)
            output=$(awk '/FIN_WAIT1/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
           ;;
     finwait2)
            output=$(awk '/FIN_WAIT2/{print $2}' $tmp_file)
            if [ "$output" == "" ];then
               echo 0
            else
               echo $output
            fi
           ;;
           *)
            echo -e "\e[033mUsage: sh  $0 [closed|closing|closewait|synrecv|synsent|finwait1|finwait2|listen|established|lastack|timewait]\e[0m"

  esac


  [root@zabbix_agent tmp]# systemctl restart zabbix-agent   #重启zabbix-agent

• 在server端通过zabbix_get工具测试

  [root@zabbix_server ~]# zabbix_get -s 192.168.1.130 -k tcp.status[]
  Usage: sh  /etc/zabbix/shell/tcp_status.sh [closed|closing|closewait|synrecv|synsent|finwait1|finwait2|listen|established|lastack|timewait]
  [root@zabbix_server ~]# zabbix_get -s 192.168.1.130 -k tcp.status[timewait]
  26

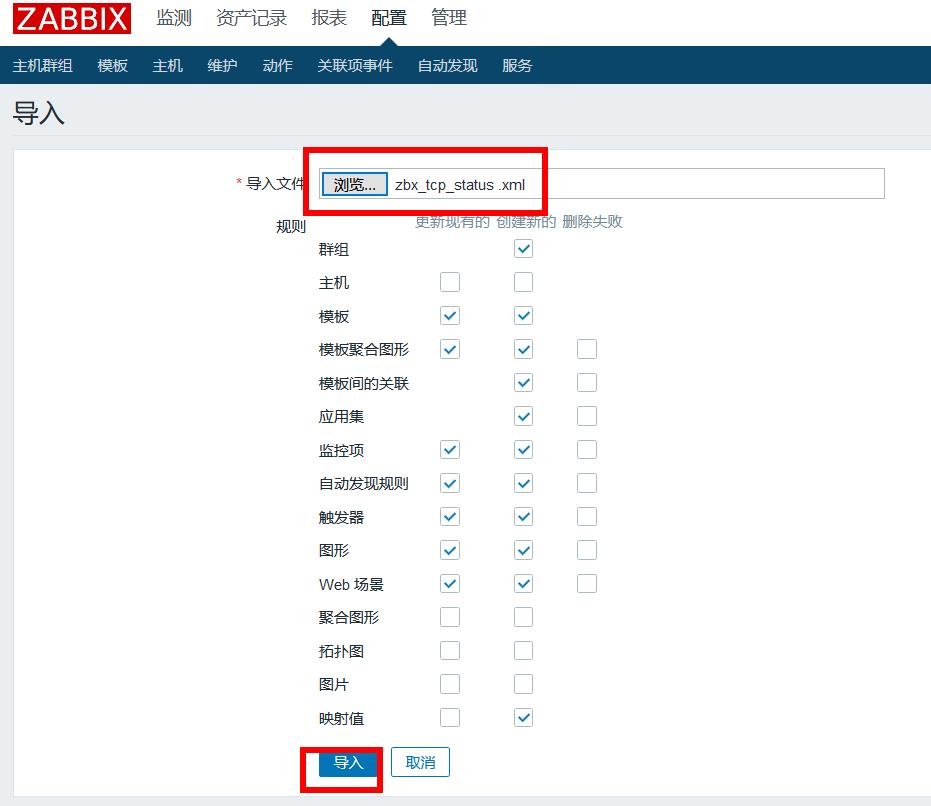

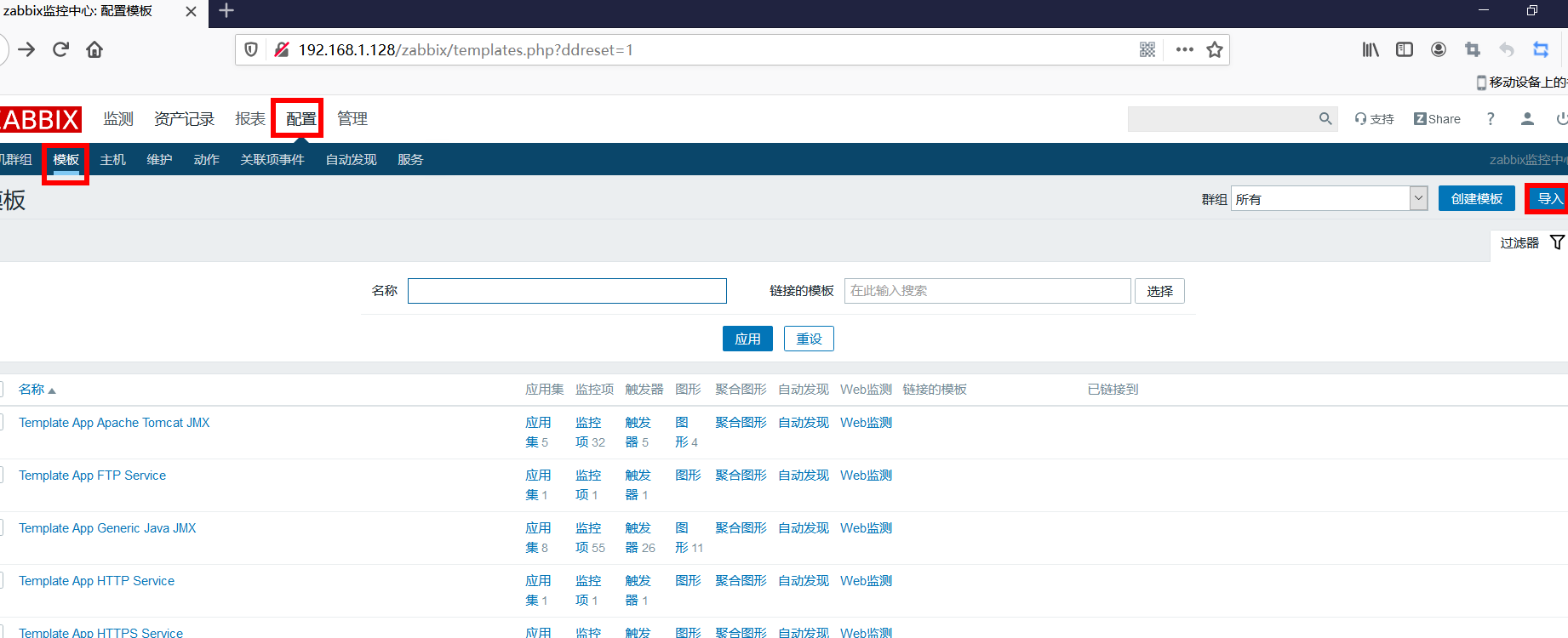

• 导入模板

模板地址https://gitee.com/appdevel/dev.git

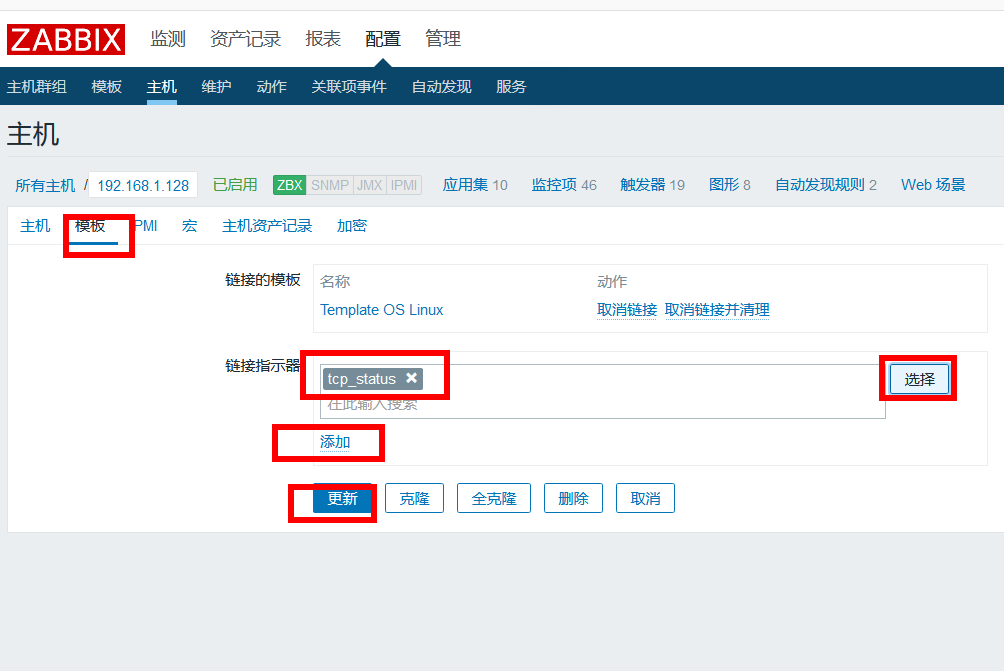

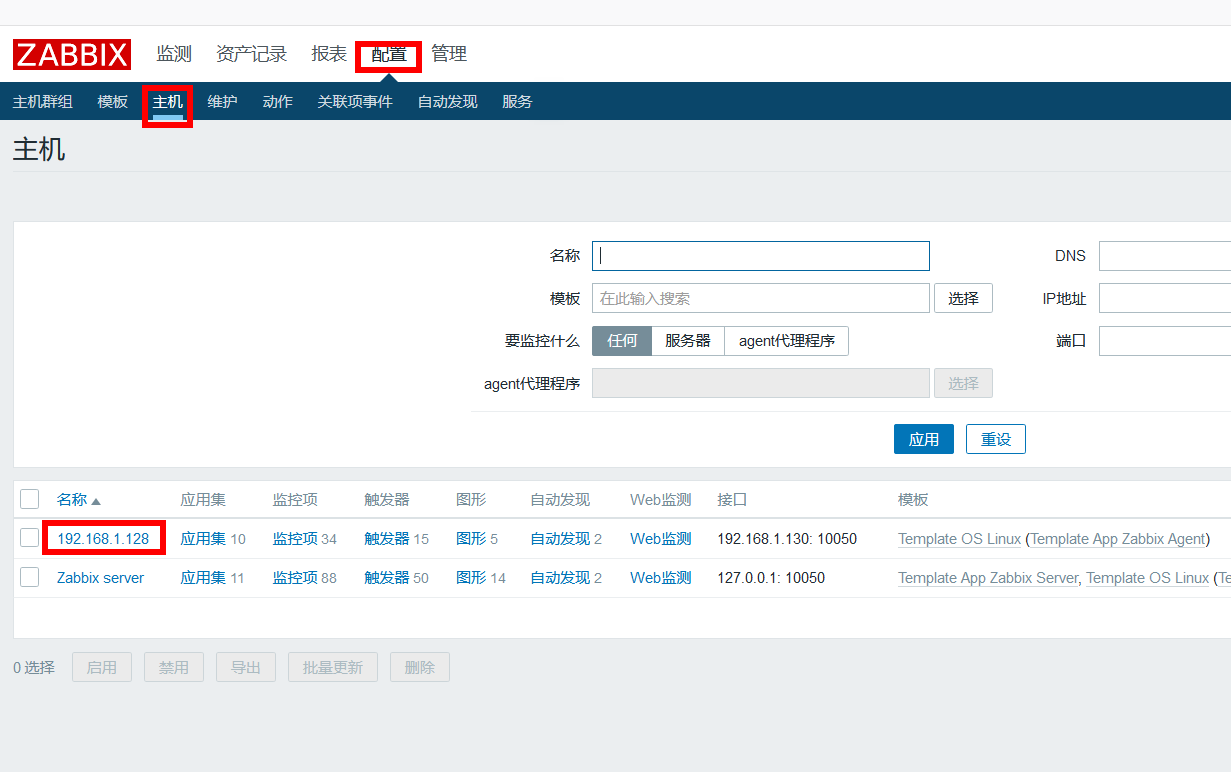

• 链接模板
