1.编辑MC文件，该文件用来生成事件DLL.
-------------------------------------------------------------------
; // MyEventProvider.mc
; // This is the header section.
SeverityNames=(Success=0x0:STATUS_SEVERITY_SUCCESS
Informational=0x1:STATUS_SEVERITY_INFORMATIONAL
Warning=0x2:STATUS_SEVERITY_WARNING
Error=0x3:STATUS_SEVERITY_ERROR
)
FacilityNames=(System=0x0:FACILITY_SYSTEM
Runtime=0x2:FACILITY_RUNTIME
Stubs=0x3:FACILITY_STUBS
Io=0x4:FACILITY_IO_ERROR_CODE
)
LanguageNames=(English=0x409:MSG00409)
; // The following are the categories of events.
MessageIdTypedef=WORD
MessageId=0x1
SymbolicName=NETWORK_CATEGORY
Language=English
Network Events
.
MessageId=0x2
SymbolicName=DATABASE_CATEGORY
Language=English
Database Events
.
MessageId=0x3
SymbolicName=UI_CATEGORY
Language=English
UI Events
.
; // The following are the message definitions.
MessageIdTypedef=DWORD
MessageId=0x100
Severity=Error
Facility=Runtime
SymbolicName=MSG_INVALID_COMMAND
Language=English
The command is not valid.
.
MessageId=0x101
Severity=Error
Facility=System
SymbolicName=MSG_BAD_FILE_CONTENTS
Language=English
File %1 contains content that is not valid.
.
MessageId=0x102
Severity=Warning
Facility=System
SymbolicName=MSG_RETRIES
Language=English
There have been %1 retries with %2 success! Disconnect from
the server and try again later.
.
MessageId=0x103
Severity=Informational
Facility=System
SymbolicName=MSG_COMPUTE_CONVERSION
Language=English
%1 %%4096 = %2 %%4097.
.
; // The following are the parameter strings */
MessageId=0x1000
Severity=Success
Facility=System
SymbolicName=QUARTS_UNITS
Language=English
quarts%0
.
MessageId=0x1001
Severity=Success
Facility=System
SymbolicName=GALLONS_UNITS
Language=English
gallons%0
.
--------------------------------------------------------
2.mc –U MyEventProvider.mc编译生成*.h,*.rc.*.bin文件，其中.rc文件用来编译事件资源dll,*.h文件用户源文件用来充当事件id。
rc MyEventProvider.rc生成*.res,link –dll –noentry MyEventProvider.res即可生成dll.
以下是生成的*.h文件
--------------------------------------------------------
// MyEventProvider.mc
// This is the header section.
// The following are the categories of events.
//
// Values are 32 bit values layed out as follows:
//
// 3 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1
// 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
// +---+-+-+-----------------------+-------------------------------+
// |Sev|C|R| Facility | Code |
// +---+-+-+-----------------------+-------------------------------+
//
// where
//
// Sev - is the severity code
//
// 00 - Success
// 01 - Informational
// 10 - Warning
// 11 - Error
//
// C - is the Customer code flag
//
// R - is a reserved bit
//
// Facility - is the facility code
//
// Code - is the facility's status code
//
//
// Define the facility codes
//
#define FACILITY_SYSTEM 0x0
#define FACILITY_STUBS 0x3
#define FACILITY_RUNTIME 0x2
#define FACILITY_IO_ERROR_CODE 0x4
//
// Define the severity codes
//
#define STATUS_SEVERITY_WARNING 0x2
#define STATUS_SEVERITY_SUCCESS 0x0
#define STATUS_SEVERITY_INFORMATIONAL 0x1
#define STATUS_SEVERITY_ERROR 0x3
//
// MessageId: NETWORK_CATEGORY
//
// MessageText:
//
// Network Events
//
#define NETWORK_CATEGORY ((WORD)0x00000001L)
//
// MessageId: DATABASE_CATEGORY
//
// MessageText:
//
// Database Events
//
#define DATABASE_CATEGORY ((WORD)0x00000002L)
//
// MessageId: UI_CATEGORY
//
// MessageText:
//
// UI Events
//
#define UI_CATEGORY ((WORD)0x00000003L)
// The following are the message definitions.
//
// MessageId: MSG_INVALID_COMMAND
//
// MessageText:
//
// The command is not valid.
//
#define MSG_INVALID_COMMAND ((DWORD)0xC0020100L)
//
// MessageId: MSG_BAD_FILE_CONTENTS
//
// MessageText:
//
// File %1 contains content that is not valid.
//
#define MSG_BAD_FILE_CONTENTS ((DWORD)0xC0000101L)
//
// MessageId: MSG_RETRIES
//
// MessageText:
//
// There have been %1 retries with %2 success! Disconnect from
// the server and try again later.
//
#define MSG_RETRIES ((DWORD)0x80000102L)
//
// MessageId: MSG_COMPUTE_CONVERSION
//
// MessageText:
//
// %1 %%4096 = %2 %%4097.
//
#define MSG_COMPUTE_CONVERSION ((DWORD)0x40000103L)
// The following are the parameter strings */
//
// MessageId: QUARTS_UNITS
//
// MessageText:
//
// quarts%0
//
#define QUARTS_UNITS ((DWORD)0x00001000L)
//
// MessageId: GALLONS_UNITS
//
// MessageText:
//
// gallons%0
//
#define GALLONS_UNITS ((DWORD)0x00001001L)
--------------------------------------------------------
3.用函数ReportEvent写入事件
--------------------------------------------------------
#ifndef UNICODE
#define UNICODE
#endif
#include <windows.h>
#include <stdio.h>
#include "provider.h"
#pragma comment(lib, "advapi32.lib")
#define PROVIDER_NAME L"MyEventProvider"
// Hardcoded insert string for the event messages.
CONST LPWSTR pBadCommand = L"The command that was not valid";
CONST LPWSTR pFilename = L"c:\\folder\\file.ext";
CONST LPWSTR pNumberOfRetries = L"3";
CONST LPWSTR pSuccessfulRetries = L"0";
CONST LPWSTR pQuarts = L"8";
CONST LPWSTR pGallons = L"2";
void wmain(void)
{
HANDLE hEventLog = NULL;
LPWSTR pInsertStrings[2] = {NULL, NULL};
DWORD dwEventDataSize = 0;
// The source name (provider) must exist as a subkey of Application.
hEventLog = RegisterEventSource(NULL, PROVIDER_NAME);
if (NULL == hEventLog)
{
wprintf(L"RegisterEventSource failed with 0x%x.\n", GetLastError());
goto cleanup;
}
// This event includes user-defined data as part of the event. The event message
// does not use insert strings.
dwEventDataSize = ((DWORD)wcslen(pBadCommand) + 1) * sizeof(WCHAR);
if (!ReportEvent(hEventLog, EVENTLOG_ERROR_TYPE, UI_CATEGORY, MSG_INVALID_COMMAND, NULL, 0, dwEventDataSize, NULL, pBadCommand))
{
wprintf(L"ReportEvent failed with 0x%x for event 0x%x.\n", GetLastError(), MSG_INVALID_COMMAND);
goto cleanup;
}
// This event uses insert strings.
pInsertStrings[0] = pFilename;
if (!ReportEvent(hEventLog, EVENTLOG_ERROR_TYPE, DATABASE_CATEGORY, MSG_BAD_FILE_CONTENTS, NULL, 1, 0, (LPCWSTR*)pInsertStrings, NULL))
{
wprintf(L"ReportEvent failed with 0x%x for event 0x%x.\n", GetLastError(), MSG_BAD_FILE_CONTENTS);
goto cleanup;
}
// This event uses insert strings.
pInsertStrings[0] = pNumberOfRetries;
pInsertStrings[1] = pSuccessfulRetries;
if (!ReportEvent(hEventLog, EVENTLOG_WARNING_TYPE, NETWORK_CATEGORY, MSG_RETRIES, NULL, 2, 0, (LPCWSTR*)pInsertStrings, NULL))
{
wprintf(L"ReportEvent failed with 0x%x for event 0x%x.\n", GetLastError(), MSG_RETRIES);
goto cleanup;
}
// This event uses insert strings.
pInsertStrings[0] = pQuarts;
pInsertStrings[1] = pGallons;
if (!ReportEvent(hEventLog, EVENTLOG_INFORMATION_TYPE, UI_CATEGORY, MSG_COMPUTE_CONVERSION, NULL, 2, 0, (LPCWSTR*)pInsertStrings, NULL))
{
wprintf(L"ReportEvent failed with 0x%x for event 0x%x.\n", GetLastError(), MSG_COMPUTE_CONVERSION);
goto cleanup;
}
wprintf(L"All events successfully reported.\n");
cleanup:
if (hEventLog)
DeregisterEventSource(hEventLog);
}
--------------------------------------------------------
4.在注册表表项
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\eventlog\Application
中插入键值MyEventProvider
再在其中插入以下键值
| CategoryCount | REG_DWORD | 0x00000003 |
| CategoryMessageFile | REG_SZ | %SystemRoot%\System\myeventprovider.dll |
| EventMessageFile | REG_SZ | %SystemRoot%\System\myeventprovider.dll |
| ParameterMessageFile | REG_SZ | %SystemRoot%\System\myeventprovider.dll |
| TypesSupported | REG_DWORD | 0x00000007 |

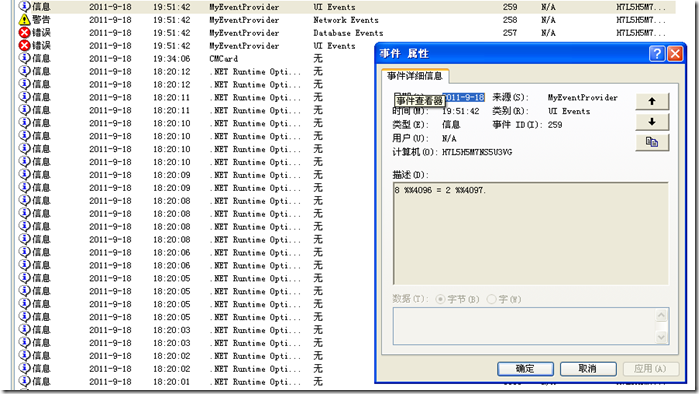

将DLL放入设置的目录，即可在事件查看器中看到写入的事件
一下链接对事件有更详细的讲解：
http://msdn.microsoft.com/en-us/library/windows/desktop/dd996906(v=vs.85).aspx
http://msdn.microsoft.com/en-us/library/windows/desktop/aa363661(v=vs.85).aspx
http://msdn.microsoft.com/en-us/library/windows/desktop/aa363680(v=vs.85).aspx
