【MyBatis笔记】MyBatis逆向工程 | MBG（MyBatis Generator）的创建

1.导入pom依赖

<dependencies>
        <!-- mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.35</version>
        </dependency>
        <!-- Mybaits逆转工程依赖包 -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!-- Mybaits 依赖jar包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.3.1</version>
        </dependency>
        <!-- log4j 依赖jar包 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.1</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.example</groupId>
            <artifactId>MyBatis_mbg</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

    <build>
        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                    </configuration>
                    <version>3.3</version>
                </plugin>
                <plugin>
                    <groupId>org.mybatis.generator</groupId>
                    <artifactId>mybatis-generator-maven-plugin</artifactId>
                    <version>1.3.2</version>
                    <dependencies>
                        <dependency>
                            <groupId>mysql</groupId>
                            <artifactId>mysql-connector-java</artifactId>
                            <version>5.1.35</version>
                        </dependency>
                    </dependencies>
                    <configuration>
                        <!--配置文件的路径 -->
                        <configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
                        <overwrite>true</overwrite>
                    </configuration>
                </plugin>
                <!--JDK版本 -->
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>2.5.1</version>
                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                        <encoding>UTF-8</encoding>
                        <showWarnings>true</showWarnings>
                    </configuration>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>

二、在resources下创建generatorConfig.xml配置类

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="generateTables" targetRuntime="MyBatis3">

        <!-- 此处是将 Example 改名为 Criteria
        <plugin type="org.mybatis.generator.plugins.RenameExampleClassPlugin">
        <property name="searchString" value="Example" />
        <property name="replaceString" value="Criteria" />
        </plugin> -->

        <!-- 序列化 -->
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin" />

        <commentGenerator>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true" />
            <property name="suppressDate" value="true" />
        </commentGenerator>

        <!--数据库连接的信息：驱动类、连接地址、用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/mybatis"
                        userId="root"
                        password="root">
        </jdbcConnection>

        <!-- <jdbcConnection driverClass="oracle.jdbc.OracleDriver" connectionURL="jdbc:oracle:thin:@127.0.0.1:1521:yycg"
        userId="yycg" password="yycg"> </jdbcConnection> -->

        <!-- 默认false，把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer，为 true时把JDBC DECIMAL
        和 NUMERIC 类型解析为java.math.BigDecimal -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <!-- targetProject:生成PO类的位置 -->
        <javaModelGenerator targetPackage="com.Mybaits.pojo"
                            targetProject=".\src\main\java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
            <!-- 从数据库返回的值被清理前后的空格 -->
            <property name="trimStrings" value="true" />
        </javaModelGenerator>

        <!-- targetProject:mapper映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.Mybaits.mapper"
                         targetProject=".\src\main\java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>

        <!-- targetPackage：mapper接口生成的位置 -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.Mybaits.mapper" targetProject=".\src\main\java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>

        <!-- 指定数据库表 保留Example例子 -->
        <table schema="" tableName="tbl_Employee" domainObjectName="Employee" />
        <table schema="" tableName="tbl_Dept" domainObjectName="Department"/>
        <!-- 指定数据库表 去除Example例子
        <table schema="general" tableName="tb_item" domainObjectName="Item"
        enableCountByExample="false" enableUpdateByExample="false"
        enableDeleteByExample="false" enableSelectByExample="true"
        selectByExampleQueryId="false">
        <property name="useActualColumnNames" value="false" />
        </table> -->
    </context>
</generatorConfiguration>

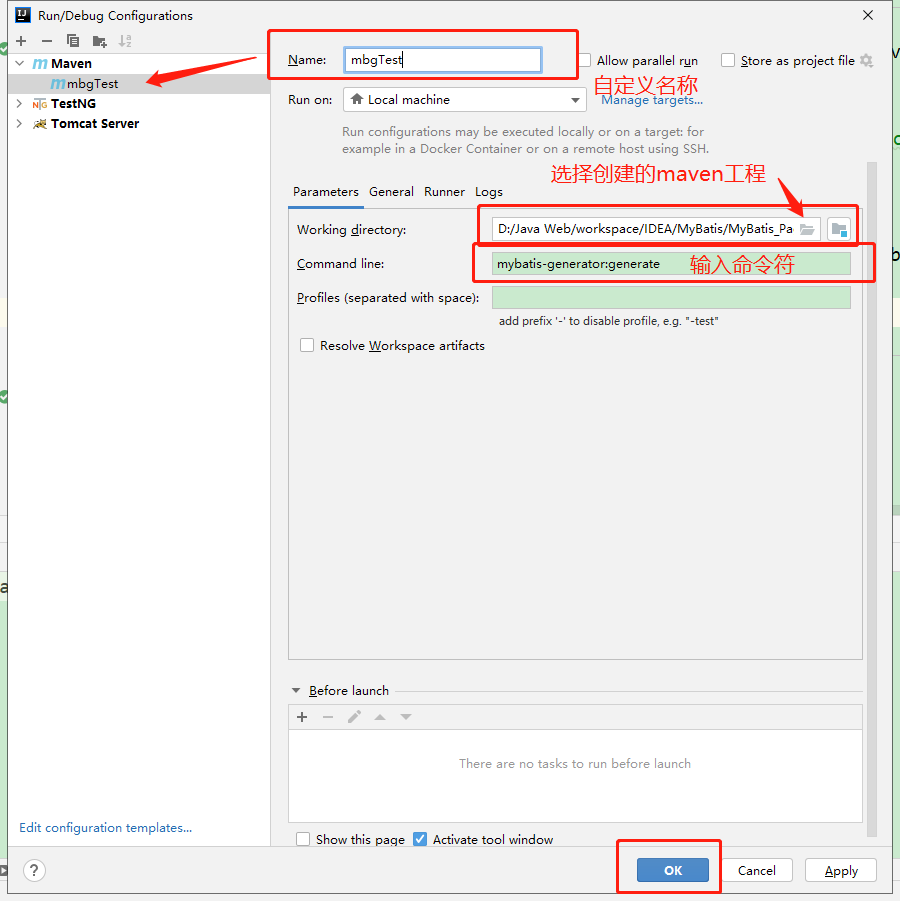

三、配置生成器

 四、编写测试代码，自动生成对应代码

@Test
    public void MybaitsGenerator() throws IOException, XMLParserException, InvalidConfigurationException, SQLException, InterruptedException{
        List<String> warnings = new ArrayList<String>();
        boolean overwrite = true;//加载上面的配置文件
        File configFile = new File("./src/main/resources/generatorconfig.xml");
        ConfigurationParser cp = new ConfigurationParser(warnings);
        Configuration config = cp.parseConfiguration(configFile);
        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        myBatisGenerator.generate(null);
    }
