配置Pod的服务质量

QoS类

QoS（Quality of Service class，Qos class）：服务质量类

Kubernetes创建Pod时，会将如下Qos类之一设置到Pod上：

Guaranteed
Burstable
BestEffort

先创建一个qos-example命名空间方便测试

kubectl create namespace=qos-example

创建一个Qos为Guaranteed的Pod

Qos类为Guaranted的Pod满足的条件：

Pod中每个容器都限制内存和内存请求
每个容器内存限制和内存请求必须相等
每个容器必须指定cpu限制和请求，且二者必须相等

反映到yaml配置文件中则表示必须有limits和requests字段，且两字段中的子类值必须相等

kubectl apply -f qos-demo.yaml --namespace=qos-example

#qos-demo.yaml
apiVersion: v1
kind: Pod
metadata:
  name: qos-demo
  namespace: qos-example
spec:
  containers:
  - name: qos-demo-ctr
    image: nginx
    resources:
      limits:
        memory: "200Mi"
        cpu: "700m"
      requests:
        memory: "200Mi"
        cpu: "700m"

kubectl get pod qos-demo --namespace=qos-example --output=yaml

root@lxt-master:~/podTest# kubectl get pod qos-demo --namespace=qos-example --output=yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"qos-demo","namespace":"qos-example"},"spec":{"containers":[{"image":"nginx","name":"qos-demo-ctr","resources":{"limits":{"cpu":"700m","memory":"200Mi"},"requests":{"cpu":"700m","memory":"200Mi"}}}]}}
  creationTimestamp: "2023-05-04T03:06:54Z"
  name: qos-demo
  namespace: qos-example
  resourceVersion: "4878778"
  uid: 8b60daeb-95eb-4a33-99ab-d8ea508e1ad9
spec:
  containers:
  - image: nginx
    imagePullPolicy: Always
    name: qos-demo-ctr
    resources:
      limits:
        cpu: 700m
        memory: 200Mi
      requests:
        cpu: 700m
        memory: 200Mi
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-w8nhz
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  nodeName: lxt-master
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: default
  serviceAccountName: default
  terminationGracePeriodSeconds: 30
  tolerations:
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
    tolerationSeconds: 300
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
    tolerationSeconds: 300
  volumes:
  - name: kube-api-access-w8nhz
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:06:54Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:07:11Z"
    status: "True"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:07:11Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:06:54Z"
    status: "True"
    type: PodScheduled
  containerStatuses:
  - containerID: docker://bfd07210d64cf4b3dfb7deef4eba1ee5691c9d011d51fe863738b4affba14c26
    image: nginx:latest
    imageID: docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
    lastState: {}
    name: qos-demo-ctr
    ready: true
    restartCount: 0
    started: true
    state:
      running:
        startedAt: "2023-05-04T03:07:11Z"
  hostIP: 192.168.20.113
  phase: Running
  podIP: 10.44.0.7
  podIPs:
  - ip: 10.44.0.7
  qosClass: Guaranteed
  startTime: "2023-05-04T03:06:54Z"

创建一个QoS类为Burstable的Pod

满足条件

Pod不符合Guaranted标准
Pod中至少一个container有内存或者cpu的请求或限制

#qos-pod-2.yaml
apiVersion: v1
kind: Pod
metadata:
  name: qos-demo-2
  namespace: qos-example
spec:
  containers:
  - name: qos-demo-2-ctr
    image: nginx
    resources:
      limits:
        memory: "200Mi"
      requests:
        memory: "100Mi"

pod详情

kubectl get pod qos-demo-2 --namespace=qos-example --output=yaml

root@lxt-master:~/podTest# kubectl get pod qos-demo-2 --namespace=qos-example --output=yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"qos-demo-2","namespace":"qos-example"},"spec":{"containers":[{"image":"nginx","name":"qos-demo2-ctr","resources":{"limits":{"memory":"200Mi"},"requests":{"memory":"100Mi"}}}]}}
  creationTimestamp: "2023-05-04T03:13:34Z"
  name: qos-demo-2
  namespace: qos-example
  resourceVersion: "4879998"
  uid: d9fd5928-ade3-4624-958f-376842aaeb23
spec:
  containers:
  - image: nginx
    imagePullPolicy: Always
    name: qos-demo2-ctr
    resources:
      limits:
        memory: 200Mi
      requests:
        memory: 100Mi
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-jcgnn
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  nodeName: lxt-master
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: default
  serviceAccountName: default
  terminationGracePeriodSeconds: 30
  tolerations:
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
    tolerationSeconds: 300
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
    tolerationSeconds: 300
  volumes:
  - name: kube-api-access-jcgnn
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:13:34Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:13:52Z"
    status: "True"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:13:52Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:13:34Z"
    status: "True"
    type: PodScheduled
  containerStatuses:
  - containerID: docker://2bc5fcd44b649d13c266842f82978f78f474ba577eddb7f6e460fefa21b213e1
    image: nginx:latest
    imageID: docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
    lastState: {}
    name: qos-demo2-ctr
    ready: true
    restartCount: 0
    started: true
    state:
      running:
        startedAt: "2023-05-04T03:13:51Z"
  hostIP: 192.168.20.113
  phase: Running
  podIP: 10.44.0.8
  podIPs:
  - ip: 10.44.0.8
  qosClass: Burstable
  startTime: "2023-05-04T03:13:34Z"

创建一个QoS类为Best Effort的Pod

条件：Pod中的Container必须没有设置内存和cpu限制或请求

apiVersion: v1
kind: Pod
metadata:
  name: qos-demo-3
  namespace: qos-example
spec:
  containers:
  - name: qos-demo-3-ctr
    image: nginx

Pod详情：

kubectl get pod qos-demo-3 --namespace=qos-example --output=yaml

root@lxt-master:~/podTest# kubectl get pod qos-demo-3 --namespace=qos-example --output=yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"qos-demo-3","namespace":"qos-example"},"spec":{"containers":[{"image":"nginx","name":"qos-demo-3-ctr"}]}}
  creationTimestamp: "2023-05-04T03:21:08Z"
  name: qos-demo-3
  namespace: qos-example
  resourceVersion: "4881388"
  uid: a7046c5c-298e-4b38-a950-6e3df583e949
spec:
  containers:
  - image: nginx
    imagePullPolicy: Always
    name: qos-demo-3-ctr
    resources: {}
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-gsvf7
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  nodeName: lxt-master
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: default
  serviceAccountName: default
  terminationGracePeriodSeconds: 30
  tolerations:
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
    tolerationSeconds: 300
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
    tolerationSeconds: 300
  volumes:
  - name: kube-api-access-gsvf7
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:21:08Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:21:27Z"
    status: "True"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:21:27Z"
    status: "True"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:21:08Z"
    status: "True"
    type: PodScheduled
  containerStatuses:
  - containerID: docker://c7bdfbb070ed8f0aa374bc1ae416569c6abddeb0c4ba81a041c1117dbfa13bf7
    image: nginx:latest
    imageID: docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
    lastState: {}
    name: qos-demo-3-ctr
    ready: true
    restartCount: 0
    started: true
    state:
      running:
        startedAt: "2023-05-04T03:21:27Z"
  hostIP: 192.168.20.113
  phase: Running
  podIP: 10.44.0.9
  podIPs:
  - ip: 10.44.0.9
  qosClass: BestEffort
  startTime: "2023-05-04T03:21:08Z"

创建包含两个容器的Pod

apiVersion: v1
kind: Pod
metadata:
  name: qos-demo-4
  namespace: qos-example
spec:
  containers:

  - name: qos-demo-4-ctr-1
    image: nginx
    resources:
      requests:
        memory: "200Mi"

  - name: qos-demo-4-ctr-2
    image: redis

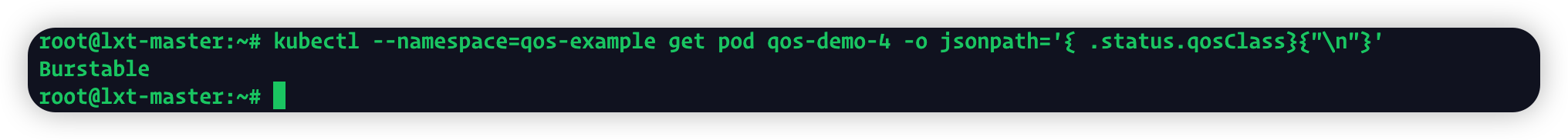

这个Pod满足Burstable的标准，因为它的Container之一有内存请求

Pod详情：

kubectl get pod qos-demo-4 --namespace=qos-example --output=yaml

root@lxt-master:~# kubectl get pod qos-demo-4 --namespace=qos-example --output=yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"qos-demo-4","namespace":"qos-example"},"spec":{"containers":[{"image":"nginx","name":"qos-demo-4-ctr-1","resources":{"requests":{"memory":"200Mi"}}},{"image":"redis","name":"qos-demo-4-ctr-2"}]}}
  creationTimestamp: "2023-05-04T03:25:05Z"
  name: qos-demo-4
  namespace: qos-example
  resourceVersion: "4882050"
  uid: 03e3bb85-1c6e-428f-9a6b-98cbfd315193
spec:
  containers:
  - image: nginx
    imagePullPolicy: Always
    name: qos-demo-4-ctr-1
    resources:
      requests:
        memory: 200Mi
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-hxwxb
      readOnly: true
  - image: redis
    imagePullPolicy: Always
    name: qos-demo-4-ctr-2
    resources: {}
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: File
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-hxwxb
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  nodeName: node1
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: default
  serviceAccountName: default
  terminationGracePeriodSeconds: 30
  tolerations:
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
    tolerationSeconds: 300
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
    tolerationSeconds: 300
  volumes:
  - name: kube-api-access-hxwxb
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace
status:
  conditions:
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:25:05Z"
    status: "True"
    type: Initialized
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:25:05Z"
    message: 'containers with unready status: [qos-demo-4-ctr-1 qos-demo-4-ctr-2]'
    reason: ContainersNotReady
    status: "False"
    type: Ready
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:25:05Z"
    message: 'containers with unready status: [qos-demo-4-ctr-1 qos-demo-4-ctr-2]'
    reason: ContainersNotReady
    status: "False"
    type: ContainersReady
  - lastProbeTime: null
    lastTransitionTime: "2023-05-04T03:25:05Z"
    status: "True"
    type: PodScheduled
  containerStatuses:
  - image: nginx
    imageID: ""
    lastState: {}
    name: qos-demo-4-ctr-1
    ready: false
    restartCount: 0
    started: false
    state:
      waiting:
        reason: ContainerCreating
  - image: redis
    imageID: ""
    lastState: {}
    name: qos-demo-4-ctr-2
    ready: false
    restartCount: 0
    started: false
    state:
      waiting:
        reason: ContainerCreating
  hostIP: 192.168.20.221
  phase: Pending
  qosClass: Burstable
  startTime: "2023-05-04T03:25:05Z"

检查Pod的Qos类

kubectl --namespace=qos-example get pod qos-demo-4 -o jsonpath='{ .status.qosClass}{"\n"}'

posted @ 2023-07-24 17:18 pr1s0n 阅读(57) 评论(0) 收藏举报

刷新页面返回顶部

pr1s0n

知识面决定攻击链。
