解释器模式

实验17：解释器模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解解释器模式的动机，掌握该模式的结构；

2、能够利用解释器模式解决实际问题。



[实验任务一]：解释器模式



某机器人控制程序包含一些简单的英文指令，其文法规则如下：



expression ::= direction action distance | composite



composite ::= expression and expression



direction ::= ‘up’ | ‘down’ | ‘left’ | ‘right’



action ::= ‘move’ | ‘run’



distance ::= an integer //一个整数值



如输入：up move 5，则输出“向上移动5个单位”；输入：down run 10 and left move 20，则输出“向下移动10个单位再向左移动20个单位”。

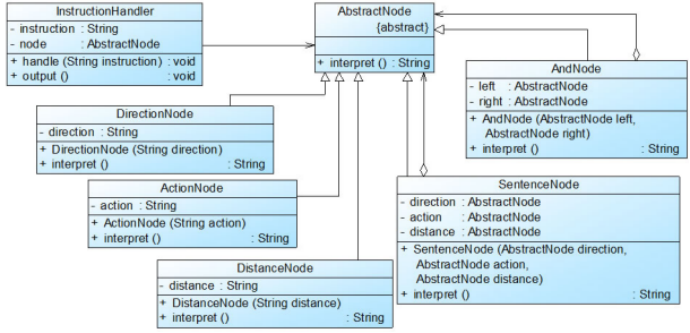

类图



源代码

abstract class AbstractNode {
public abstract String interpret();
}
public class ActionNode extends AbstractNode{
private String action;
public ActionNode(String action) {
super();
this.action = action;
}
@Override
public String interpret() {
// TODO Auto-generated method stub
if(action.equals("move")){
return "移动";
}else if(action.equals("run")){
return "快速移动";
}else{
return "error";
}

}
}
public class AndNode extends AbstractNode {
private AbstractNode left;
private AbstractNode right;
@Override
public String interpret() {
// TODO Auto-generated method stub
return left.interpret() + "再" +right.interpret();
}
public AndNode(AbstractNode left, AbstractNode right) {
super();
this.left = left;
this.right = right;
}
}
public class Client {
public static void main(String[] args) {
// TODO Auto-generated method stub
String s = "down run 10 and left move 20";
InstructionHandler handler = new InstructionHandler();
handler.handle(s);

System.out.println(handler.output());
}
}
public class DirectionNode extends AbstractNode{
private String direction;

public DirectionNode(String direction) {
super();
this.direction = direction;
}
@Override
public String interpret() {
// TODO Auto-generated method stub
if(direction.equals("up")){
return "向上";
}else if(direction.equals("down")){
return "向下";
}else if(direction.equals("left")){
return "向左";
}else if(direction.equals("right")){
return "向右";
}else{
return "error";
}
}
}
public class DistanceNode extends AbstractNode{
private String distance;
public DistanceNode(String dis) {
super();
this.distance = dis;
}
@Override
public String interpret() {
// TODO Auto-generated method stub
return this.distance;
}

}
import java.util.Stack;
public class InstructionHandler {
private AbstractNode node;
public void handle(String instruction){
AbstractNode left = null;
AbstractNode right = null;
AbstractNode direction = null;
AbstractNode action = null;
AbstractNode distance = null;
Stack<AbstractNode> stack = new Stack<>();
String [] words = instruction.split(" ");
for (int i = 0; i < words.length; i++) {
if(words[i].equalsIgnoreCase("and")){
left = (AbstractNode)stack.pop();
String dir = words[++i];
direction = new DirectionNode(dir);
String a = words[++i];
action = new ActionNode(a);
String dis = words[++i];
distance = new DistanceNode(dis);
right = new SentenceNode(direction, action, distance);
stack.push(new AndNode(left, right));
}else{
String dir = words[i];
direction = new DirectionNode(dir);
String a = words[++i];
action = new ActionNode(a);
String dis = words[++i];
distance = new DistanceNode(dis);
left = new SentenceNode(direction, action, distance);
stack.push(left);

}
}
this.node = (AbstractNode)stack.pop();
}
public String output(){
String result = node.interpret();
return result;
}
}
public class SentenceNode extends AbstractNode{
private AbstractNode direction;
private AbstractNode action;
private AbstractNode distance;
public SentenceNode(AbstractNode direction, AbstractNode action, AbstractNode distance) {
super();
this.direction = direction;
this.action = action;
this.distance = distance;
}
@Override
public String interpret() {
// TODO Auto-generated method stub
return direction.interpret()+action.interpret()+distance.interpret();
}
}
