k8s日志系统07--部署kibana

运维主机HDSS7-200.host.com上：



准备镜像

[root@hdss7-200 ~]# docker pull kibana:6.8.6
[root@hdss7-200 ~]# docker tag adfab5632ef4 harbor.od.com/infra/kibana:v6.8.6
[root@hdss7-200 ~]# docker push harbor.od.com/infra/kibana:v6.8.6

准备资源配置清单

[root@hdss7-200 ~]# mkdir /data/k8s-yaml/kibana
[root@hdss7-200 ~]# cd /data/k8s-yaml/kibana
[root@hdss7-200 kibana]# vim deployment.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
name: kibana
namespace: infra
labels:
name: kibana
spec:
replicas: 1
selector:
matchLabels:
name: kibana
template:
metadata:
labels:
app: kibana
name: kibana
spec:
containers:
- name: kibana
image: harbor.od.com/infra/kibana:v6.8.6
imagePullPolicy: IfNotPresent
ports:
- containerPort: 5601
protocol: TCP
env:
- name: ELASTICSEARCH_URL
value: http://10.4.7.12:9200
imagePullSecrets:
- name: harbor
securityContext:
runAsUser: 0
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
maxSurge: 1
revisionHistoryLimit: 7
progressDeadlineSeconds: 600

[root@hdss7-200 kibana]# vim service.yaml
kind: Service
apiVersion: v1
metadata:
name: kibana
namespace: infra
spec:
ports:
- protocol: TCP
port: 5601
targetPort: 5601
selector:
app: kibana

[root@hdss7-200 kibana]# vim ingress.yaml
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
name: kibana
namespace: infra
spec:
rules:
- host: kibana.od.com
http:
paths:
- path: /
backend:
serviceName: kibana
servicePort: 5601



添加A记录

[root@hdss7-11 ~]# vim /var/named/od.com.zone
kibana A 10.4.7.10

[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A kibana.od.com @10.4.7.11 +short
10.4.7.10

创建资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/kibana/deployment.yaml
deployment.extensions/kibana created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/kibana/service.yaml
service/kibana created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/kibana/ingress.yaml
ingress.extensions/kibana created

web展示

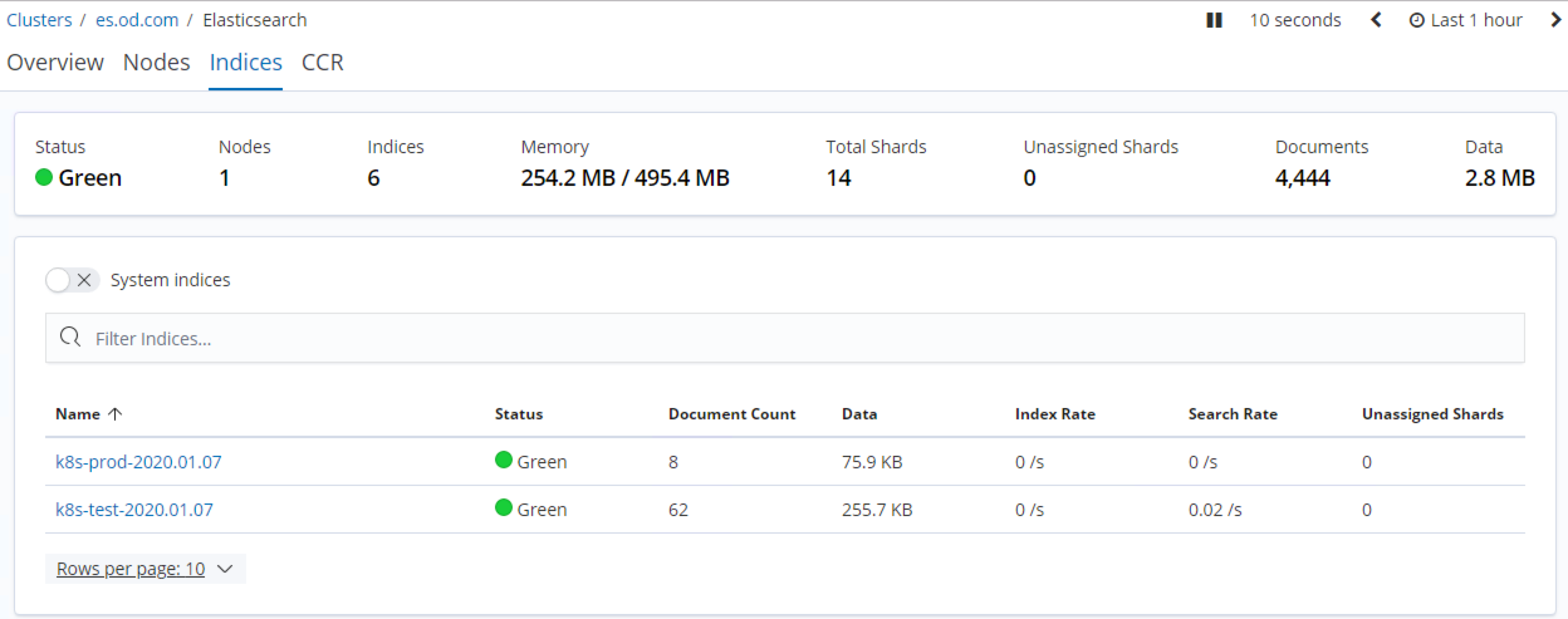

es监控





日志展示
