Docker安装minio纪实

1.镜像准备

docker pull minio/minio:RELEASE.2021-06-14T01-29-23Z



2.目录准备

mkdir -p /home/bizuser/soft/docker-minio/{data,config}
chmod -R 775 /home/bizuser/soft/docker-minio
chown -R 1000:1000 /home/bizuser/soft/docker-minio



3.容器启动命令

docker run -d \
--name minio-server \
--restart=always \
-p 9000:9000 \
-e "MINIO_ROOT_USER=admin" \
-e "MINIO_ROOT_PASSWORD=Demo@2020" \
-e TZ=Asia/Shanghai \
-v /home/bizuser/soft/docker-minio/data:/data \
-v /home/bizuser/soft/docker-minio/config:/root/.minio \
minio/minio:RELEASE.2021-06-14T01-29-23Z server /data



4.权限配置

4.nginx-module-image-filter 模块，参考之前的文章 Docker - Nginx部署

5.资源配置

5.1管理页面配置

# 用户访问
server {
    listen  80; # 监听端口
    server_name  static.renzicu.com;
    return 301 https://$host$request_uri;
}
server {
    listen  443 ssl;
    server_name static.renzicu.com;
    ssl_certificate     /etc/nginx/cert/5945797_static.renzicu.com.pem;
    ssl_certificate_key /etc/nginx/cert/5945797_static.renzicu.com.key;
    ssl_session_timeout 5m;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_prefer_server_ciphers on;
    location / {
        root /data;     # 资源根目录，如果nginx运行在docker内，需要注意docker是否有映射此目录
        index /usr/share/nginx/html/index.html;
        proxy_redirect off;
        proxy_set_header X-Forwarded-Host $host; # 修改转发请求头
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Host $http_host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "Upgrade";
        expires off;
        sendfile off;
    }
    error_page  404 /404.html;
    location = /404.html {
        root   /usr/share/nginx/html;
    }
    error_page   500 502 503 504 /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }

    ## 需要nginx安装 nginx-module-image-filter模块
    # 生成缩略图（等比例），示例 http://xxx.com/1.jpg!128x128
      location ~* /(.+)\.(jpg|jpeg|gif|png)!(\d+)x(\d+)$ {
        set $w $3;
        set $h $4;
        root /data; # 这里一定要写，否则不生效
        image_filter resize  $w $h;
        image_filter_buffer  10M;
        image_filter_jpeg_quality 75;
        try_files /$1.$2  /notfound.jpg;
    }
    # 生成裁切图片（固定高宽），示例 http://xxx.com/1.jpg!128_128
      location ~* /(.+)\.(jpg|jpeg|gif|png)!(\d+)_(\d+)$ {
        set $w $3;
        set $h $4;
        root /data; # 这里一定要写，否则不生效
        image_filter crop    $w $h;
        image_filter_buffer  10M;
        image_filter_jpeg_quality 75;
        try_files /$1.$2  /notfound.jpg;
    }
}

5.2资源访问配置

# 用户访问
server {
    listen  80; # 监听端口
    server_name  static.renzicu.com;
    return 301 https://$host$request_uri;
}
server {
    listen  443 ssl;
    server_name static.renzicu.com;
    ssl_certificate     /etc/nginx/cert/5945797_static.renzicu.com.pem;
    ssl_certificate_key /etc/nginx/cert/5945797_static.renzicu.com.key;
    ssl_session_timeout 5m;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_prefer_server_ciphers on;
    location / {
        root /data;     # 资源根目录，如果nginx运行在docker内，需要注意docker是否有映射此目录
        index /usr/share/nginx/html/index.html;
        proxy_redirect off;
        proxy_set_header X-Forwarded-Host $host; # 修改转发请求头
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Host $http_host;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "Upgrade";
        expires off;
        sendfile off;
    }
    error_page  404 /404.html;
    location = /404.html {
        root   /usr/share/nginx/html;
    }
    error_page   500 502 503 504 /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }

    ## 需要nginx安装 nginx-module-image-filter模块
    # 生成缩略图（等比例），示例 http://xxx.com/1.jpg!128x128
      location ~* /(.+)\.(jpg|jpeg|gif|png)!(\d+)x(\d+)$ {
        set $w $3;
        set $h $4;
        root /data; # 这里一定要写，否则不生效
        image_filter resize  $w $h;
        image_filter_buffer  10M;
        image_filter_jpeg_quality 75;
        try_files /$1.$2  /notfound.jpg;
    }
    # 生成裁切图片（固定高宽），示例 http://xxx.com/1.jpg!128_128
      location ~* /(.+)\.(jpg|jpeg|gif|png)!(\d+)_(\d+)$ {
        set $w $3;
        set $h $4;
        root /data; # 这里一定要写，否则不生效
        image_filter crop    $w $h;
        image_filter_buffer  10M;
        image_filter_jpeg_quality 75;
        try_files /$1.$2  /notfound.jpg;
    }
}

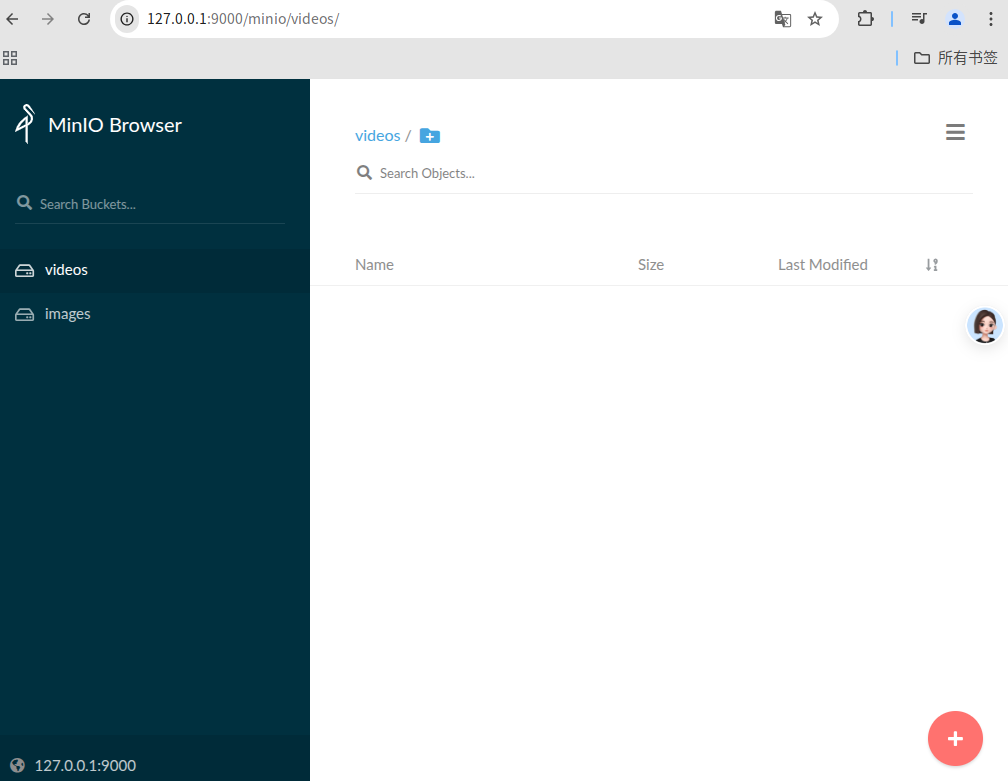

6.访问验证

http://127.0.0.1:9000/minio/login



参考：

https://www.cnblogs.com/Lcsxx/p/18569627
