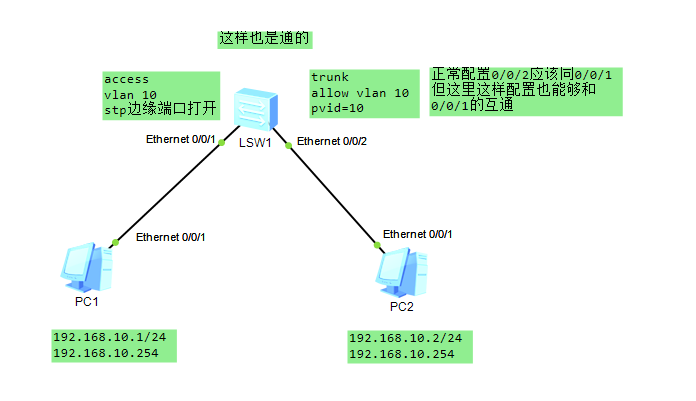

华为交换机vlan access端口与trunk端口间的通讯配置

#
sysname SW1
#
vlan batch 10

#
interface Ethernet0/0/1
port link-type access
port default vlan 10
stp edged-port enable
#
interface Ethernet0/0/2
port link-type trunk
port trunk pvid vlan 10
port trunk allow-pass vlan 10
stp edged-port enable
#
