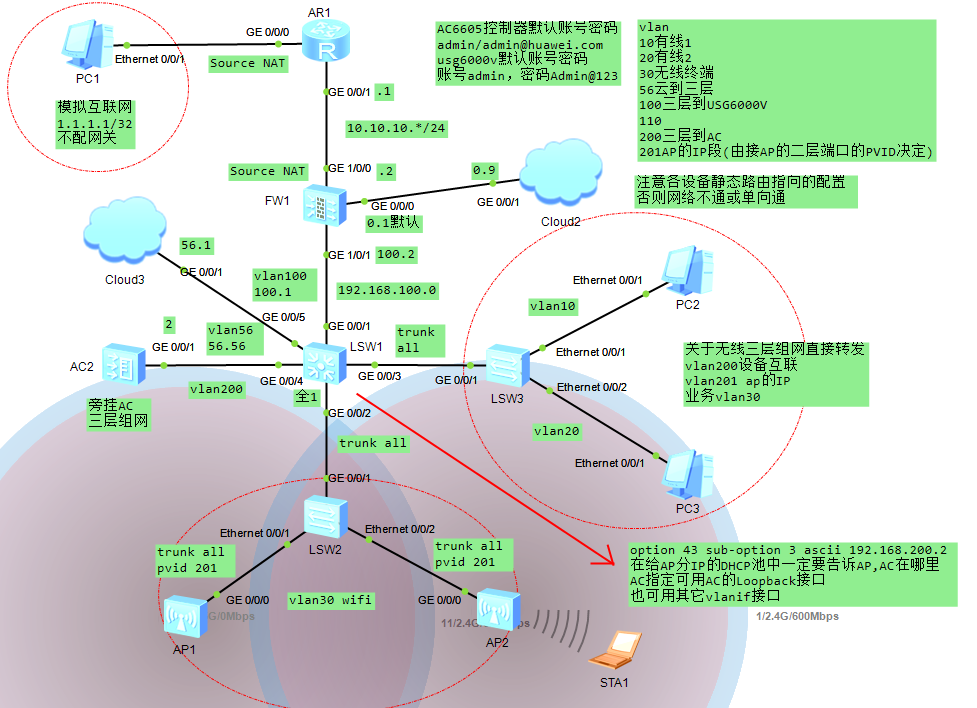

基于华为有线无线分层完整ensp实验方案
===================================
==========================================
配置-------------------------------
路由器
The device is running!
<R>dis cur
[V200R003C00]
#
sysname R
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
drop illegal-mac alarm
#
wlan ac-global carrier id other ac id 0
#
set cpu-usage threshold 80 restore 75
#
acl number 2000
rule 5 permit
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface GigabitEthernet0/0/0
ip address 20.20.20.20 255.255.255.0
nat outbound 2000
#
interface GigabitEthernet0/0/1
ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 20.20.20.1
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
<R>
防火墙
Username:admin
Password:
*************************************************************************
* Copyright (C) 2014-2018 Huawei Technologies Co., Ltd. *
* All rights reserved. *
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
*************************************************************************
<USG6000V1>dis cur
2023-06-16 08:58:24.690
!Software Version V500R005C10SPC300
#
sysname USG6000V1
#
l2tp domain suffix-separator @
#
ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
update schedule location-sdb weekly Sun 00:28
#
firewall defend action discard
#
banner enable
#
user-manage web-authentication security port 8887
undo privacy-statement english
undo privacy-statement chinese
page-setting
user-manage security version tlsv1.1 tlsv1.2
password-policy
level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
web-manager security version tlsv1.1 tlsv1.2
web-manager enable
web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
undo ips log merge enable
#
decoding uri-cache disable
#
update schedule ips-sdb daily 23:51
update schedule av-sdb daily 23:51
update schedule sa-sdb daily 23:51
update schedule cnc daily 23:51
update schedule file-reputation daily 23:51
#
ip vpn-instance default
ipv4-family
#
time-range worktime
period-range 08:00:00 to 18:00:00 working-day
#
ike proposal default
encryption-algorithm aes-256 aes-192 aes-128
dh group14
authentication-algorithm sha2-512 sha2-384 sha2-256
authentication-method pre-share
integrity-algorithm hmac-sha2-256
prf hmac-sha2-256
#
aaa
authentication-scheme default
authentication-scheme admin_local
authentication-scheme admin_radius_local
authentication-scheme admin_hwtacacs_local
authentication-scheme admin_ad_local
authentication-scheme admin_ldap_local
authentication-scheme admin_radius
authentication-scheme admin_hwtacacs
authentication-scheme admin_ad
authorization-scheme default
accounting-scheme default
domain default
service-type internetaccess ssl-vpn l2tp ike
internet-access mode password
reference user current-domain
manager-user audit-admin
password cipher @%@%=$,N'McP(9F%Z0-|BHsEnJW8#4V~6+0_e7!U.MPs<g72JW;n@%@%
service-type web terminal
level 15
manager-user api-admin
password cipher @%@%K]*DZg[1qPodGbNK]x]7Of8]wTJ+":~3c;Xt&(0ptL{Xf8`O@%@%
level 15
manager-user admin
password cipher @%@%o||(#%WUST3)@IUx-b/F0$n!qkljIEl`a#RHV`+l@~i#$n$0@%@%
service-type web terminal
level 15
role system-admin
role device-admin
role device-admin(monitor)
role audit-admin
bind manager-user audit-admin role audit-admin
bind manager-user admin role system-admin
#
l2tp-group default-lns
#

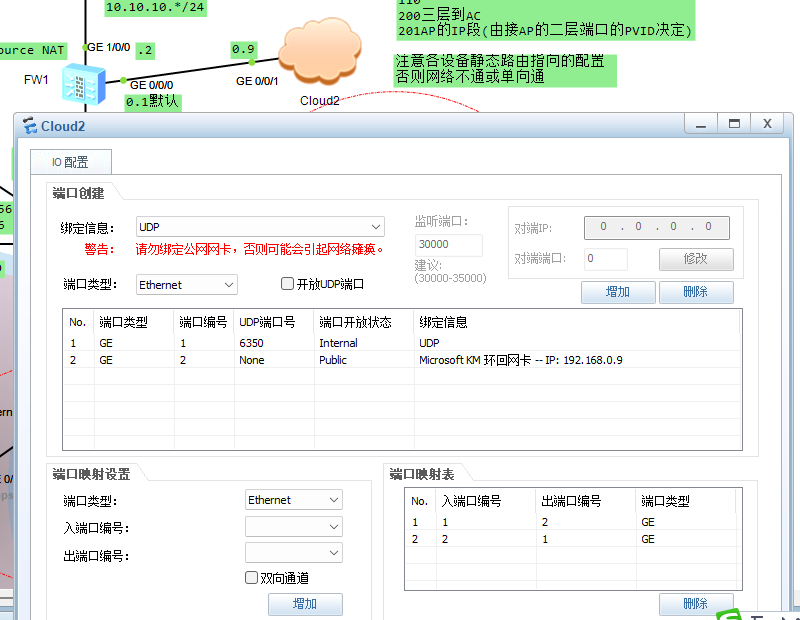

interface GigabitEthernet0/0/0
undo shutdown
ip binding vpn-instance default
ip address 192.168.0.1 255.255.255.0
alias GE0/METH
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage ssh permit
service-manage snmp permit
service-manage telnet permit
#
interface GigabitEthernet1/0/0
undo shutdown
ip address 10.10.10.2 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage telnet permit
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 192.168.100.2 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
service-manage telnet permit
#
interface GigabitEthernet1/0/2
undo shutdown
#
interface GigabitEthernet1/0/3
undo shutdown
#
interface GigabitEthernet1/0/4
undo shutdown
#
interface GigabitEthernet1/0/5
undo shutdown
#
interface GigabitEthernet1/0/6
undo shutdown
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
set priority 100
#
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/1
#
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/0
#
firewall zone dmz
set priority 50
#
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet1/0/0 10.10.10.1
ip route-static 192.168.0.0 255.255.0.0 GigabitEthernet1/0/1 192.168.100.1
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
authentication-mode aaa
user-interface vty 0 4
authentication-mode aaa
protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
multi-linkif
mode proportion-of-weight
#
right-manager server-group
#
device-classification
device-group pc
device-group mobile-terminal
device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
rule name Local-trust
source-zone local
destination-zone trust
action permit
rule name trust-Local
source-zone trust
destination-zone local
action permit
rule name trust-untrust
source-zone trust
destination-zone untrust
action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
rule name nat源地址转换
source-zone trust
destination-zone untrust
action source-nat easy-ip
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return
<USG6000V1>
三层交换
<L3>dis cur
#
sysname L3
#
undo info-center enable
#
vlan batch 10 20 30 56 100 200 to 201
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
dhcp enable
#
diffserv domain default
#
drop-profile default
#
vlan 10
description wired1
vlan 20
description wired2
vlan 30
description wireless

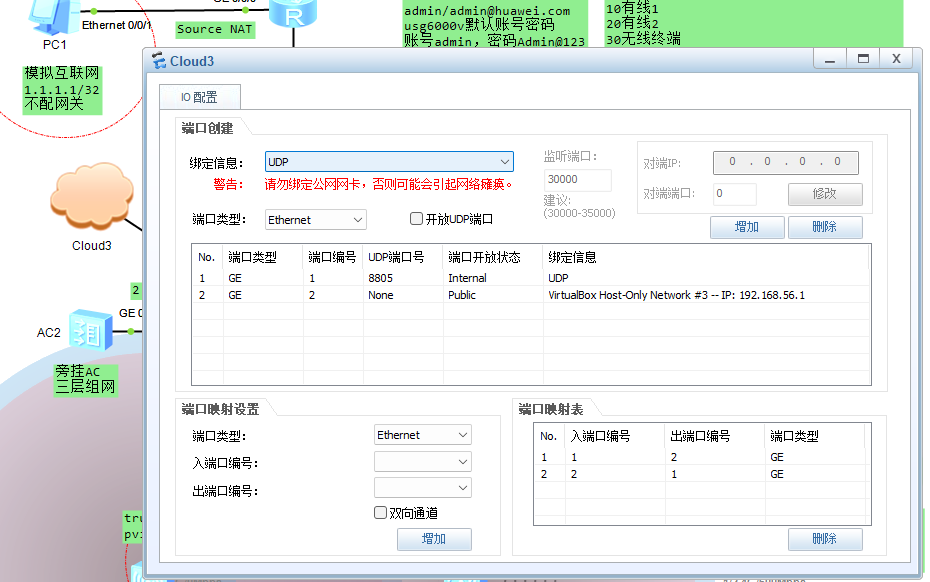

vlan 56
description L3 Cloud
vlan 100
description toFW
vlan 200
description toAC
vlan 201
description forAP's IP , decided by L2 to AP 's port
#
ip pool 10
gateway-list 192.168.10.1
network 192.168.10.0 mask 255.255.255.0
#
ip pool 20
gateway-list 192.168.20.1
network 192.168.20.0 mask 255.255.255.0
#
ip pool 30
gateway-list 192.168.30.1
network 192.168.30.0 mask 255.255.255.0
#
ip pool 201
gateway-list 192.168.201.1
network 192.168.201.0 mask 255.255.255.0
option 43 sub-option 3 ascii 192.168.200.2
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
ip address 192.168.10.1 255.255.255.0
dhcp select global
#
interface Vlanif20
ip address 192.168.20.1 255.255.255.0
dhcp select global
#
interface Vlanif30
ip address 192.168.30.1 255.255.255.0
dhcp select global
#
interface Vlanif56
ip address 192.168.56.56 255.255.255.0
#
interface Vlanif100
ip address 192.168.100.1 255.255.255.0
#
interface Vlanif200
ip address 192.168.200.1 255.255.255.0
#
interface Vlanif201
ip address 192.168.201.1 255.255.255.0
dhcp select global
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 100
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/4
port link-type access
port default vlan 200
#
interface GigabitEthernet0/0/5
port link-type access
port default vlan 56
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 192.168.100.2
#
user-interface con 0
user-interface vty 0 4
#
return
<L3>
二层交换(无线的)
<L2-2>
<L2-2>dis cur
#
sysname L2-2
#
undo info-center enable
#
vlan batch 30 201
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
description 201 decide ap self's IP and subnet
port link-type trunk
port trunk pvid vlan 201
port trunk allow-pass vlan 30 201
#
interface Ethernet0/0/2
description pvid 201 decide ap self's IP and subnet
port link-type trunk
port trunk pvid vlan 201
port trunk allow-pass vlan 30 201
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<L2-2>
AC
The device is running!
<AC6605>dis cur
#
set memory-usage threshold 0
#
ssl renegotiation-rate 1
#
vlan batch 200
#
authentication-profile name default_authen_profile
authentication-profile name dot1x_authen_profile
authentication-profile name mac_authen_profile
authentication-profile name portal_authen_profile
authentication-profile name macportal_authen_profile
#
diffserv domain default
#
radius-server template default
#
pki realm default
rsa local-key-pair default
enrollment self-signed
#
ike proposal default
encryption-algorithm aes-256
dh group14
authentication-algorithm sha2-256
authentication-method pre-share
integrity-algorithm hmac-sha2-256
prf hmac-sha2-256
#
free-rule-template name default_free_rule
#
portal-access-profile name portal_access_profile
#
aaa
authentication-scheme default
authentication-scheme radius
authentication-mode radius
authorization-scheme default
accounting-scheme default
domain default
authentication-scheme radius
radius-server default
domain default_admin
authentication-scheme default
local-user admin password irreversible-cipher $1a$Df*=Ph!tZ,$<C/fLwf>,HN5x9U^yx
r)9;tFPpLgE>!Py2V}y=<Y$
local-user admin privilege level 15
local-user admin service-type http
#
interface Vlanif200
ip address 192.168.200.2 255.255.255.0
#
interface MEth0/0/1
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 200
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/22
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/23
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/24
undo negotiation auto
duplex half
#
interface XGigabitEthernet0/0/1
#
interface XGigabitEthernet0/0/2
#
interface NULL0
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
ssh server secure-algorithms cipher aes256_ctr aes128_ctr
ssh server key-exchange dh_group14_sha1
ssh client secure-algorithms cipher aes256_ctr aes128_ctr
ssh client secure-algorithms hmac sha2_256
ssh client key-exchange dh_group14_sha1
#
ip route-static 0.0.0.0 0.0.0.0 192.168.200.1
#
capwap source interface vlanif200
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
protocol inbound all
user-interface vty 16 20
protocol inbound all
#
wlan
traffic-profile name default
security-profile name sec-1
security wpa-wpa2 psk pass-phrase %^%#XSGU>4.;m!~2#HAnKz`,-jWRM<j0%LH&>o8bd$qC
%^%# aes
security-profile name default
security-profile name default-wds
security-profile name default-mesh
ssid-profile name ssid-1
ssid myWifi
ssid-profile name default
vap-profile name vap-1
service-vlan vlan-id 30
ssid-profile ssid-1
security-profile sec-1
vap-profile name default
wds-profile name default
mesh-handover-profile name default
mesh-profile name default
regulatory-domain-profile name default
air-scan-profile name default
rrm-profile name default
radio-2g-profile name default
radio-5g-profile name default
wids-spoof-profile name default
wids-profile name default
wireless-access-specification
ap-system-profile name default
port-link-profile name default
wired-port-profile name default
serial-profile name preset-enjoyor-toeap
ap auth-mode no-auth
ap-group name default
radio 0
vap-profile vap-1 wlan 1
radio 1
vap-profile vap-1 wlan 1
radio 2
vap-profile vap-1 wlan 1
ap-id 0 type-id 56 ap-mac 00e0-fc5d-72b0 ap-sn 2102354483103359C06F
ap-id 1 type-id 56 ap-mac 00e0-fc09-77b0 ap-sn 2102354483107E7B416D
provision-ap
#
dot1x-access-profile name dot1x_access_profile
#
mac-access-profile name mac_access_profile
#
return
<AC6605>
二层交换(有线的)
The device is running!
<L2-3>dis cur
#
sysname L2-3
#
undo info-center enable
#
vlan batch 10 20 30 100 110 200
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type access
port default vlan 10
#
interface Ethernet0/0/2
port link-type access
port default vlan 20
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<L2-3>
浙公网安备 33010602011771号
