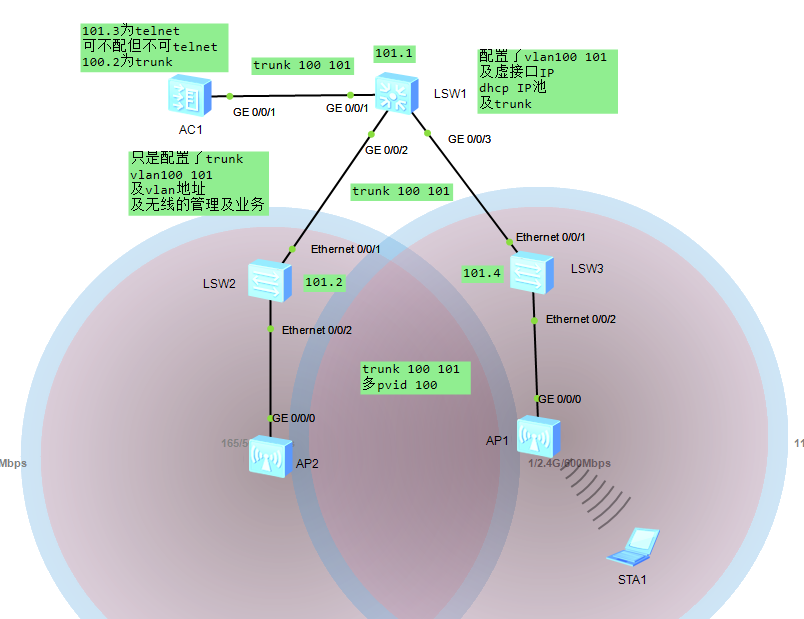

没事再来AC+AP+_三层+二层旁挂AC二层直接转发

最基础的配置
当配置完二层 三层以后 AP就能获取到三层地址池中的IP了
配置基础的AC 有capwap隧道 AP认证无 进default组(默认) 引用域管理模板再dis ap all后AC就发现了AP(此叫AP上线)
再配置无线业务 有ssid security vap 进入ap组default引用vap模板有OK了,拖入station连接无线就OK了



配置

三层(DHCP全局池+vlanif+常规trunk)

<L3>dis cur
#
sysname L3
#
undo info-center enable
#
vlan batch 100 to 101
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
dhcp enable
#
diffserv domain default
#
drop-profile default
#
ip pool ap100
gateway-list 192.168.100.1
network 192.168.100.0 mask 255.255.255.0
excluded-ip-address 192.168.100.2 192.168.100.10
#
ip pool sta101
gateway-list 192.168.101.1
network 192.168.101.0 mask 255.255.255.0
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif100
ip address 192.168.100.1 255.255.255.0
dhcp select global
#
interface Vlanif101
ip address 192.168.101.1 255.255.255.0
dhcp select global
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/3
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<L3>

二层-1(接三层接口常规trunk/接AP除常规trunk要加pvid100+101段的用于telnet的IP)

<L2-1>dis cur
#
sysname L2-1
#
undo info-center enable
#
vlan batch 100 to 101
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif100
#
interface Vlanif101
ip address 192.168.101.2 255.255.255.0
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface Ethernet0/0/2
port link-type trunk
port trunk pvid vlan 100
port trunk allow-pass vlan 100 to 101
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<L2-1>

二层-2(接三层接口常规trunk/接AP除常规trunk要加pvid100+101段的用于telnet的IP)

<L2-2>dis cur
#
sysname L2-2
#
undo info-center enable
#
vlan batch 100 to 101
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif101
ip address 192.168.101.4 255.255.255.0
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface Ethernet0/0/2
port link-type trunk
port trunk pvid vlan 100
port trunk allow-pass vlan 100 to 101
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<L2-2>

AC(常规trunk vlan101为telnet vlan100是必须)

<AC6605>dis cur
#
set memory-usage threshold 0
#
ssl renegotiation-rate 1
#
vlan batch 100 to 101
#
authentication-profile name default_authen_profile
authentication-profile name dot1x_authen_profile
authentication-profile name mac_authen_profile
authentication-profile name portal_authen_profile
authentication-profile name macportal_authen_profile
#
diffserv domain default
#
radius-server template default
#
pki realm default
rsa local-key-pair default
enrollment self-signed
#
ike proposal default
encryption-algorithm aes-256
dh group14
authentication-algorithm sha2-256
authentication-method pre-share
integrity-algorithm hmac-sha2-256
prf hmac-sha2-256
#
free-rule-template name default_free_rule
#
portal-access-profile name portal_access_profile
#
aaa
authentication-scheme default
authentication-scheme radius
authentication-mode radius
authorization-scheme default
accounting-scheme default
domain default
authentication-scheme radius
radius-server default
domain default_admin
authentication-scheme default
local-user admin password irreversible-cipher $1a$v}EaAnWV8;$U_#Z*Ki,V.9X=rCPD,
$-Uw8t7of|AJ=aE/:1ddH,$
local-user admin privilege level 15
local-user admin service-type http
#
interface Vlanif100
ip address 192.168.100.2 255.255.255.0
#
interface Vlanif101
ip address 192.168.101.3 255.255.255.0
#
interface MEth0/0/1
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/22
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/23
undo negotiation auto
duplex half
#
interface GigabitEthernet0/0/24
undo negotiation auto
duplex half
#
interface XGigabitEthernet0/0/1
#
interface XGigabitEthernet0/0/2
#
interface NULL0
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
ssh server secure-algorithms cipher aes256_ctr aes128_ctr
ssh server key-exchange dh_group14_sha1
ssh client secure-algorithms cipher aes256_ctr aes128_ctr
ssh client secure-algorithms hmac sha2_256
ssh client key-exchange dh_group14_sha1
#
capwap source interface vlanif100
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
protocol inbound all
user-interface vty 16 20
protocol inbound all
#
wlan
traffic-profile name default
security-profile name sec-1
security wpa-wpa2 psk pass-phrase %^%#uW=e5xxew)aK*WI2-LJ=N9>@;_/HT~59Y+9<^<7Z
%^%# aes
security-profile name default
security-profile name default-wds
security-profile name default-mesh
ssid-profile name ssid-1
ssid wifi001
ssid-profile name default
vap-profile name vap-1
service-vlan vlan-id 101
ssid-profile ssid-1
security-profile sec-1
vap-profile name default
wds-profile name default
mesh-handover-profile name default
mesh-profile name default
regulatory-domain-profile name default
air-scan-profile name default
rrm-profile name default
radio-2g-profile name default
radio-5g-profile name default
wids-spoof-profile name default
wids-profile name default
wireless-access-specification
ap-system-profile name default
port-link-profile name default
wired-port-profile name default
serial-profile name preset-enjoyor-toeap
ap auth-mode no-auth
ap-group name default
radio 0
vap-profile vap-1 wlan 1
radio 1
vap-profile vap-1 wlan 2
ap-id 0 type-id 35 ap-mac 00e0-fc35-6da0 ap-sn 210235448310F25CF80B
ap-id 1 type-id 35 ap-mac 00e0-fc56-73c0 ap-sn 2102354483104E05CA57
provision-ap
#
dot1x-access-profile name dot1x_access_profile
#
mac-access-profile name mac_access_profile
#
return
<AC6605>
