在Windows容器中使用云盘及基于SMB的文件存储
步骤一：创建存储类StorageClass
云盘控制器（Cloud Disk Controller）根据存储类（StorageClass）的参数fstype的值判断创建的云盘适用于Windows文件系统或Linux文件系统。
-
当参数fstype的值为ext3、ext4或xfs时，表示该StorageClass适用于Linux文件系统。
-
当参数fstype的值为ntfs时，表示该StorageClass适用于Windows文件系统。
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: alicloud-disk-common-windows
provisioner: alicloud/disk
parameters:
type: cloud
fstype: ntfs
---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: alicloud-disk-efficiency-windows
provisioner: alicloud/disk
parameters:
type: cloud_efficiency
fstype: ntfs
---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: alicloud-disk-ssd-windows
provisioner: alicloud/disk
parameters:
type: cloud_ssd
fstype: ntfs
---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: alicloud-disk-essd-windows
provisioner: alicloud/disk
parameters:
type: cloud_essd
fstype: ntfs
---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: alicloud-disk-available-windows
provisioner: alicloud/disk
parameters:
type: available
fstype: ntfs
-
执行以下命令创建Windows环境下的StorageClass。
kubectl create -f storageclass.yaml
步骤二：为Windows节点安装Flexvolume插件
-
使用以下YAML示例创建flexvolume-windows.yaml文件。
YAML示例
apiVersion: apps/v1 kind: DaemonSet metadata: labels: app: flexvolume-windows name: flexvolume-windows namespace: kube-system spec: selector: matchLabels: k8s-volume: flexvolume updateStrategy: type: RollingUpdate template: metadata: metadata: labels: k8s-volume: flexvolume annotations: scheduler.alpha.kubernetes.io/critical-pod: "" spec: tolerations: - operator: Exists /*since 1.18, we can specify "hostNetwork: true" for Windows workloads, so we can deploy an application without NetworkReady.*/ hostNetwork: true priorityClassName: system-node-critical affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key: type operator: NotIn values: - virtual-kubelet - key: beta.kubernetes.io/os operator: In values: - windows - matchExpressions: - key: type operator: NotIn values: - virtual-kubelet - key: kubernetes.io/os operator: In values: - windows containers: - name: acs-flexvolume command: - pwsh.exe - -NoLogo - -NonInteractive - -File - entrypoint.ps1 /*根据不同集群的地域，您需修改以下镜像地址中的地域cn-hangzhou信息。*/ image: registry-vpc.cn-hangzhou.aliyuncs.com/acs/flexvolume-windows:v1.0.0 imagePullPolicy: Always volumeMounts: - name: host-flexvolume-binary mountPath: c:/host/usr/libexec/kubernetes/kubelet-plugins/volume/exec - name: host-flexvolume-socket mountPath: c:/host/etc/kubernetes/flexvolume/socket - name: host-log mountPath: c:/var/log/alicloud /*use managed addon token from Alibaba Cloud*/ - name: managed-addon-token mountPath: c:/var/addon/ readOnly: true /* or specify the customized access key of Alibaba Cloud*/ /* - name: customized-access-key*/ /* mountPath: c:/host/etc/.volumeak*/ /* env:*/ /* - name: ACCESS_KEY_ID*/ /* value: ""*/ /* - name: ACCESS_KEY_SECRET*/ /* value: ""*/ volumes: - name: host-flexvolume-binary hostPath: path: c:/usr/libexec/kubernetes/kubelet-plugins/volume/exec type: DirectoryOrCreate - name: host-flexvolume-socket hostPath: path: c:/etc/kubernetes/flexvolume/socket type: DirectoryOrCreate - name: host-log hostPath: path: c:/var/log/alicloud type: DirectoryOrCreate - name: managed-addon-token secret: defaultMode: 420 optional: true items: - key: addon.token.config path: token-config secretName: addon.csi.token /* - name: customized-access-key*/ /* hostPath:*/ /* path: c:/etc/.volumeak*/ /* type: DirectoryOrCreate*/ -
执行以下命令为所有的Windows工作节点安装Flexvolume插件。
kubectl create -f flexvolume-windows.yaml -
DaemonSet部署成功后，执行以下命令可以在每个WIndows节点上查看FlexVolume插件alicloud-disk-controller。
ls C:\usr\libexec\kubernetes\kubelet-plugins\volume\exec\alicloud~disk.exe\预期输出：
Directory: C:\usr\libexec\kubernetes\kubelet-plugins\volume\exec\alicloud~disk.exe Mode LastWriteTime Length Name ---- ------------- ------ ---- -a---- 8/12/2021 2:45 PM 5636096 disk.exe
步骤三:手动创建pv，pvc
apiVersion: v1
kind: PersistentVolume
metadata:
labels:
alicloud-pvname: pv-smb5-10m
name: pv-smb5-10m
spec:
persistentVolumeReclaimPolicy: Retain
accessModes:
- ReadWriteMany
capacity:
storage: 10Mi
flexVolume:
driver: alicloud/smb.exe
options:
server: 313bb486fd-qdg70.cn-shanghai.nas.aliyuncs.com
path: /myshare/web-window-test2
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: test4-smb
namespace: beta-winserver
spec:
selector:
matchLabels:
alicloud-pvname: pv-smb5-10m
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Mi
步骤四：创建业务deployment及挂载pv
---
apiVersion: apps/v1
kind: Deployment
metadata:
annotations: {}
labels:
app: beta-weixincard-api
k8s.kuboard.cn/name: beta-weixincard-api
name: beta-weixincard-api
namespace: beta-winserver
spec:
progressDeadlineSeconds: 600
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
app: beta-weixincard-api
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
annotations:
kubectl.kubernetes.io/restartedAt: '2022-02-10T15:23:51+08:00'
creationTimestamp: null
labels:
app: beta-weixincard-api
k8s-volume: flexvolume
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/os
operator: In
values:
- windows
containers:
- env:
- name: Pod_IP
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: status.podIP
image: 'harbor.betawm.com/beta/beta-weixincard-api:Src_Dev_78'
imagePullPolicy: IfNotPresent
lifecycle:
postStart:
exec:
command:
- powershell.exe
- '-NonInteractive'
- New-Item
- '-ItemType'
- SymbolicLink
- '-Path'
- /beta
- '-Name'
- Web.config
- '-Target'
- /webconfig/Web.config
livenessProbe:
exec:
command:
- curl.exe
- 'http://localhost/Beta.WxCardApi/status'
failureThreshold: 3
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
name: beta-weixincard-api
ports:
- containerPort: 80
protocol: TCP
readinessProbe:
exec:
command:
- curl.exe
- 'http://localhost/Beta.WxCardApi/status'
failureThreshold: 3
initialDelaySeconds: 5
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
resources: {}
startupProbe:
exec:
command:
- curl.exe
- 'http://localhost/Beta.WxCardApi/status'
failureThreshold: 3
initialDelaySeconds: 3
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /beta/logs
name: beta-weixincard-api-log
subPathExpr: $(Pod_IP)
- mountPath: /webconfig
name: web-config
- mountPath: /beta/upload
name: volume-5mysd
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: betasecret
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 30
tolerations:
- effect: NoSchedule
key: os
operator: Equal
value: windows
volumes:
- hostPath:
path: 'c:\logs\beta-weixincard-api'
type: DirectoryOrCreate
name: beta-weixincard-api-log
- configMap:
defaultMode: 420
items:
- key: web.config
path: Web.config
name: beta-weixincard-api-config
name: web-config
- name: volume-5mysd
persistentVolumeClaim:
claimName: test5-smb
---
apiVersion: v1
kind: Service
metadata:
annotations: {}
labels:
app: beta-weixincard-api
name: beta-weixincard-api
namespace: beta-winserver
spec:
ports:
- name: http
port: 80
protocol: TCP
targetPort: 80
selector:
app: beta-weixincard-api
sessionAffinity: None
type: ClusterIP
步骤五：验证容器中使用云盘及基于SMB的文件存储
方法1
1，到对应的windows节点机进入对应的业务容器
docker exec -it afcbd2574ad6 powershell
2，在挂载文件路径下创建测试文件
PS C:\beta> cd .\upload\
PS C:\beta\upload> ls
PS C:\beta\upload> echo "test111" > test.txt
PS C:\beta\upload> cat .\test.txt
3，删除pod后，重新拉去新pod后，再到业务pod对应的路径下看创建的测试文件是否存在，正常情况下一定是存在的。
方法2
进入业务pod写入测试数据后，将windows nas挂载本地，查看验证是否有数据
手动挂载
net use Z: \\313bb486fd-qdg70.cn-shanghai.nas.aliyuncs.com\myshare
手动卸载
net use Z: /delete
FAQ
1,pv，pvc创建bound成功后，创建业务pod挂载pvc失败解决方法

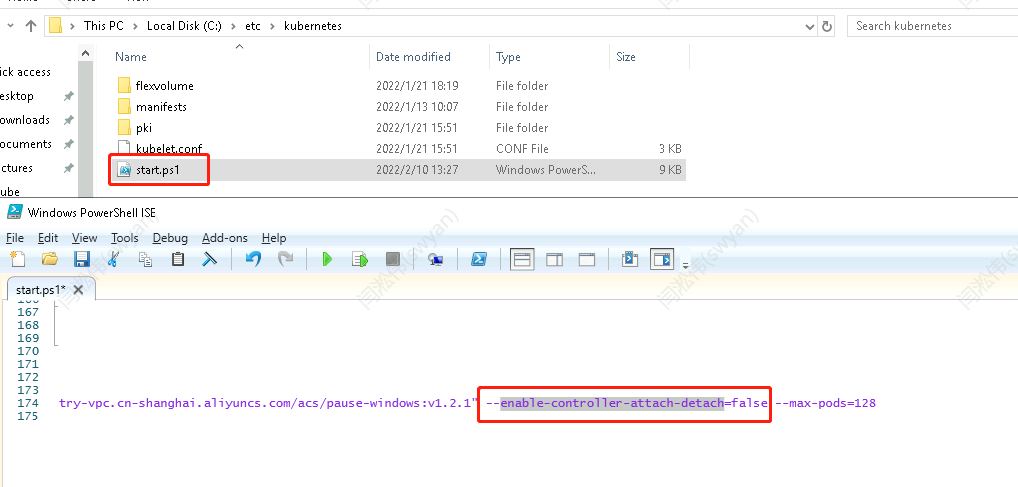

将c:\etc\kubernetes\start 文件中的enable-controller-attach-detach=true改为enable-controller-attach-detach=false，然后重启物理机
