[原创] MicroWindows学习笔记之对底层设备的管理

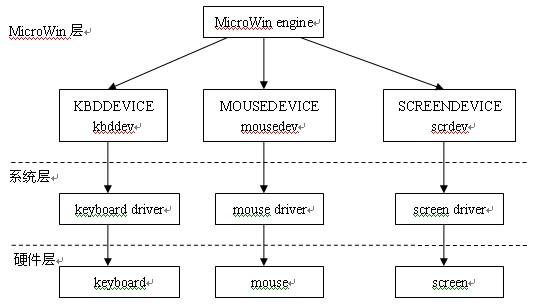

MicroWindows对每个相关的设备提供了一个数据结构，并有一个全局的上下文设备对象，通过它来屏蔽与底层之间的联系，上层代码通过调用这个全局变量提供的方法来打开、关闭、读取这些设备。如果想将MicroWindows移植到其他的环境中，需要配置这个全局变量，并且实现相关的方法。MicroWindows对底层的屏蔽层（针对各个系统的驱动）放在\src\drivers中。



键盘

数据结构KBDDEVICE

/* Interface to Keyboard Device Driver*/

typedef struct _kbddevice {

       int  (*Open)(struct _kbddevice *pkd);

       void (*Close)(void);

       void (*GetModifierInfo)(MWKEYMOD *modifiers, MWKEYMOD *curmodifiers);

       int  (*Read)(MWKEY *buf,MWKEYMOD *modifiers,MWSCANCODE *scancode);

       int  (*Poll)(void);         /* not required if have select()*/

} KBDDEVICE;

所在文件：\include\Device.h



全局变量

KBDDEVICE kbddev = {

       NUL_Open,

       NUL_Close,

       NUL_GetModifierInfo,

       NUL_Read,

       NUL_Poll

};

所在文件：drivers\Kdb_null.c

默认都是空实现。





鼠标

数据结构MOUSEDEVICE

/* Interface to Mouse Device Driver*/

typedef struct _mousedevice {

       int    (*Open)(struct _mousedevice *);

       void   (*Close)(void);

       int    (*GetButtonInfo)(void);

       void   (*GetDefaultAccel)(int *pscale,int *pthresh);

       int    (*Read)(MWCOORD *dx,MWCOORD *dy,MWCOORD *dz,int *bp);

       int    (*Poll)(void);  /* not required if have select()*/

       int    flags;             /* raw, normal, transform flags*/

} MOUSEDEVICE;

所在文件：\include\Device.h



全局变量

MOUSEDEVICE mousedev = {

       NUL_Open,

       NUL_Close,

       NUL_GetButtonInfo,

       NUL_GetDefaultAccel,

       NUL_Read,

       NUL_Poll

};

所在文件：drivers\Mou_null.c





屏幕

数据结构SCREENDEVICE

/*

 * Interface to Screen Device Driver

 * This structure is also allocated for memory (offscreen) drawing and blitting.

 */

typedef struct _mwscreendevice {

       MWCOORD   xres;              /* X screen res (real) */

       MWCOORD   yres;              /* Y screen res (real) */

       MWCOORD   xvirtres;  /* X drawing res (will be flipped in portrait mode) */

       MWCOORD   yvirtres;  /* Y drawing res (will be flipped in portrait mode) */

       int    planes;       /* # planes*/

       int    bpp;          /* # bpp*/

       int    linelen;      /* line length in bytes for bpp 1,2,4,8*/

                            /* line length in pixels for bpp 16, 24, 32*/

       int    size;         /* size of memory allocated*/

       long ncolors;        /* # screen colors*/

       int    pixtype;      /* format of pixel value*/

       int    flags;        /* device flags*/

       void *     addr;     /* address of memory allocated (memdc or fb)*/



       PSD (*Open)(PSD psd);

       void (*Close)(PSD psd);

       void (*GetScreenInfo)(PSD psd,PMWSCREENINFO psi);

       void (*SetPalette)(PSD psd,int first,int count,MWPALENTRY *pal);

       void (*DrawPixel)(PSD psd,MWCOORD x,MWCOORD y,MWPIXELVAL c);

       MWPIXELVAL (*ReadPixel)(PSD psd,MWCOORD x,MWCOORD y);

       void (*DrawHorzLine)(PSD psd, MWCOORD x1, MWCOORD x2, MWCOORD y, MWPIXELVAL c);

       void (*DrawVertLine)(PSD psd, MWCOORD x, MWCOORD y1, MWCOORD y2, MWPIXELVAL c);

       void (*FillRect)(PSD psd, MWCOORD x1, MWCOORD y1, MWCOORD x2, MWCOORD y2, MWPIXELVAL c);

       PMWCOREFONT builtin_fonts;



       /* *void (*DrawText)(PSD psd,MWCOORD x,MWCOORD y,const MWUCHAR *str,

                     int count, MWPIXELVAL fg, PMWFONT pfont);***/



       void (*Blit)(PSD destpsd, MWCOORD destx, MWCOORD desty, MWCOORD w, MWCOORD h, PSD srcpsd, MWCOORD srcx, MWCOORD srcy, long op);

       void (*PreSelect)(PSD psd);

       void (*DrawArea)(PSD psd, driver_gc_t *gc, int op);

       int    (*SetIOPermissions)(PSD psd);

       PSD (*AllocateMemGC)(PSD psd);

       MWBOOL (*MapMemGC)(PSD mempsd, MWCOORD w, MWCOORD h, int planes, int bpp, int linelen, int size, void *addr);

       void (*FreeMemGC)(PSD mempsd);

       void (*StretchBlit)(PSD destpsd, MWCOORD destx, MWCOORD desty, MWCOORD destw, MWCOORD desth, PSD srcpsd, MWCOORD srcx, MWCOORD srcy, MWCOORD srcw, MWCOORD srch, long op);

       void (*SetPortrait)(PSD psd,int portraitmode);

       int    portrait;   /* screen portrait mode*/

       PSUBDRIVER orgsubdriver; /* original subdriver for portrait modes*/

       void (*StretchBlitEx) (PSD dstpsd, PSD srcpsd, MWCOORD dest_x_start, MWCOORD dest_y_start, MWCOORD width, MWCOORD height, int x_denominator, int y_denominator, int src_x_fraction, int src_y_fraction, int x_step_fraction, int y_step_fraction, long op);

} SCREENDEVICE;

所在文件：\include\Device.h



全局变量

SCREENDEVICE   scrdev = {

       0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, NULL,

       DBG_open,

       DBG_close,

       DBG_getscreeninfo,

       DBG_setpalette,

       DBG_drawpixel,

       DBG_readpixel,

       DBG_drawhline,

       DBG_drawvline,

       DBG_fillrect,

       gen_fonts,

       DBG_blit,

       NULL,                  /* PreSelect*/

       NULL,                  /* DrawArea subdriver*/

       NULL,                  /* SetIOPermissions*/

       gen_allocatememgc,

       NULL,                  /* MapMemGC*/

       NULL                   /* FreeMemGC*/

};

所在文件：drivers\Scr_debug.c
