I. measurement

 完全不会的知识点：1/f corner frequency。

复习一下：

Resolution & Accuracy

• resolution refers to the smallest change that can be detected.
• limited by stochastic errors
• can be improved by filtering, why?

Three kinds of noises: thermal noise, shot noise, and flicker noise.

thermal noise

• also known as Johnson Noise
• limits system resolution
• random, but obeys Gaussian distribution
• Has a uniform/flat spectrum, that's why it's called "white noise"
• noise power Pn=4 kT, unit is [W/Hz] k is Boltzmann's constant;
  • therefore, the noise voltage spectrum density is vn = sqrt (4kTR)   [V/sqrt(Hz)]
  • therefore, the noise current spectrum density is vn = sqrt (4kT/R)   [A/sqrt(Hz)]
• V_n,rms = sqrt ( 4kTR(f1-f2) )

Shot noise

• also white noise
• occur in semiconductor, not in metallic
• In^2 = sqrt ( 2*q*l),  q is charge in a electron, I is average current
•

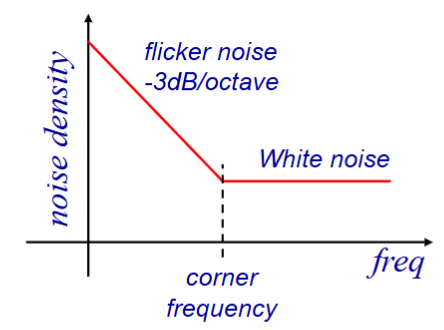

Flicker noise

• PSD proportional to 1/f
• corner frequency: when white noise = 1/f noise
• attenuation speed with frequency :  -3dB / octave
•
• can be simulated with a voltage source in series with gate of MOSFET
•

问题

1. why can resolution be improved by filtering? -ch1. 1. error sources
