实验5：开源控制器实践——POX

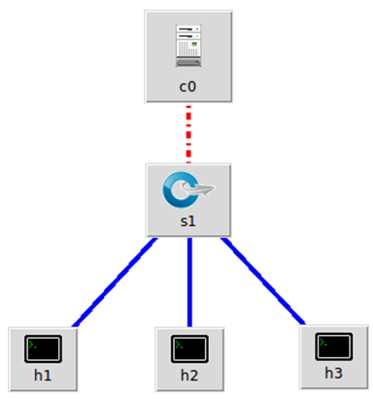

建立拓扑

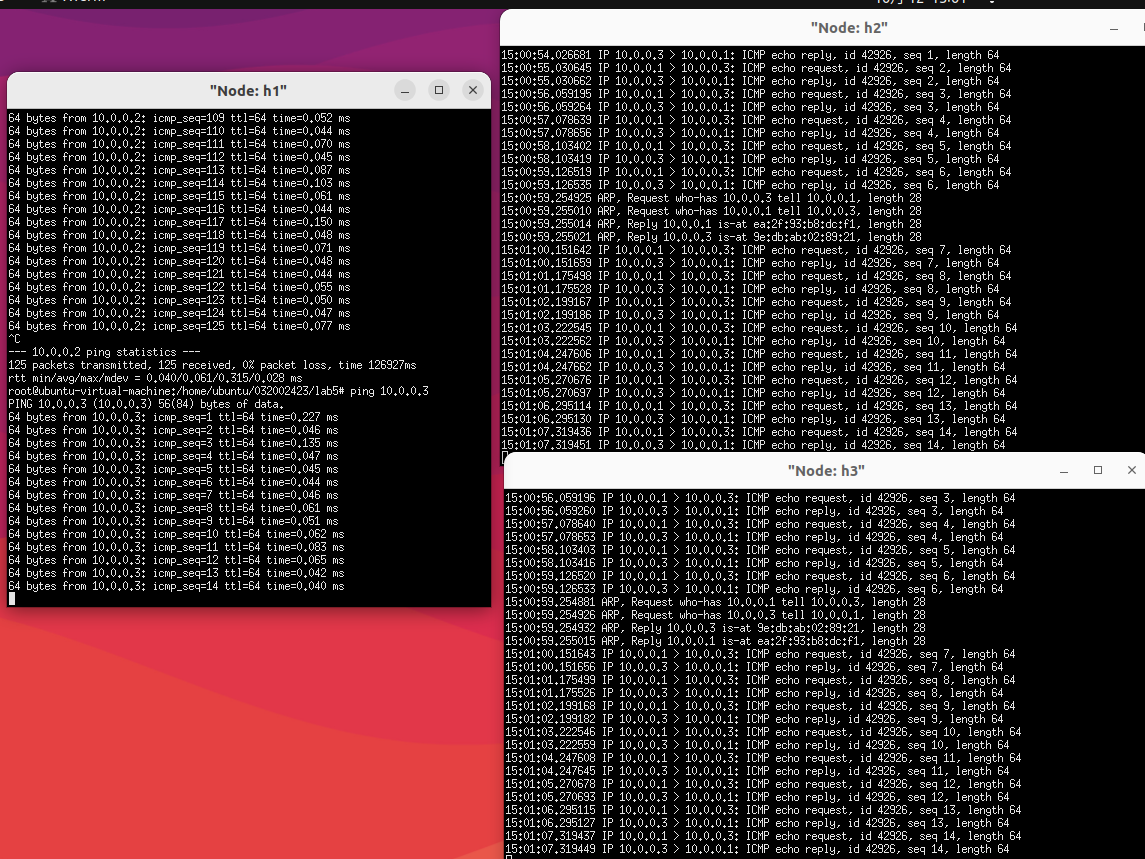

hub验证

h1 ping h2

都能收到

h1 ping h3

都能收到

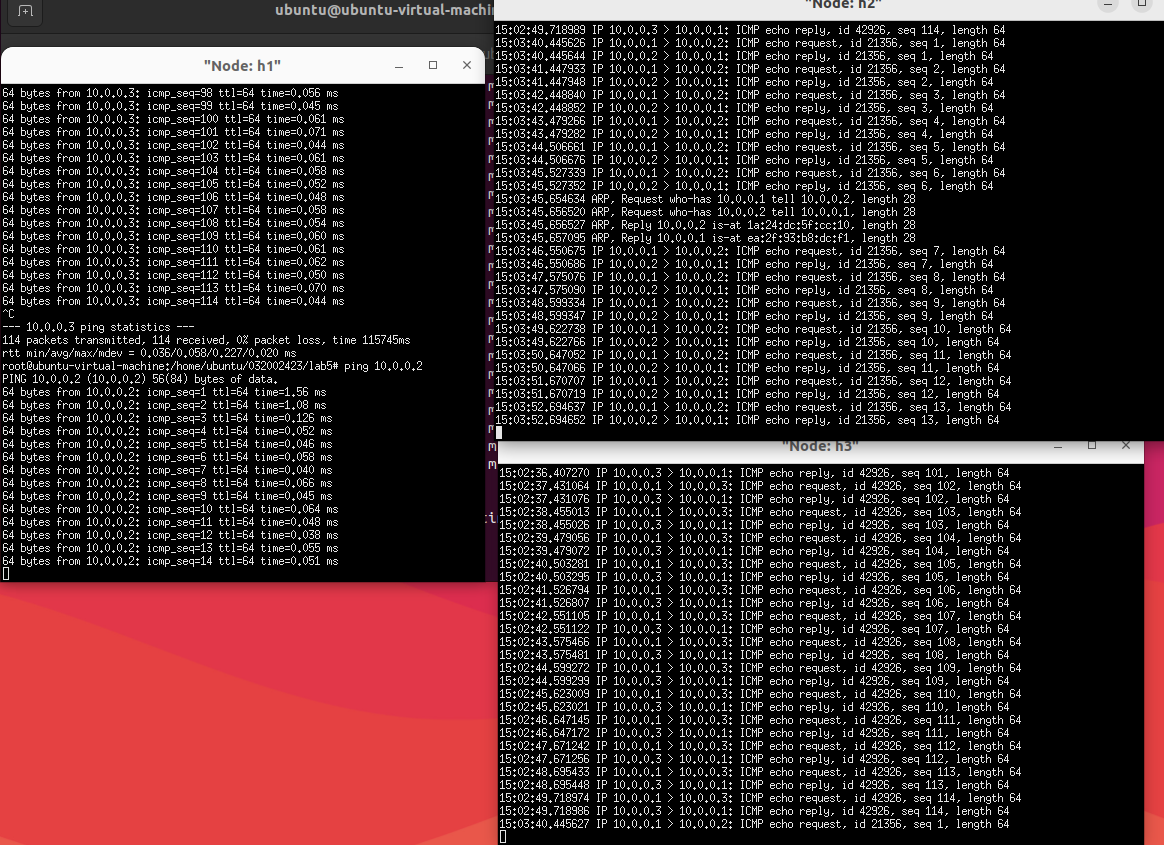

switch验证

h1 ping h2

仅h2收到

h1 ping h3

仅h3收到

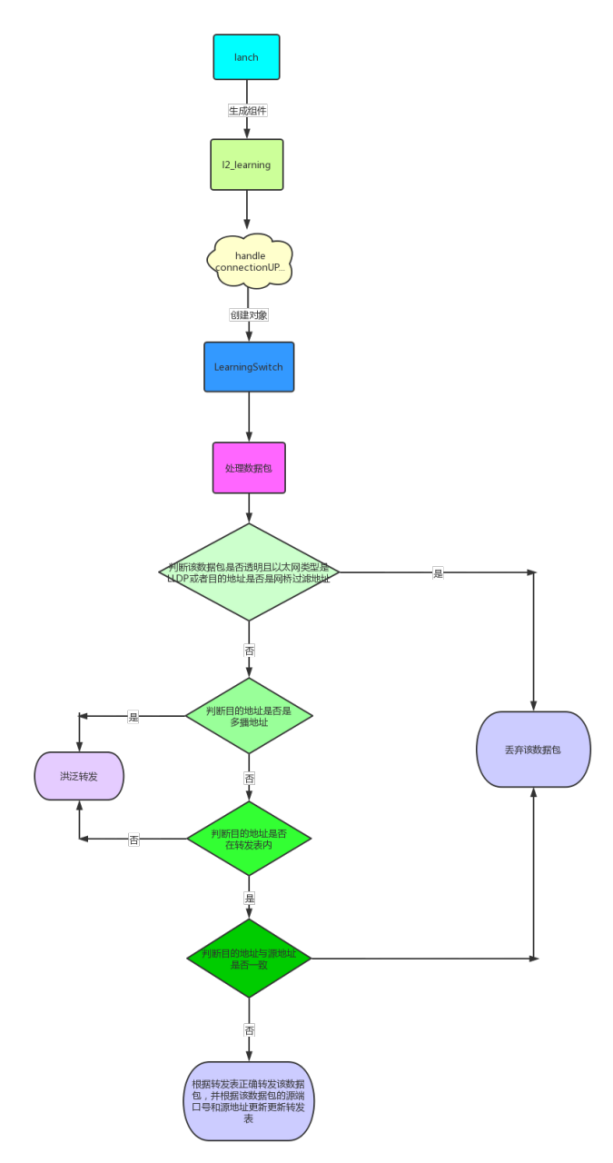

流程图

进阶

重新建立拓扑，无流表，编写POX模块SendFlowInSingle3

• SendFlowInSingle3

from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__ (self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)
def launch():
    core.registerNew(SendFlowInSingle3)

• SendHardTimeOut

from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__(self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
       # msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
       # msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendFlowInSingle3)

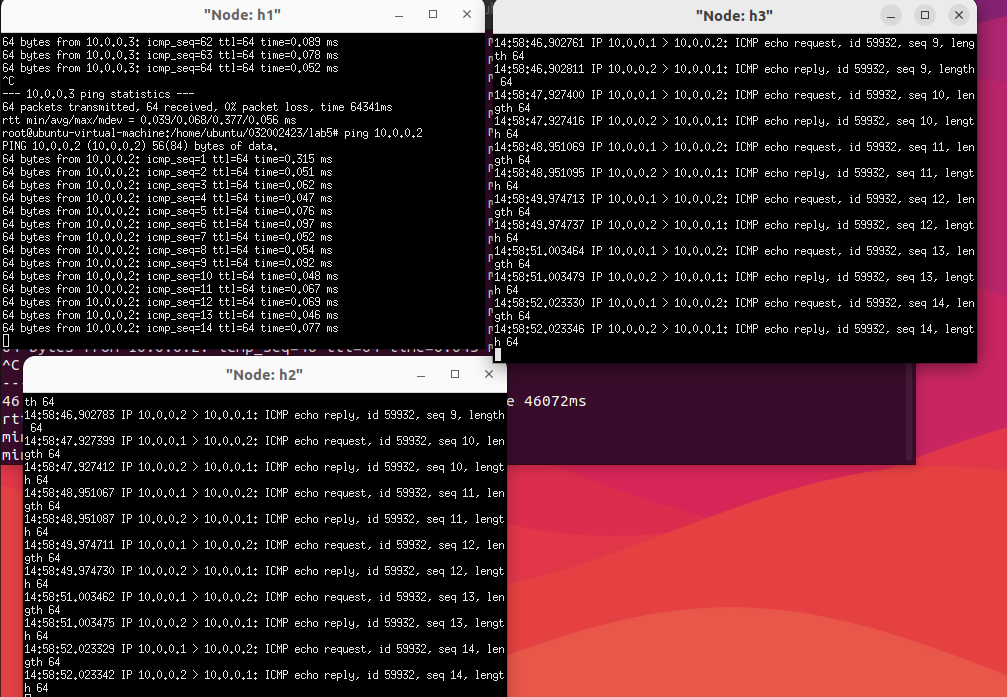

运行后

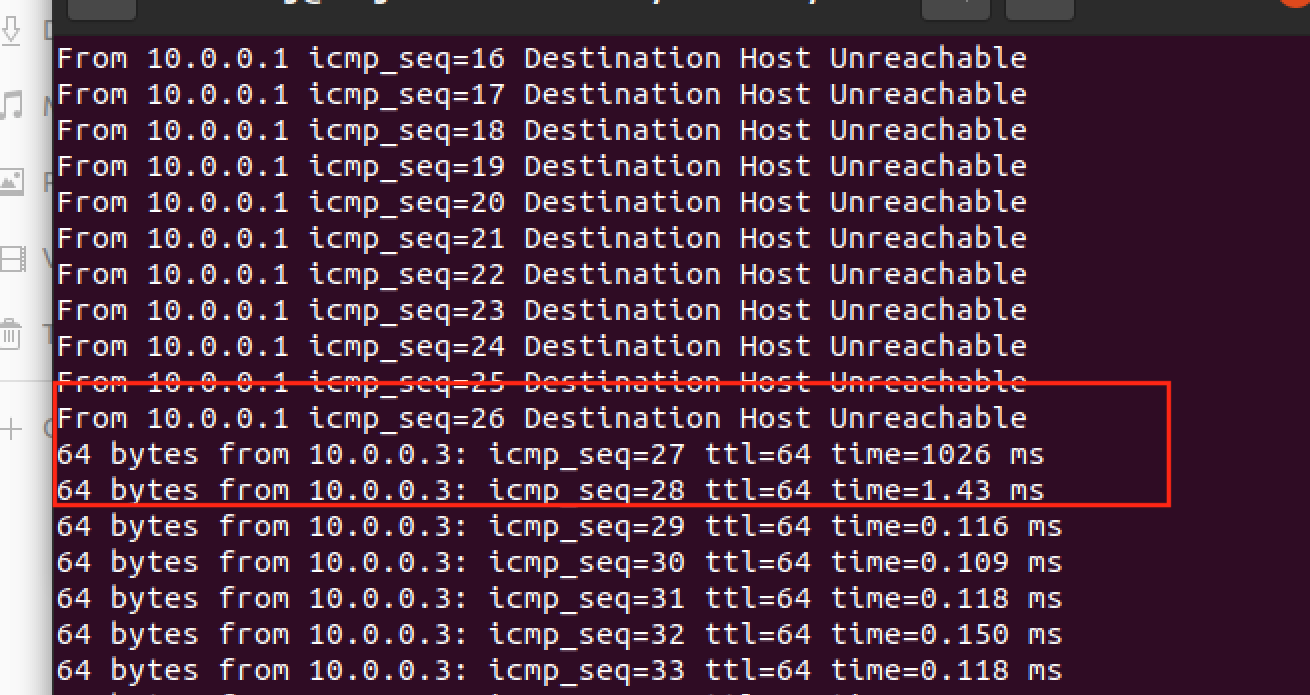

硬超时

个人总结

本次实验难点在于pox的使用及SendFlowInSingle3、SendHardTimeOut的编写。进阶要求比较困难，需要根据官方的文档进行API的调用。
遇到的问题：

• 开启pox时显示6633端口被占用，开启pox失败。学习后发现可以查看占用端口的进程并使用kill消灭该进程，即可解决该问题。
