APP性能测试-流量

想要查询app所用流量情况，可以通过手机自带的流量统计，也可以通过命令获取。

1.获取包名

adb shell logcat | findstr START

03-11 21:33:12.599  1637  2936 I ActivityTaskManager: START u0 {act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] flg=0x10200000 hwFlg=0x10 cmp=com.huawei.browser/.Main2 bnds=[844,2070][1054,2343] (has extras)} from uid 10095



2.获取进程ID

adb shell ps | grep <package>

adb shell ps | findstr com.huawei.browser
u0_a147      19259   718 25590640 383108 0                  0 R com.huawei.browser



3.获取进程ID流量

adb shell cat /proc/pid/net/dev

adb shell cat /proc/19259/net/dev
Inter-|   Receive                                                |  Transmit
 face |bytes    packets errs drop fifo frame compressed multicast|bytes    packets errs drop fifo colls carrier compressed
rmnet_emc1:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_r_ims11:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
    lo: 8411605303 3735326    0    0    0     0          0         0 8411605303 3735326    0    0    0     0       0          0
rmnet11:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet5:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun13:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_ims10: 10646523   11945    0    0    0     0          0         0    68064     791    0    0    0     0       0          0
rmnet_tun11:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun04:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun01:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet3:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun14:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun12:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun10:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_ims00:       0       0    0    0    0     0          0         0    23872     396    0    0    0     0       0          0
dummy0:       0       0    0    0    0     0          0         0     9590     137    0    0    0     0       0          0
rmnet1:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
 wlan0: 73559718   55495    0    7    0     0          0         0  1942504   14351    0    0    0     0       0          0
  nan0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
ip6tnl0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
  p2p0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun03:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet8:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_r_ims10:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
  CPU0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
ip_vti0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet6:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
ip6_vti0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_r_ims01:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet4:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_emc0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_r_ims00:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet2:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet10:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet9:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
  sit0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet0: 13280585324 11642988    0    0    0     0          0         0 598691406 4166416    0   18    0     0       0          0
Hisilicon0:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
 wlan1:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun00:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet7:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0
rmnet_tun02:       0       0    0    0    0     0          0         0        0       0    0    0    0     0       0          0

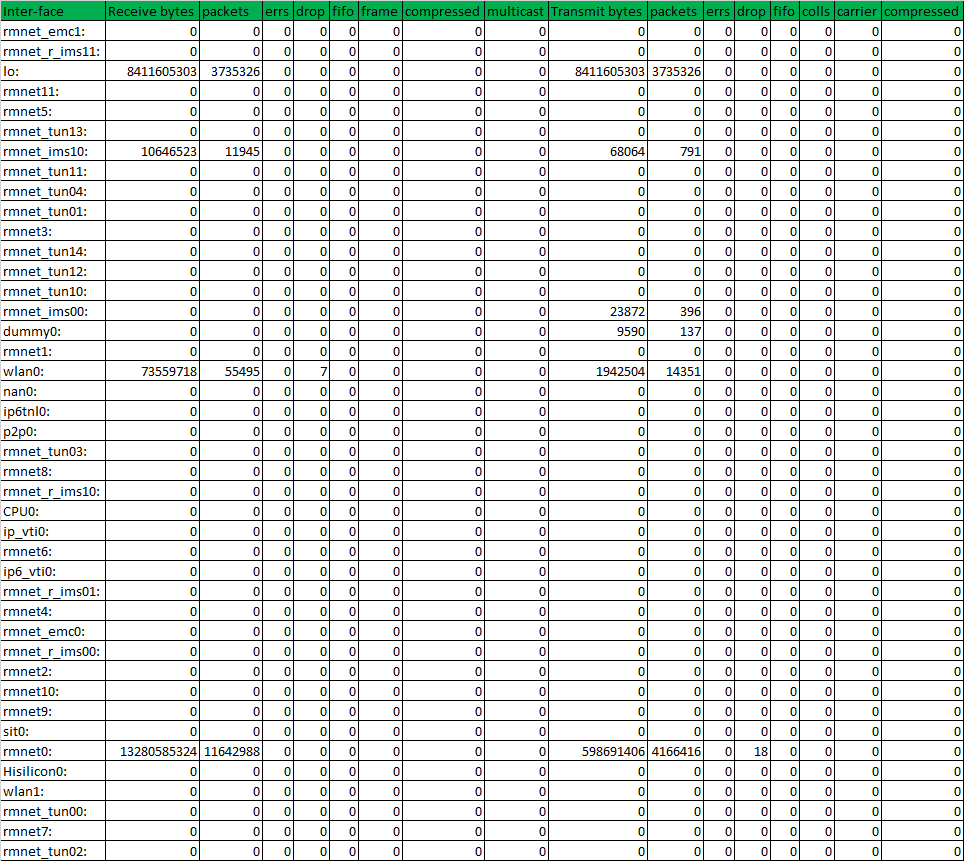

4.复制保存为txt，新建excel表格，选择从外部文件中获取数据，以空格为间隔，然后再调整格式，如下：
