编辑器 - 使用数据资产新增、配置按钮 - 心意不定的UE4随笔录

使用数据资产新增、配置按钮

目录

成果

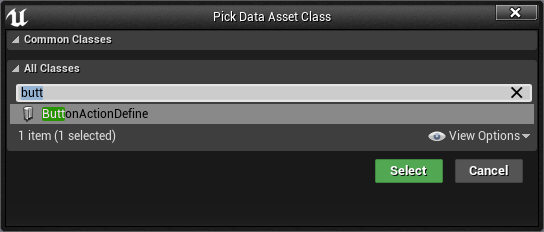

  1. 创建用于描述按钮行为的数据资产。

image-20220427212143656

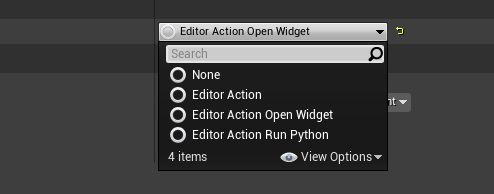

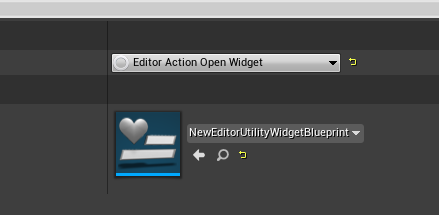

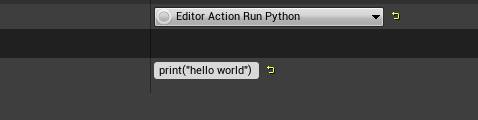

  1. 选择行为类型，并设置参数。

image-20220427212510404

image-20220427212659766

image-20220427212714903

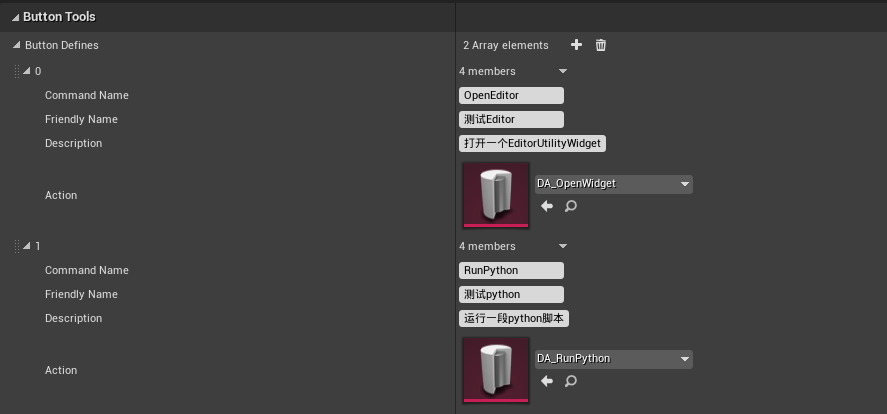

  1. 添加至Config，并填写其按钮的名称等描述性参数

image-20220427213048284

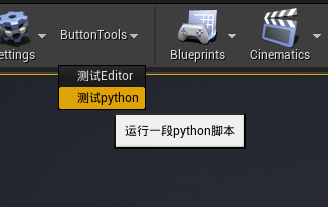

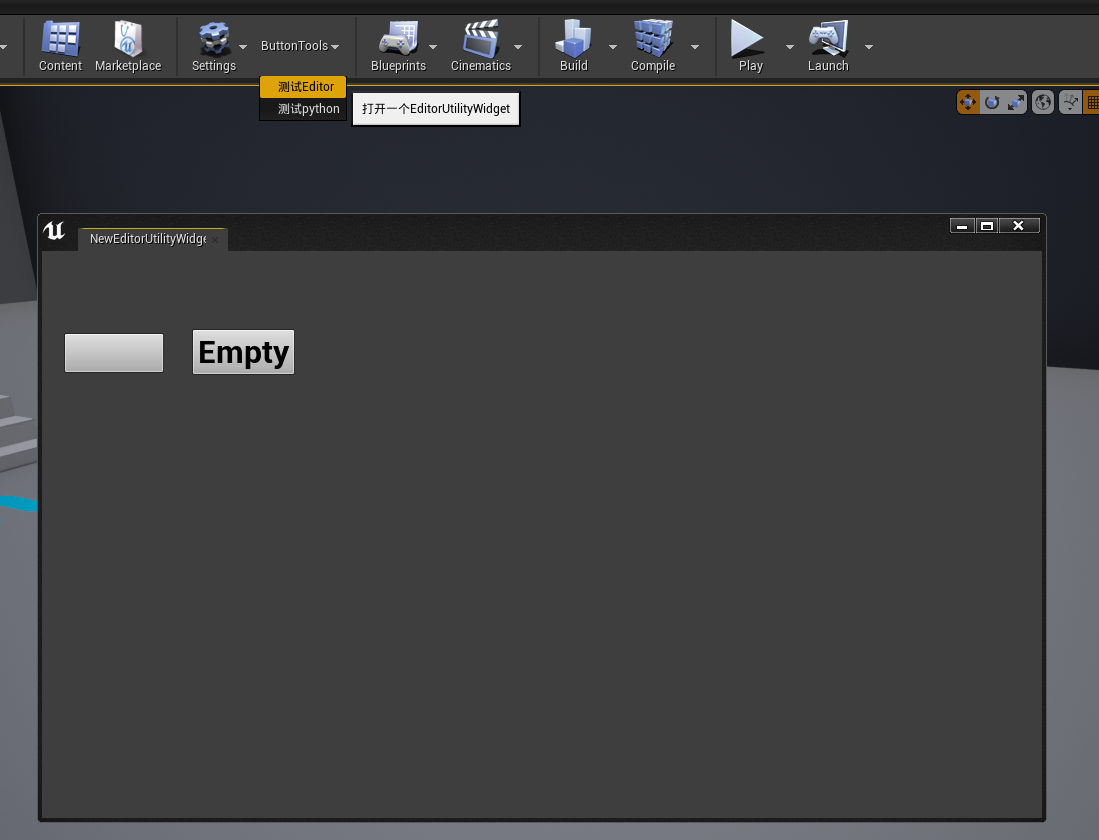

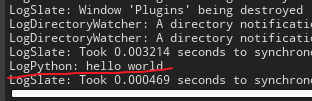

  1. 重启Editor 可以点击上方按钮使用配置的功能

image-20220427213413973

image-20220427213444784

image-20220427213505328

实现原理

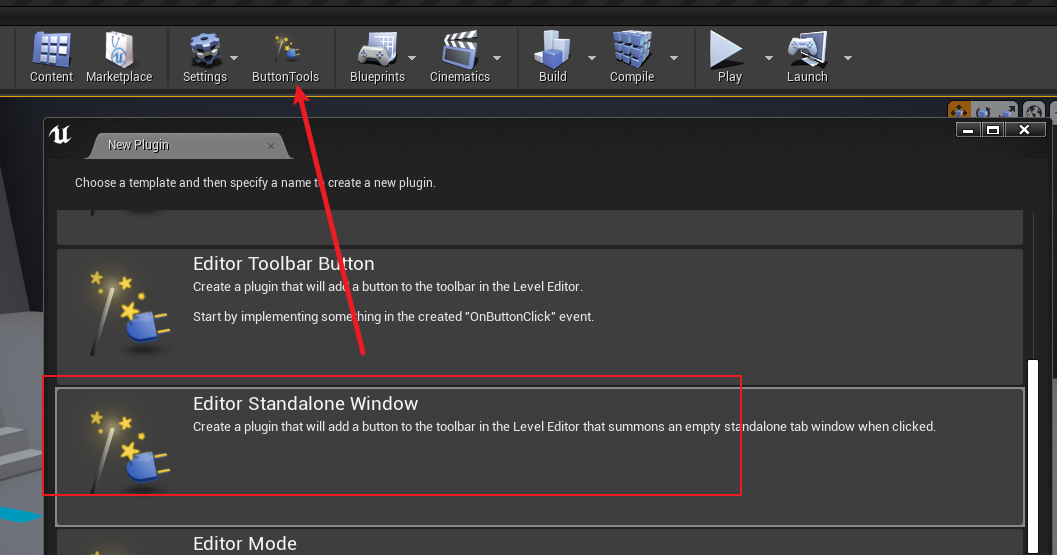

  1. 首先添加一个插件， 这里推荐 Editor Stanalone Window 插件，可以复用部分代码

image-20220427194936370

  1. 创建 EditorAction 类，此类用于定义按钮的行为。

​ 之前的示例里使用到了我提供了两个类：

  • UEditorAction_OpenWidget : 用于打开指定的 EditorUtilityWidgetBlueprint
  • UEditorAction_RunPython : 执行指定的Python脚本

​ 创建 ButtonActionDefine 类，此类继承自DataAsset，其持有一个 EditorAction 类的字段，以使用资产来定义按钮的行为。

ActionClass.drawio

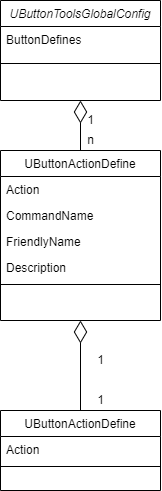

  1. 创建 UButtonToolsGlobalConfig 用作配置文件，其持有一个 FEditorButtonDefine 类实例数组，该类用于定义按钮的名称&行为等。

    ButtonUtilsConfig.drawio

    1. 将设置注册进项目设置面板，参考如下代码：
    void FButtonToolsModule::RegisterSettings()
{
	ISettingsModule* SettingModule = FModuleManager::GetModulePtr<ISettingsModule>("Settings");
	if(SettingModule)
	{
		SettingModule->RegisterSettings("Project", "Plugins", "ButtonTools",
			LOCTEXT("ButtonToolsSettings", "ButtonToolsSettings"),
			LOCTEXT("ButtonToolsSettings", "Configure editor buttons."),
			GetMutableDefault<UButtonToolsGlobalConfig>());
	}
}
    1. 生成按钮对应的Commands，此处因为将配置进行了开放，不能直接使用UI_COMMAND宏来进行声明，请参考以下代码：
    void FButtonToolsCommands::RegisterConfigCommands()
{
	const UButtonToolsGlobalConfig* Config = GetDefault<UButtonToolsGlobalConfig>();
	for (const auto& Define : Config->ButtonDefines)
	{
		TSharedPtr<FUICommandInfo>& Command = ConfigCommands.Add_GetRef(TSharedPtr<FUICommandInfo>());
		MakeUICommand_InternalUseOnly(this, Command, TEXT(LOCTEXT_NAMESPACE), *Define.CommandName, *(Define.CommandName + "_ToolTip"), TCHAR_TO_ANSI(*("." + Define.CommandName)), *Define.FriendlyName, *Define.Description, EUserInterfaceActionType::Button, FInputGesture());
	}
}
    1. 定义点击按钮的事件
    void FButtonToolsModule::DoConfigButtonAction(int ID)
{
	const UButtonToolsGlobalConfig* Config = GetDefault<UButtonToolsGlobalConfig>();
	if(Config->ButtonDefines.IsValidIndex(ID) && Config->ButtonDefines[ID].Action.TryLoad())
	{
		UButtonActionDefine* Define = Cast<UButtonActionDefine>(Config->ButtonDefines[ID].Action.TryLoad());
		if(Define && Define->Action)
		{
			Define->Action->DoAction();
		}
	}
}
    1. 生成Combo按钮
    TSharedRef<SWidget> FButtonToolsModule::FillComboButton(TSharedPtr<class FUICommandList> Commands)
{
	FMenuBuilder MenuBuilder(true, Commands);

	const UButtonToolsGlobalConfig* EditorConfig = GetDefault<UButtonToolsGlobalConfig>();
	for (int i = 0; i < FButtonToolsCommands::Get().ConfigCommands.Num(); ++i)
	{
			MenuBuilder.AddMenuEntry(FButtonToolsCommands::Get().ConfigCommands[i], NAME_None, TAttribute<FText>(), TAttribute<FText>());
	}

	return MenuBuilder.MakeWidget();
}

    模块依赖与版本问题

    如果需要使用提供的两个Action类型，需要添加对以下模块的依赖：

    "Blutility",
"PythonScriptPlugin",
"UMGEditor",
"AssetRegistry",

    另外，本样例代码基于4.26进行的开发，若您使用更早的版本，则可以存在链接不到 UEditorUtilityWidgetBlueprint 该类的情况，这是因为UE在早期版本中并未将此类开发出来，可以给该类加上导出宏以解决该问题。

    // add BLUTILITY_API
class BLUTILITY_API UEditorUtilityWidgetBlueprint : public UWidgetBlueprint

    源码参考

    ButtonActionDefine.h & cpp

    // .h
#pragma once

#include "CoreMinimal.h"
#include "Engine/DataAsset.h"
#include "ButtonActionDefine.generated.h"

UCLASS(BlueprintType)
class BUTTONTOOLS_API UButtonActionDefine : public UDataAsset
{
	GENERATED_BODY()
public:
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly, Instanced)
	UEditorAction* Action;
};

UCLASS(BlueprintType, EditInlineNew)
class BUTTONTOOLS_API UEditorAction : public UObject
{
	GENERATED_BODY()
public:
	virtual void DoAction() const PURE_VIRTUAL(UEditorAction::DoAction)
};

UCLASS(BlueprintType, EditInlineNew)
class BUTTONTOOLS_API UEditorAction_OpenWidget : public UEditorAction
{
	GENERATED_BODY()
protected:
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly, meta = (AllowedClasses = "EditorUtilityWidgetBlueprint"))
	FSoftObjectPath WidgetBlueprintPath;

public:
	virtual void DoAction() const override;
};

UCLASS(BlueprintType, EditInlineNew)
class BUTTONTOOLS_API UEditorAction_RunPython : public UEditorAction
{
	GENERATED_BODY()
protected:
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly)
	FString Script;

public:
	virtual void DoAction() const override;
};


// .cpp
#include "ButtonActionDefine.h"
#include "EditorUtilitySubsystem.h"
#include "EditorUtilityWidgetBlueprint.h"
#include "IPythonScriptPlugin.h"
#include "AssetRegistry/AssetRegistryModule.h"

void UEditorAction_OpenWidget::DoAction() const
{
	UEditorUtilitySubsystem* EditorUtilitySubsystem = GEditor->GetEditorSubsystem<UEditorUtilitySubsystem>();
	if (EditorUtilitySubsystem)
	{
		FAssetRegistryModule& AssetRegistryModule = FModuleManager::LoadModuleChecked<FAssetRegistryModule>("AssetRegistry");
		UEditorUtilityWidgetBlueprint* Widget = Cast<UEditorUtilityWidgetBlueprint>(WidgetBlueprintPath.TryLoad());
		if (Widget)
		{
			EditorUtilitySubsystem->SpawnAndRegisterTab(Widget);
		}
	}
}

void UEditorAction_RunPython::DoAction() const
{
	IPythonScriptPlugin::Get()->ExecPythonCommand(*Script);
}

    ButtonToolsGlobalConfig.h

    //ButtonToolsGlobalConfig.h
#pragma once

#include "CoreMinimal.h"
#include "ButtonToolsGlobalConfig.generated.h"

USTRUCT(BlueprintType)
struct FEditorButtonDefine
{
	GENERATED_BODY()
public:
	// 用于注册UICommand时的CommandID
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly)
	FString CommandName;
	// 用于注册UICommand时的展示名
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly)
	FString FriendlyName;
	// 用于注册UICommand时的描述
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly)
	FString Description;
	// 该按钮点击时的事件DA路径
	UPROPERTY(BlueprintReadOnly, EditDefaultsOnly, meta=(AllowedClasses="ButtonActionDefine"))
	FSoftObjectPath Action;
};


UCLASS(config=Game, defaultconfig)
class BUTTONTOOLS_API UButtonToolsGlobalConfig : public UObject
{
	GENERATED_BODY()
public:
	UPROPERTY(Config, EditDefaultsOnly, Category = ButtonTools)
	TArray<FEditorButtonDefine> ButtonDefines;
};

    ButtonToolsCommands.h & cpp

    // .h
#pragma once

#include "CoreMinimal.h"
#include "Framework/Commands/Commands.h"
#include "ButtonToolsStyle.h"

class FButtonToolsCommands : public TCommands<FButtonToolsCommands>
{
public:

	FButtonToolsCommands()
		: TCommands<FButtonToolsCommands>(TEXT("ButtonTools"), NSLOCTEXT("Contexts", "ButtonTools", "ButtonTools Plugin"), NAME_None, FButtonToolsStyle::GetStyleSetName())
	{
	}

	// TCommands<> interface
	virtual void RegisterCommands() override;

	void RegisterConfigCommands();

public:
	TSharedPtr< FUICommandInfo > OpenPluginWindow;
	TArray<TSharedPtr< FUICommandInfo >> ConfigCommands;
};



// .cpp
#include "ButtonToolsCommands.h"
#include "ButtonToolsGlobalConfig.h"

#define LOCTEXT_NAMESPACE "FButtonToolsModule"

void FButtonToolsCommands::RegisterCommands()
{
	UI_COMMAND(OpenPluginWindow, "ButtonTools", "Bring up ButtonTools window", EUserInterfaceActionType::Button, FInputGesture());
	RegisterConfigCommands();
}

void FButtonToolsCommands::RegisterConfigCommands()
{
	const UButtonToolsGlobalConfig* Config = GetDefault<UButtonToolsGlobalConfig>();
	for (const auto& Define : Config->ButtonDefines)
	{
		TSharedPtr<FUICommandInfo>& Command = ConfigCommands.Add_GetRef(TSharedPtr<FUICommandInfo>());
		MakeUICommand_InternalUseOnly(this, Command, TEXT(LOCTEXT_NAMESPACE), *Define.CommandName, *(Define.CommandName + "_ToolTip"),
			TCHAR_TO_ANSI(*("." + Define.CommandName)), *Define.FriendlyName, *Define.Description, EUserInterfaceActionType::Button, FInputGesture());
	}
}

#undef LOCTEXT_NAMESPACE

    ButtonTools.h & cpp

    // .h
#pragma once

#include "CoreMinimal.h"
#include "Modules/ModuleManager.h"

class FToolBarBuilder;
class FMenuBuilder;

class FButtonToolsModule : public IModuleInterface
{
public:

	/** IModuleInterface implementation */
	virtual void StartupModule() override;
	virtual void ShutdownModule() override;

	/** This function will be bound to Command (by default it will bring up plugin window) */
	void PluginButtonClicked();

private:

	void RegisterMenus();
	void RegisterSettings();
	void UnregisterSettings();

	TSharedRef<class SDockTab> OnSpawnPluginTab(const class FSpawnTabArgs& SpawnTabArgs);

	void DoConfigButtonAction(int ID);

	TSharedRef<SWidget> FillComboButton(TSharedPtr<class FUICommandList> Commands);

private:
	TSharedPtr<class FUICommandList> PluginCommands;
};




// .cpp
// Copyright Epic Games, Inc. All Rights Reserved.
#include "ButtonTools.h"
#include "ButtonToolsStyle.h"
#include "ButtonToolsCommands.h"
#include "LevelEditor.h"
#include "Widgets/Docking/SDockTab.h"
#include "Widgets/Layout/SBox.h"
#include "Widgets/Text/STextBlock.h"
#include "ToolMenus.h"
#include "ButtonToolsGlobalConfig.h"
#include "ButtonActionDefine.h"
#include "ISettingsModule.h"

static const FName ButtonToolsTabName("ButtonTools");

#define LOCTEXT_NAMESPACE "FButtonToolsModule"

void FButtonToolsModule::StartupModule()
{
	// This code will execute after your module is loaded into memory; the exact timing is specified in the .uplugin file per-module

	FButtonToolsStyle::Initialize();
	FButtonToolsStyle::ReloadTextures();

	FButtonToolsCommands::Register();

	RegisterSettings();

	PluginCommands = MakeShareable(new FUICommandList);

	for(int i=0;i<FButtonToolsCommands::Get().ConfigCommands.Num();++i)
	{
		PluginCommands->MapAction(
			FButtonToolsCommands::Get().ConfigCommands[i],
			FExecuteAction::CreateRaw(this, &FButtonToolsModule::DoConfigButtonAction, i),
			FCanExecuteAction());
	}

	UToolMenus::RegisterStartupCallback(FSimpleMulticastDelegate::FDelegate::CreateRaw(this, &FButtonToolsModule::RegisterMenus));

	/*FGlobalTabmanager::Get()->RegisterNomadTabSpawner(ButtonToolsTabName, FOnSpawnTab::CreateRaw(this, &FButtonToolsModule::OnSpawnPluginTab))
		.SetDisplayName(LOCTEXT("FButtonToolsTabTitle", "ButtonTools"))
		.SetMenuType(ETabSpawnerMenuType::Hidden);*/
}

void FButtonToolsModule::ShutdownModule()
{
	// This function may be called during shutdown to clean up your module.  For modules that support dynamic reloading,
	// we call this function before unloading the module.

	UToolMenus::UnRegisterStartupCallback(this);

	UToolMenus::UnregisterOwner(this);

	UnregisterSettings();

	FButtonToolsStyle::Shutdown();

	FButtonToolsCommands::Unregister();

	FGlobalTabmanager::Get()->UnregisterNomadTabSpawner(ButtonToolsTabName);
}

TSharedRef<SDockTab> FButtonToolsModule::OnSpawnPluginTab(const FSpawnTabArgs& SpawnTabArgs)
{
	FText WidgetText = FText::Format(
		LOCTEXT("WindowWidgetText", "Add code to {0} in {1} to override this window's contents"),
		FText::FromString(TEXT("FButtonToolsModule::OnSpawnPluginTab")),
		FText::FromString(TEXT("ButtonTools.cpp"))
		);

	return SNew(SDockTab)
		.TabRole(ETabRole::NomadTab)
		[
			// Put your tab content here!
			SNew(SBox)
			.HAlign(HAlign_Center)
			.VAlign(VAlign_Center)
			[
				SNew(STextBlock)
				.Text(WidgetText)
			]
		];
}

void FButtonToolsModule::DoConfigButtonAction(int ID)
{
	const UButtonToolsGlobalConfig* Config = GetDefault<UButtonToolsGlobalConfig>();
	if(Config->ButtonDefines.IsValidIndex(ID) && Config->ButtonDefines[ID].Action.TryLoad())
	{
		UButtonActionDefine* Define = Cast<UButtonActionDefine>(Config->ButtonDefines[ID].Action.TryLoad());
		if(Define && Define->Action)
		{
			Define->Action->DoAction();
		}
	}
}

TSharedRef<SWidget> FButtonToolsModule::FillComboButton(TSharedPtr<class FUICommandList> Commands)
{
	FMenuBuilder MenuBuilder(true, Commands);

	const UButtonToolsGlobalConfig* EditorConfig = GetDefault<UButtonToolsGlobalConfig>();
	for (int i = 0; i < FButtonToolsCommands::Get().ConfigCommands.Num(); ++i)
	{
			MenuBuilder.AddMenuEntry(FButtonToolsCommands::Get().ConfigCommands[i], NAME_None, TAttribute<FText>(), TAttribute<FText>());
	}

	return MenuBuilder.MakeWidget();
}

void FButtonToolsModule::PluginButtonClicked()
{
	FGlobalTabmanager::Get()->TryInvokeTab(ButtonToolsTabName);
}

void FButtonToolsModule::RegisterMenus()
{
	// Owner will be used for cleanup in call to UToolMenus::UnregisterOwner
	FToolMenuOwnerScoped OwnerScoped(this);

	{
		UToolMenu* Menu = UToolMenus::Get()->ExtendMenu("LevelEditor.MainMenu.Window");
		{
			FToolMenuSection& Section = Menu->FindOrAddSection("WindowLayout");
			for (int i = 0; i < FButtonToolsCommands::Get().ConfigCommands.Num(); ++i)
			{
				Section.AddMenuEntryWithCommandList(FButtonToolsCommands::Get().ConfigCommands[i], PluginCommands);
			}
		}
	}

	{
		UToolMenu* ToolbarMenu = UToolMenus::Get()->ExtendMenu("LevelEditor.LevelEditorToolBar");
		{
			FToolMenuSection& Section = ToolbarMenu->FindOrAddSection("Settings");
			{
				Section.AddEntry(FToolMenuEntry::InitComboButton(
					"ButtonTools",
					FUIAction(
						FExecuteAction(),
						FCanExecuteAction(),
						FGetActionCheckState()
					),
					FOnGetContent::CreateRaw(this, &FButtonToolsModule::FillComboButton, PluginCommands),
					LOCTEXT("ButtonTools", "ButtonTools"),
					LOCTEXT("ButtonTools", "ButtonTools"),
					FSlateIcon()
				));
			}
		}
	}
}

void FButtonToolsModule::RegisterSettings()
{
	ISettingsModule* SettingModule = FModuleManager::GetModulePtr<ISettingsModule>("Settings");
	if(SettingModule)
	{
		SettingModule->RegisterSettings("Project", "Plugins", "ButtonTools",
			LOCTEXT("ButtonToolsSettings", "ButtonToolsSettings"),
			LOCTEXT("ButtonToolsSettings", "Configure editor buttons."),
			GetMutableDefault<UButtonToolsGlobalConfig>());
	}
}

void FButtonToolsModule::UnregisterSettings()
{
	ISettingsModule* SettingModule = FModuleManager::GetModulePtr<ISettingsModule>("Settings");
	if (SettingModule)
	{
		SettingModule->UnregisterSettings("Project", "Plugins", "ButtonTools");
	}
}

#undef LOCTEXT_NAMESPACE

IMPLEMENT_MODULE(FButtonToolsModule, ButtonTools)
posted @ 2022-04-27 22:46  mood701  阅读(405)  评论(0)    收藏  举报
