Android & IOS 代码覆盖率实现

背景

新功能测试以及回归测试在手工测试的情况下，即便用例再为详尽，也会存在遗漏的用例。通过统计手工测试覆盖率的数据，可以及时的完善用例。本文以android jacoco及IOS Xcode 实现代码覆盖率方法。

Android 端实现

引入依赖

在app 目录下的build.gradle 引入jacoco 包

   implementation 'org.jacoco:org.jacoco.core:0.8.7'//导入jacoco的版本包

相关类代码

FinishListener:

package 你的包名;
public interface FinishListener {
    void onActivityFinished();
    void dumpIntermediateCoverage(String filePath);
}

InstrumentedActivity

package 包名;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;

public class InstrumentedActivity extends MainActivity{

    public static String TAG = "IntrumentedActivity";
    private FinishListener mListener;
    public void setFinishListener(FinishListener listener) {
        mListener = listener;
    }
    @Override
    public void onDestroy() {
        super.onDestroy();
        //Log.d(TAG + ".com.example.coveragetest.InstrumentedActivity", "onDestroy()");
        super.finish();
        if (mListener != null) {
            mListener.onActivityFinished();
        }
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
    }
}

JacocoInstrumentation

package 包名;


import android.app.Activity;
import android.app.Instrumentation;
import android.content.Intent;
import android.os.Bundle;
import android.os.Looper;
import android.util.Log;

import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;

public class JacocoInstrumentation extends Instrumentation implements
        FinishListener {
    public static String TAG = "JacocoInstrumentation:";
    private static String DEFAULT_COVERAGE_FILE_PATH = "/mnt/sdcard/coverage.ec";

    private final Bundle mResults = new Bundle();

    private Intent mIntent;
    private static final boolean LOGD = true;

    private boolean mCoverage = true;

    private String mCoverageFilePath;


    /**
     * Constructor
     */
    public JacocoInstrumentation() {

    }

    @Override
    public void onCreate(Bundle arguments) {
        Log.d(TAG, "onCreate(" + arguments + ")");
        super.onCreate(arguments);
        DEFAULT_COVERAGE_FILE_PATH = getContext().getFilesDir().getPath().toString() + "/coverage.ec";
        Log.d(TAG, "DEFAULT_COVERAGE_FILE_PATH is : "+DEFAULT_COVERAGE_FILE_PATH);

        File file = new File(DEFAULT_COVERAGE_FILE_PATH);
        if (!file.exists()) {
            try {
                file.createNewFile();
            } catch (IOException e) {
                Log.d(TAG, "异常 : " + e);
                e.printStackTrace();
            }
        }
        if (arguments != null) {
            mCoverageFilePath = arguments.getString("coverageFile");
        }

        mIntent = new Intent(getTargetContext(), InstrumentedActivity.class);
        mIntent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        start();
    }

    @Override
    public void onStart() {
        if (LOGD)
            Log.d(TAG, "onStart()");
        super.onStart();

        Looper.prepare();
        InstrumentedActivity activity = (InstrumentedActivity) startActivitySync(mIntent);
        activity.setFinishListener(this);
    }

    private void generateCoverageReport() {
        Log.d(TAG, "generateCoverageReport():" + getCoverageFilePath());
        OutputStream out = null;
        try {
            out = new FileOutputStream(getCoverageFilePath(), false);
            Object agent = Class.forName("org.jacoco.agent.rt.RT")
                    .getMethod("getAgent")
                    .invoke(null);

            out.write((byte[]) agent.getClass().getMethod("getExecutionData", boolean.class)
                    .invoke(agent, false));
        } catch (Exception e) {
            Log.d(TAG, e.toString(), e);
        } finally {
            if (out != null) {
                try {
                    out.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    private String getCoverageFilePath() {
        if (mCoverageFilePath == null) {
            return DEFAULT_COVERAGE_FILE_PATH;
        } else {
            return mCoverageFilePath;
        }
    }

    private boolean setCoverageFilePath(String filePath){
        if(filePath != null && filePath.length() > 0) {
            mCoverageFilePath = filePath;
            return true;
        }
        return false;
    }


    @Override
    public void onActivityFinished() {
        if (LOGD)
            Log.d(TAG, "onActivityFinished()");
        if (mCoverage) {
            generateCoverageReport();
        }
        finish(Activity.RESULT_OK, mResults);
    }

    @Override
    public void dumpIntermediateCoverage(String filePath){
        // TODO Auto-generated method stub
        if(LOGD){
            Log.d(TAG,"Intermidate Dump Called with file name :"+ filePath);
        }
        if(mCoverage){
            if(!setCoverageFilePath(filePath)){
                if(LOGD){
                    Log.d(TAG,"Unable to set the given file path:"+filePath+" as dump target.");
                }
            }
            generateCoverageReport();
            setCoverageFilePath(DEFAULT_COVERAGE_FILE_PATH);
        }
    }

}

修改 build.gradle 文件

增加jacoco插件，打开覆盖率开关

app目录下创建jacoco.gradle 如下：

apply plugin: 'jacoco'

jacoco {
    toolVersion = "0.8.2"
}
def coverageSourceDirs = [
        '../app/src/main/java'
]

def coverageClassDirs = [
        '../app/build/intermediates/javac/debug/classes'
]

task jacocoTestReport(type: JacocoReport) {
    group = "Reporting"
    description = "Generate Jacoco coverage reports after running tests."
    reports {
        xml.enabled = true
        html.enabled = true
    }
    classDirectories.setFrom(files(files(coverageClassDirs).files.collect {
        fileTree(dir: it,
                // 过滤不需要统计的class文件
                excludes: ['**/R*.class',
                           '**/*$InjectAdapter.class',
                           '**/*$ModuleAdapter.class',
                           '**/*$ViewInjector*.class'
                ])
    }))

    sourceDirectories.setFrom(files(coverageSourceDirs))
    executionData.setFrom(files("$buildDir/outputs/code-coverage/coverage.ec"))

    doFirst {
        new File("$buildDir/intermediates/javac/debug/classes/").eachFileRecurse { file ->
            if (file.name.contains('$$')) {
                file.renameTo(file.path.replace('$$', '$'))
            }
        }
    }
}

build.gradle 引入 jacoco 插件

 apply from:'jacoco.gradle'

修改 AndroidManifest.xml

添加instrumentation 声明

  <instrumentation
        android:handleProfiling="true"
        android:label="CoverageInstrumentation"
        android:name="com.example.coveragetest.JacocoInstrumentation"
        android:targetPackage="com.example.coveragetest"/>

测试步骤及报告生成

通过 adb shell am instrument 包名/包名.test.JacocoInstrumentation 启动 app;
进行 app 手工测试，测试完成后退出 App，覆盖率文件会保存在手机/data/data/yourPackageName/files/coverage.ec 目录
导出 coverage.ec 至 $buildDir/outputs/code-coverage 目录下；
使用 gradle jacocoTestReport 命令行分析覆盖率文件并生成 html 报告；

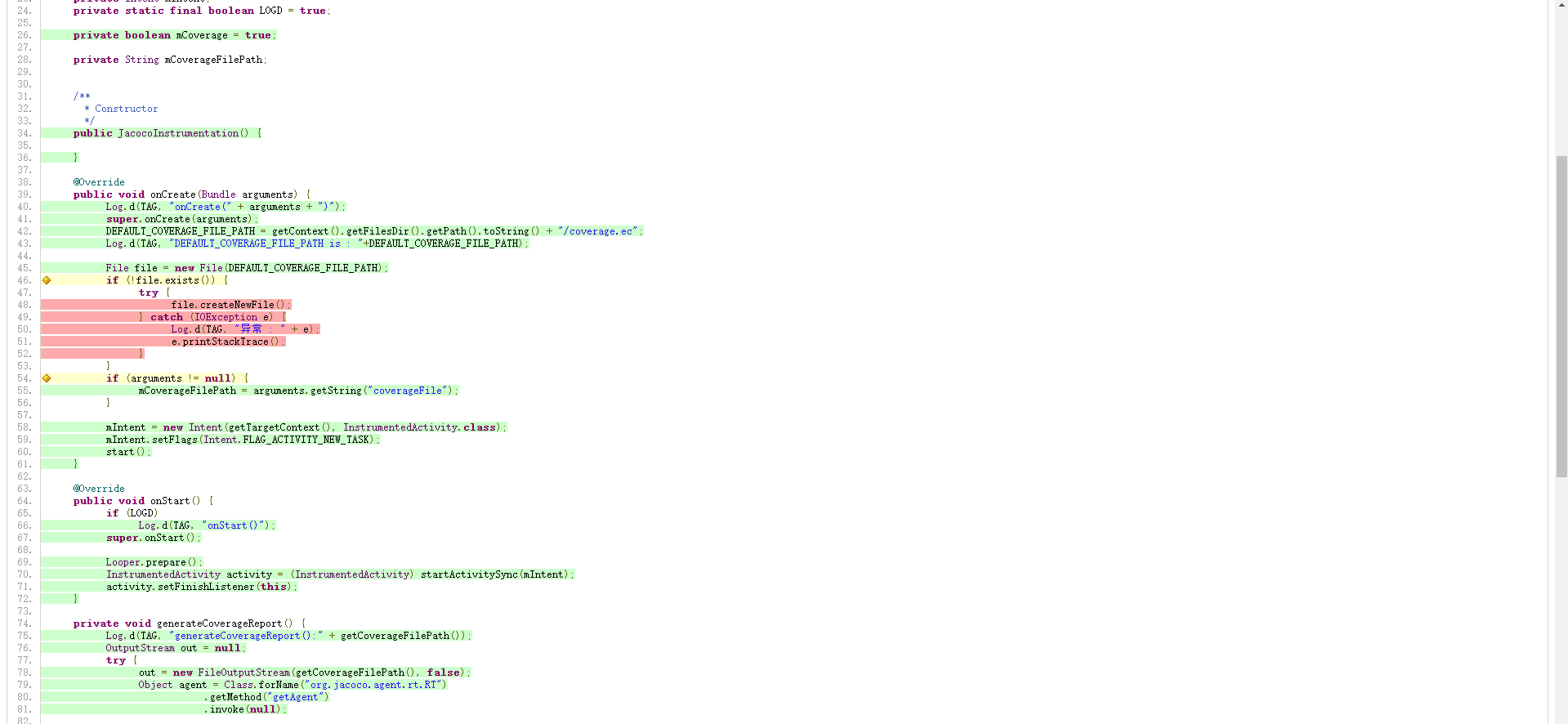

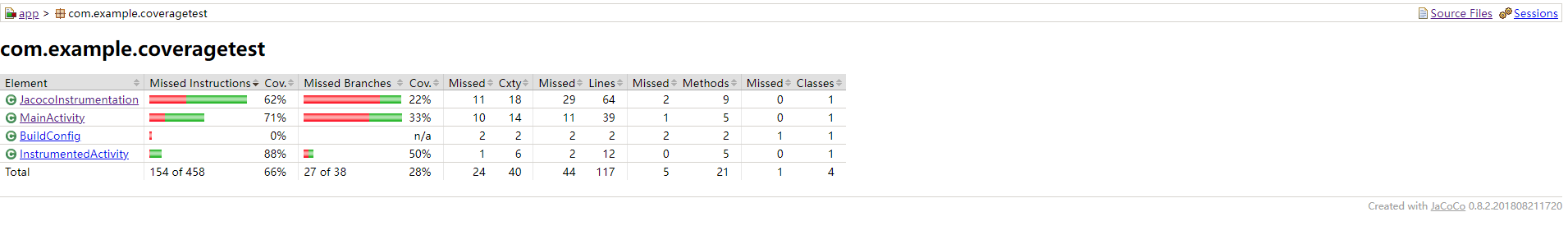

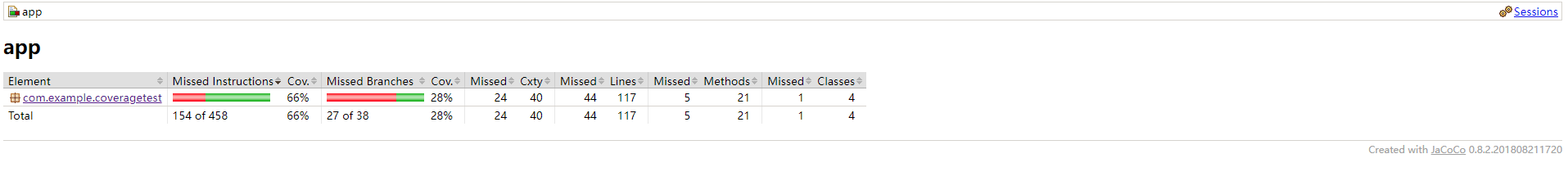

查看覆盖率报告

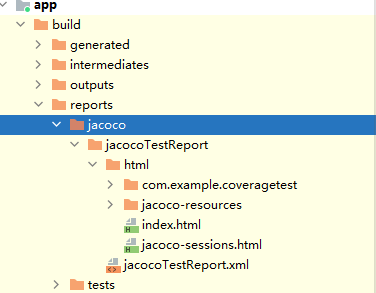

报告目录结构：
