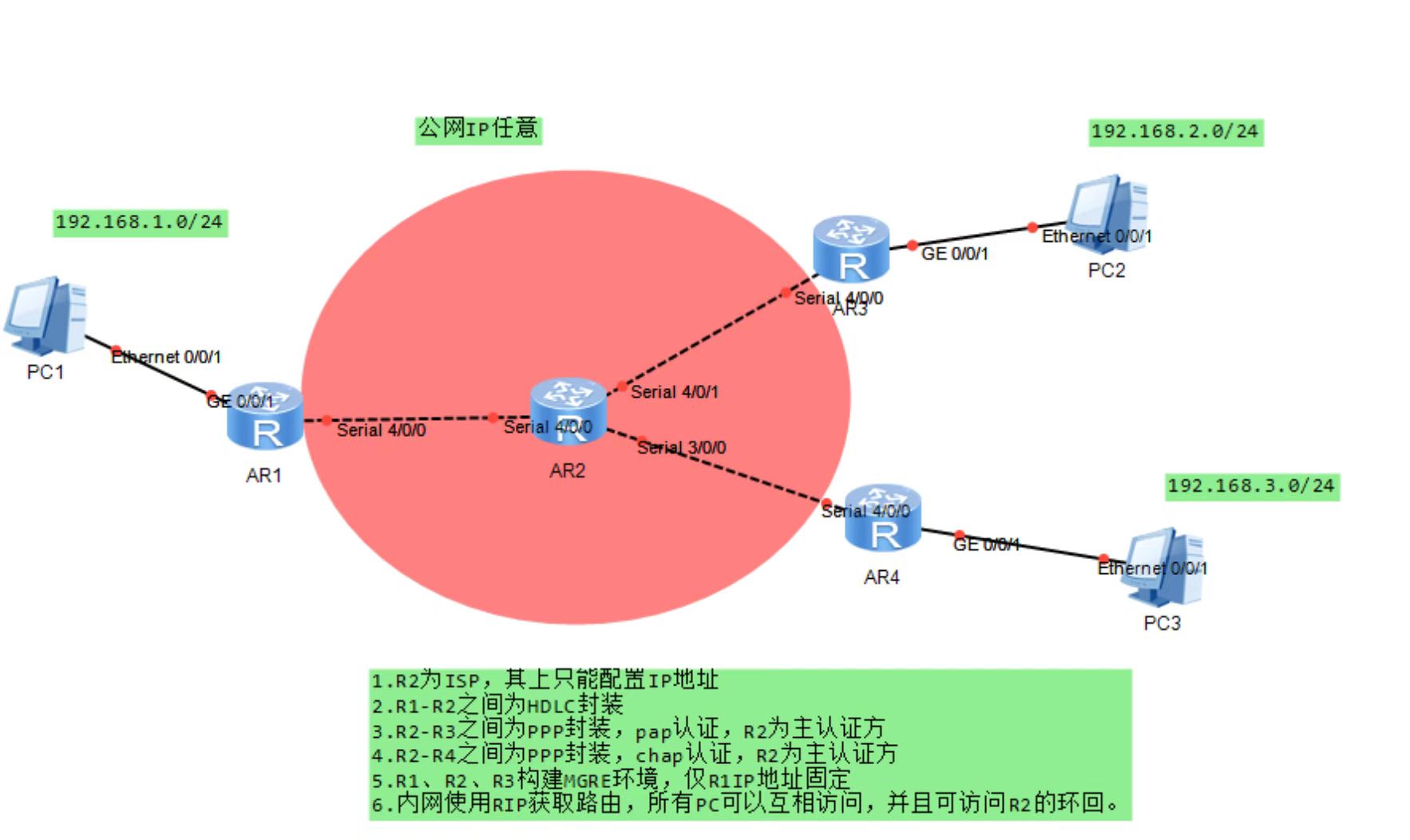

HCIP网络类型实验报告



1、IP地址配置，不做过多阐述
2、路由配置：R1，R3，R4各有一条缺省指向R2

3、R1-R2之间为HDLC封装
R1

[Huawei]int s4/0/0
[Huawei-Serial4/0/0]link-protocol hdlc

R2

[Huawei]int s4/0/0
[Huawei-Serial4/0/0]link-protocol hdlc



4、R2-R3之间为ppp封装，pap认证，R2为主认证方

R2：

[Huawei-aaa]local-user qq privilege level 15 password cipher 123456
[Huawei-aaa]local-user qq service-type ppp

[Huawei]int s4/0/1
[Huawei-Serial4/0/1]ppp authentication-mode pap

R3：

[Huawei]int s4/0/0

[Huawei-Serial4/0/0]ppp pap local-user qq password cipher 123456

5、R2-R4之间为PPP封装，chap认证，R2为主认证方

R2

[Huawei-aaa]local-user qq1 privilege level 15 password cipher 123456
[Huawei-aaa]local-user qq1 service-type ppp

[Huawei]int s3/0/0
[Huawei-Serial3/0/0]ppp authentication-mode chap

R4

[Huawei]interface Serial 4/0/0
[Huawei-Serial4/0/0]ppp chap user qq1
[Huawei-Serial4/0/0]ppp chap password cipher 123456

6、R1、R2、R3构建MGRE环境，仅R1 iP地址固定
R1

[Huawei]interface Tunnel 0/0/0 创建隧道接口
[Huawei-Tunnel0/0/0]ip address 192.168.4.1 24 隧道接口ip地址
[Huawei-Tunnel0/0/0]tunnel-protocol gre p2mp 定义该隧道为多点gre隧道
[Huawei-Tunnel0/0/0]source 14.1.1.1 该隧道加封装的报头源ip地址
通过NHRP协议来获取加封装的目标ip地址
[Huawei-Tunnel0/0/0]nhrp entry multicast dynamic 本地成为NHRP服务端
[Huawei-Tunnel0/0/0]nhrp network-id 100 NHRP的工作编号，该网段所有设备必须在同一id

R3

[Huawei]interface Tunnel 0/0/0
[Huawei-Tunnel0/0/0]ip address 192.168.4.2 24
[Huawei-Tunnel0/0/0]tunnel-protocol gre p2mp
加封装的源ip地址，为本地的隧道实际通过接口的ip地址，填写接口编号，而不是接口ip，原因在于该接口ip地址可变
[Huawei-Tunnel0/0/0]source s0/0/0
加封装的目标ip地址，需要到NHRP中心站点获取
[Huawei-Tunnel0/0/0]nhrp entry 192.168.4.1 14.1.1.1 register
[Huawei-Tunnel0/0/0]nhrp network-id 100

R4

[Huawei]interface Tunnel 0/0/0
[Huawei-Tunnel0/0/0]ip address 192.168.4.3 24
[Huawei-Tunnel0/0/0]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/0]source s0/0/0
[Huawei-Tunnel0/0/0]nhrp entry 192.168.4.1 14.1.1.1 register
[Huawei-Tunnel0/0/0]nhrp network-id 100
