使用Prometheus+Grafana监控MySQL

前提

• 搭建好Prometheus
  本次使用Docker搭建
  https://www.cnblogs.com/minseo/p/17913003.html

• 搭建好Grafana

1. 环境查看
   系统环境

# cat /etc/redhat-release
CentOS Linux release 7.9.2009 (Core)
# uname -a
Linux CentOS7K8SHarbor061 3.10.0-1160.102.1.el7.x86_64 #1 SMP Tue Oct 17 15:42:21 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux

软件环境
Prometheus版本

mysqld_exporter版本

# ./mysqld_exporter --version
mysqld_exporter, version 0.14.0 (branch: HEAD, revision: ca1b9af82a471c849c529eb8aadb1aac73e7b68c)
  build user:       root@401d370ca42e
  build date:       20220304-16:25:15
  go version:       go1.17.8
  platform:         linux/amd64

2. 配置MySQL监控
   下载mysqld_exporter
   下载地址
   https://github.com/prometheus/mysqld_exporter/releases
   本次下载0.14.0版本
   下载后解压缩启动

# 解压
# tar -xf mysqld_exporter-0.14.0.linux-amd64.tar.gz
# cd mysqld_exporter-0.14.0.linux-amd64/
# 带配置文件启动
# ./mysqld_exporter --config.my-cnf=/etc/.my.cnf &

配置文件需要添加数据库信息

# cat /etc/.my.cnf
[client]
user=root
password=root
host=localhost
port=3306

设置成开机自启动

# cat /usr/lib/systemd/system/mysqld_exporter.service
[Unit]
Description= Mysqld_exporter
After=network.target

[Service]
ExecStart=/opt/mysqld_exporter-0.15.1.linux-amd64/mysqld_exporter  --config.my-cnf=/etc/.my.cnf
User=root
[Install]
WantedBy=multi-user.target

启动并设置成开机自启动

systemctl daemon-reload
systemctl restart mysqld_exporter.service
systemctl enable mysqld_exporter.service
systemctl status mysqld_exporter.service

3. 修改prometheus配置文件
   修改配置文件添加监控客户端
   本次使用的是docker启动修改挂载的配置文件

# cat /data/softs/prometheus/prometheus.yml
# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:9090",'192.168.3.61:9100','192.168.3.62:9100','192.168.3.63:9100','192.168.3.64:9100','192.168.3.65:9100','192.168.3.66:9100','192.168.3.67:9100','192.168.3.68:9100','192.168.3.69:9100','192.168.3.70:9100']

  - job_name: "mysql"
    static_configs:
      - targets: ["192.168.3.204:9104"]

本次添加以下配置

重启对应容器使配置生效

# docker restart prometheus

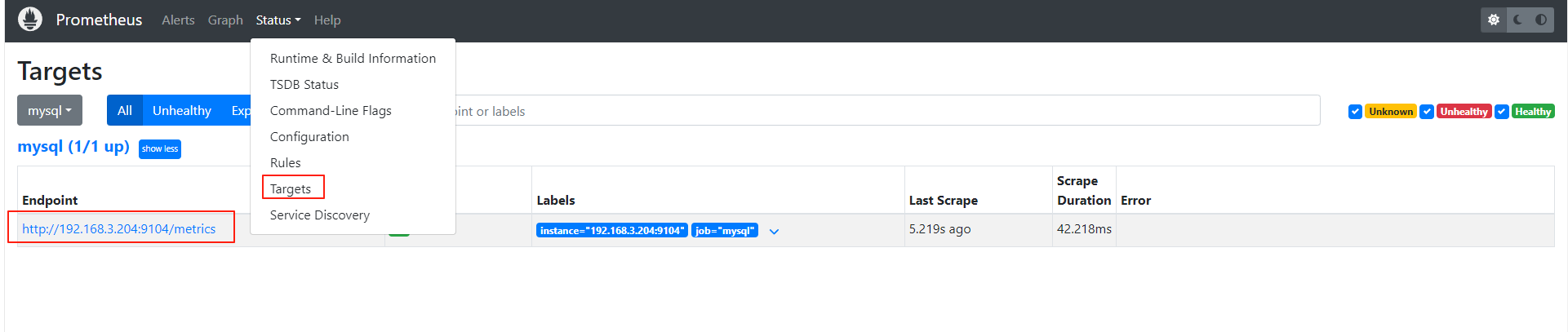

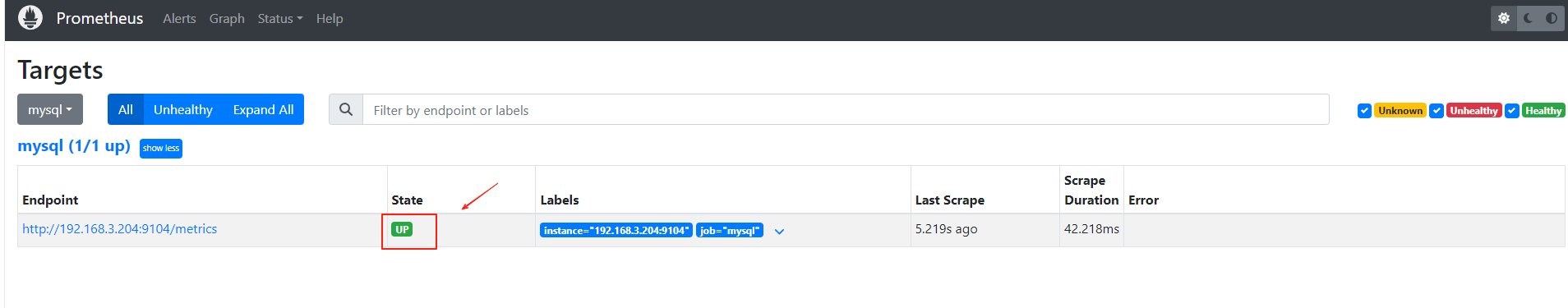

打开Peometheus查看是否加入监控

4. Grafana添加仪表盘
   下载监控Json模板
   下载地址
   https://grafana.com/grafana/dashboards/7362-mysql-overview/
   Grafana导入仪表盘


   查看监控项
