【Mybatis】SP01 通用Mapper 环境搭建

基本介绍

通用Mapper是Mybatis的插件之一，作用是自动生成CRUD的SQL语句

官方地址与介绍：

https://gitee.com/free
https://gitee.com/free/Mapper/wikis/1.1-java?parent=1.integration

前置技术依赖：

Spring
Mybatis

案例准备

创建数据库：

CREATE DATABASE common_mapper

CREATE TABLE `tabple_emp` (
`emp_id` int NOT NULL AUTO_INCREMENT ,
`emp_name` varchar(500) NULL ,
`emp_salary` double(15,5) NULL ,
`emp_age` int NULL ,
PRIMARY KEY (`emp_id`)
);
INSERT INTO `tabple_emp` (`emp_name`, `emp_salary`, `emp_age`) VALUES ('tom', '1254.37', '27');
INSERT INTO `tabple_emp` (`emp_name`, `emp_salary`, `emp_age`) VALUES ('jerry', '6635.42', '38');
INSERT INTO `tabple_emp` (`emp_name`, `emp_salary`, `emp_age`) VALUES ('bob', '5560.11', '40');
INSERT INTO `tabple_emp` (`emp_name`, `emp_salary`, `emp_age`) VALUES ('kate', '2209.11', '22');
INSERT INTO `tabple_emp` (`emp_name`, `emp_salary`, `emp_age`) VALUES ('justin', '4203.15', '30');

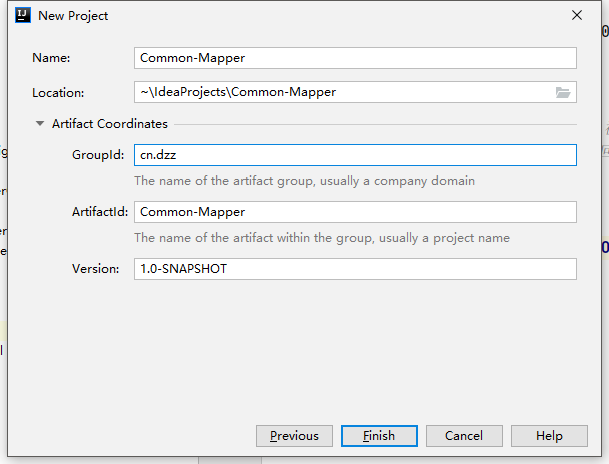

创建Maven工程：

POM坐标：

<dependencies>
    <!-- Jdbc -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.20</version>
    </dependency>
    <!-- DataSource -->
    <dependency>
        <groupId>com.zaxxer</groupId>
        <artifactId>HikariCP</artifactId>
        <version>3.4.5</version>
    </dependency>
    <!-- Test -->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.13</version>
        <scope>test</scope>
    </dependency>
    <!-- log -->
    <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>1.2.17</version>
    </dependency>
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-log4j12</artifactId>
        <version>1.7.30</version>
    </dependency>
    <!-- tools -->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.12</version>
    </dependency>
    <!-- mybatis-common mapper -->
    <dependency>
        <groupId>tk.mybatis</groupId>
        <artifactId>mapper</artifactId>
        <version>4.0.0-beta3</version>
    </dependency>
    <!-- Mybatis -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.5</version>
    </dependency>
    <!-- mybatis + spring  BridgePack -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.4</version>
    </dependency>
    <!-- Spring -->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>5.2.8.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-orm</artifactId>
        <version>5.2.8.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.2.8.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>cglib</groupId>
        <artifactId>cglib</artifactId>
        <version>2.2</version>
    </dependency>
    <dependency>
        <groupId>org.aspectj</groupId>
        <artifactId>aspectjweaver</artifactId>
        <version>1.9.5</version>
    </dependency>
</dependencies>

创建实体类：

package cn.dzz.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

/**
 * @author DaiZhiZhou
 * @file Common-Mapper
 * @create 2020-08-27 9:54
 */

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Employee implements Serializable {
    private static final long serialVersionUID = 5868379669175721936L;
    private Integer emp_id;
    private String emp_name;
    private Double emp_salary;
    private Integer emp_age;
}

配置连接信息：

db.properties

jdbc.driverClassName=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/common_mapper?serverTimezone=GMT
jdbc.username=root
jdbc.password=123456

日志打印

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# MyBatis logging configuration...
log4j.logger.org.mybatis.example.BlogMapper=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

Mybatis-Config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

SpringXML容器配置：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"

       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:c="http://www.springframework.org/schema/c" xmlns:tx="http://www.springframework.org/schema/tx"

       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd

       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd

       http://www.springframework.org/schema/aop
       http://www.springframework.org/schema/aop/spring-aop.xsd

       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd"
>

    <context:property-placeholder location="classpath:db.properties"/>

    <bean id="dataSource" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
        <property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="jdbcUrl" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="configLocation" value="classpath:mybatis/MybatisConfiguration.xml"/>
        <property name="dataSource" ref="dataSource" />
    </bean>

    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.dzz.mapper"/>
    </bean>

    <!-- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -->

    <context:component-scan base-package="cn.dzz.service" />

    <bean id="TxManger" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* *..*Service.*(..))"/>
    </aop:config>

    <tx:advice id="txAdvice" transaction-manager="TxManger">
        <tx:attributes>
            <tx:method name="query*" read-only="true"/>
            <tx:method name="insert*" rollback-for="java.lang.Exception" propagation="REQUIRES_NEW"/>
            <tx:method name="delete*" rollback-for="java.lang.Exception" propagation="REQUIRES_NEW"/>
            <tx:method name="update*" rollback-for="java.lang.Exception" propagation="REQUIRES_NEW"/>
        </tx:attributes>
    </tx:advice>

</beans>

测试数据源访问：

package cn.dzz.test;

import lombok.extern.slf4j.Slf4j;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import javax.sql.DataSource;
import java.sql.Connection;

/**
 * @author DaiZhiZhou
 * @file Common-Mapper
 * @create 2020-08-27 10:22
 */

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:Spring-Mybatis.xml")
@Slf4j
public class CommonMapperTest {

    @Autowired
    private DataSource dataSource;

    @Test
    public void connectionTest() throws Exception{
        Connection connection = dataSource.getConnection();
        log.info(connection.toString());
        connection.close();
    }
}

日志打印结果：

 INFO [main] - HikariPool-1 - Starting...
DEBUG [main] - HikariPool-1 - Added connection com.mysql.cj.jdbc.ConnectionImpl@14dda234
 INFO [main] - HikariPool-1 - Start completed.
 INFO [main] - HikariProxyConnection@1218519094 wrapping com.mysql.cj.jdbc.ConnectionImpl@14dda234

整合Common-Mapper操作：

替换MapperScanConfigurer的Bean配置

<bean class="tk.mybatis.spring.mapper.MapperScannerConfigurer">
    <property name="basePackage" value="cn.dzz.mapper"/>
</bean>

编写EmployeeMapper接口：

package cn.dzz.mapper;

import cn.dzz.entity.Employee;
import tk.mybatis.mapper.common.Mapper;

/**
 * 具体操作数据库Mapper接口，需要继承核心的通用的接口
 * 同时注入泛型的类型，类型即这个Mapper接口的实体类类型
 * @author DaiZhiZhou
 * @file Common-Mapper
 * @create 2020-08-27 10:30
 */
public interface EmployeeMapper extends Mapper<Employee> {

}

查看这个通用Mapper的信息：

@RegisterMapper
public interface Mapper<T> extends BaseMapper<T>, ExampleMapper<T>, RowBoundsMapper<T>, Marker {
}

其中Mapper接口又继承了BaseMapper & ExampleMapper & RowBoundsMapper & Mark

基础、样例、行界、标记

@RegisterMapper
public interface BaseMapper<T> extends BaseSelectMapper<T>, BaseInsertMapper<T>, BaseUpdateMapper<T>, BaseDeleteMapper<T> {
}

基础Mapper接口又继承了基础的CRUDMapper。。。

到最后的具体的Maper则是提供了一个接口方法：

@RegisterMapper
public interface SelectOneMapper<T> {
    @SelectProvider(
        type = BaseSelectProvider.class,
        method = "dynamicSQL"
    )
    T selectOne(T var1);
}

也就是通用Mapper的Mapper接口提供了单表的所有尽可能的CRUD接口方法

我们的自定义Mapper接口继承Mapper接口之后规定实体泛型的类型，

然后就具备了这些方法，不需要我们自己手写了

posted @ 2020-08-27 10:54 emdzz 阅读(270) 评论(0) 收藏举报
