FEX /IOM in Cisco UCS

=================

IOM / FEX 知识

=================

简介

 I/O Modules (IOM) extend the fabric to the chassis, and each chassis has two

installed at the back of the chassis, next to the fans

Vblock Systems support four-port module, and eight-port modules

They attach to the fabric interconnects



=================

型号：

=================

UCS 2204XP

The Cisco UCS 2204XP Fabric Extender (Figure 4) has four 10 Gigabit Ethernet, FCoE-capable, SFP+ ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2204XP has sixteen 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 80 Gbps of I/O to the chassis.





UCS 2208XP

The Cisco UCS 2208XP Fabric Extender (Figure 3) has eight 10 Gigabit Ethernet, FCoE-capable, Enhanced Small Form-Factor Pluggable (SFP+) ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2208XP has thirty-two 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 160 Gbps of I/O to the chassis.





=================

连接

=================

FI <----> FEX





FEX <----> blade



=================

操作

=================

I/O Module Management via GUI

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Infrastructure-Mgmt/3-1/b_UCSM_GUI_Infrastructure_Management_Guide_3_1/b_UCSM_GUI_Infrastructure_Management_Guide_3_1_chapter_011.pdf



• I/O Module Management in Cisco UCS Manager GUI , page 1

• Acknowledging an IO Module, page 1

• Resetting an I/O Module, page 2

• Resetting an I/O Module from a Peer I/O Module, page 2

• Viewing Health Events for an I/O Module, page 3

• Viewing the POST Results for an I/O Module, page 4



I/O Module Management via CLI

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Infrastructure-Mgmt/3-1/b_UCSM_CLI_Infrastructure_Management_Guide_3_1/b_UCSM_CLI_Infrastructure_Management_Guide_3_1_chapter_0100.pdf



• I/O Module Management in Cisco UCS Manager CLI , page 1

• Acknowledging an IO Module, page 1 • Resetting the I/O Module, page 2

• Resetting an I/O Module from a Peer I/O Module, page 2

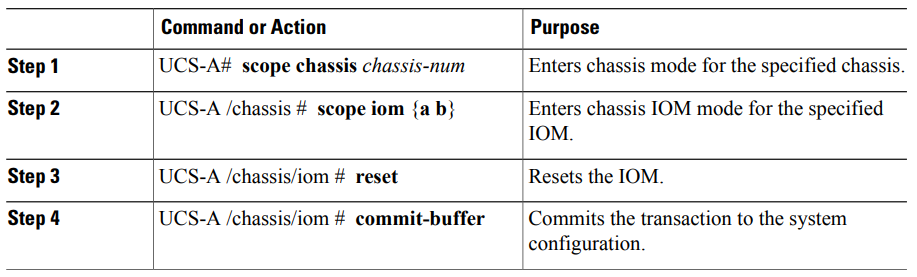

• Resetting IOM





Example:

UCS-A# scope chassis 1

UCS-A /chassis # scope iom a

UCS-A /chassis/iom # reset

UCS-A /chassis/iom* # commit-buffer

UCS-A /chassis/iom #



• View and Enable the Fabric Port

Step 1  login UCSM GUI, In the Navigation pane, click the Equipment tab.

Step 2  On the Equipment tab, expand Equipment > Chassis > Chassis number > IO Modules >

Step 3  Click the IOM for which you want to view the fabric port channels.

Step 4  In the Work pane, click the peer of  Fabric Ports x/y

Step 5  In the Action pane, click Enable Port
