揭密springboot自动装配（3）--ioc及调用selectImposts

接着上一章的提问，何处调用了这个selectImposts方法？

---

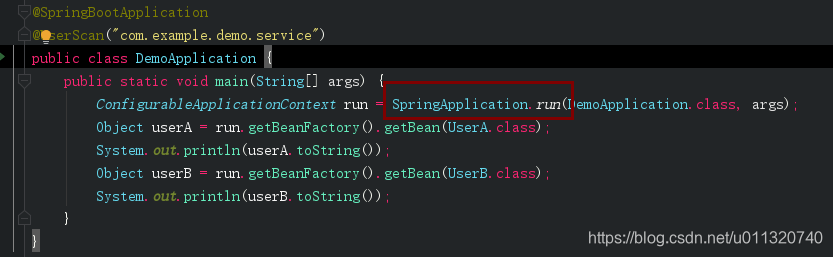

我们从这个启动类的SpringApplication.run方法跟进去

public ConfigurableApplicationContext run(String... args) {
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();
    ConfigurableApplicationContext context = null;
    Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
    configureHeadlessProperty();
    SpringApplicationRunListeners listeners = getRunListeners(args);
    listeners.starting();
    try {
      ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
      ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
      configureIgnoreBeanInfo(environment);
      Banner printedBanner = printBanner(environment);
      context = createApplicationContext();
      exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
          new Class[] { ConfigurableApplicationContext.class }, context);
      prepareContext(context, environment, listeners, applicationArguments, printedBanner);
      refreshContext(context);
      afterRefresh(context, applicationArguments);
      stopWatch.stop();
      if (this.logStartupInfo) {
        new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
      }
      listeners.started(context);
      callRunners(context, applicationArguments);
    }
    catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, listeners);
      throw new IllegalStateException(ex);
    }

    try {
      listeners.running(context);
    }
    catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, null);
      throw new IllegalStateException(ex);
    }
    return context;
  }

这段代码里面我们只关注refreshContext(context);即可

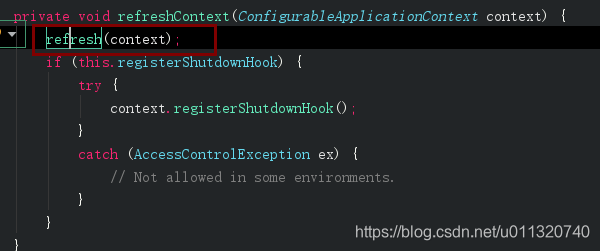

refresh继续走

public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
      // Prepare this context for refreshing.
      prepareRefresh();

      // Tell the subclass to refresh the internal bean factory.
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

      // Prepare the bean factory for use in this context.
      prepareBeanFactory(beanFactory);

      try {
        // Allows post-processing of the bean factory in context subclasses.
        postProcessBeanFactory(beanFactory);

        // Invoke factory processors registered as beans in the context.
        invokeBeanFactoryPostProcessors(beanFactory);

        // Register bean processors that intercept bean creation.
        registerBeanPostProcessors(beanFactory);

        // Initialize message source for this context.
        initMessageSource();

        // Initialize event multicaster for this context.
        initApplicationEventMulticaster();

        // Initialize other special beans in specific context subclasses.
        onRefresh();

        // Check for listener beans and register them.
        registerListeners();

        // Instantiate all remaining (non-lazy-init) singletons.
        finishBeanFactoryInitialization(beanFactory);

        // Last step: publish corresponding event.
        finishRefresh();
      }

      catch (BeansException ex) {
        if (logger.isWarnEnabled()) {
          logger.warn("Exception encountered during context initialization - " +
              "cancelling refresh attempt: " + ex);
        }

        // Destroy already created singletons to avoid dangling resources.
        destroyBeans();

        // Reset 'active' flag.
        cancelRefresh(ex);

        // Propagate exception to caller.
        throw ex;
      }

      finally {
        // Reset common introspection caches in Spring's core, since we
        // might not ever need metadata for singleton beans anymore...
        resetCommonCaches();
      }
    }
  }

从注释上看 invokeBeanFactoryPostProcessors(beanFactory);是一个上下文中调用注册为bean的工厂处理器

这章我们关注点就在这里

  protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

    // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
    // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
    if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
  }

PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors这里面调用了

BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry

BeanDefinitionRegistryPostProcessor是个接口，我们关注的主要实现是ConfigurationClassPostProcessor

@Override
  public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    int registryId = System.identityHashCode(registry);
    if (this.registriesPostProcessed.contains(registryId)) {
      throw new IllegalStateException(
          "postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
    }
    if (this.factoriesPostProcessed.contains(registryId)) {
      throw new IllegalStateException(
          "postProcessBeanFactory already called on this post-processor against " + registry);
    }
    this.registriesPostProcessed.add(registryId);

    processConfigBeanDefinitions(registry);
  }

里面有这么个方法，从名字上可以猜到应该是bean的定义

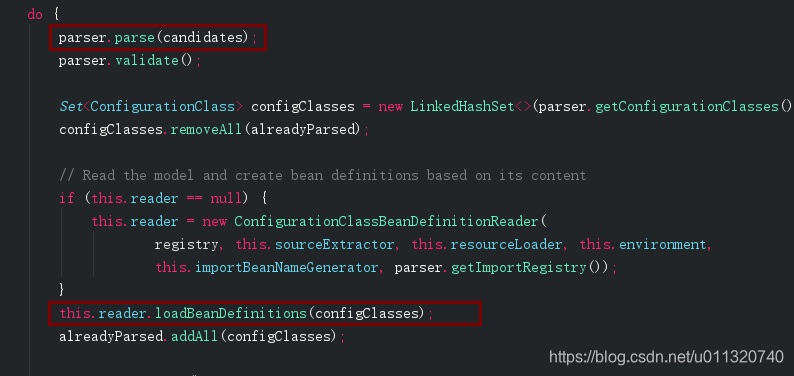

接着往processConfigBeanDefinitions(BeanDefinitionRegistry registry)里走，这里面ConfigurationClassParser.parse()和loadBeanDefinitions,从名字我们就可以猜到是解析和加载bean定义

我们先进到parse方法进去看看究竟

接着走ConfigurationClassParser.processConfigurationClass->ConfigurationClassParser.doProcessConfigurationClass

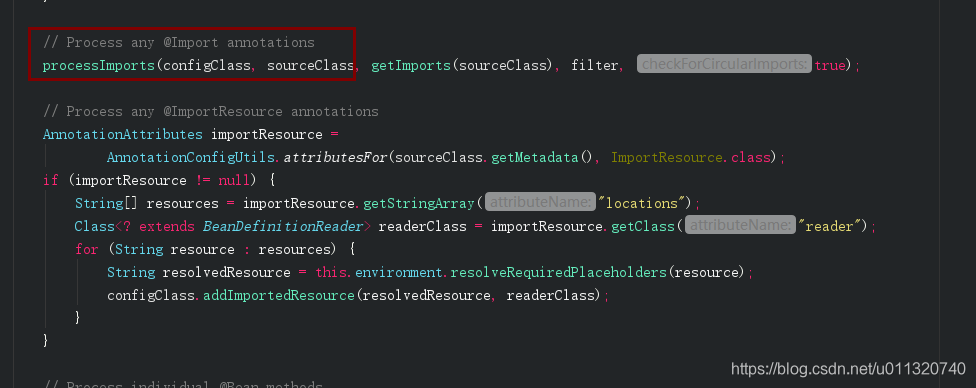

doProcessConfigurationClass方法里面有着怎么一段process any @import annotations

从这里我们可以看到熟悉的@import,明显这里专门处理import相关，我进去瞧瞧

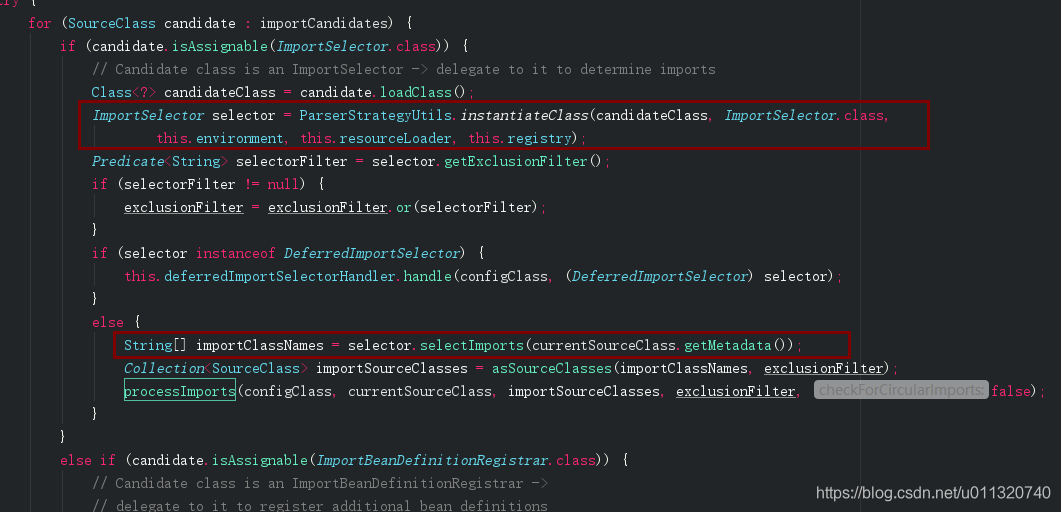

进去之后我们终于发现，咦，就在这里调用了我们上一章实现的selectImports

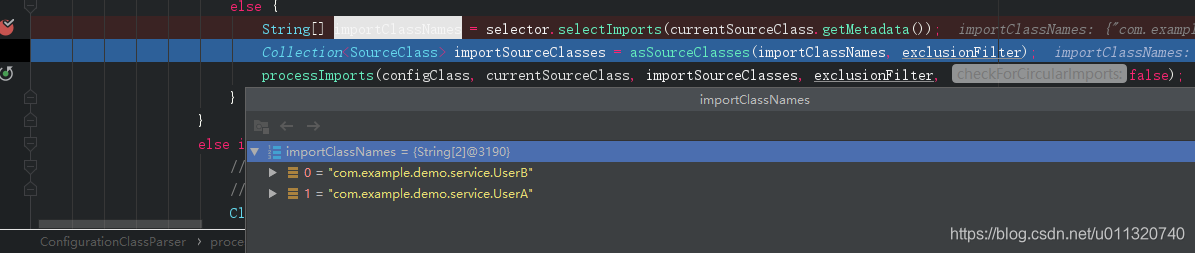

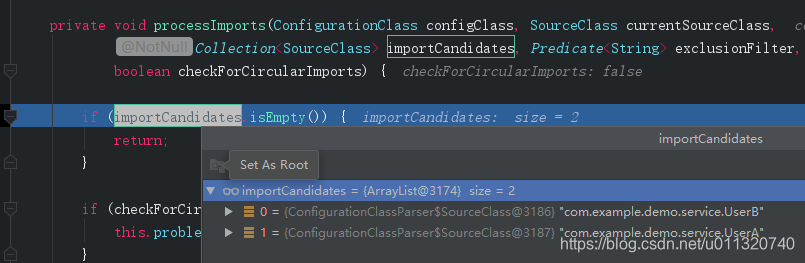

debug进来可以看到我们定义的UserA和UserB

这段processImports是个递归操作，拿到我们定义的UserA和UserB之后接着继续递归传进来

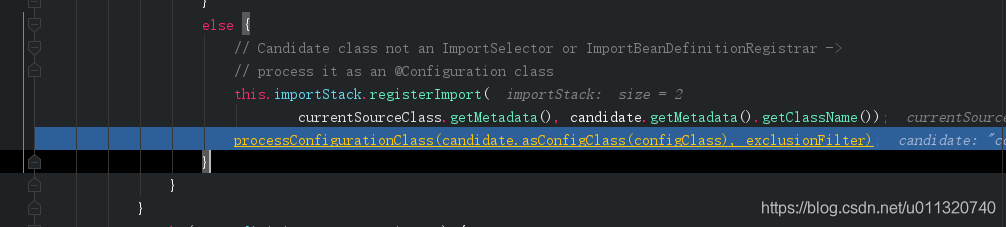

递归进来之后再调用ConfigurationClassParser.processConfigurationClass

protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
    if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
      return;
    }

    ConfigurationClass existingClass = this.configurationClasses.get(configClass);
    if (existingClass != null) {
      if (configClass.isImported()) {
        if (existingClass.isImported()) {
          existingClass.mergeImportedBy(configClass);
        }
        // Otherwise ignore new imported config class; existing non-imported class overrides it.
        return;
      }
      else {
        // Explicit bean definition found, probably replacing an import.
        // Let's remove the old one and go with the new one.
        this.configurationClasses.remove(configClass);
        this.knownSuperclasses.values().removeIf(configClass::equals);
      }
    }

    // Recursively process the configuration class and its superclass hierarchy.
    SourceClass sourceClass = asSourceClass(configClass, filter);
    do {
      sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
    }
    while (sourceClass != null);

    this.configurationClasses.put(configClass, configClass);
  }

然后将configClass放入到configurationClasses这个map里面去：this.configurationClasses.put(configClass, configClass);

好了我们接着回到ConfigurationClassPostProcessor.processConfigBeanDefinitions

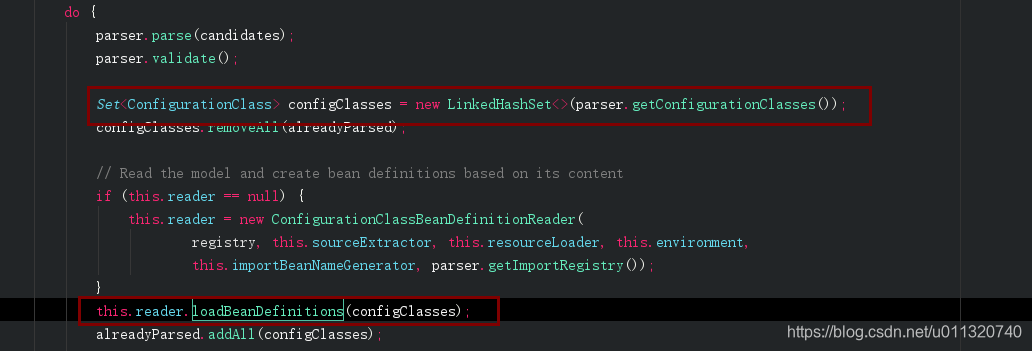

前面parse解析完的类放在了configurationClasses里面，现在我们parser.getConfigurationClasses获取出来接着进行bean定义，也就是loadBeanDefinitions

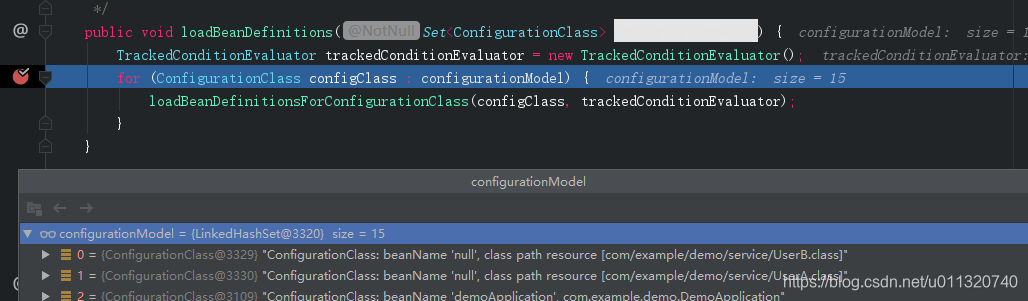

接着循环所有configclass调用loadBeanDefinitionsForConfigurationClass

private void loadBeanDefinitionsForConfigurationClass(
      ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {

    if (trackedConditionEvaluator.shouldSkip(configClass)) {
      String beanName = configClass.getBeanName();
      if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) {
        this.registry.removeBeanDefinition(beanName);
      }
      this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName());
      return;
    }

    if (configClass.isImported()) {
      registerBeanDefinitionForImportedConfigurationClass(configClass);
    }
    for (BeanMethod beanMethod : configClass.getBeanMethods()) {
      loadBeanDefinitionsForBeanMethod(beanMethod);
    }

    loadBeanDefinitionsFromImportedResources(configClass.getImportedResources());
    loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars());
  }

进入这里调用registerBeanDefinitionForImportedConfigurationClass进去bean的注册

接着我们继续跟进去

  private void registerBeanDefinitionForImportedConfigurationClass(ConfigurationClass configClass) {
    AnnotationMetadata metadata = configClass.getMetadata();
    AnnotatedGenericBeanDefinition configBeanDef = new AnnotatedGenericBeanDefinition(metadata);

    ScopeMetadata scopeMetadata = scopeMetadataResolver.resolveScopeMetadata(configBeanDef);
    configBeanDef.setScope(scopeMetadata.getScopeName());
    String configBeanName = this.importBeanNameGenerator.generateBeanName(configBeanDef, this.registry);
    AnnotationConfigUtils.processCommonDefinitionAnnotations(configBeanDef, metadata);

    BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(configBeanDef, configBeanName);
    definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
    this.registry.registerBeanDefinition(definitionHolder.getBeanName(), definitionHolder.getBeanDefinition());
    configClass.setBeanName(configBeanName);

    if (logger.isTraceEnabled()) {
      logger.trace("Registered bean definition for imported class '" + configBeanName + "'");
    }
  }

this.registry.registerBeanDefinition(definitionHolder.getBeanName(), definitionHolder.getBeanDefinition());

从这里可以发现其实就是创建了BeanDefinitionHolder，然后将BeanDefinition传入DefaultListableBeanFactory.registerBeanDefinition，我们进到registerBeanDefinition这个方法里面会发现

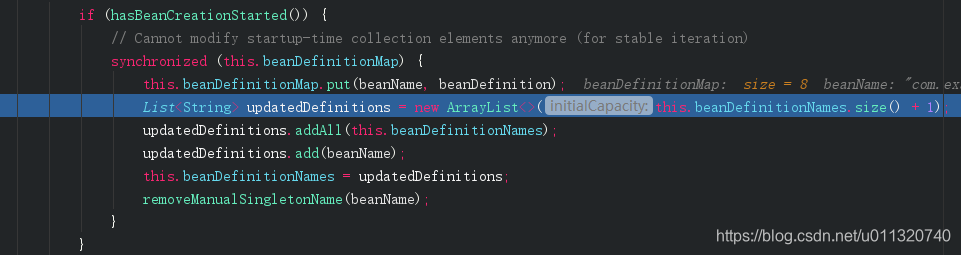

这里将BeanDefinition放入beanDefinitionMap里面，这样我们就完成了bean的注册工作啦

到这里，我们应该还是有个疑问就是：这个放入beanDefinitionMap的类信息，什么时候进行实现new UserA()操作呀？

下一章我们就这个问题再深入探讨
