Calico-Node Pod 启动时 READY 状态卡在 0/1 排查流程
Calico Node 启动失败
故障表现
发现请求集群 demo 入口时卡住，并且对应 Pod 没有新的日志输出
root@ce-demo-1:~# kubectl get pods -n deepflow-otel-spring-demo -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
db-demo-0 1/1 Running 0 2d1h 10.244.81.203 ce-demo-3 <none> <none>
nacos-0 1/1 Running 0 2d1h 10.244.142.37 ce-demo-1 <none> <none>
svc-item-588b4cfcc9-zkvpd 1/1 Running 0 2d1h 10.244.142.36 ce-demo-1 <none> <none>
svc-order-5f67c67555-ds7bj 1/1 Running 0 2d1h 10.244.228.140 ce-demo-2 <none> <none>
svc-stock-b9df64d4b-bsxs5 1/1 Running 0 2d1h 10.244.142.38 ce-demo-1 <none> <none>
svc-user-7c5c7b488f-4zjdc 1/1 Running 0 2d1h 10.244.81.204 ce-demo-3 <none> <none>
web-shop-5d495d8cbc-lnpxq 1/1 Running 0 2d1h 10.244.228.139 ce-demo-2 <none> <none>
root@ce-demo-1:~# curl 10.244.228.139:8090/shop/full-test
## 等待很久后报错
curl: (28) Failed to connect to 10.244.228.139 port 8090 after 133345 ms: Could not connect to server
## 此处新开终端查看日志后再次请求,发现没有新的日志
root@ce-demo-1:~# kubectl logs -f -n deepflow-otel-spring-demo web-shop-5d495d8cbc-lnpxq --tail 20
排查流程

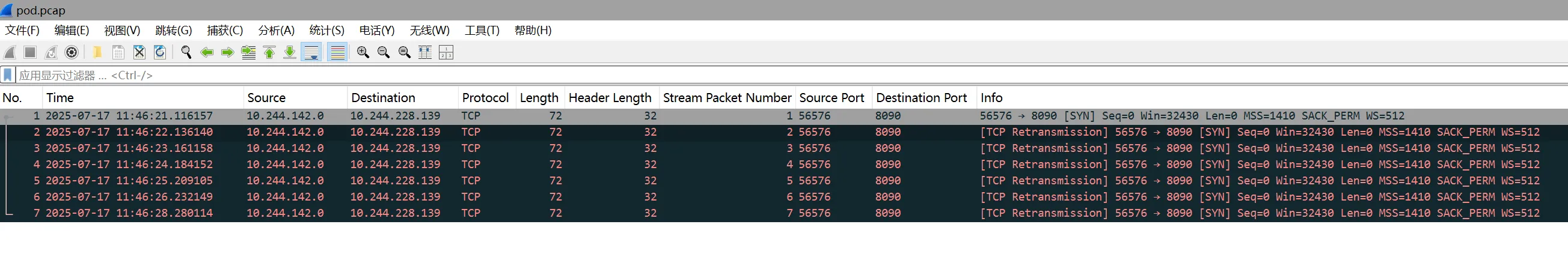

- 在客户端抓包发现请求后一直建连失败，从客户端 IP 看出，识别到 Server IP 是 Pod IP，所以直接走了 calico 网口转发
tcpdump -v -i any dst 10.244.228.139 -w pod.pcap
root@ce-demo-1:~# ip a s vxlan.calico
30499: vxlan.calico: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default qlen 1000
link/ether 66:e0:bb:93:52:4f brd ff:ff:ff:ff:ff:ff
inet 10.244.142.0/32 scope global vxlan.calico
valid_lft forever preferred_lft forever
- 由上数据怀疑是 ce-demo-2 节点 calico 问题，查看后发现对应节点 calico-node 运行异常：
此组件作用可参考官网 calico/node 配置说明 和 calico 组件架构
root@ce-demo-1:~# kubectl get pods -n calico-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-86596856c4-w7nsl 1/1 Running 0 2d9h 10.244.228.132 ce-demo-2 <none> <none>
calico-node-n2b4b 1/1 Running 0 2d9h 10.51.0.102 ce-demo-3 <none> <none>
calico-node-p4k7s 1/1 Running 0 2d9h 10.51.0.100 ce-demo-1 <none> <none>
calico-node-sbxrk 0/1 Running 0 44h 10.51.0.101 ce-demo-2 <none> <none>
calico-typha-75c74d6ffd-6xq2j 1/1 Running 0 2d9h 10.51.0.100 ce-demo-1 <none> <none>
calico-typha-75c74d6ffd-fkf6b 1/1 Running 0 2d9h 10.51.0.102 ce-demo-3 <none> <none>
csi-node-driver-72pkg 2/2 Running 0 2d9h 10.244.142.1 ce-demo-1 <none> <none>
csi-node-driver-8sjvc 2/2 Running 0 2d9h 10.244.81.195 ce-demo-3 <none> <none>
csi-node-driver-skj6v 2/2 Running 0 2d9h 10.244.228.130 ce-demo-2 <none> <none>
- Calico 启动 calico-node 时，会根据主机的网络接口自动选择一个 IP 地址作为节点的 IPv4Address，默认是自动探测（autodetect）。查看三台节点对应的值，发现此 ip 不是对应节点的 ens160：
root@ce-demo-1:~# kubectl get node -o yaml | grep 'IPv4Address'
projectcalico.org/IPv4Address: 10.51.0.100/24
projectcalico.org/IPv4Address: 10.4.0.1/24
projectcalico.org/IPv4Address: 10.51.0.102/24
- ce-demo-2 节点查看 10.1.0.1 对应 ip 网络设备的详细信息，可以看出这是一个网桥（bridge）设备，用于容器间通信/外部访问
root@ce-demo-2:~# ip address show nerdctl0
686: nerdctl0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
link/ether b2:90:e4:5b:f4:d1 brd ff:ff:ff:ff:ff:ff
inet 10.4.0.1/24 brd 10.4.0.255 scope global nerdctl0
valid_lft forever preferred_lft forever
root@ce-demo-2:~# ip -d link show nerdctl0
686: nerdctl0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether b2:90:e4:5b:f4:d1 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 68 maxmtu 65535
bridge forward_delay 1500 hello_time 200 max_age 2000 ageing_time 30000 stp_state 0 priority 32768 vlan_filtering 0 vlan_protocol 802.1Q bridge_id 8000.b2:90:e4:5b:f4:d1 designated_root 8000.b2:90:e4:5b:f4:d1 root_port 0 root_path_cost 0 topology_change 0 topology_change_detected 0 hello_timer 0.00 tcn_timer 0.00 topology_change_timer 0.00 gc_timer 240.02 vlan_default_pvid 1 vlan_stats_enabled 0 vlan_stats_per_port 0 group_fwd_mask 0 group_address 01:80:c2:00:00:00 mcast_snooping 1 no_linklocal_learn 0 mcast_vlan_snooping 0 mcast_router 1 mcast_query_use_ifaddr 0 mcast_querier 0 mcast_hash_elasticity 16 mcast_hash_max 4096 mcast_last_member_count 2 mcast_startup_query_count 2 mcast_last_member_interval 100 mcast_membership_interval 26000 mcast_querier_interval 25500 mcast_query_interval 12500 mcast_query_response_interval 1000 mcast_startup_query_interval 3125 mcast_stats_enabled 0 mcast_igmp_version 2 mcast_mld_version 1 nf_call_iptables 0 nf_call_ip6tables 0 nf_call_arptables 0 addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535 tso_max_size 524280 tso_max_segs 65535 gro_max_size 65536
root@ce-demo-2:~# brctl show nerdctl0
bridge name bridge id STP enabled interfaces
nerdctl0 8000.b290e45bf4d1 no veth76f5219b
- Calico 默认配置通过 first-found 模式（从所有接口中第一个有 IP 的接口选一个）
从 ce-demo-2 节点 calico-node log time 看出，首先看到的是 nerdctl0：
接口遍历顺序由宿主机内核/Netlink 返回的接口顺序决定，常见情况下与接口 ifindex（创建顺序/系统里登记的编号）相关；如果 nerdctl0 在系统里排序靠前（例如创建得更早，或者 ifindex 更靠前），first-found 就会先看到它。
root@ce-demo-1:~# kubectl describe daemonset calico-node -n calico-system | grep "IP_AUTODETECTION_METHOD"
IP_AUTODETECTION_METHOD: first-found
root@ce-demo-1:~# kubectl logs -n calico-system calico-node-sbxrk -c calico-node | grep -i 'nerdctl0'
2025-07-15 07:51:58.079 [INFO][9] startup/autodetection_methods.go 103: Using autodetected IPv4 address on interface nerdctl0: 10.4.0.1/24
2025-07-15 07:52:02.351 [INFO][87] felix/int_dataplane.go 1431: Linux interface state changed. ifIndex=686 ifaceName="nerdctl0" state="up"
2025-07-15 07:52:02.351 [INFO][87] felix/int_dataplane.go 1475: Linux interface addrs changed. addrs=set.Set{10.4.0.1} ifaceName="nerdctl0"
2025-07-15 07:52:02.351 [INFO][87] felix/int_dataplane.go 2098: Received interface update msg=&intdataplane.ifaceStateUpdate{Name:"nerdctl0", State:"up", Index:686}
2025-07-15 07:52:02.351 [INFO][87] felix/int_dataplane.go 2125: Received interface addresses update msg=&intdataplane.ifaceAddrsUpdate{Name:"nerdctl0", Addrs:set.Typed[string]{"10.4.0.1":set.v{}}}
2025-07-15 07:52:02.351 [INFO][87] felix/hostip_mgr.go 84: Interface addrs changed. update=&intdataplane.ifaceAddrsUpdate{Name:"nerdctl0", Addrs:set.Typed[string]{"10.4.0.1":set.v{}}}
2025-07-15 07:52:02.413 [INFO][87] felix/vxlan_mgr.go 597: VXLAN device parent changed from "" to "nerdctl0" ipVersion=0x4
root@ce-demo-1:~# kubectl logs -n calico-system calico-node-sbxrk -c calico-node | grep -i 'ens160'
2025-07-15 07:52:02.348 [INFO][87] felix/int_dataplane.go 1431: Linux interface state changed. ifIndex=2 ifaceName="ens160" state="up"
2025-07-15 07:52:02.348 [INFO][87] felix/int_dataplane.go 1475: Linux interface addrs changed. addrs=set.Set{10.51.0.101} ifaceName="ens160"
2025-07-15 07:52:02.349 [INFO][87] felix/int_dataplane.go 2098: Received interface update msg=&intdataplane.ifaceStateUpdate{Name:"ens160", State:"up", Index:2}
2025-07-15 07:52:02.349 [INFO][87] felix/int_dataplane.go 2125: Received interface addresses update msg=&intdataplane.ifaceAddrsUpdate{Name:"ens160", Addrs:set.Typed[string]{"10.51.0.101":set.v{}}}
2025-07-15 07:52:02.349 [INFO ][87] felix/hostip_mgr.go 84: Interface addrs changed. update=&intdataplane.ifaceAddrsUpdate{Name:"ens160", Addrs:set.Typed[string]{"10.51.0.101":set.v{}}}
2025-07-16 06:17:42.649 [INFO][87] felix/int_dataplane.go 1475: Linux interface addrs changed. addrs=set.Set{10.51.0.101,fe80::20c:29ff:febb:1bdc} ifaceName="ens160"
2025-07-16 06:17:42.649 [INFO][87] felix/int_dataplane.go 2125: Received interface addresses update msg=&intdataplane.ifaceAddrsUpdate{Name:"ens160", Addrs:set.Typed[string]{"10.51.0.101":set.v{}, "fe80::20c:29ff:febb:1bdc":set.v{}}}
2025-07-16 06:17:42.649 [INFO][87] felix/hostip_mgr.go 84: Interface addrs changed. update=&intdataplane.ifaceAddrsUpdate{Name:"ens160", Addrs:set.Typed[string]{"10.51.0.101":set.v{}, "fe80::20c:29ff:febb:1bdc":set.v{}}}
- 由于 Calico 官方文档中也有注明，first-found 模式为：使用第一个接口（不包括 Docker 网桥等本地接口）上的第一个有效 IP 地址，建议根据不同需求选择不同配置方式，本文采用的指定接口方式。
还需要额外解释下，first-found 文档中描述的 "the first valid IP address on the first interface (excluding local interfaces such as the docker bridge)." 只是举例，他的默认排除项中并不包括 nerdctl0，所以它会被当作一个合法候选接口。
## 注：需要看 Calico 部署方式，当前环境通过 Calico Tigera Operator 自定义资源部署，无法直接更改 DaemonSet
root@ce-demo-1:~# kubectl edit daemonset calico-node -n calico-system
## 找到或添加这个变量
- name: IP_AUTODETECTION_METHOD
## 由于几台机器网卡名称都是 ens160,此处写网卡名或正则都可以
value: interface=ens.*
需要更改 Calico 的自定义资源参数，官网链接搜索
nodeAddressAutodetectionV4后有具体参数：
root@ce-demo-1:~# kubectl get Installation
NAME AGE
default 2d10h
root@ce-demo-1:~# kubectl edit installation default
nodeAddressAutodetectionV4:
## 默认使用此配置
##firstFound: true
## 删掉后添加指定接口:
interface: ens160
## 查看更新结果
root@ce-demo-1:~# kubectl get pods -n calico-system -o wide | grep calico-node
calico-node-4fndv 1/1 Running 0 104s 10.51.0.101 ce-demo-2 <none> <none>
calico-node-8n5qr 1/1 Running 0 39s 10.51.0.100 ce-demo-1 <none> <none>
calico-node-rxhsf 1/1 Running 0 72s 10.51.0.102 ce-demo-3 <none> <none>
root@ce-demo-1:~# kubectl describe daemonset -n calico-system calico-node | grep "IP_AUTODETECTION_METHOD"
IP_AUTODETECTION_METHOD: interface=ens160
- 验证更新后效果
root@ce-demo-1:~# curl 10.244.228.139:8090/shop/full-test ; echo
{"count":1,"elapsed":209,"elapsedAvg":209,"startAt":"2025-07-17 13:33:55.116","stopAt":"2025-07-17 13:33:55.325","success":1,"failed":0}
