SpringBoot集成springfox-swagger2构建restful API

一、在pom.xml中引用相关依赖

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.4.0</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.4.0</version>
</dependency>

二、创建swagger的配置类Swagger2Configuration.java；使用new ApiInfoBuilder()进行构造，需要什么参数就添加什么参数。当然也可以什么都添加。

package com.meritdata.swagger.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2Configuration {

    @Bean
    public Docket buildDocket(){
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(buildApiInf())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.meritdata.swagger.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo buildApiInf(){
        return new ApiInfoBuilder()
                    .build();
        /*return new ApiInfoBuilder()
                .title("大标题")
                .description("springboot swagger2")
                .termsOfServiceUrl("http://blog.csdn.net/u0123网址链接")
                .contact(new Contact("xxxx", "http://blog.csdn.net/u0123", "bokeyuan@163.com"))
                .build();*/
    }

}

三、在Controller添加相关的注解。

　常用的注解如下：
　　　- @Api()用于类名
　　　- @ApiOperation()用于方法名
　　　- @ApiParam()用于参数说明
　　　- @ApiModel()用于实体类
　　　- @ApiModelProperty用于实体类属性
　　　更加详细的含义可以参考官方说明wiki

　在controller包下创建类UserController.java；在使用对象作为参数时，可以在对象上添加相应的注解

package com.meritdata.swagger.controller;

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;

import javax.annotation.Resource;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import com.meritdata.swagger.model.User;
import com.meritdata.swagger.service.UserService;


@Api(value="用户controller",description="用户操作",tags={"用户操作接口"})
@RestController
public class UserController {

    @Resource
    private UserService userService;

    @ApiOperation("获取用户信息")
    @GetMapping("/getUserInfo")
    public User getUserInfo(@ApiParam(name="id",value="用户id",required=true) Long id,@ApiParam(name="username",value="用户名") String username) {
        User user = userService.getUserInfo();
        return user;
    }


    @ApiOperation("更改用户信息")
    @PostMapping("/updateUserInfo")
    public int updateUserInfo(@RequestBody @ApiParam(name="用户对象",value="传入json格式",required=true) User user){
        int num = userService.updateUserInfo(user);
        return num;
    }

    @ApiOperation("添加用户信息")
    @PostMapping("/saveUser")
    public String saveUser(@RequestBody @ApiParam(name="user",value="json fromat",required=true) User user) {
        userService.saveUser(user);
        return "success";
    }
}

package com.meritdata.swagger.model;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;

import java.util.List;

@ApiModel(description="用户对象user")
public class User {
    @ApiModelProperty(value="用户名",name="username")
    private String username;
    @ApiModelProperty(value="状态",name="state",required=true)
    private Integer state;
    private String password;
    private String nickName;
    private Integer isDeleted;

    private String[] ids;
    private List<String> idList;

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public Integer getState() {
        return state;
    }

    public void setState(Integer state) {
        this.state = state;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String[] getIds() {
        return ids;
    }

    public void setIds(String[] ids) {
        this.ids = ids;
    }

    public List<String> getIdList() {
        return idList;
    }

    public void setIdList(List<String> idList) {
        this.idList = idList;
    }

    public String getNickName() {
        return nickName;
    }

    public void setNickName(String nickName) {
        this.nickName = nickName;
    }

    public Integer getIsDeleted() {
        return isDeleted;
    }

    public void setIsDeleted(Integer isDeleted) {
        this.isDeleted = isDeleted;
    }


}

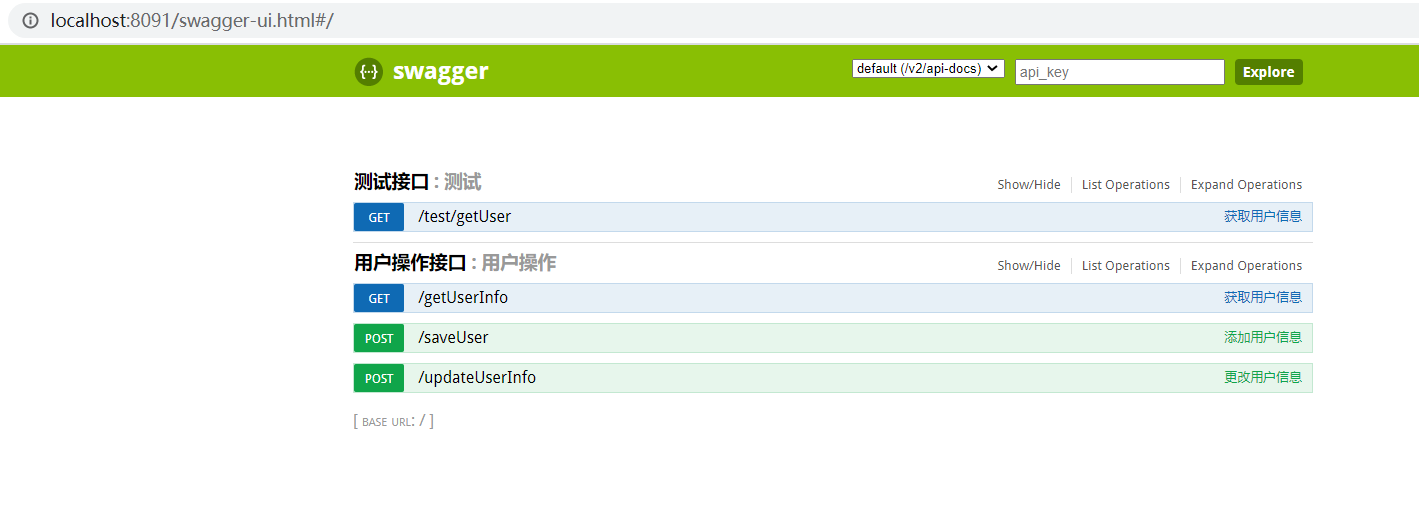

四、在浏览器上输入url: http://{ip}:{port}/swagger-ui.html#/
