Tutorial 4_抽象工厂工厂模式

[实验任务一]：人与肤色

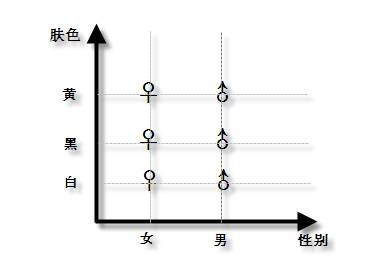

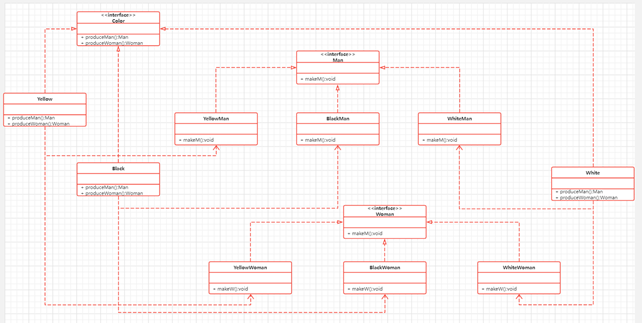

使用抽象工厂模式，完成下述产品等级结构：



2.1  Man.java
package chouxiang;
/*
 * 抽象产品类Man
 */
public interface Man {

    public void makeM();

}
2.2  WhiteMan.java
package chouxiang;

public class WhiteMan implements Man {
    public void makeM() {
        System.out.println("我是白种男人！");
    }

}
2.3  YelloeMan.java
package chouxiang;

public class YellowMan implements Man {
    public void makeM() {
        System.out.println("我是黄种男人！");
    }

}
2.4  BlackMan.java
package chouxiang;

public class BlackMan implements Man {
    @Override
    public void makeM() {
        System.out.println("我是黑种男人！");
    }

}
2.5  Woman.java
package chouxiang;
/*
 * 抽象产品类Woman
 */
public interface Woman {

    public void makeW();
}
2.6  WhiteWoman.java
package chouxiang;

public class WhiteWoman implements Woman {
    @Override
    public void makeW() {
        System.out.println("我是白种女人！");
    }

}
2.7  YellowWoman.java
package chouxiang;

public class YellowWoman implements Woman {
    public void makeW() {
        System.out.println("我是黄种女人！");
    }

}
2.8  BlackWoman.java
package chouxiang;

public class BlackWoman implements Woman {
    @Override
    public void makeW() {
        System.out.println("我是黑种女人！");
    }

}
2.9  Color.java
package chouxiang;
/*
 * 抽象工厂类 （肤色）
 */
public interface Color {

 public Man produceMan();
 public Woman produceWoman();

}
2.10  White.java
package chouxiang;
/*
 * 具体工厂类 白色肤色
 */
public class White implements Color{
    @Override
    public Man produceMan() {
        return new WhiteMan();
    }
    @Override
    public Woman produceWoman() {
        return new WhiteWoman();
    }
}
2.11  Yellow.java
package chouxiang;
/*
 * 具体工厂类 黄色肤色
 */
public class Yellow implements Color{
    @Override
    public Man produceMan() {
        return new YellowMan();
    }
    @Override
    public Woman produceWoman() {
        return new YellowWoman();
    }
}
2.12  Black.java
package chouxiang;
/*
 * 具体工厂类 黑色肤色
 */
public class Black implements Color{
    @Override
    public Man produceMan() {
        return new BlackMan();
    }
    @Override
    public Woman produceWoman() {
        return new BlackWoman();
    }
}
2.13  XMLUtil.java
package chouxiang;

/*
 * 读取XML文件并根据存储在XML文件中的类名获取对应的对象
 */

 import javax.xml.parsers.*;
 import org.w3c.dom.*;
 import java.io.File;

 public class XMLUtil {

     @SuppressWarnings("deprecation")
    public static Object getBean() {

         try {
                 //创建DOM文档对象
                 DocumentBuilderFactory dFactory = DocumentBuilderFactory.newInstance();
                 DocumentBuilder builder = dFactory.newDocumentBuilder();
                 Document doc;
                 doc = builder.parse(new File("src/main/java/chouxiang/config.xml"));

                 //获取包含类名的文本节点
                 NodeList nl = doc.getElementsByTagName("className");
                 Node classNode = nl.item(0).getFirstChild();
                 String cName = classNode.getNodeValue();
                 System.out.println("类名:  "+ cName); //输出类名

                 //通过类名生成实例对象返回
                 Class<?> c = Class.forName("chouxiang."+cName);
                 Object obj = c.newInstance();
                 return obj;
         } catch (Exception e) {
             e.printStackTrace();
             return null;
         }

     }

 }
2.14  Client.java
package chouxiang;
/*
 * 客户端测试类
 */
public class Client {
    public static void main(String[] args) {
        try
        {
            Color color;
            Man man;
            Woman woman;
            color=(Color)XMLUtil.getBean();
            System.out.println(color);
            woman=color.produceWoman();
            woman.makeW();
            man=color.produceMan();
            man.makeM();
       }catch(Exception e){
           System.out.print(e.getMessage());
       }

   }
}
2.15  config.xml
<?xml version="1.0" encoding="UTF-8"?>
 <config>
    <className>Black</className>
</config>
